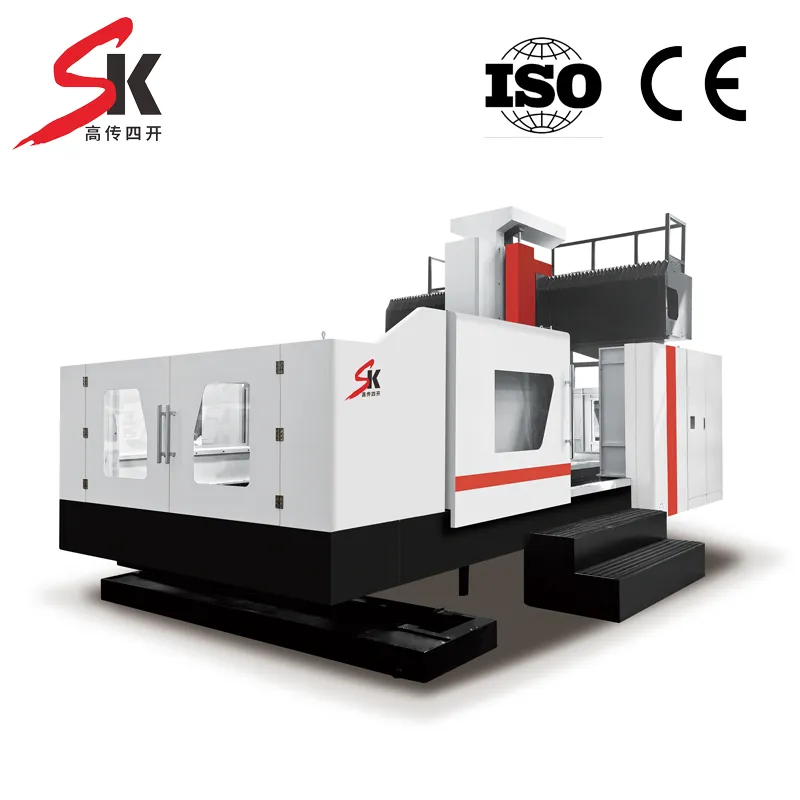

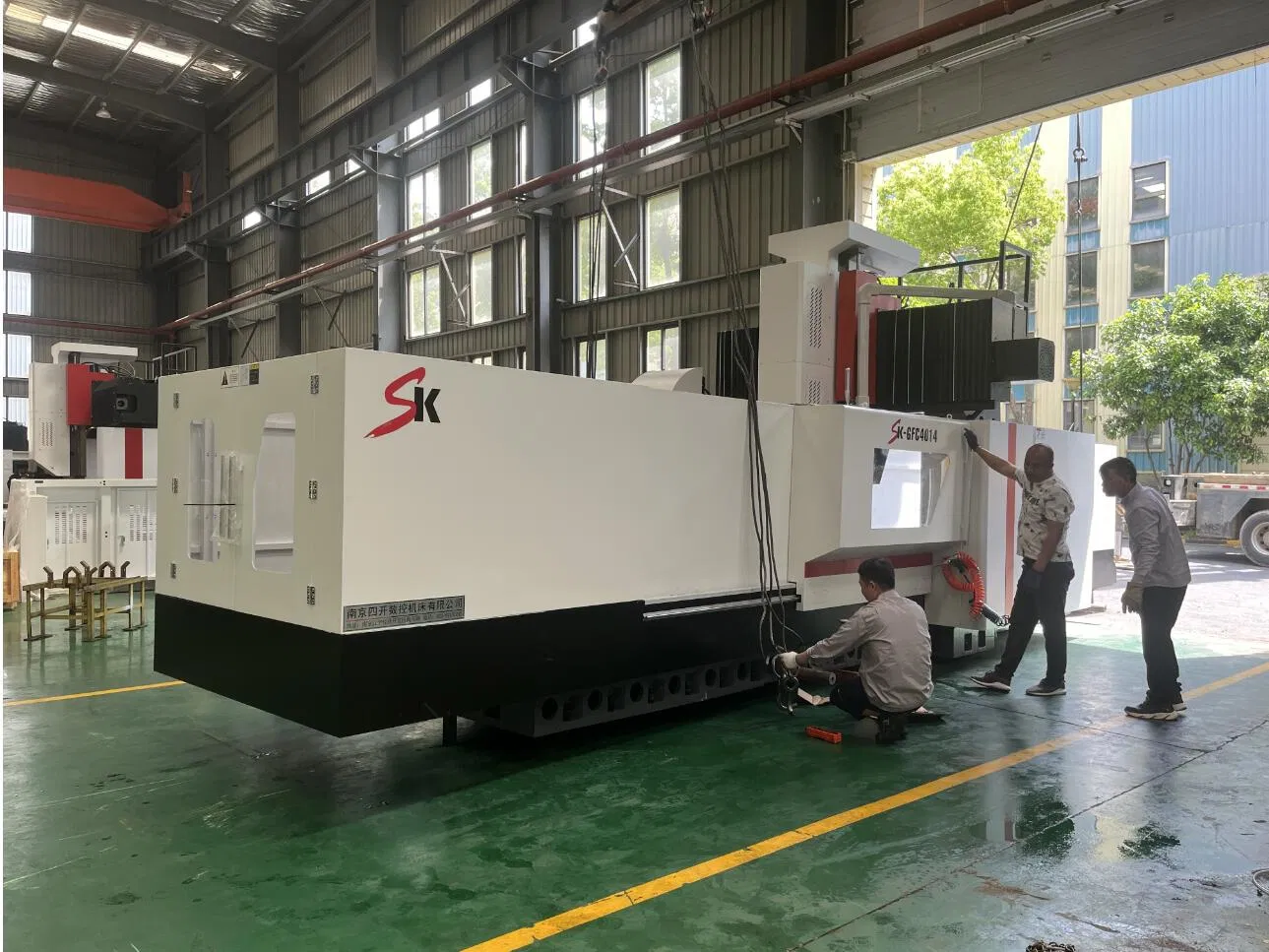

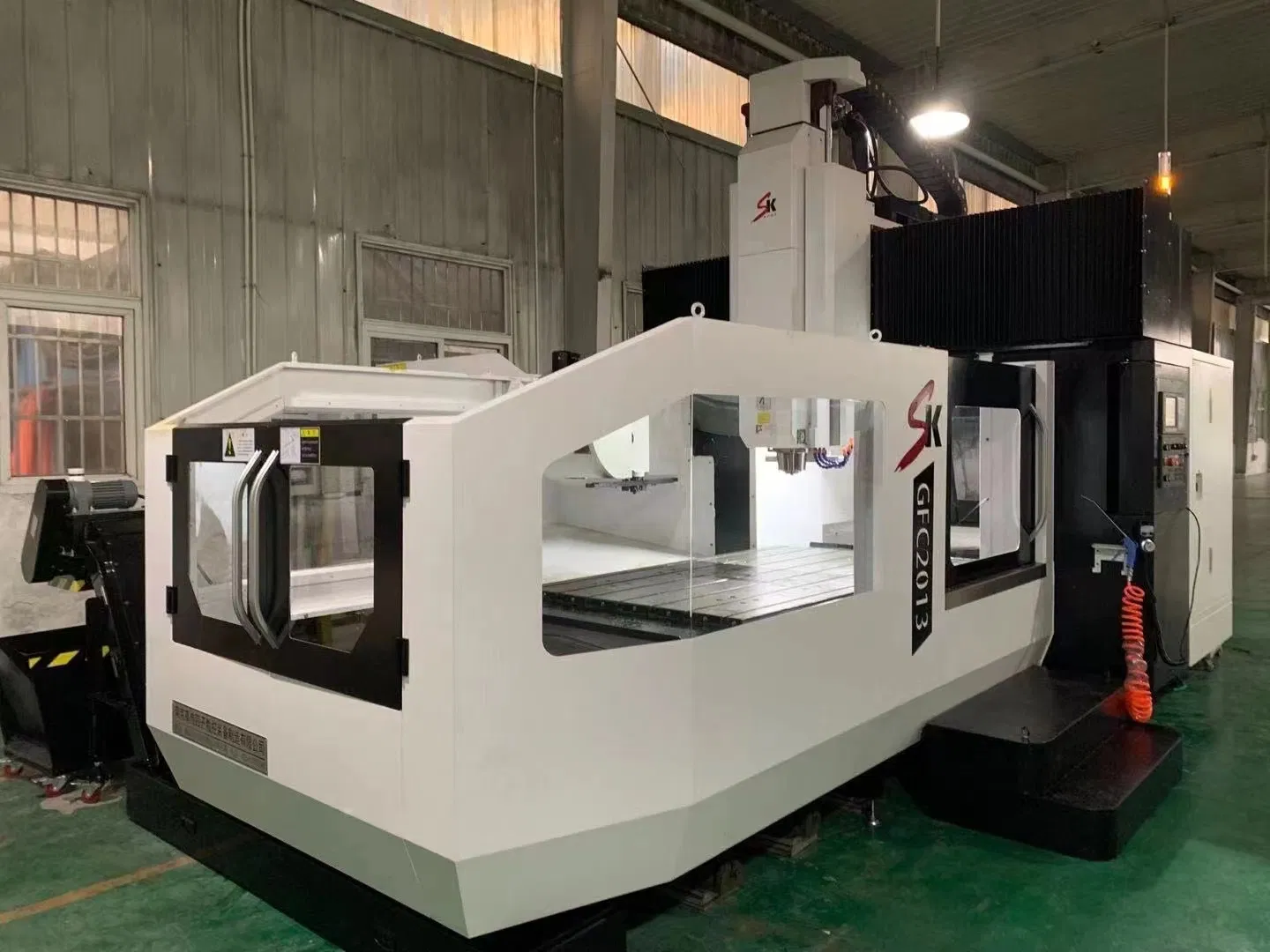

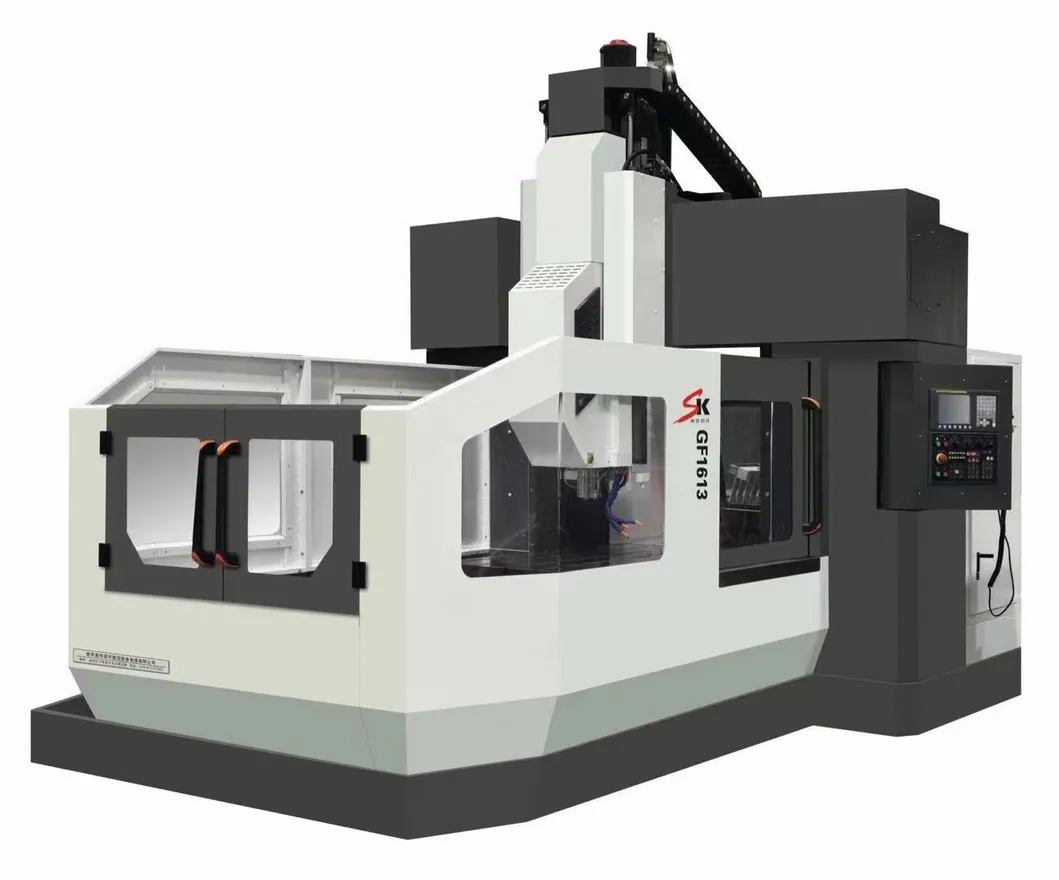

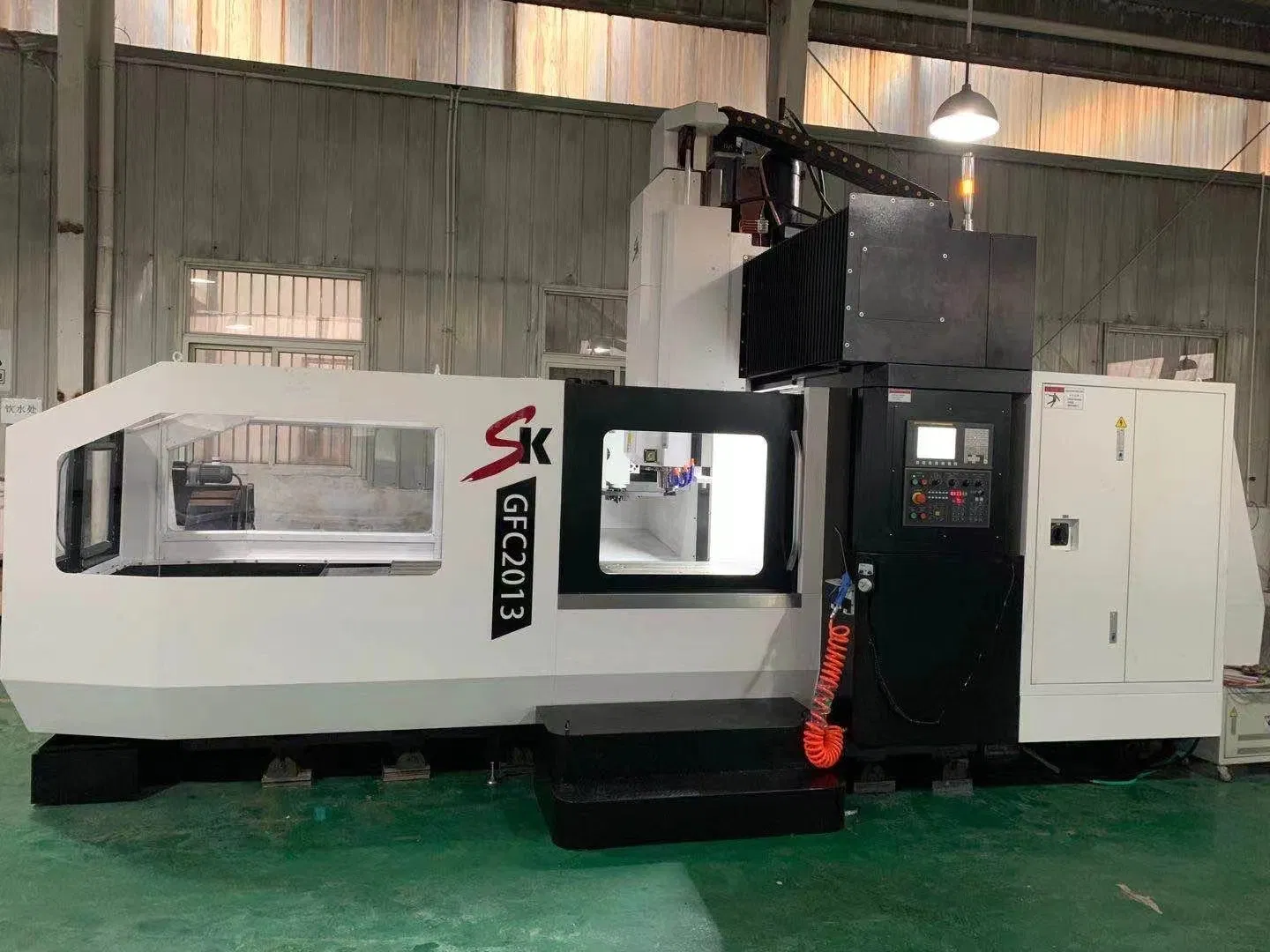

The Professional Gantry Vertical CNC Double Column Metal-Cutting Machining Center stands as a testament to pinnacle engineering and cutting-edge technology. This sophisticated machine is engineered to meet the most demanding industrial applications, delivering unmatched precision, reliability, and efficiency. With its robust structure and advanced CNC capabilities, each cut is executed with utmost accuracy, making it an essential asset for high-performance metalworking operations.

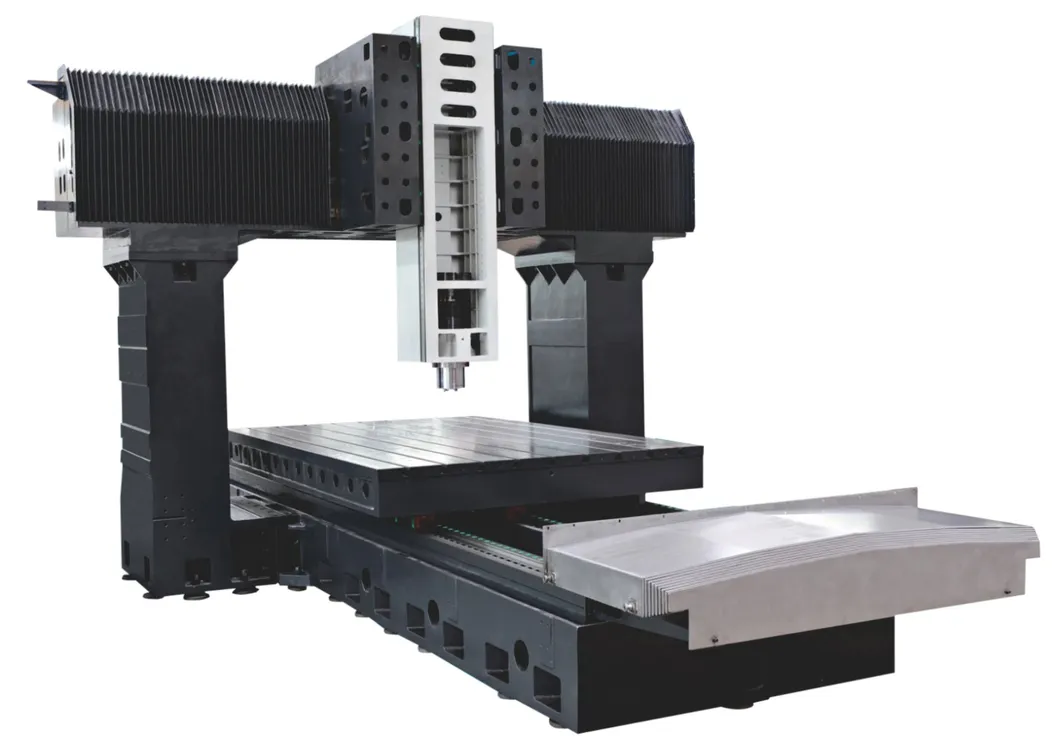

🔹 Outstanding Performance: Crafted from premium-grade resin sand casting with a box-shaped structural design for robustness.
🔹 Stability: Undergoing aging treatment to eliminate internal stress, ensuring long-lasting stability.
🔹 Automatic Tool Change: Arm-type tool change system completes exchanges in approximately 8 seconds, minimized by advanced PLC software.
🔹 Servo System: Servo motors directly drive screw rods via coupling, featuring absolute encoders for pinpoint positioning accuracy.
| Specification | Unit | GF-2214/2514/3014 | GF-2718/3218/4218 | GF-3232/4232/5232 |
|---|---|---|---|---|
| X-axis travel | mm | 2200/2500/3000 | 2700/3200/4200 | 3200/4200/5000 |
| Y-axis travel | mm | 1450 | 2000 | 3300 |
| Z-axis travel | mm | 850 | 1000 | 1250 |
| Spindle speed | rpm | 6000 | 6000 | 6000 |
| Tool capacity | pcs | 24 | 24 | 24 |
| Position accuracy | mm | 0.008 | 0.008 | 0.008 |
| Repeat accuracy | mm | 0.005 | 0.005 | 0.005 |
Training & Installation: Comprehensive support for machine setup and operator training.
After Sales: One-year "three guarantees" service from BL date. Technical support and diagnosis responses provided within 24 hours.
Our Vertical CNC Milling Gantry Center adheres to the highest quality and safety standards, backed by multiple international certifications including ISO and CE.
