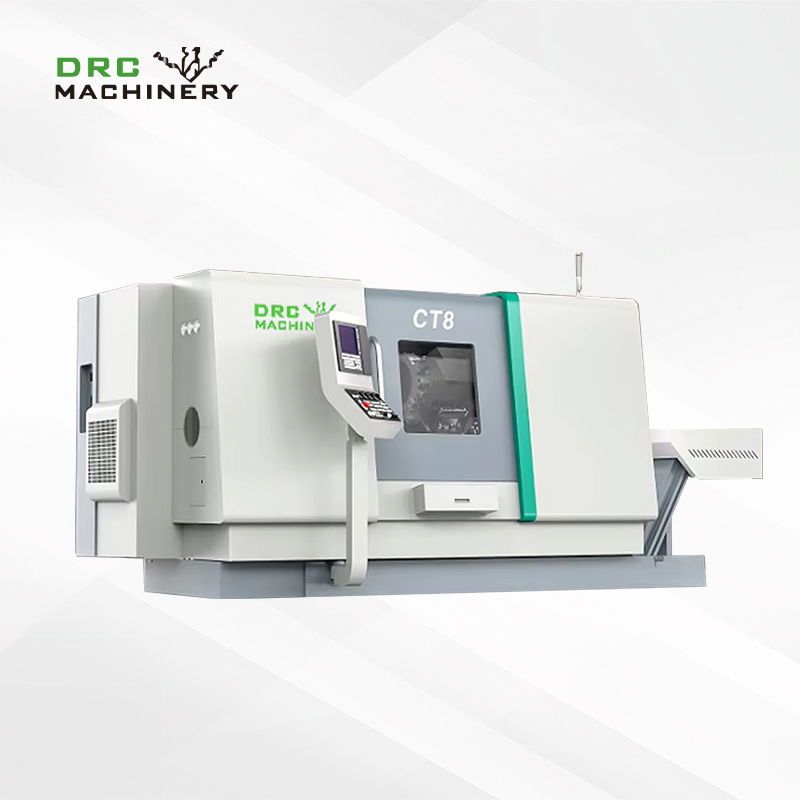

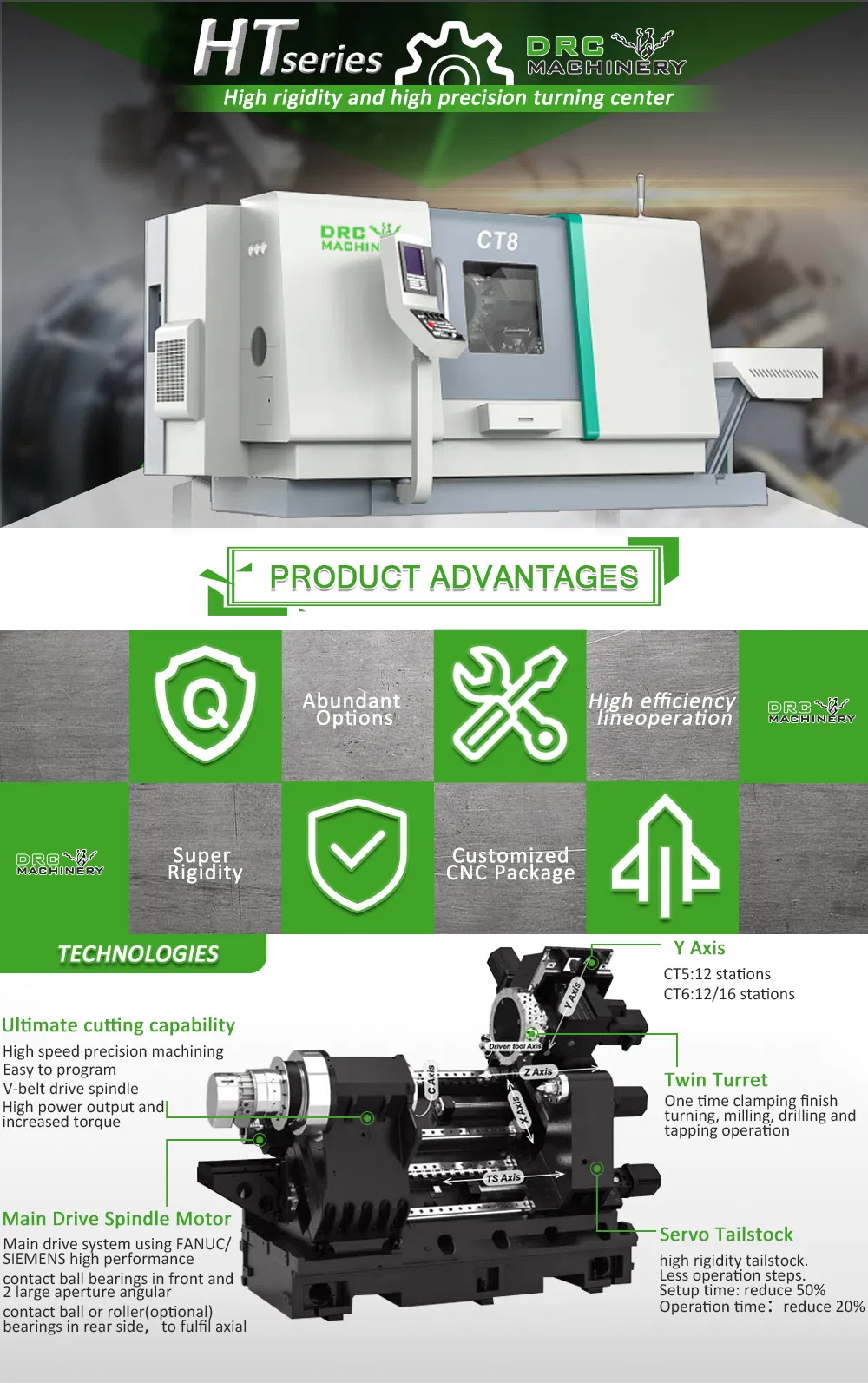

Slant Bed CNC Lathe CT8: A full automatic universal turning center featuring 5-axis live tooling. This four-axis linkage, fully closed-loop CNC machine tool integrates electric and hydraulic systems within a fully enclosed protective cover. The ergonomic swing design of the operating table ensures convenient operation.

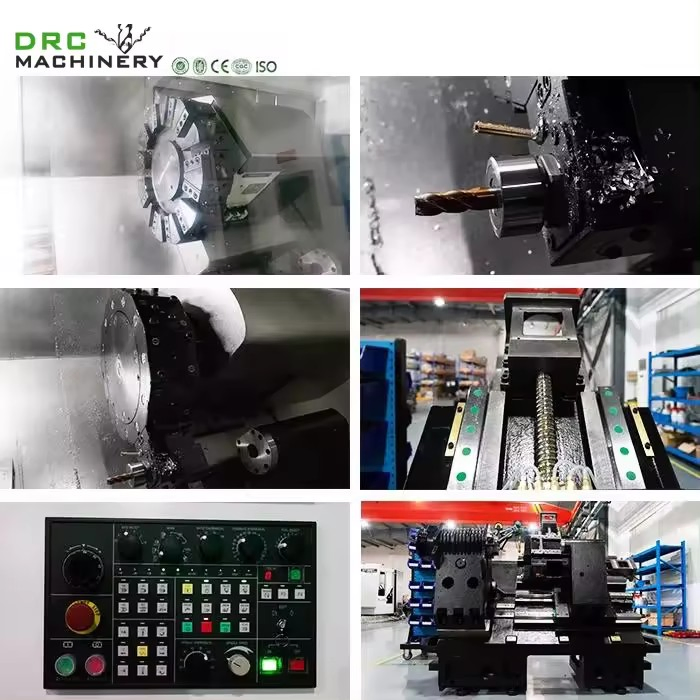

Each servo feed shaft utilizes high-speed silent ball screws and elastic couplings, providing fast movement, low noise, and exceptional positioning accuracy. Equipped with absolute value encoders, the system maintains position information even after power loss, eliminating the need for reference point searching.

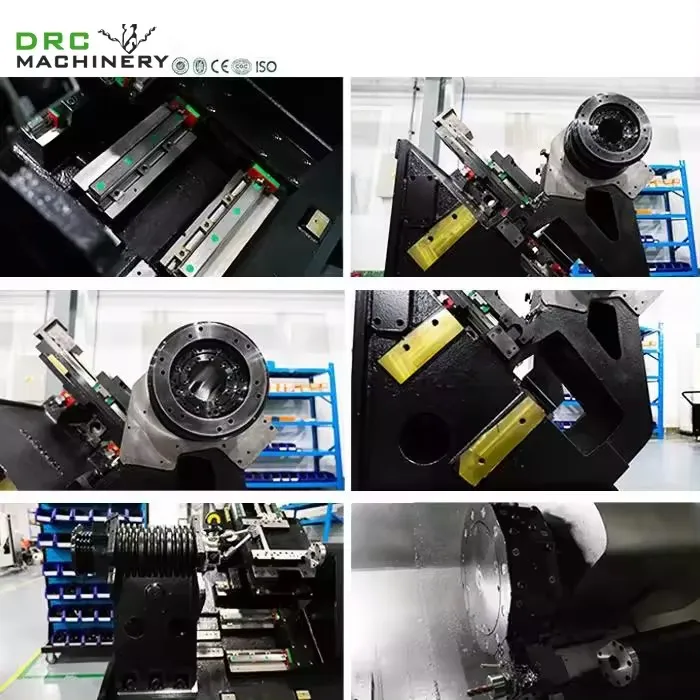

Overall Design: 45° overall slant bed offers compact structure, high rigidity, and smooth chip removal. Rolling guide rails ensure high-speed operation with minimal heat generation.
Spindle System: Driven by a high-performance 11/15kw servo motor. Spindle range 30-4500r/min with high-precision angular contact ball bearings for superior axial and radial support.
Turret & Drive: Features a servo power turret with fast tool change speeds and high reliability. X and Z axes are powered by high-performance servo motors for flexible action.
Main Drive Spindle Motor: High performance servo spindle motor through V-belt transmission. Features a patent design high rigidity spindle structure.

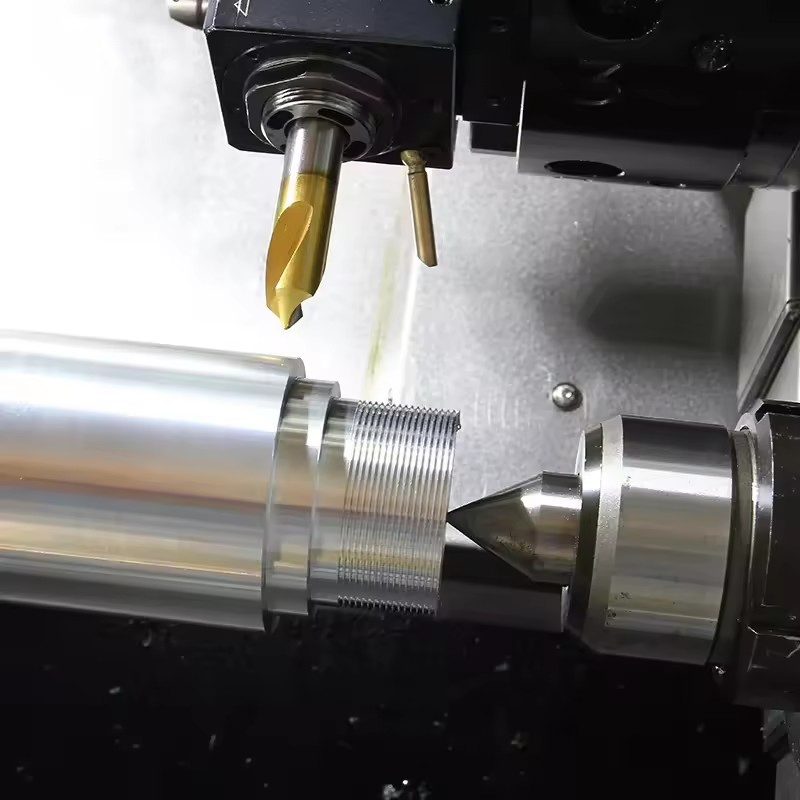

Servo Tailstock: Significantly reduces non-processing time. Programmable pressure settings via codes reduce setup time by up to 50%.
Sub Spindle: Built-in motor spindle for high precision. Wide spacing between guideways ensures maximum accuracy and rigidity.

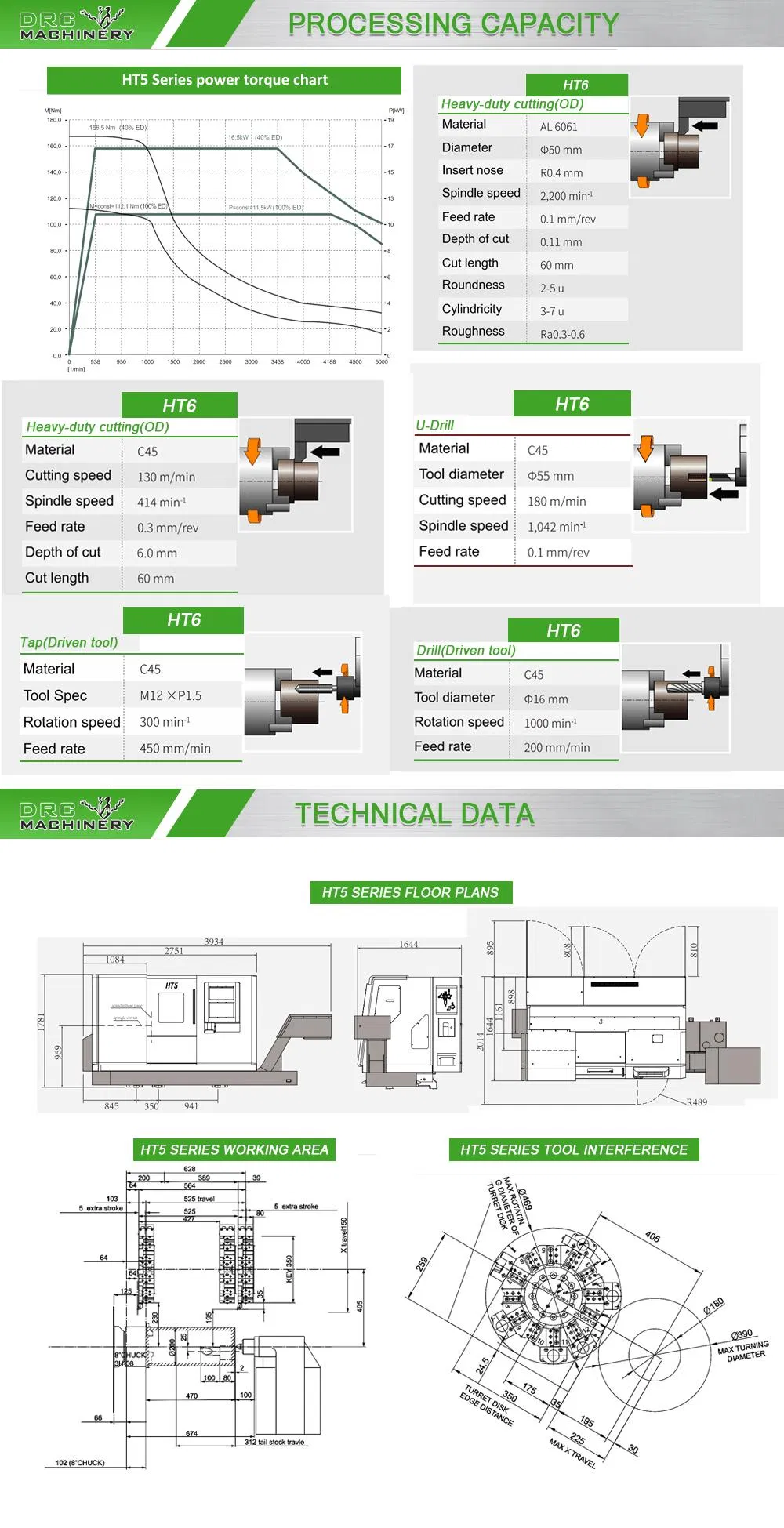

| Parameter | Specification |
|---|---|
| Swing over Bed | 680 mm |
| Swing over X-slide | 450 mm |
| Max. Turning Diameter | 400 mm |
| Clamping Chuck Diameter (Main) | 250 mm |
| X / Y / Z Travel | 225 mm / ±50 mm / 850 mm |
| Rapid Traverse (X/Y/Z) | 24 / 12 / 24 m/min |
| Spindle Nose | A2-8 |
| Max. Spindle Speed | 4000 rpm |

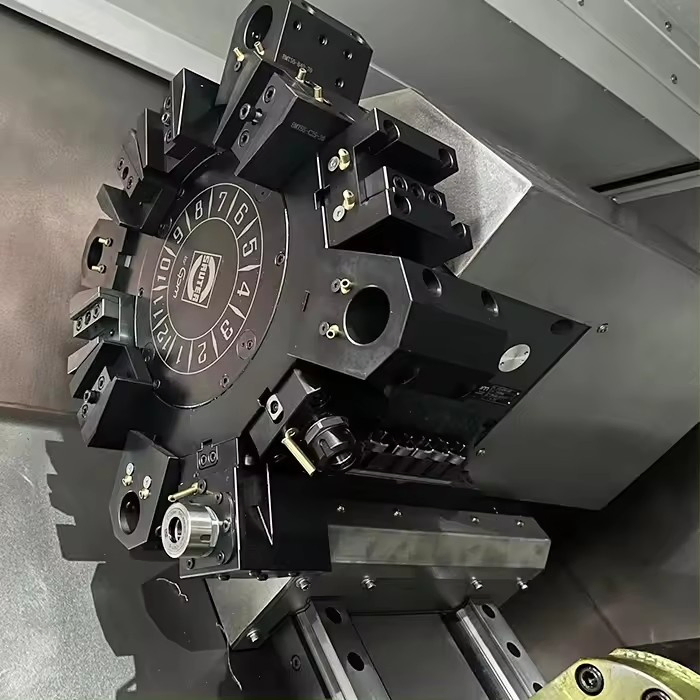

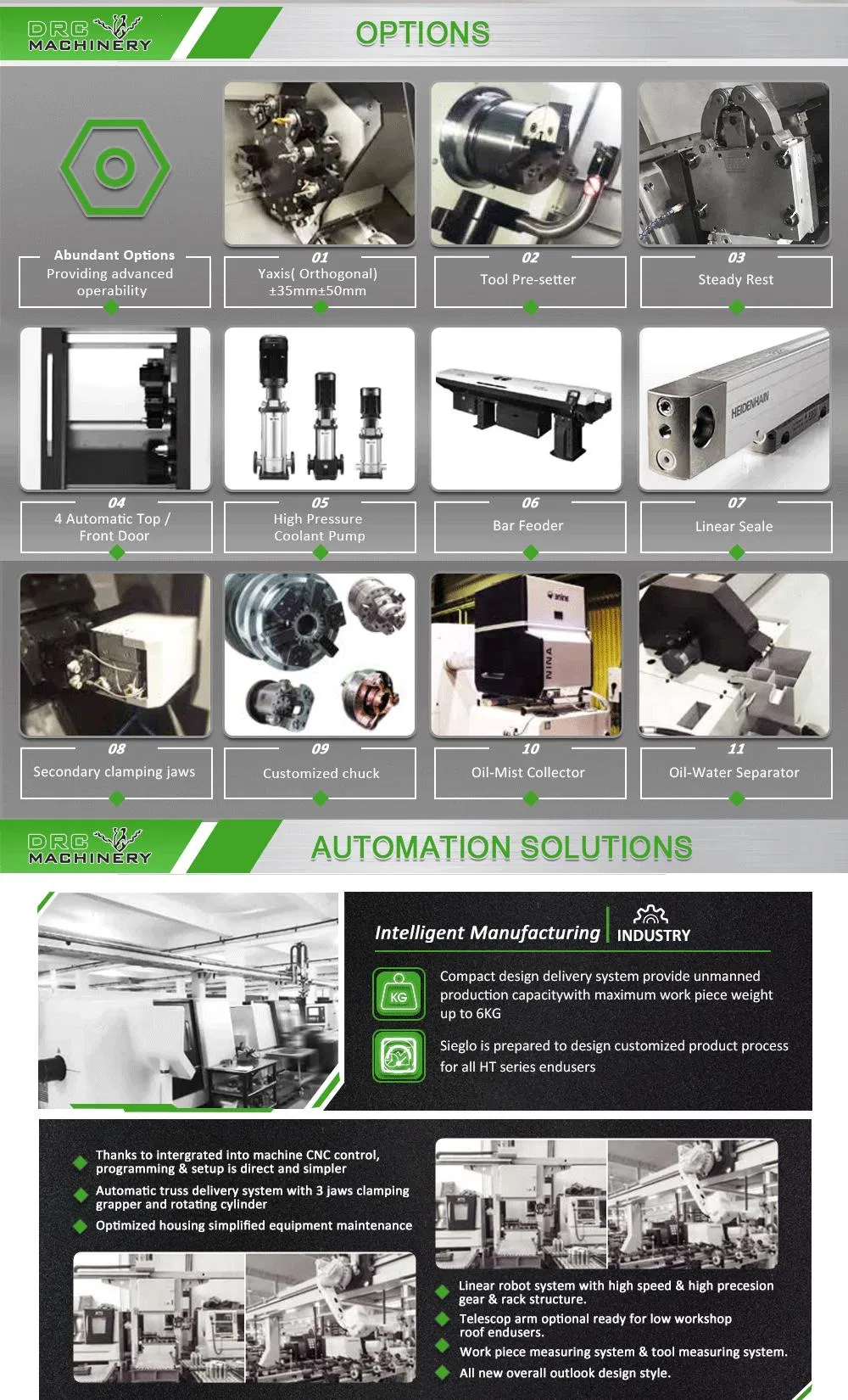

| Number of Tool Stations | 12 pcs BMT65 |
| Machine Weight | Approx. 6600 kg |
| Dimensions (L x W x H) | 4820 x 2250 x 2150 mm |
