DSCUT CNC
1 / 5
| Process Usage | Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools |
| Movement Method | Point to Point Control |
| Control Method | Closed-Loop Control |
| Processing Precision | 0.02~0.03(mm) |
| Performance | Economical CNC Machine Tools |
| Certification | GS, CE, RoHS, ISO 9001 |
| Application Fields | Automotive Parts Industry, Construction Machinery |
| Machine Dimensions | 4600mm (L) x 1800mm (W) x 1700mm (H) |
| Production Capacity | 300 Units Per Year |
| Equipment Technical Specifications | |||||
|---|---|---|---|---|---|
| Specifications | Unit | 855 | 1160 | 1270 | 1370 |
| Workbench Dimensions | mm | 550x1000 | 1200*600 | 700x1200 | 1400x700 |
| X/Y/Z Shaft stroke | mm | 820*550*600 | 1100*600*600 | 1200/700/700 | 1300/700/700 |
| Spindle face to worktable | mm | 130-730 | 160-740 | 120-720 | 80-780 |
| Spindle center to column | mm | 590 | 650 | 672 | 785 |
| Max Load Capacity | Kg | 600 | 800 | 1000 | 1100 |
| Rapid traverse speed | m/min | 36/36/36 | 36*36*36 | 24/24/24 | 24/24/24 |
| Positioning accuracy | mm | 0.005 | 0.008 | 0.008 | 0.008 |
| Maximum spindle speed | rpm | 12000 | 8000 | 8000 | 8000 |
| Tool Magazine | pcs | 24T | 24T | 24T | 24T |
| Spindle Motor Power | Kw | 11 | 11 | 15 | 15 |

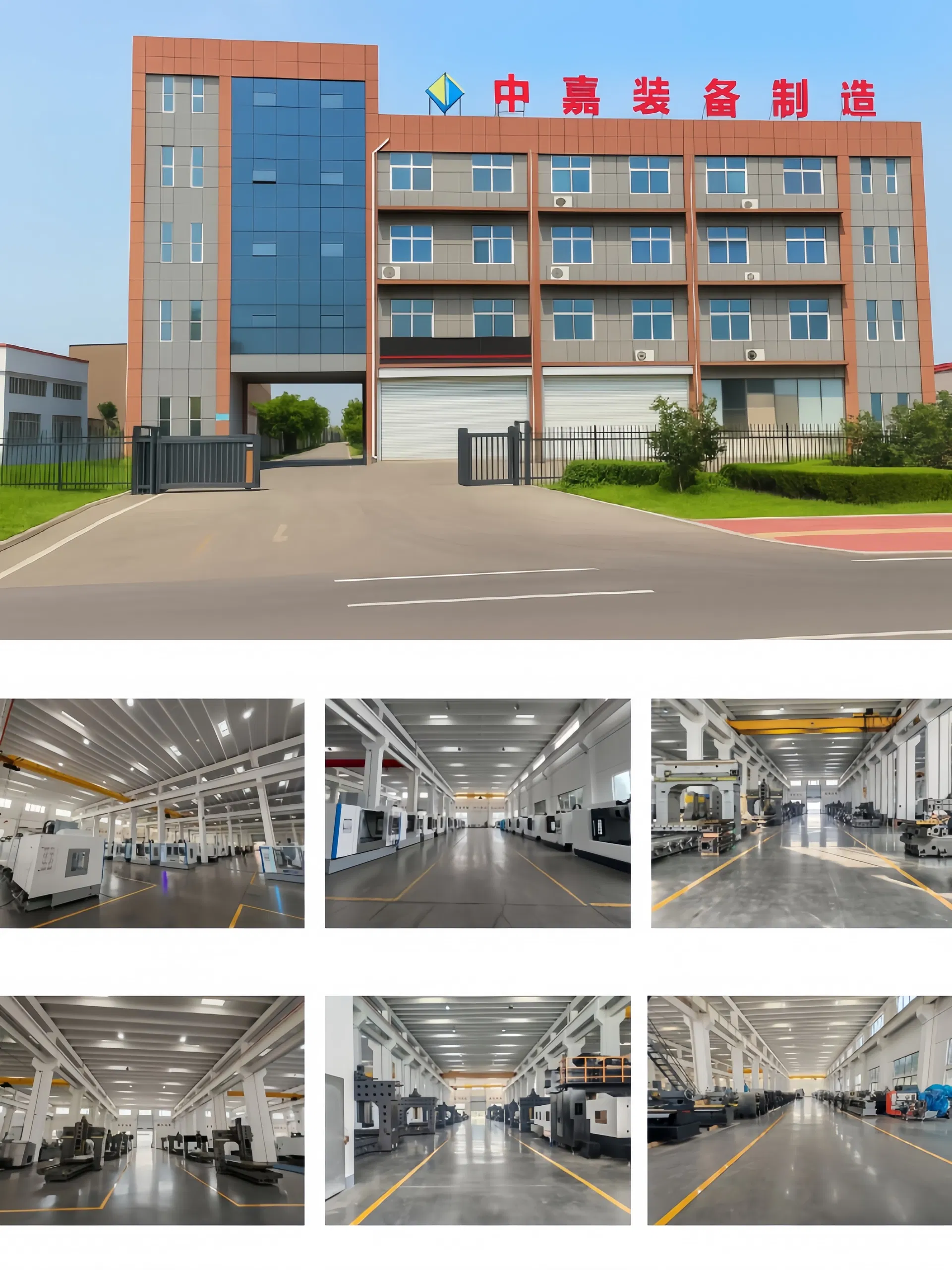

We are a directly operated factory with more than 20 years of history. Our facility specializes in the production of high-precision machine tools and cable trays. Located in a National Economic Development Zone in China, our plant covers an area of 20,000 square meters.
With professional technical talent and a complete set of production equipment, we hold multiple independent research and development technology patents. As a high-tech enterprise, we have passed ISO9001 quality system certification. Our extensive production experience allows us to provide high-quality products with efficient production speeds and competitive pricing.
