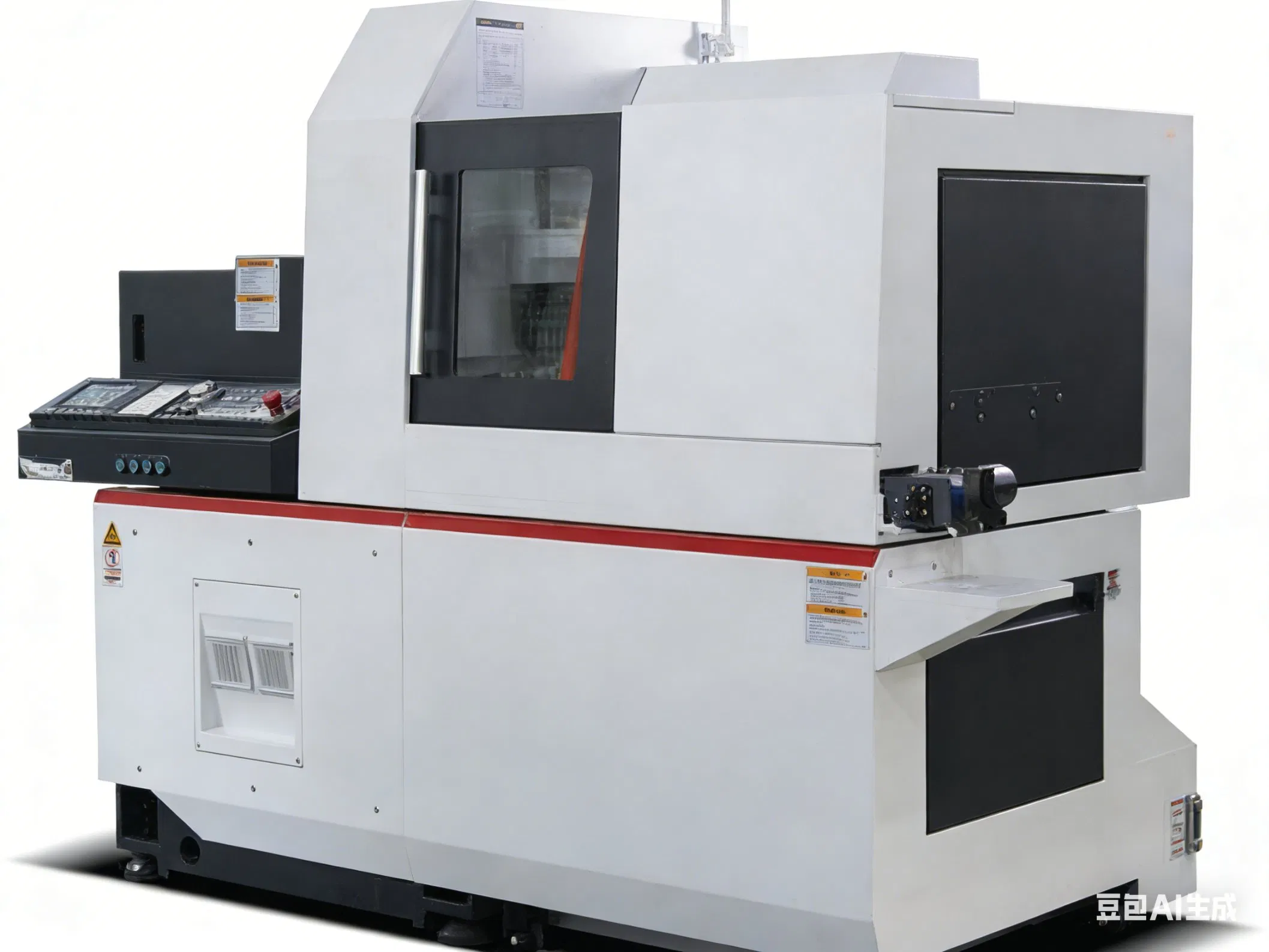

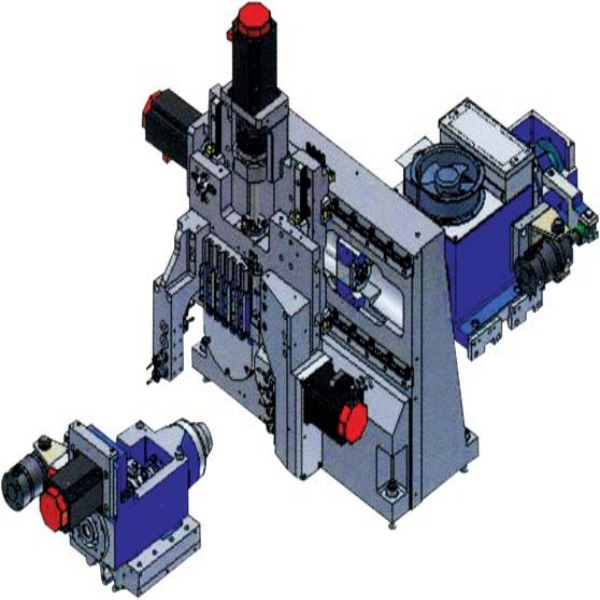

CNC Lathe Machine Swiss-Type Longitudinal Cutting CNC Turning Center High-Precision Shafts for Aerospace, Medical, Electronics, Automotive Industries

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1-Year Warranty and Lifetime Maintenance

Product Description

📋 Basic Info.
Model NO.
XP12/16 XP12S/16S XP20S/26S/32S
Application
Slender Shafts/Small Parts with a Diameter ≤26mm
Numerical Control
Mitsubishi M70/M80 System
Stroke
205mm
Max. Rpm
8000rpm
Certification
GS, CE, RoHS, ISO 9001
Processing Precision
CNC Multi-Axis Linkage Control
Origin
Shandong, China
🔍 Product Description
CNC Lathe Machine
MODEL XP12 XP16
Max Turning Diameter Ø12mm Ø16mm
Number of Tools OD TOOL 6 EA 6 EA
CROSS TOOL 3 EA 3 EA
FRONT TOOL 3 EA 3 EA
Main Spindle rpm 10,000 rpm 10,000 rpm
Machine Weight 1,500 Kg 1,500 Kg

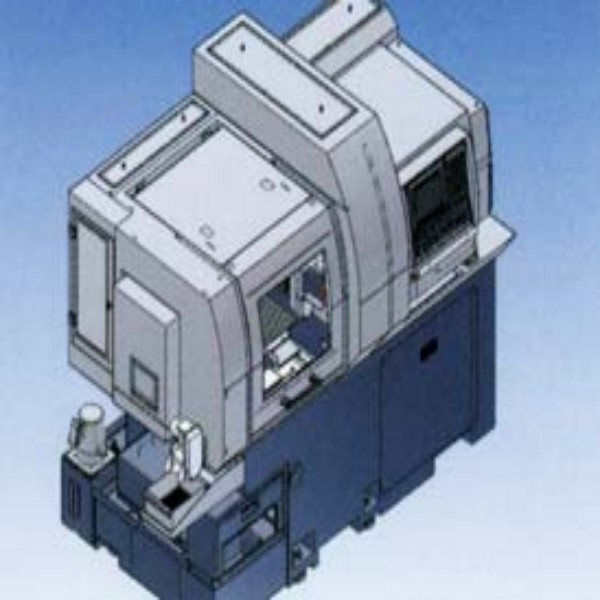

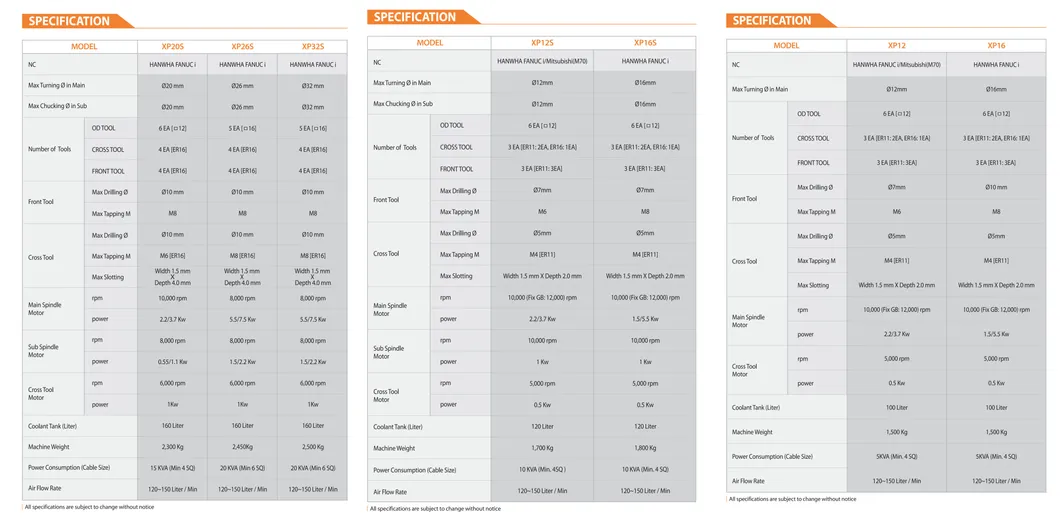

Machine Structure
CNC Detail 1

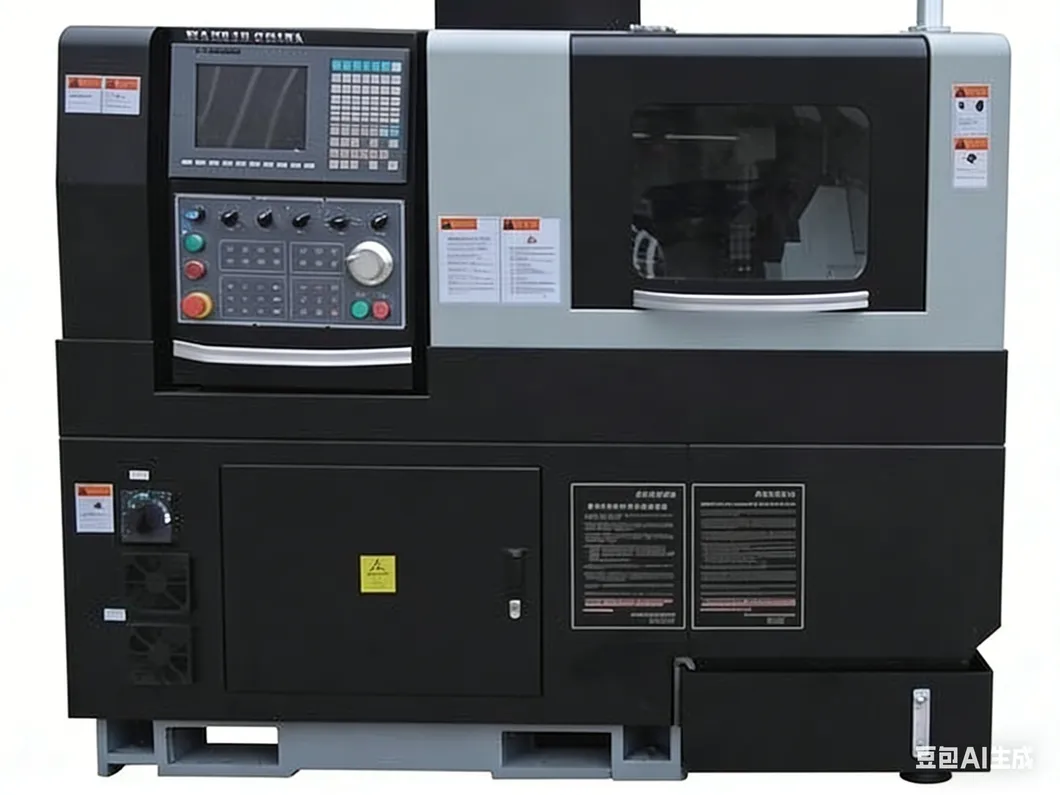

CNC Detail 2

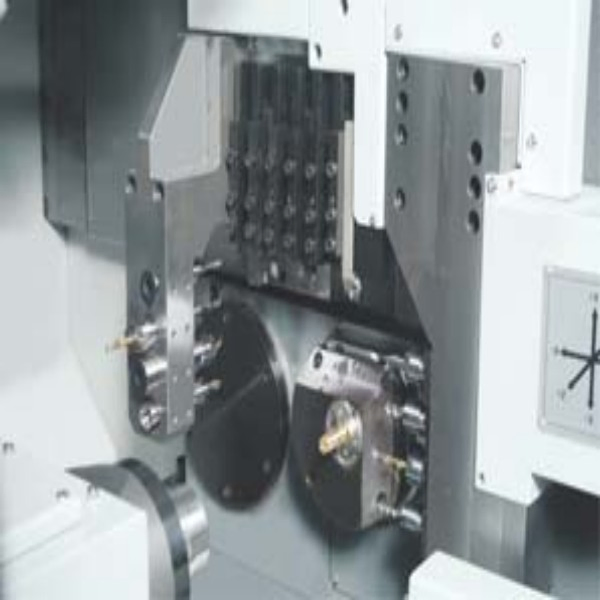

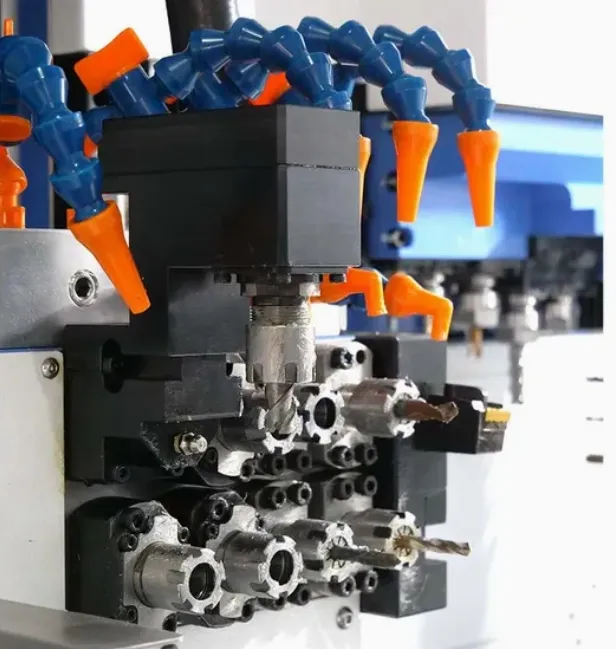

Tooling System 1

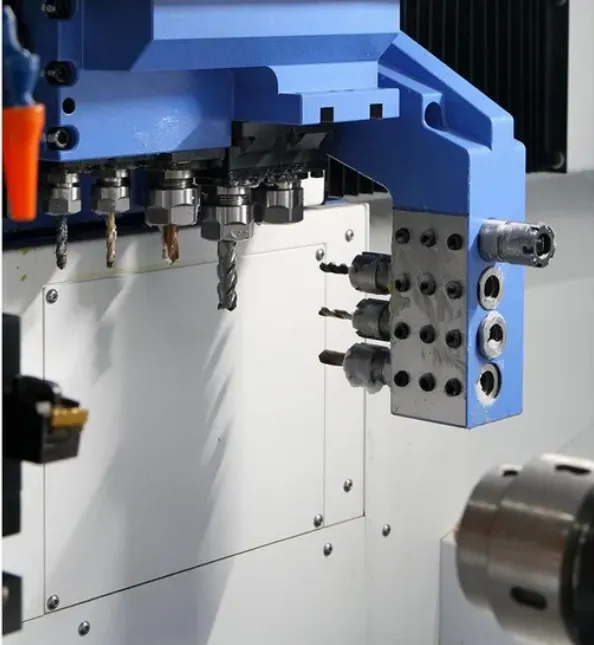

Tooling System 2

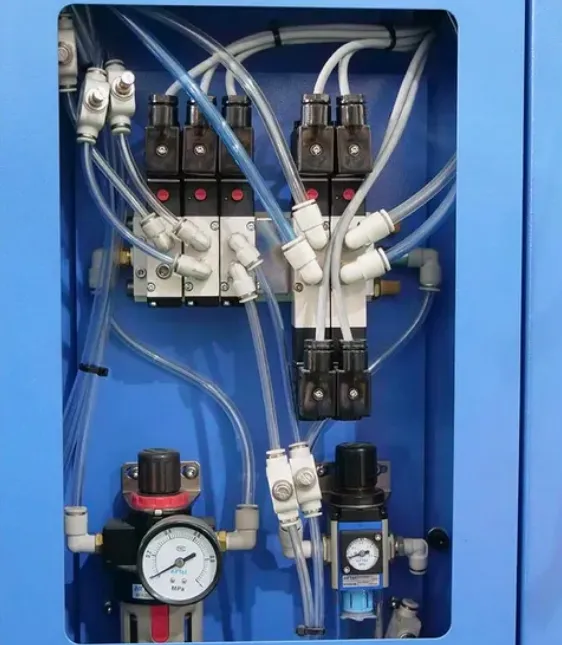

Tooling System 3
Technical Agreement (XP26S)
Description Unit Specification
Main spindle Strokemm205
Main spindle Max. RPMrpm8,000
Sub spindle Strokemm204
Sub spindle Max. RPMrpm8,000
Number of O.D toolsea5
Cross driven tools Max .rpmrpm6,000
Machine weightkg2,500
CNC controller-FANUC i
📦 Special Accessories
  • Transformer (20KVA)
  • Feeder Steady 26 (Ø3-Ø26mm)
  • Rear Discharge Unit
  • Medium-pressure oil pump 70Bar
  • Oil Mist Collector (600 m³/h)
  • Turnkey Project (Full tools & fixtures)
🚇 Installation & Environment
Temperature17ºC~25ºC (Ideal Difference ±2ºC)
Humidity20ºC 40%~80% (No Condensation)
Power Interface3-Phase 380V ±5%
Compressed Airp=4~6kgf/cm², Q=5m³/h
💻 Industry Applications

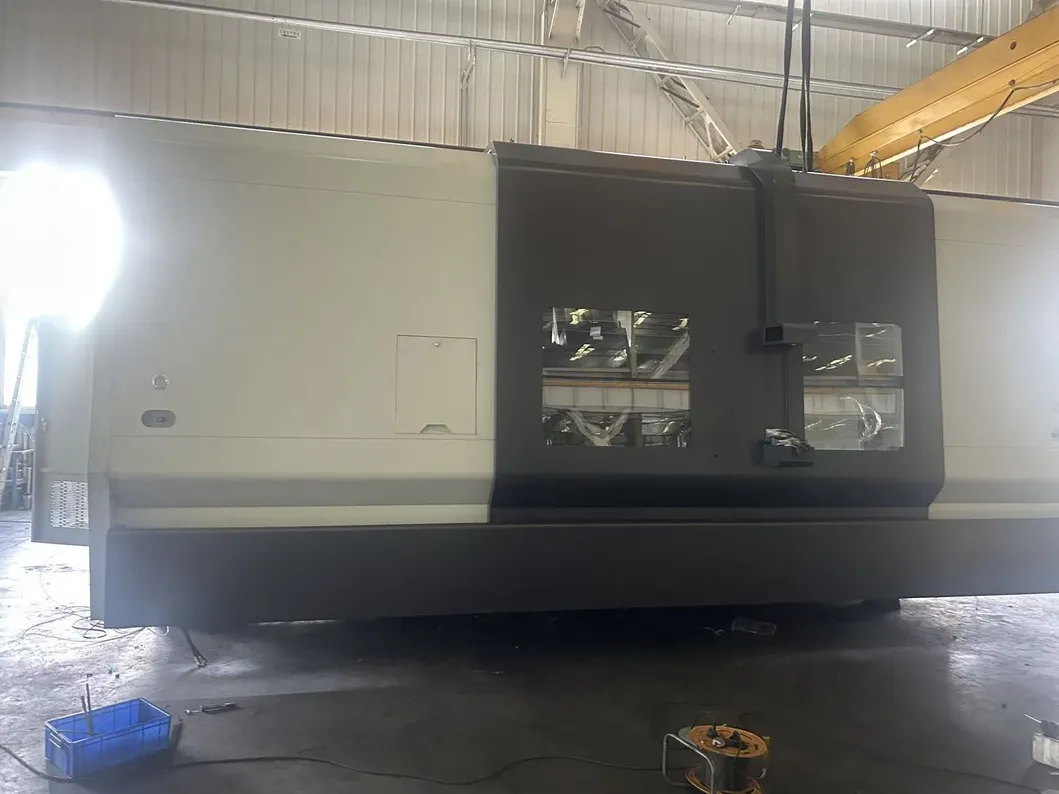

App 1

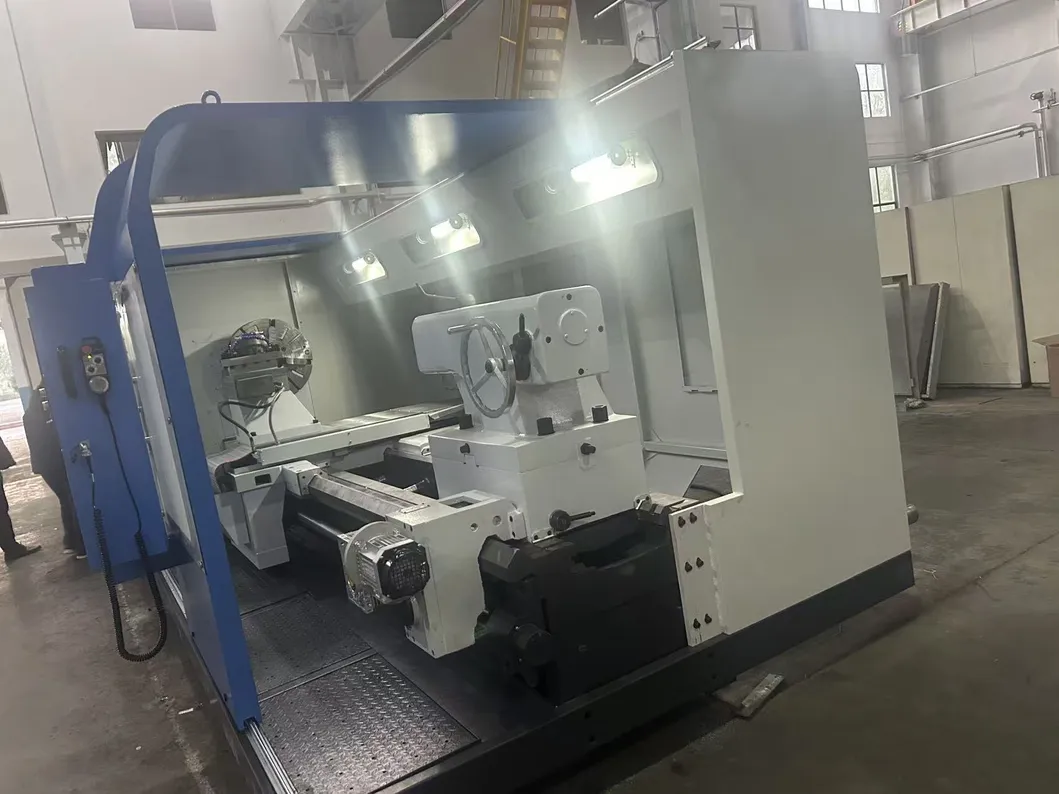

App 2

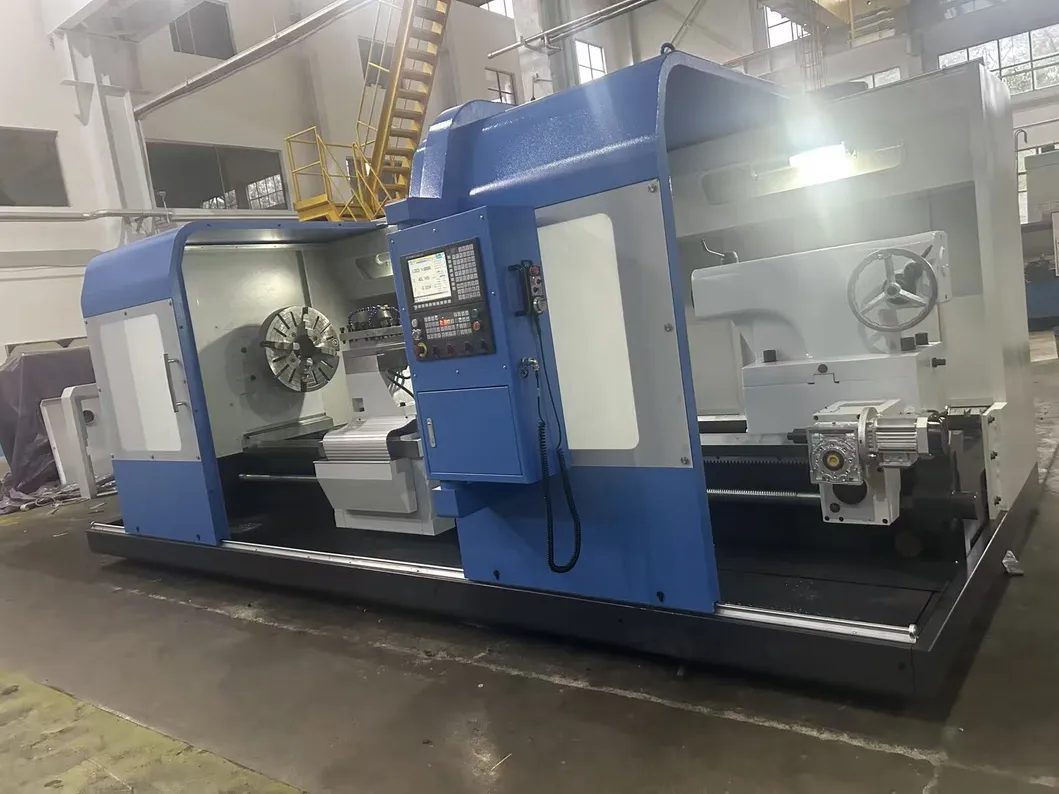

App 3
🏭 Logistics & Overview
Product Range
Packaging
Frequently Asked Questions
Q1: What is the warranty for the products?
A1: We provide a 12-month free warranty for the entire machine tool and accessories. We use high-precision grading and ultra-fine grain substrates to guarantee lifetime performance.
Q2: Do you provide free samples for testing?
A2: Yes, we usually provide free samples for testing purposes, provided the freight costs are covered by the customer.
Q3: What is your minimum order requirement (MOQ)?
A3: Each item has a specific MOQ indicated in our quotation. We accept sample and trial orders; prices for single items below MOQ are treated as sample pricing.
Q4: What is the typical delivery time?
A4: It depends on inventory. If the items are in stock, delivery is within 8 working days. If out of stock, it typically takes around 20 working days.
Q5: Can you manufacture special-shaped or custom carbide products?
A5: Yes, we can produce both standard end mills and specialized tools according to your provided technical drawings and samples.
Q6: Will I receive updates on my order's progress?
A6: Yes, we send weekly working schedules. We inspect and test all merchandise before shipment and provide detailed inspection photos for your confirmation.
