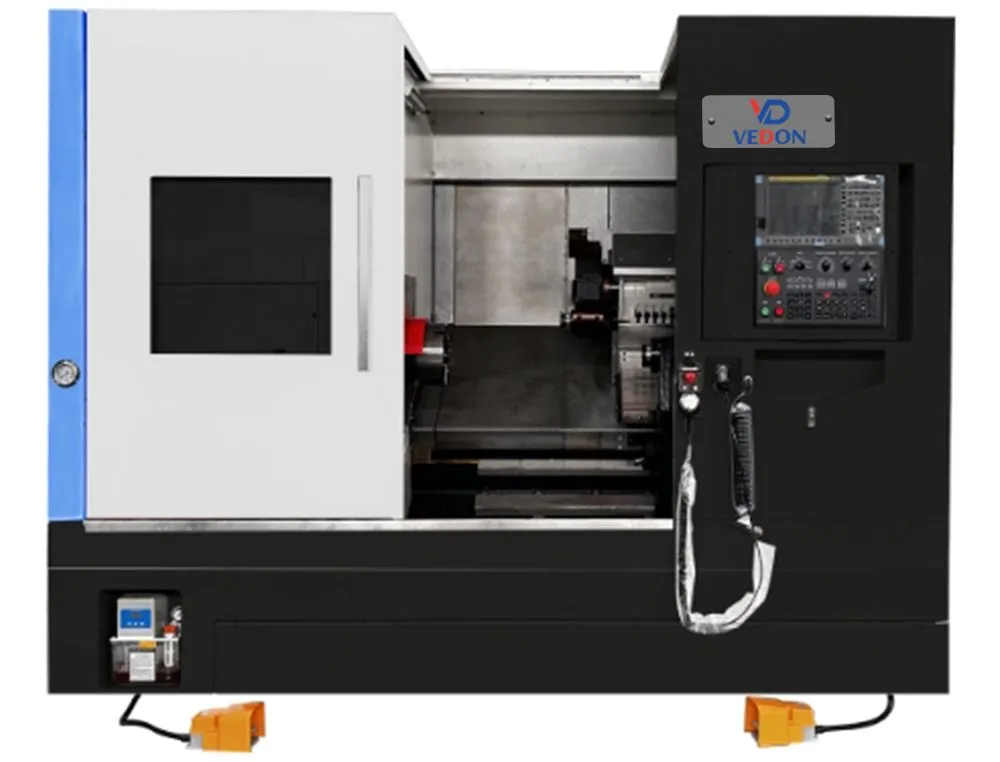

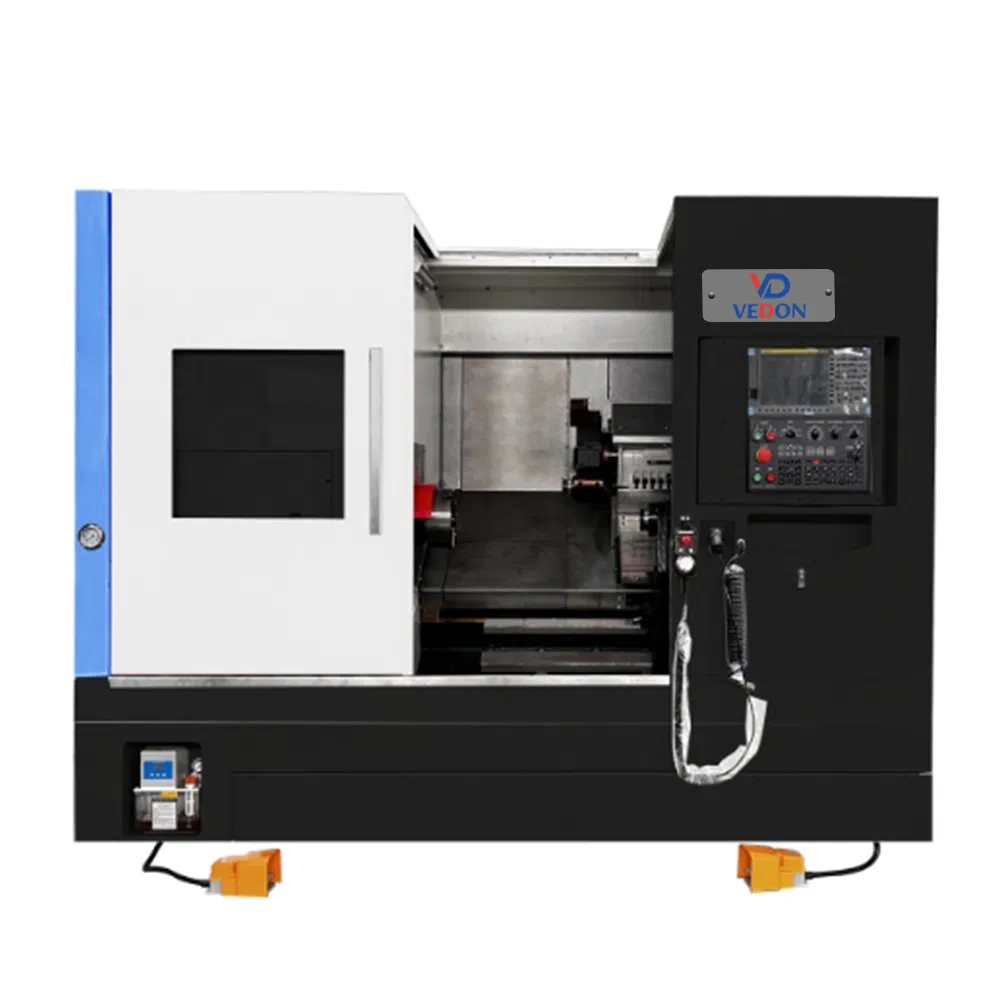

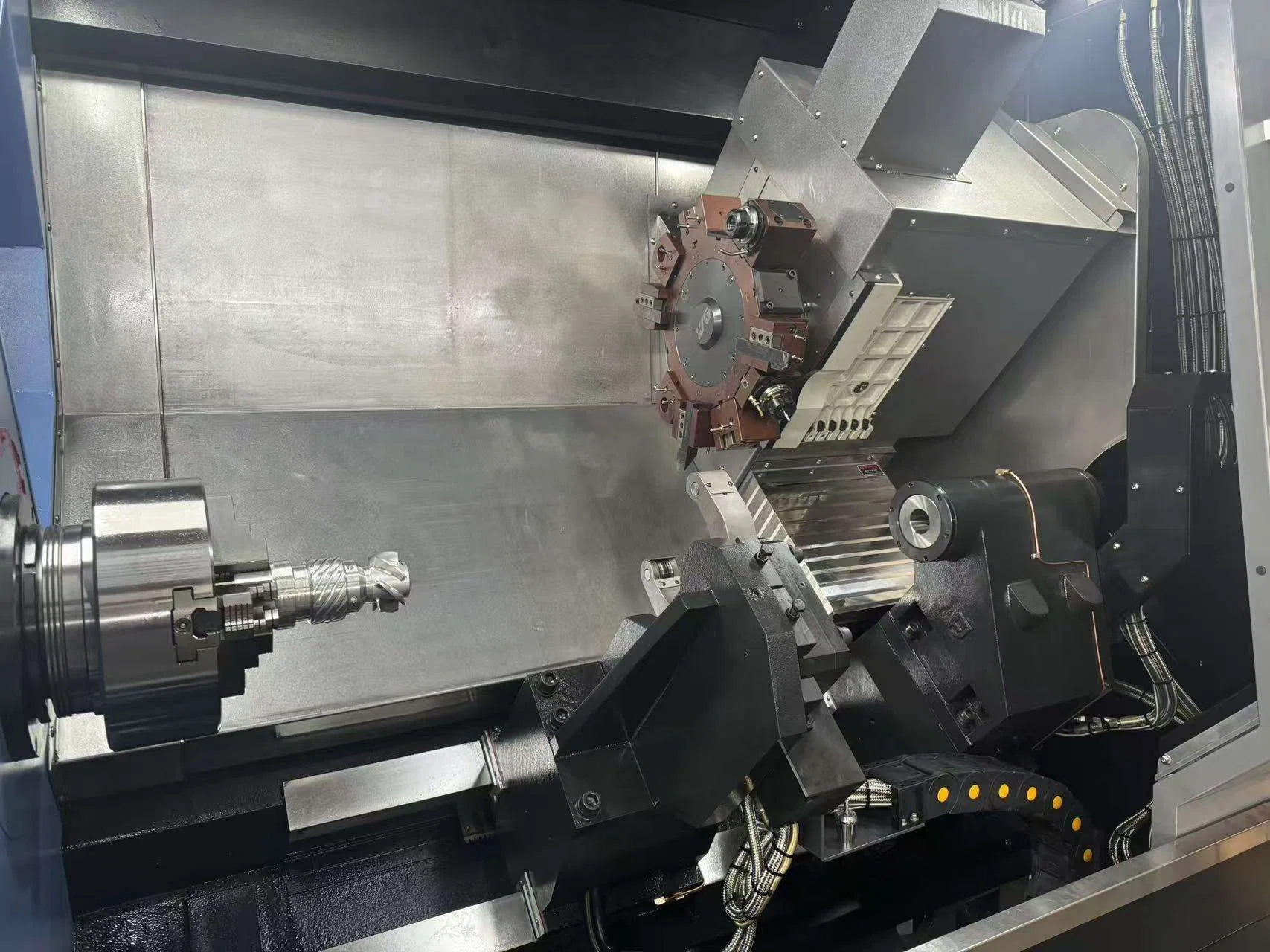

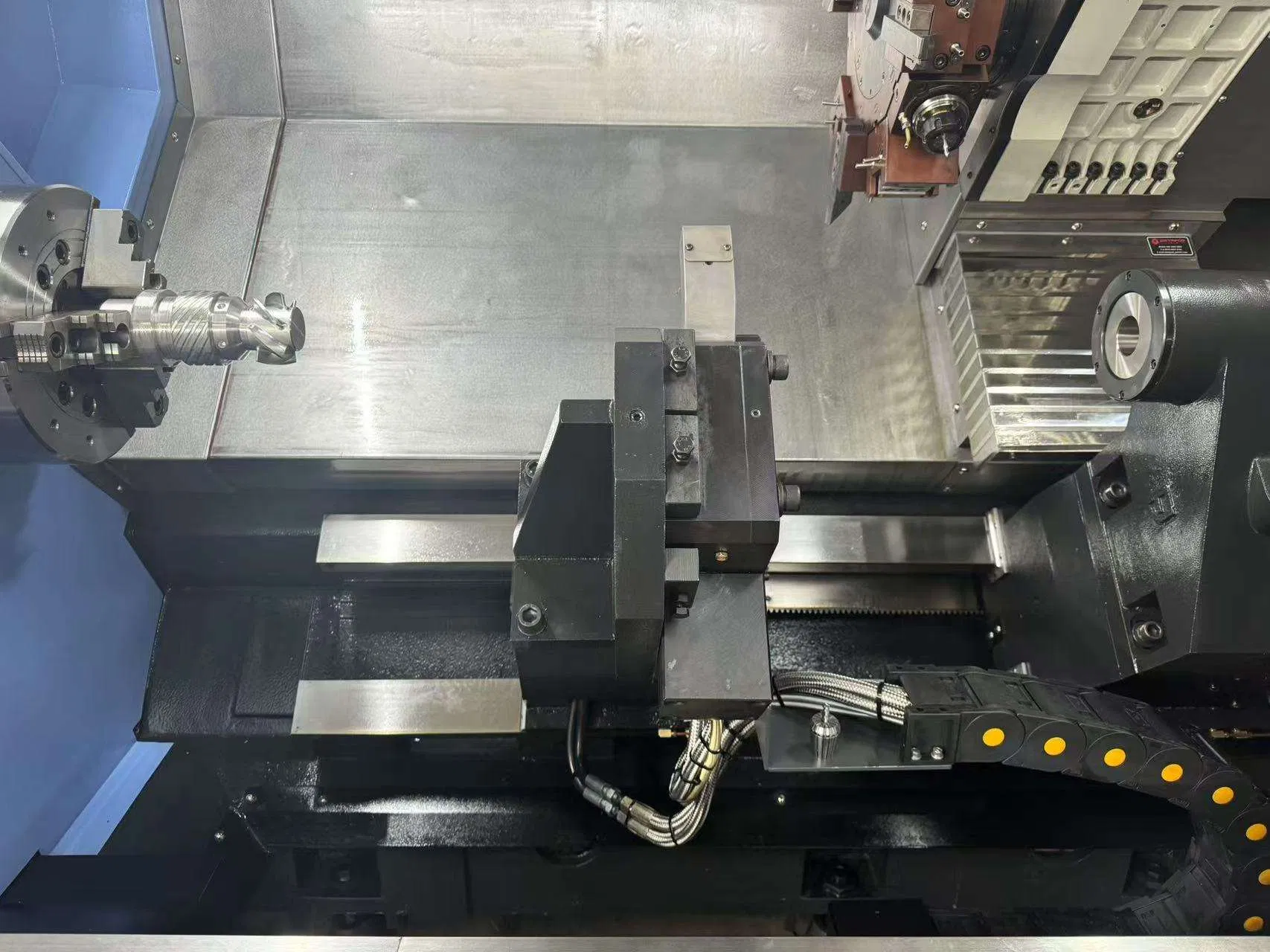

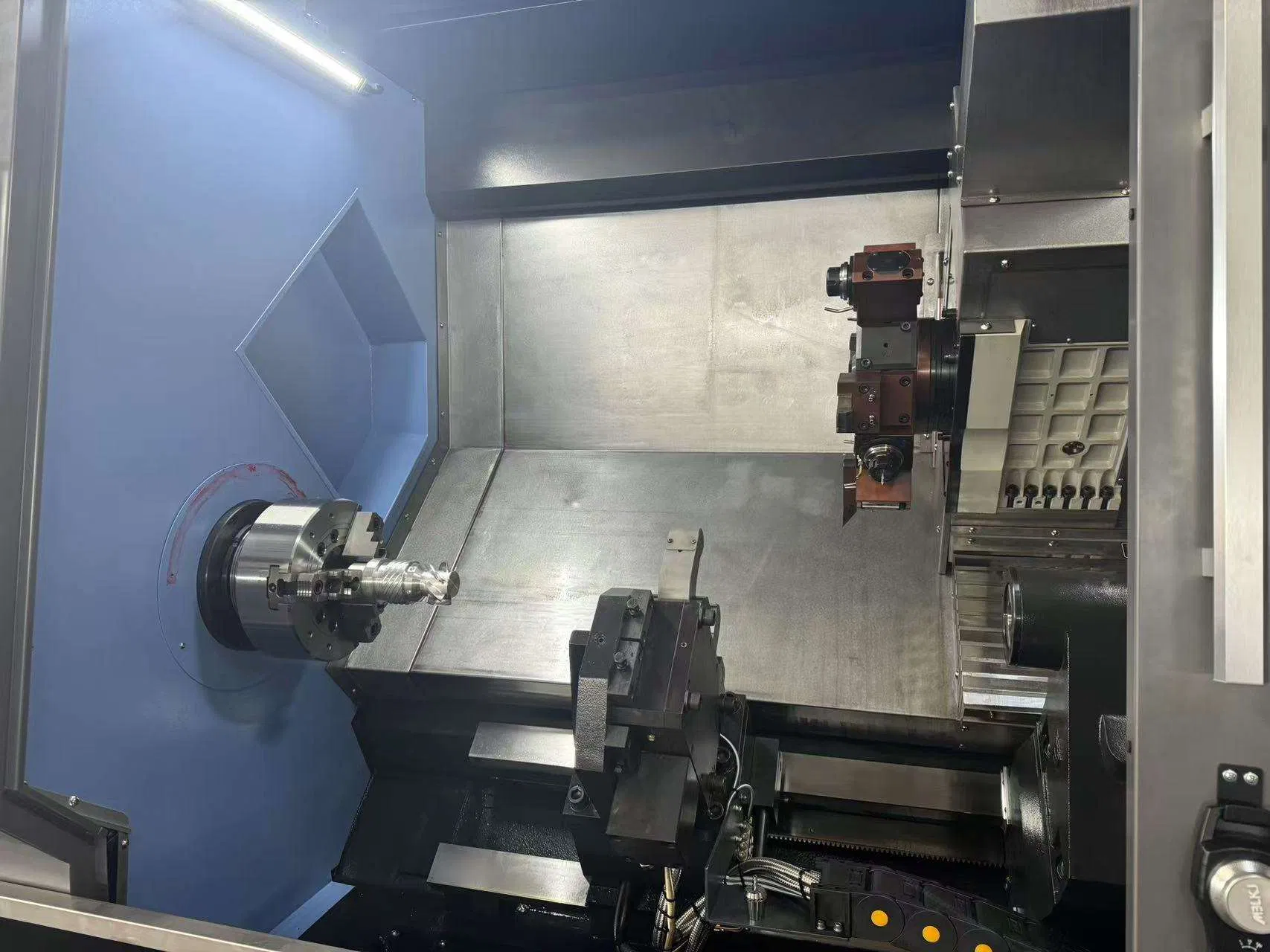

The TCK600 series is a medium to large horizontal turning center with a maximum machining length of 1.5 meters. It is designed for machining large pipes and shafts for a wide range of applications in the oil and gas, aerospace and construction machinery industries.

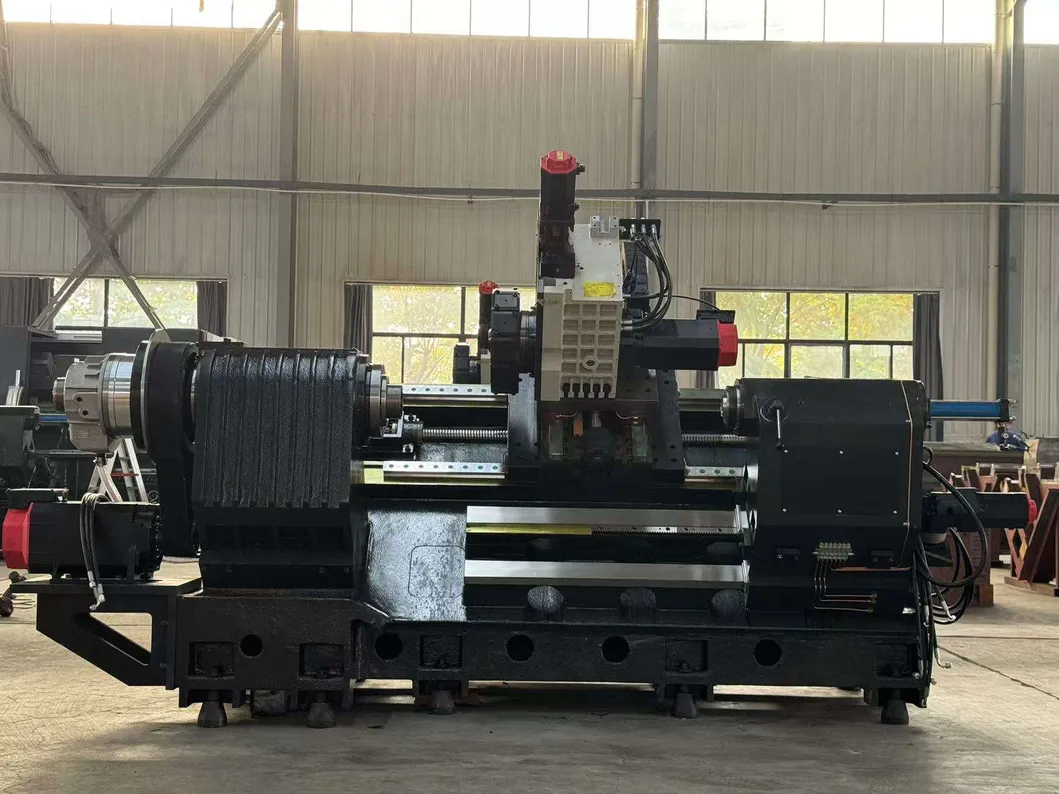

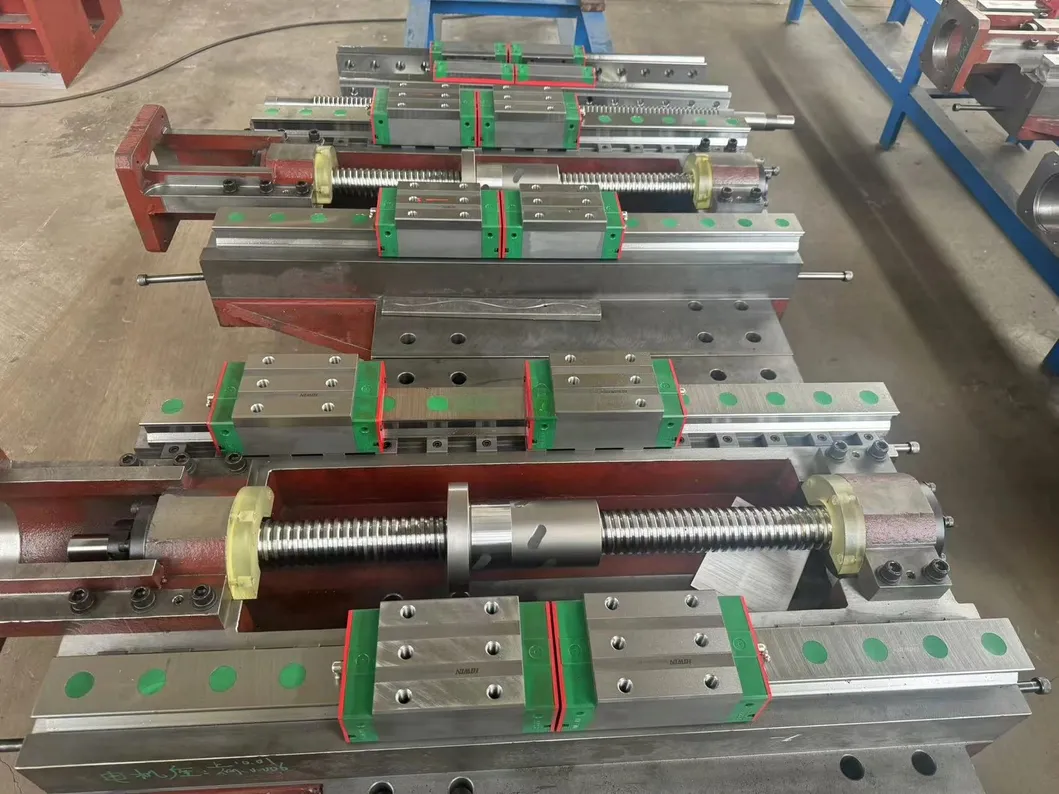

The 45° inclined bed structure and the full-axis 45 mm roller guideway ensure high rigidity and stability during heavy operations.

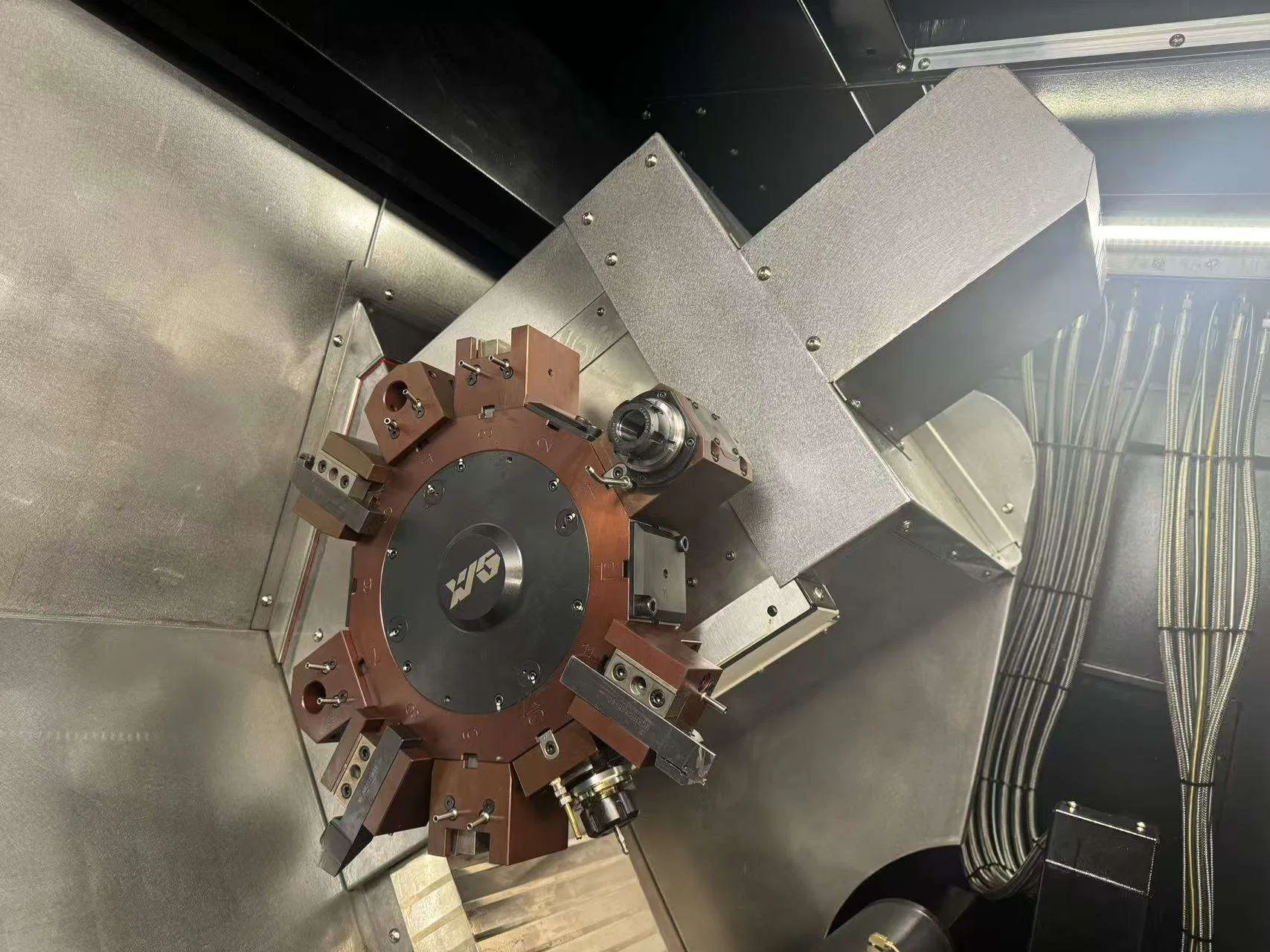

The turret is driven by a high-efficiency servo motor, suitable for heavy-duty cutting, effectively shortening non-cutting time and improving machining efficiency.
The spindle housing is made of high-density cast iron with outer reinforcement. Double-row roller bearings ensure high steel and high efficiency in transmitting power.
| Parameter | Unit | Specification |
|---|---|---|
| Processing Range | ||
| Max. swing over bed | mm | Φ670 |
| Max. swing over slide | mm | Φ450 |
| Max. turning diameter | mm | Φ400 |
| Center distance | mm | 1100/1600 |
| Spindle | ||
| Spindle head type | / | A2-8/A2-11 |
| Spindle through-hole diameter | mm | Φ88/Φ105/Φ132 |
| Bar capacity | mm | Φ74/Φ91/Φ115 |
| Max. spindle speed | rpm/min | 3000/2500/1800 |
| Travel & Turret | ||
| X-axis travel | mm | 315 |
| Z-axis travel | mm | 1100/1600 |
| Turret type | / | BMT55 (12 Station) |
| Adjacent tool change time | s | 0.5 |
| Y-axis travel | mm | ±50 |
