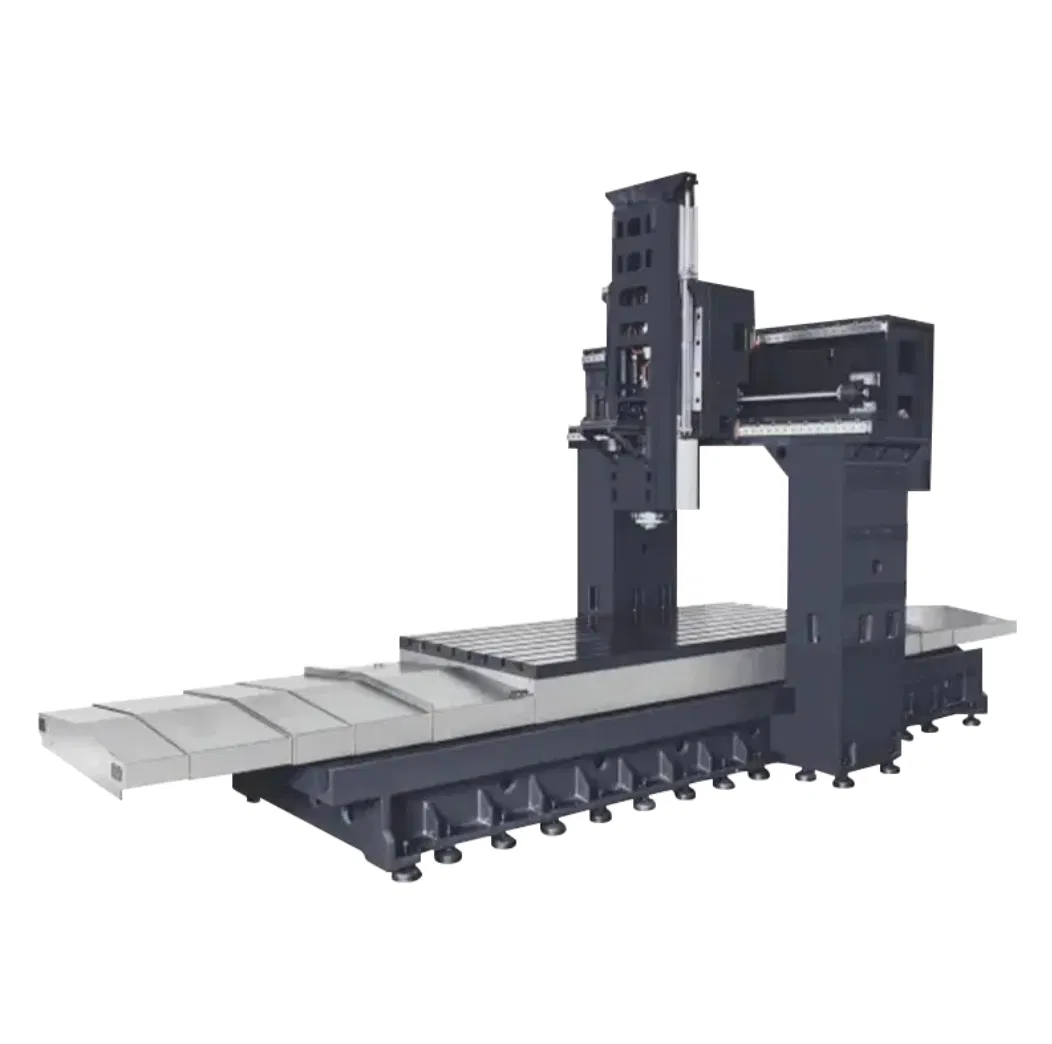

CNC Horizontal Machining Center Multi-Sided Drilling Machine for Precision Drilling Tapping Boring

1 / 5

CNC Horizontal Machining Center Multi-Sided Drilling Machine for Precision Drilling Tapping Boring

After-sales Service:	Troubleshooting & Tech Support
Warranty:	1 Year
Application:	Metal

Send Inquiry

Product Description

Overview & Basic Specifications

Process Usage:Metal-Cutting CNC Machine Tools

Movement Method:Point to Point Control

Control Method:Semi-Closed Loop Control

Numerical Control:CNC/MNC

Processing Precision:0.01~0.02(mm)

Performance Class:High-End CNC Machine Tools

Certification:CE, ISO 9001

Condition:New

Delivery Time:30 Days

Control System:Taiwan Syntec Control System

Applications:Automotive, Aerospace, Manufacturing

Package Size:3400x1900x2000mm

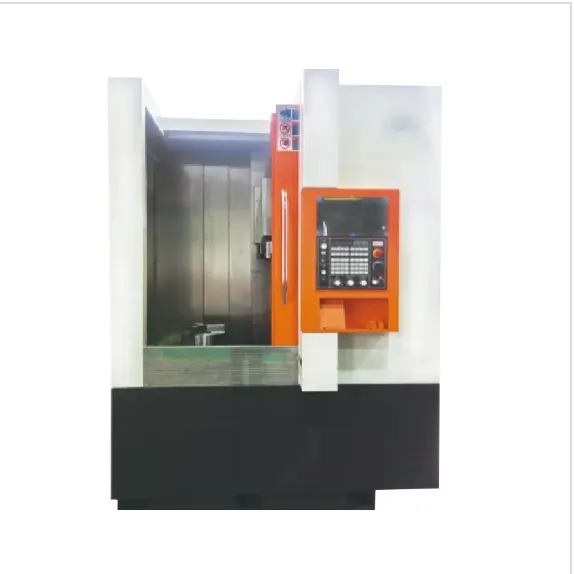

Vertical Lathe Machine

The core of a vertical lathe machine (vertical lathe) is its vertical workpiece arrangement with the spindle pointing vertically upward. It is primarily used for machining large, heavy, and large-diameter rotating parts, addressing the clamping and stability issues encountered with horizontal lathes.

⚙️I. Core Product Features

Unique Structural Layout: Horizontal worktable and vertical spindle for maximum structural integrity.
High Load-bearing Capacity: Sturdy bed supports workpieces weighing tens or even hundreds of tons without spindle bending.
Focused Machining Range: Accommodates large annular, disc-shaped, or barrel-shaped parts with diameters of several meters.
High Stability: Vertical clamping aligns the center of gravity with the spindle axis, reducing vibration.

🛠️II. Main Functions

Turning Core Function: External turning, internal boring, facing, taper machining, and thread turning for large parts.
Auxiliary Processing: Equipped with turrets or milling heads for drilling, tapping, and milling.
Advanced Clamping: Large-diameter chucks and C-axis indexing for precise positioning.

Typical Applications & Advantages

🏗️Industry Applications

This equipment is widely used in heavy manufacturing sectors including:

Heavy Machinery: Steam turbine rotors, generator stators, and large gears.
Engineering Machinery: Excavator slewing bearings and large hydraulic cylinder bases.
Energy Industry: Wind turbine hubs, flanges, and hydropower turbine runners.
Shipbuilding: Marine propellers and shaft flanges.

💎Core Advantages

Adaptability: Reliably processes workpieces beyond the capacity of horizontal lathes.
Precision: Minimal vibration ensures high accuracy in roundness and flatness.
Ease of Operation: Vertical positioning eliminates weight-induced deflection during setup.
Efficiency: CNC integration enables automated machining and high productivity.

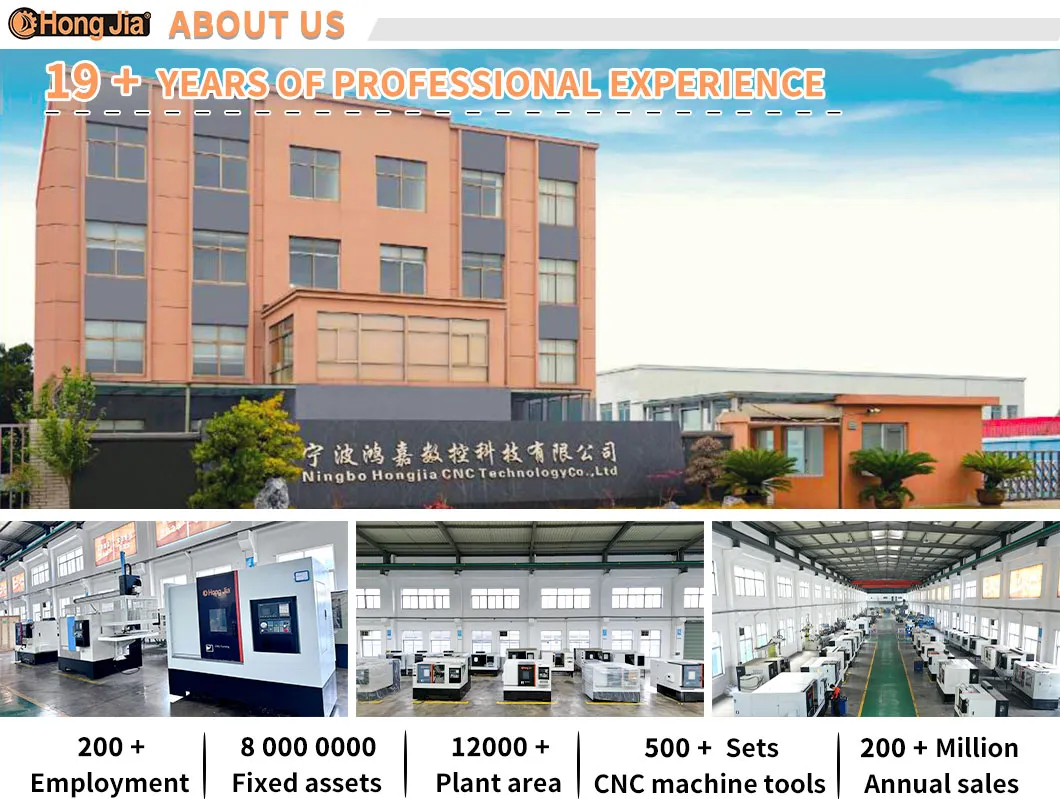

Manufacturing Excellence

As a high-tech enterprise specializing in R&D, production, and sales of CNC metal-cutting equipment, the focus remains on technological innovation and market demands. We leverage robust technical expertise to provide global customers with efficient, stable, and reliable CNC solutions.

Packaging & Shipping

Standardized shipping procedures ensure that heavy equipment reaches its destination in perfect condition. We utilize specialized wooden cases for maximum protection during transit.

Frequently Asked Questions

Q1: How can I choose the most suitable CNC machine?

A: Please provide your specific requirements and work drawings. Our technical team will analyze your needs and recommend the best model for your specific manufacturing tasks.

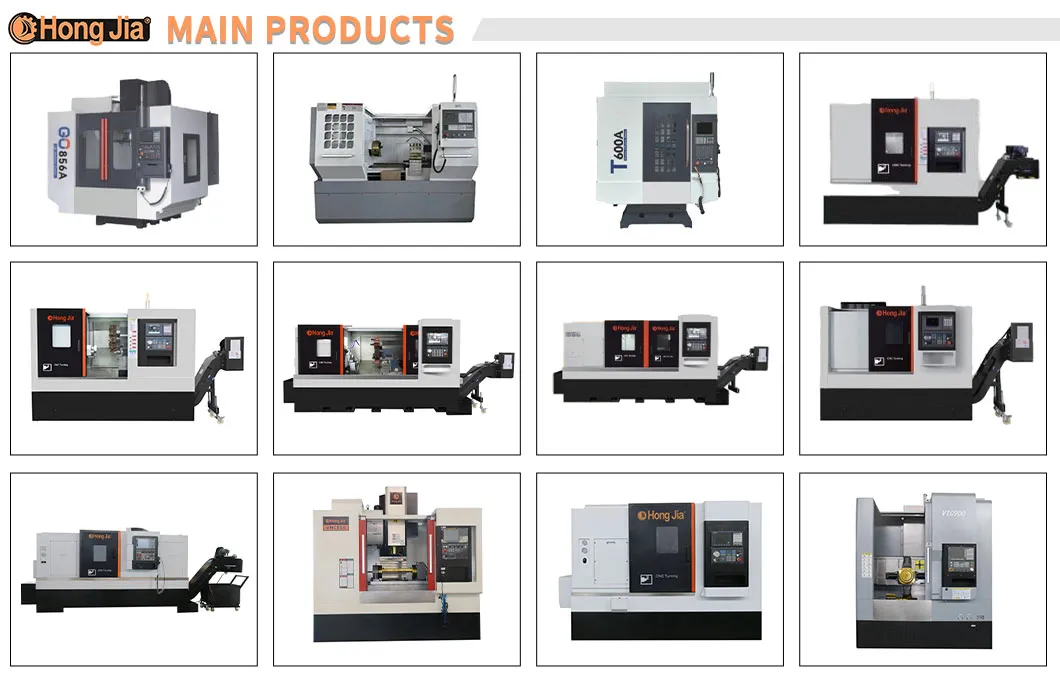

Q2: What types of CNC machines are available in your range?

A: We specialize in a wide range of equipment, including CNC Lathes, Milling Machines, Turning Machines, Vertical and Horizontal Machining Centers, and composite processing machines.

Q3: What certifications do your products hold?

A: All our machines are manufactured under strict quality control and hold CE and ISO 9001 certifications to ensure international safety and quality standards.

Q4: What is the typical delivery time for a standard order?

A: For standard models, the delivery time is approximately 30 days. Custom configurations may require additional time depending on the specifications.

Q5: How are the machines packaged for international shipping?

A: We use high-durability wooden case packaging designed for sea freight, ensuring the machine is secured against movement and moisture during long-distance transport.

Q6: Which industries benefit most from Vertical Lathe Machines?

A: Vertical lathes are essential for industries dealing with heavy, large-diameter parts, such as Aerospace, Automotive manufacturing, Energy (Wind/Hydro), and Shipbuilding.
