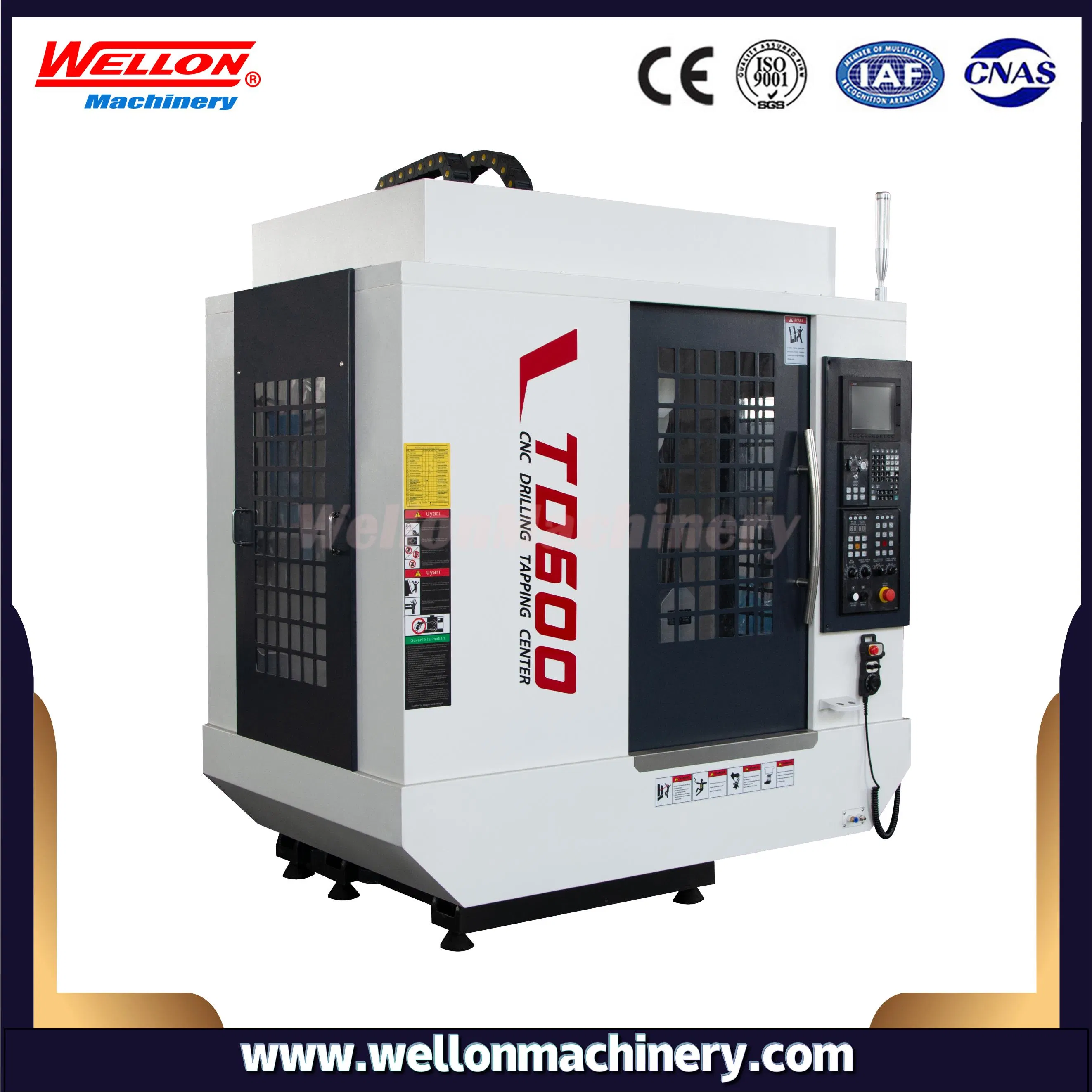

Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700
Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700
Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700
Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700
Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700
1 / 5
Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700
Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700
Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700
Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700
Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700

Good Quality Vertical CNC Drilling Tapping Center/CNC Tapping Machine TD600 TD700

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.
TD600 TD700
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
CE, RoHS, ISO 9001
Table Travel
600X400X350mm
Spindle Speed
20000rpm
Worktable Size
700X420mm
Origin
China
Production Capacity
20 PC/Month
🔧

Product Description

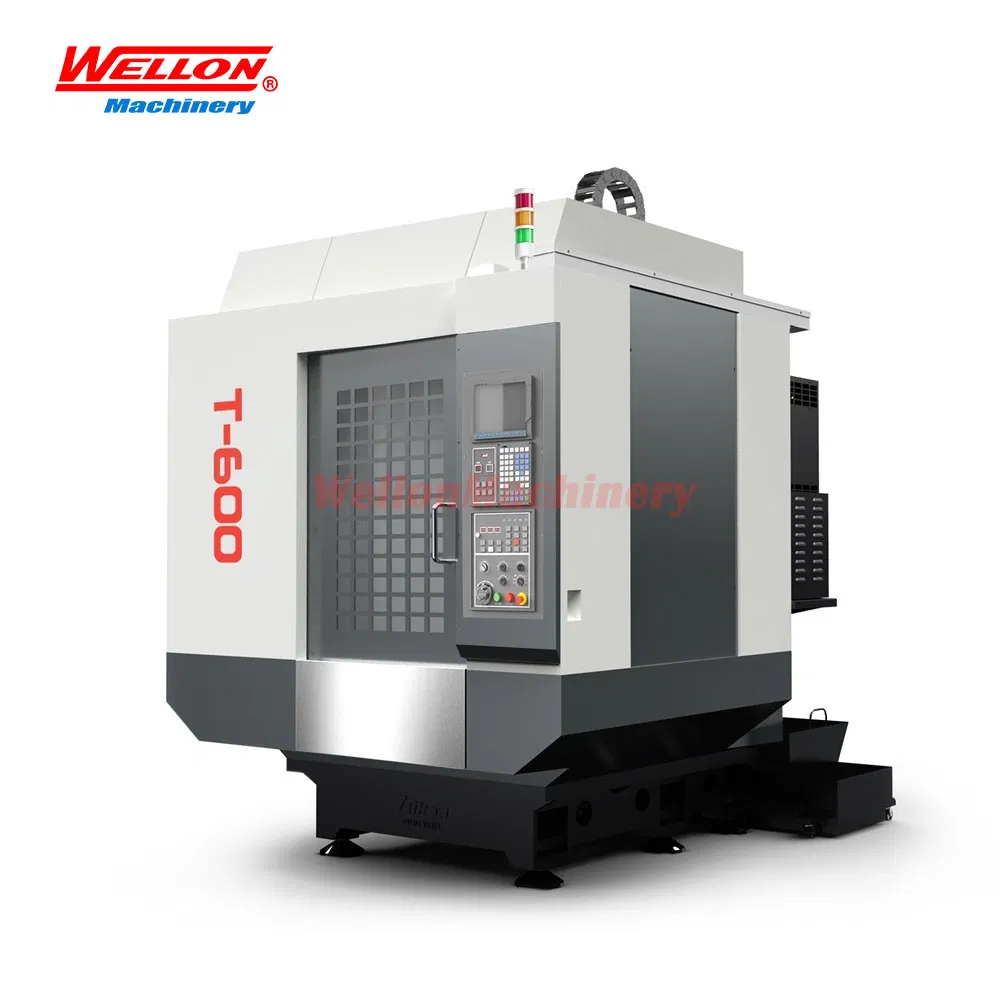

CNC Drilling Tapping Center
  • High strength and good quality cast iron construction.
  • Precision linear guides for X/Y/Z axes for smooth operation.
  • Ball screw pre-extended structure to reduce heat-deformation.
  • Japan NSK special screws angular contact ball bearing group.

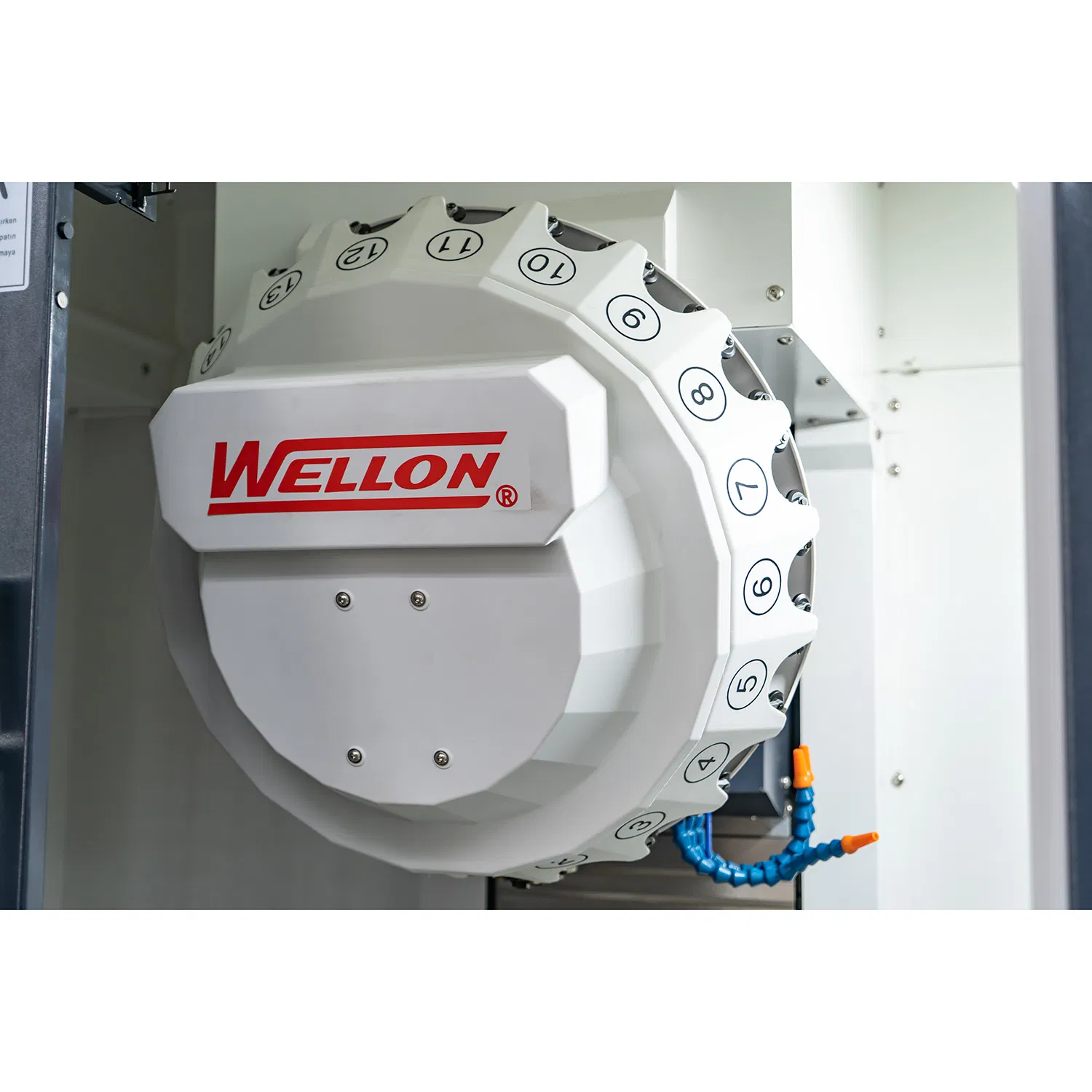

  • Arm-clipping type magazine for rapid tool changes.
  • Inclined chip removal design for efficient cleaning and cooling.
  • Advanced mechatronics for improved transmission response and efficiency.
📸

Detailed Photos

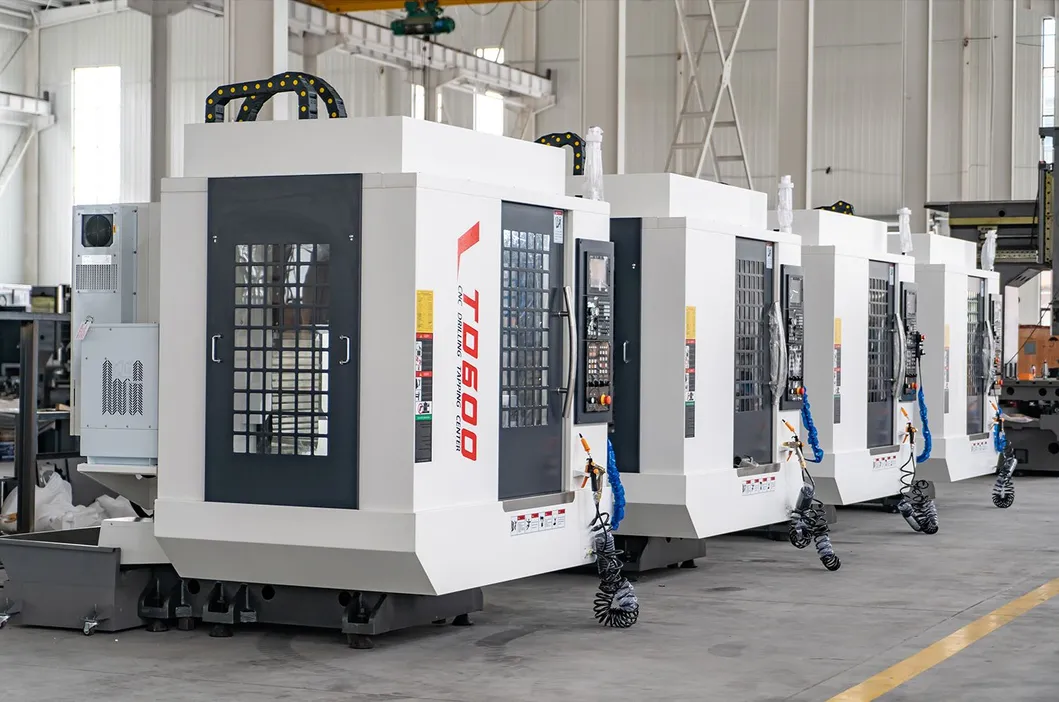

Detail 1

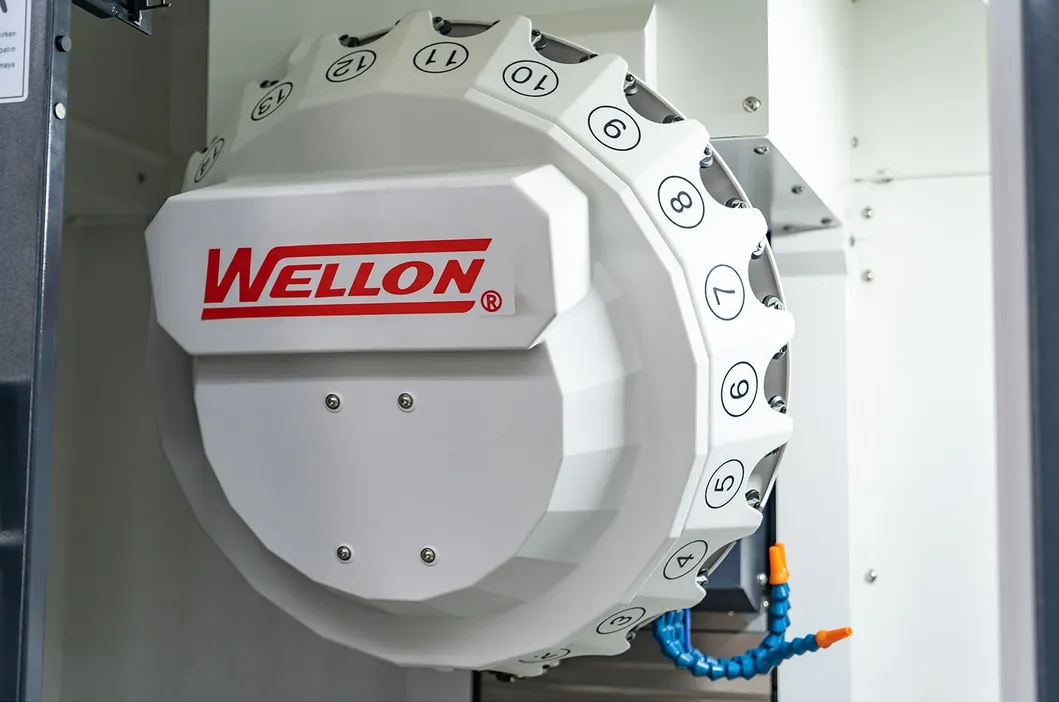

Detail 2

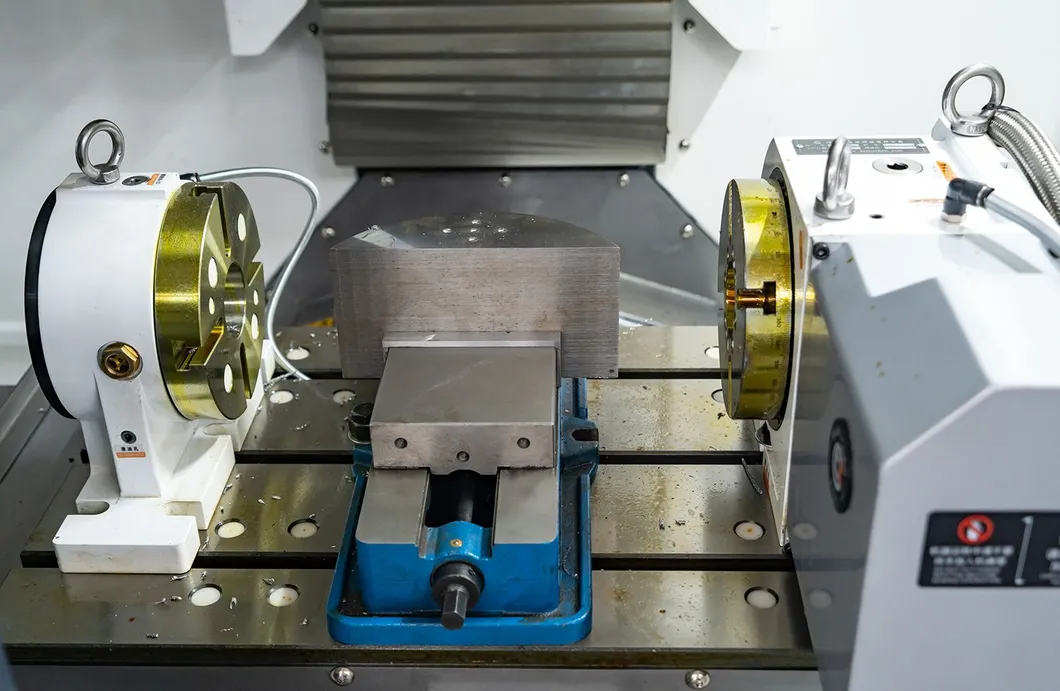

Detail 3

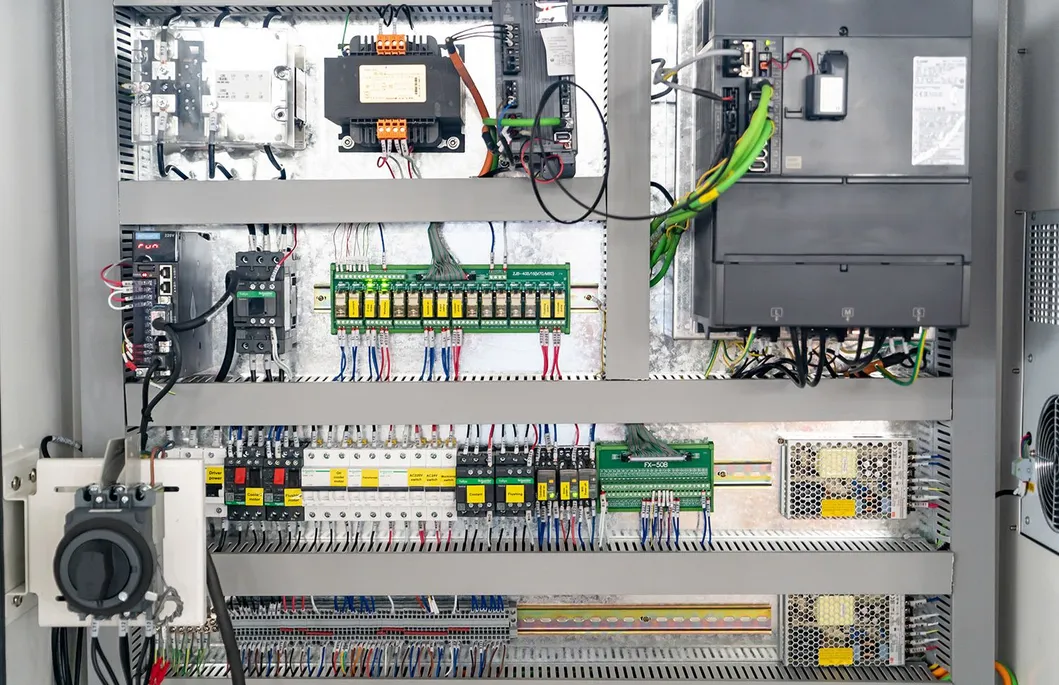

Detail 4
📐

Technical Parameters

Model Unit TD-600 TD-700
Work table sizemm700x420800x420
X/Y/Z-axis travelmm600/400/330700/400/330
Worktable Loading capacitykg200250
Max. Spindle Speedrpm2000020000
Magazine capacityPCS2121
Tool change time (T-T)sec1.61.3
Main motor powerkw5.55.5
X,Y,Z axis rapid speedm/min48/48/4848/48/48
Positioning accuracymm±0.005/300±0.005/300
Machine Weightkg30003100
💠 Standard Accessories
  • Mitsubishi M80 controller
  • 21 Arm clipping type Magazine
  • Taiwan Linear guideway & Ball leadscrew
  • High speed direct driven spindle
  • Lubricating & Coolant system
  • Work lamp & Tri-color warning lamp
💠 Optional Accessories
  • Fanuc 0i MF plus / Siemens 828D controllers
  • Chain type chip conveyor
  • Center through spindle (CTS) 20bar
  • 4th Axis integration
📦

Packaging & Delivery

Package Size
2300 x 2280 x 2550 mm
Gross Weight
3400.000kg
Production Process
Shipping Packaging
❓

Frequently Asked Questions

What are the main types of machines available?
We specialize in a wide range of CNC machines, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.
What control systems are used in the machines?
Our machines can be equipped with systems from Siemens, GSK, Fanuc, and others based on your specific operational requirements.
What trade terms do you support for international orders?
We support standard international trade terms including FOB, CFR, and CIF to accommodate different shipping needs.
How can I select the most appropriate machine for my needs?
You can provide us with the specific parameters or product photos of what you intend to process. Our technical team will help you choose the best model for price and quality.
Will I receive updates during the manufacturing process?
Yes, we provide regular progress updates and status reports throughout the manufacturing cycle to ensure transparency.
What is the standard lead time for production?
The typical production capacity is approximately 20 units per month, though specific lead times may vary based on model configuration and order volume.
