DSCUT CNC
1 / 5

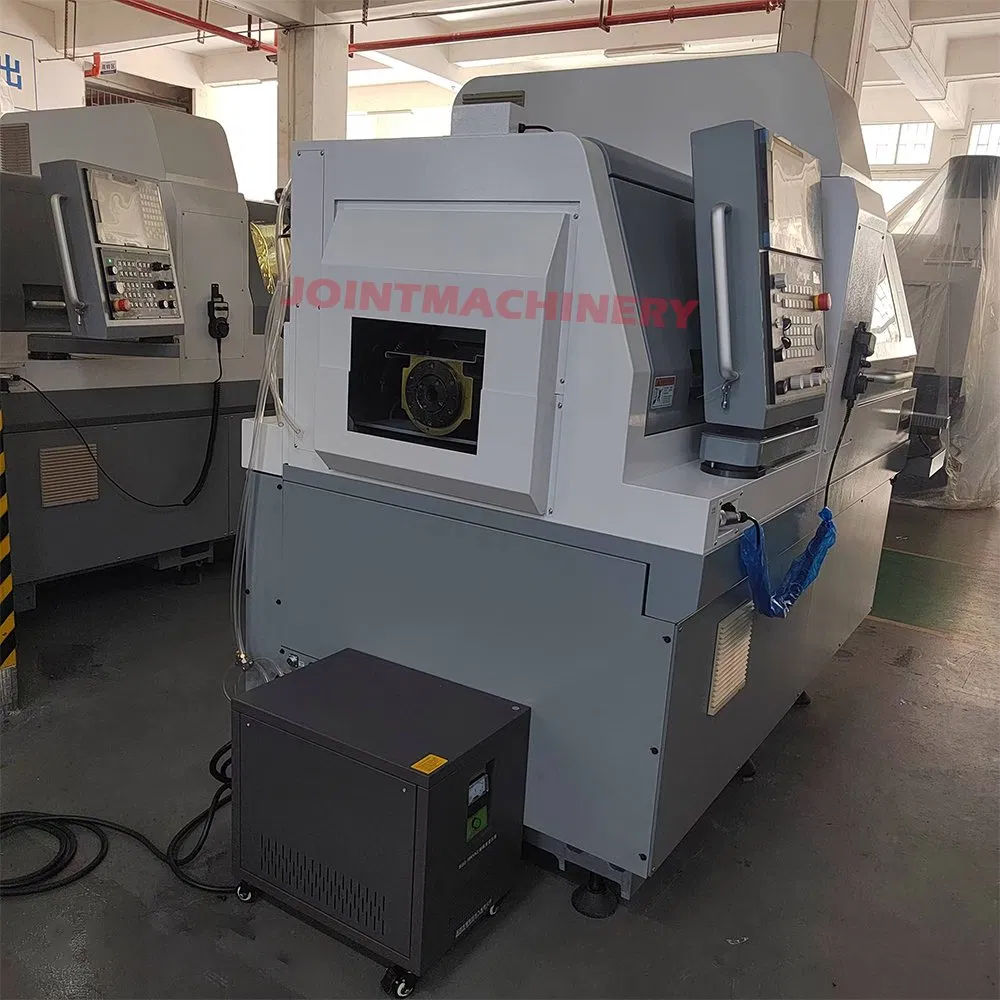

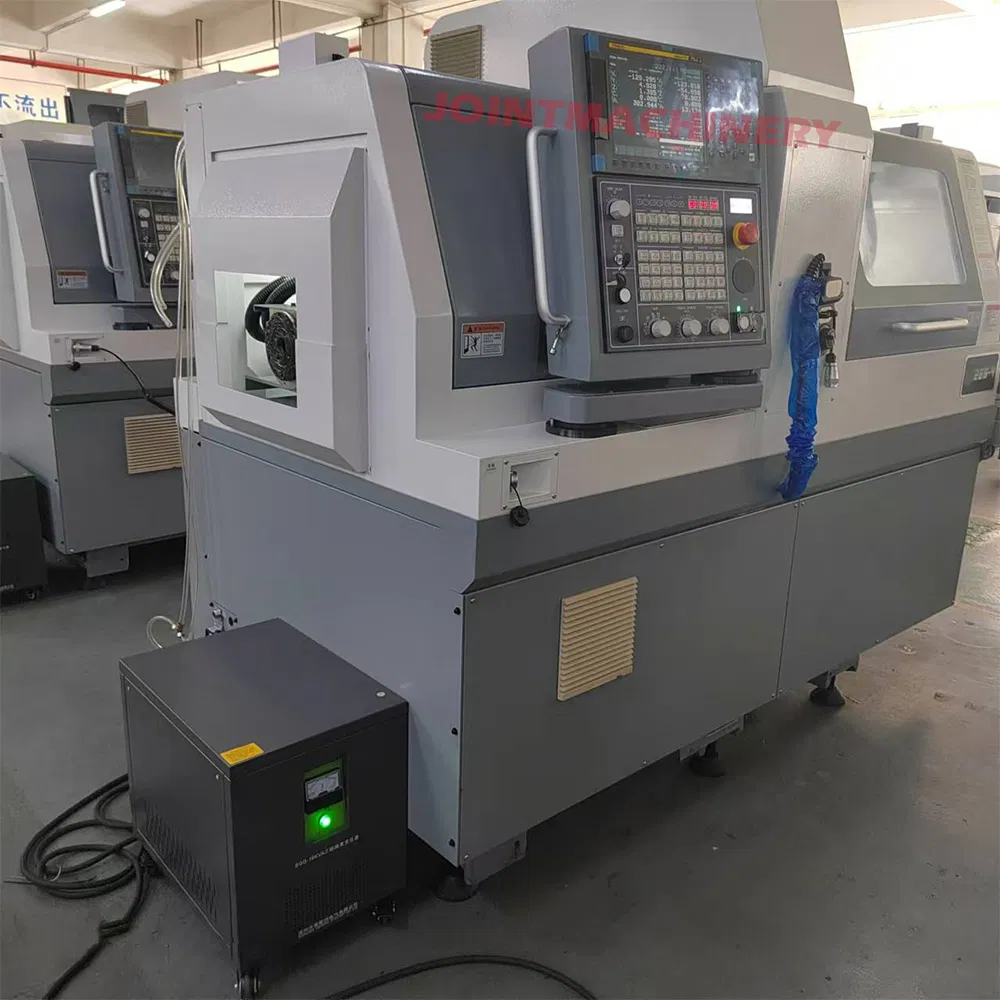

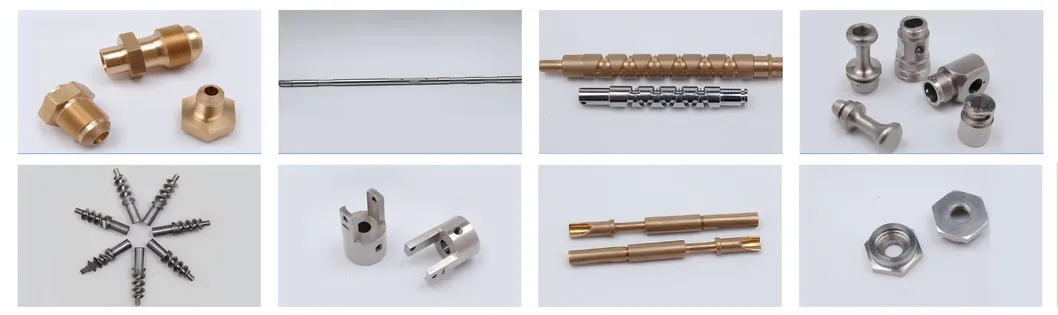

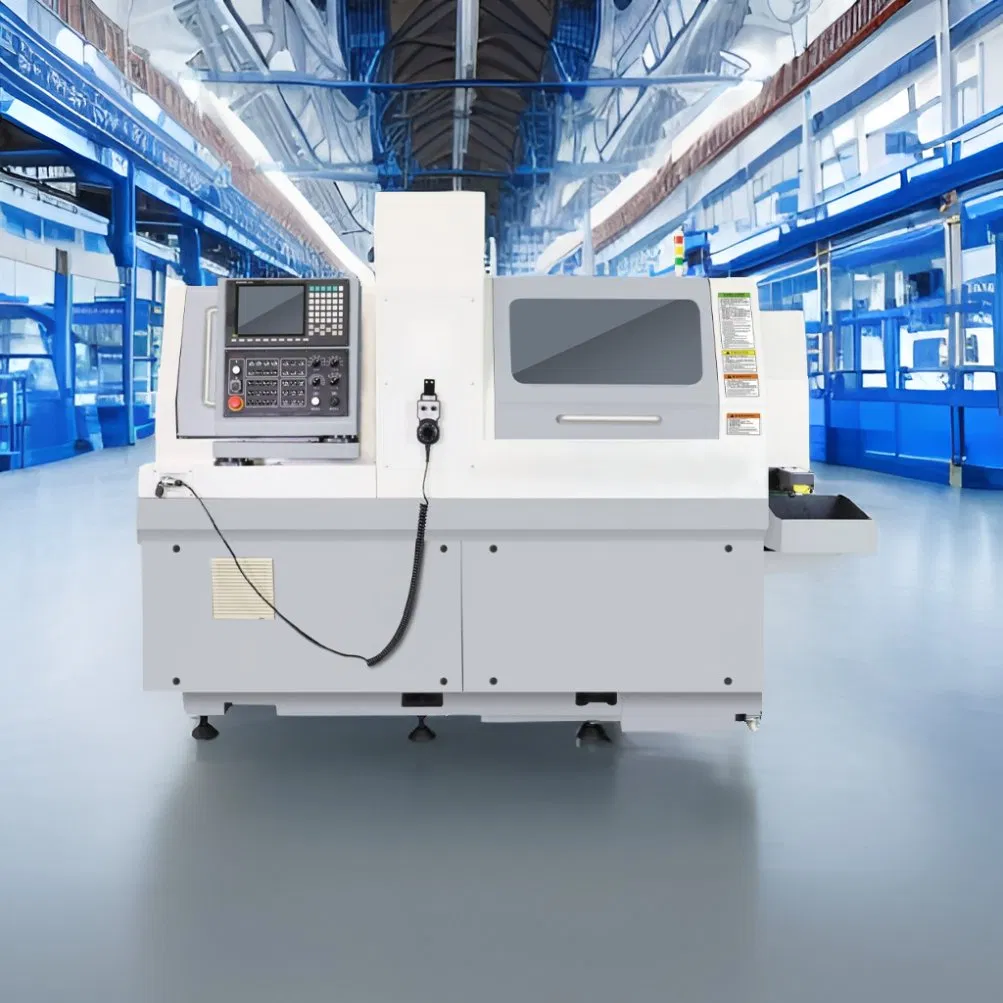

This sophisticated series of machines is designed for precision processing, capable of performing composite tasks like turning, milling, drilling, boring, tapping, and engraving simultaneously. Ideal for batch processing of precision hardware and uniquely shaped non-standard shaft parts.
| Model | Unit | SLM326M-4 | |
|---|---|---|---|
| NC system | - | SYNTEC 220TB | |
| Lathe rated power | kw | 16 | |
| Machining Range | |||
| Max machining diameter | mm | Φ32 | |
| Max machining length (With guide bush) | mm | 310 | |
| Main spindle power | kw | 4.4 | |
| Sub spindle power | kw | 3 | |
| Main/Sub spindle rev speed | rpm | 6000/6000 | |
| Max tool installed qty | pcs | 26 | |

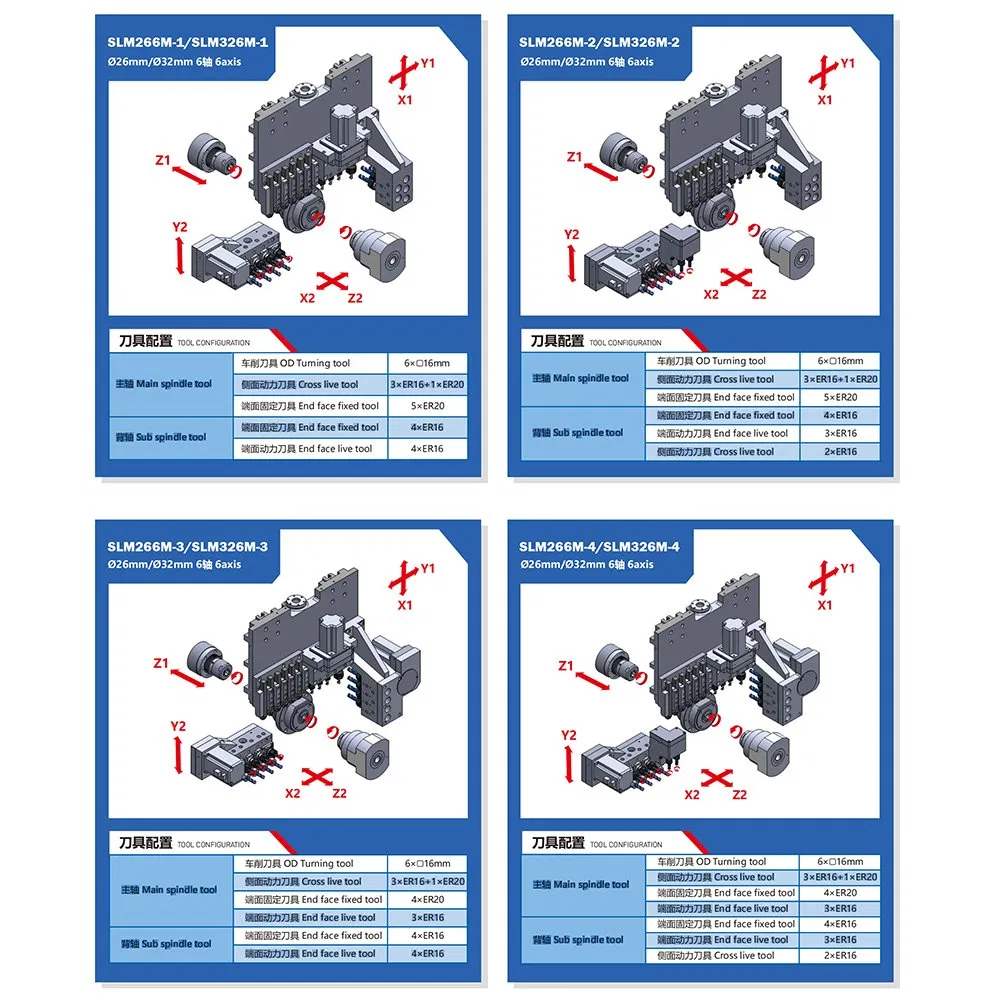

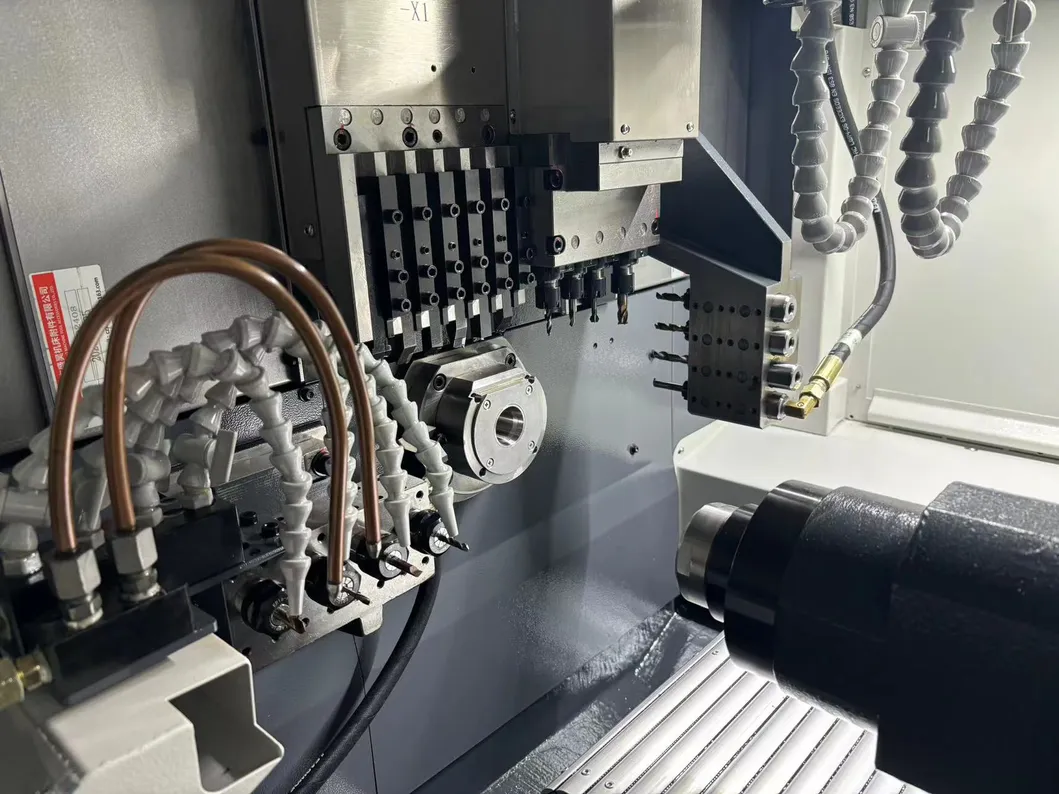

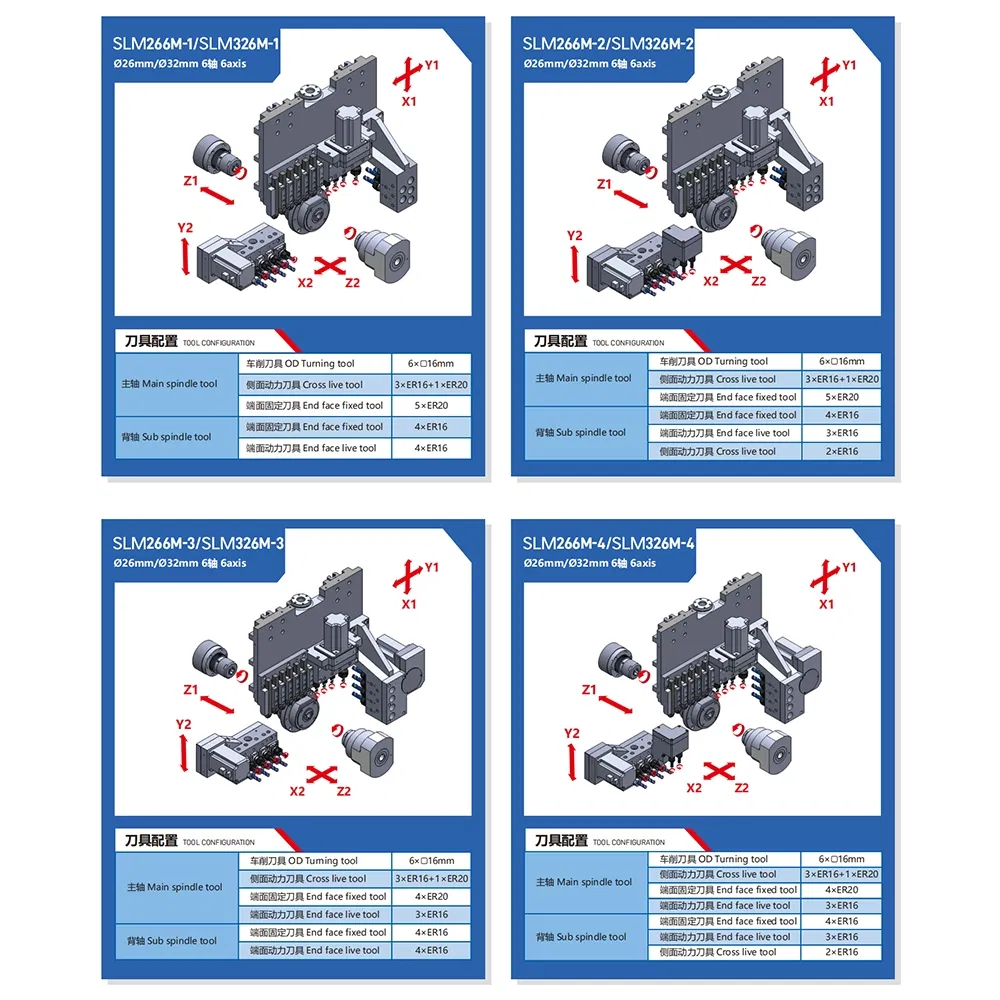

| Tooling Configuration | |||
| OD Turning Tool | mm | 6*16 | |
| Cross Live Tool | mm | 3*ER16 +1*ER20 | |
| Live tool rev speed | rpm | 5500 | |
| Weight | kg | 3700 | |

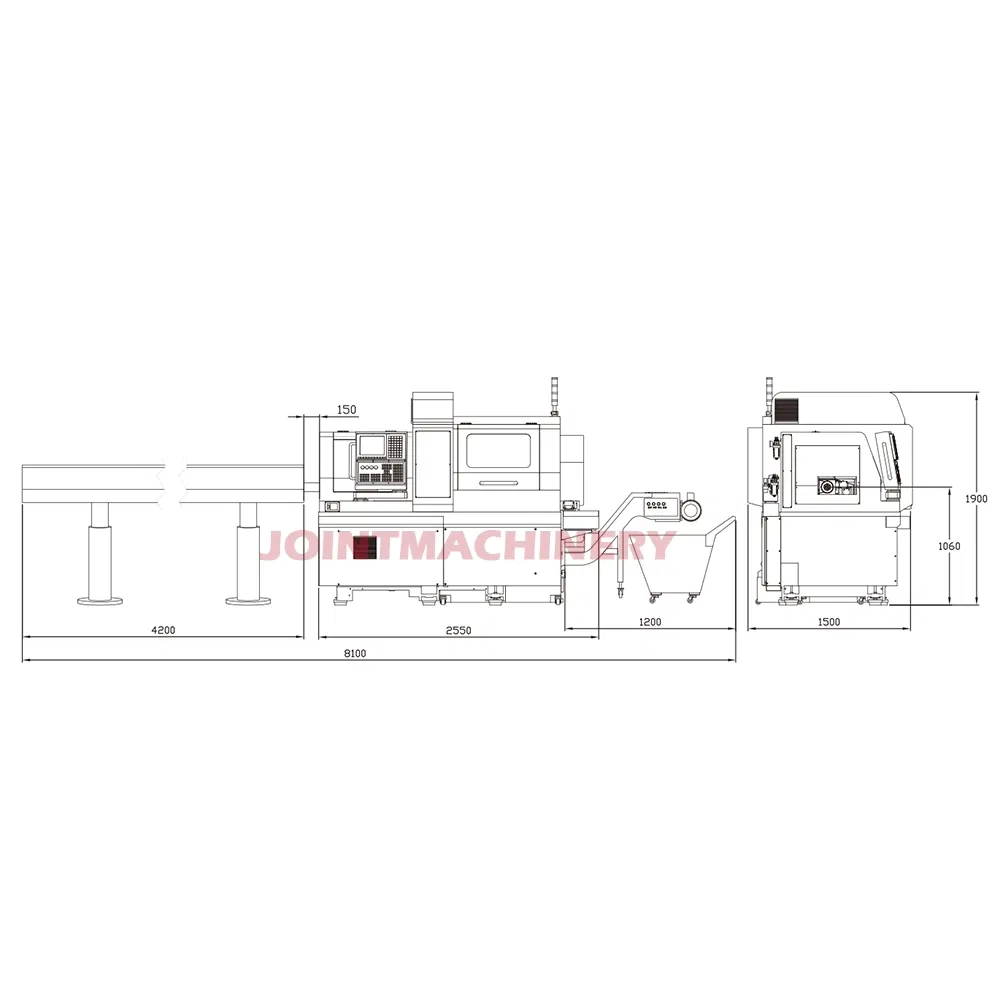

| Dimensions (L*W*H) | mm | 2550*1500*1900 | |

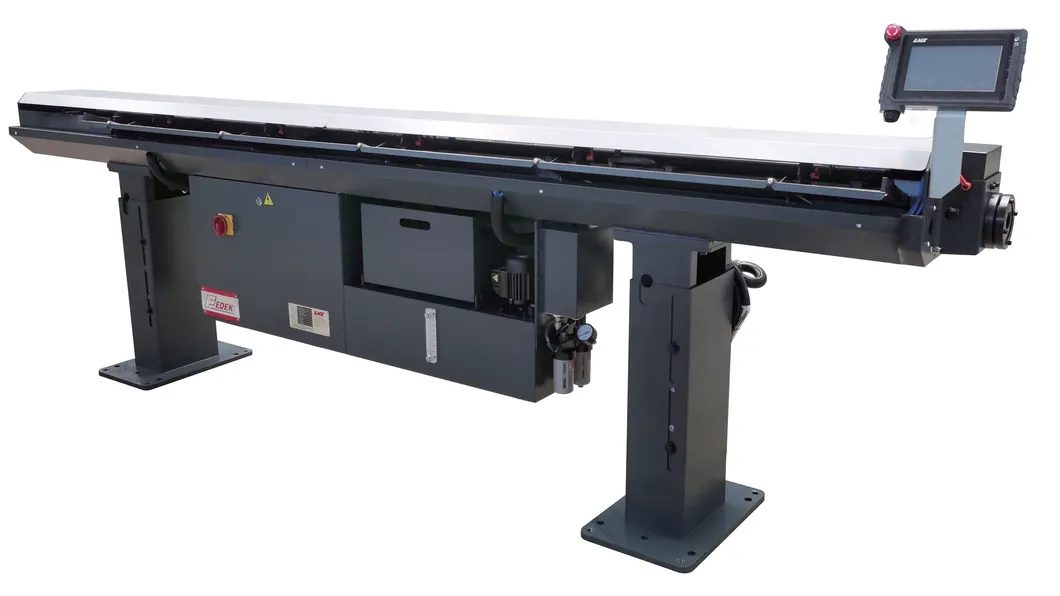

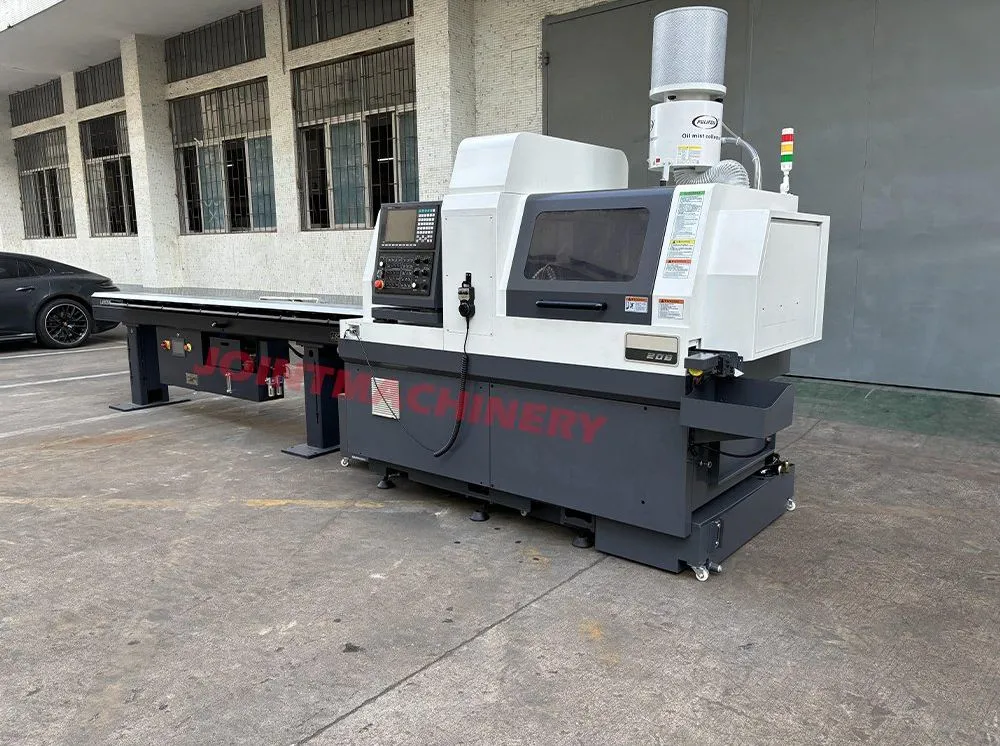

| Bar Feeder SLM-320/S2 Technical Specifications | |||||
| Diameter | mm | Φ3 - Φ26 | |||
| Model Length | m | 2.5 | 3.2 | 3.7 | 4.0 |
| Overall length | mm | 3355 | 3949 | 4505 | 4855 |
| Magazine capacity | - | Φ5mm*52pcs | |||
| Air pressure | kg/cm² | 5~7 | |||
The production process integrates cutting-edge core technologies from Taiwan and Germany, coupled with advanced production equipment and processes, to deliver unmatched product quality and reliability. Known for superior performance in precision, stability, and dependability.
