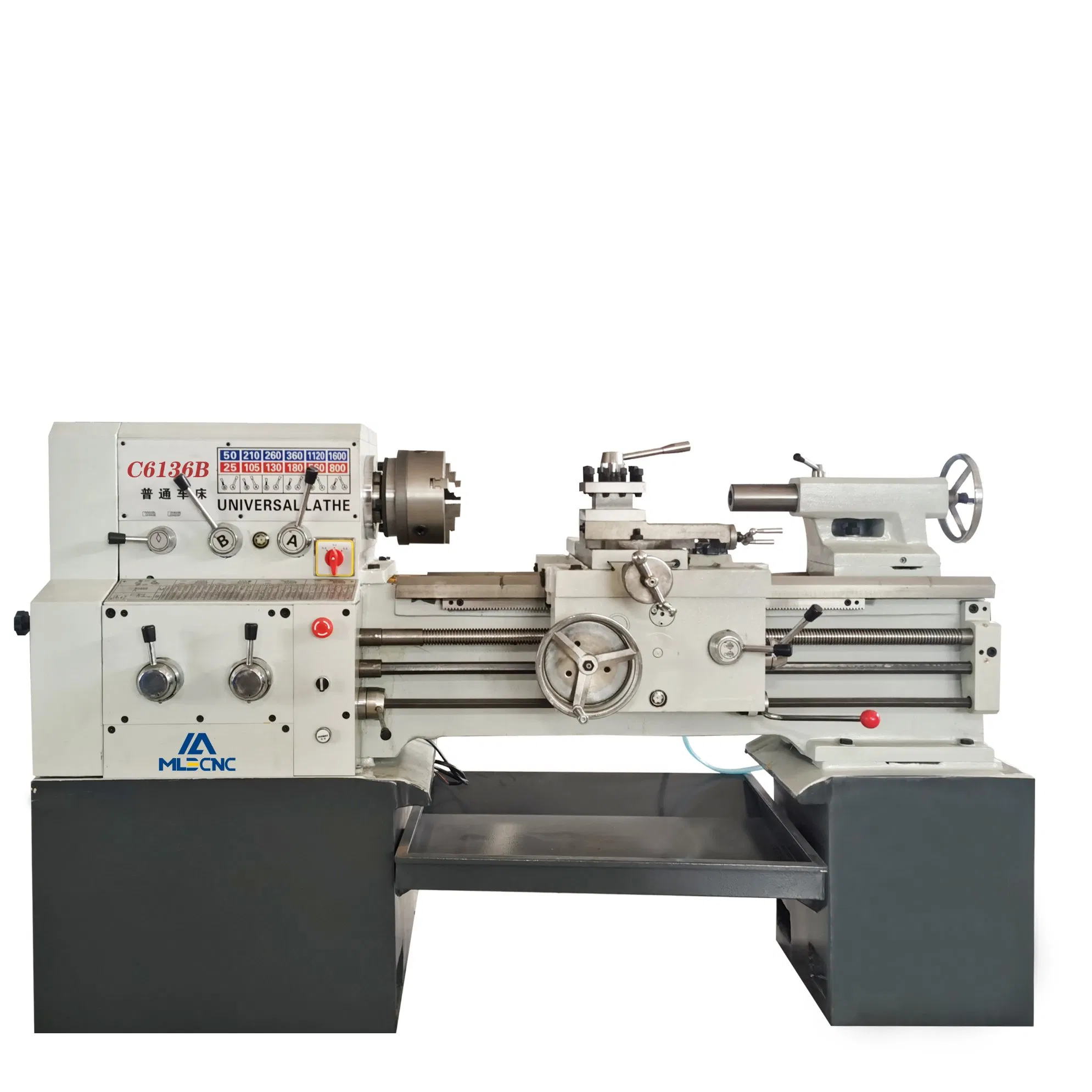

C6136D Small Toolroom Manual Drawing of Gunsmith Lathe Machine Low Cost

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
C6136D
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4 T
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Condition
New
Swing Over Bed
312mm
Spindle Bore
52mm
Motor
4kw
Process Length
750/1000mm
Spindle Speed
10-1600rpm
Origin
China
HS Code
8458190000
Product Description

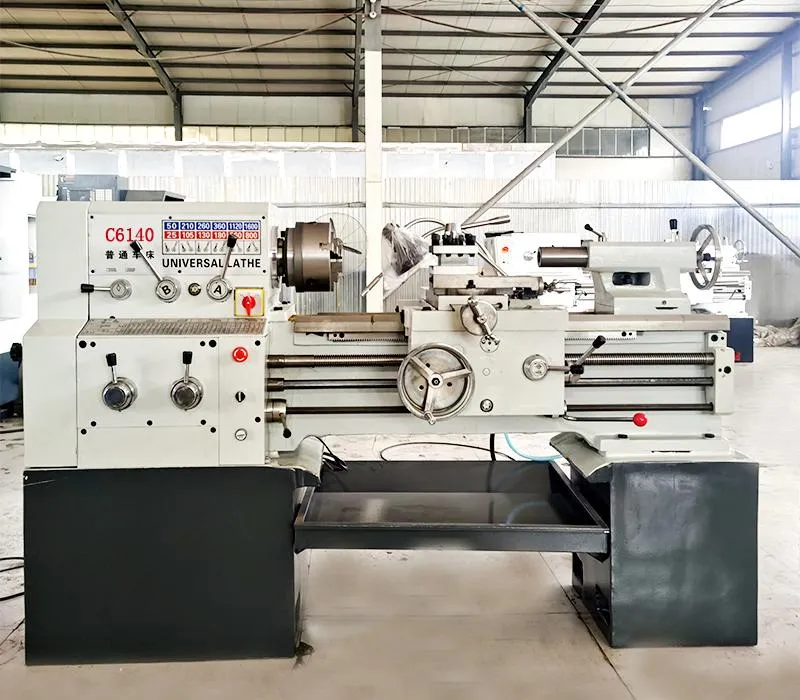

Manual Drawing of Gunsmith Lathe Machine

Core Features

  • Suitable for internal and external turning, tapering, rotating faces, metric, module, and inch threads.
  • Wider lathe bed (312mm) provides high rigidity and durability with high-frequency quenching guideways.
  • Easy operation with a convenient single-handle control system.
  • High structural rigidity in transfer parts ensures efficient power usage for easy cutting.
  • Comprehensive factory testing ensures high stability and reliability.
Technical Specification
Specifications C6136
Max. swing over bed360mm
Max. swing over carriage200mm
Max. length of work piece750mm/1000mm
Width of bed312mm
Section of turning tool20x20
SpindleSpindle speed30-1600r/min
Hole through spindle52mm
Spindle taperMT6
Feed RangeRange of metric threads0.5-20mm
Range of inch threads80-1.75
Range of module threads0.25-10mm
Range of diametral pitch threads160-3.5dp
NO. of feed0.039-1.05mm / 0.019-0.52mm
TailstockMax. tailstock spindle travel100mm
Tailstock spindle diameter60mm
Taper of tailstock spindle center holeMT4
Main motor3/4KW
Overall dimensions (750mm)2000x1130x1540
Product Gallery

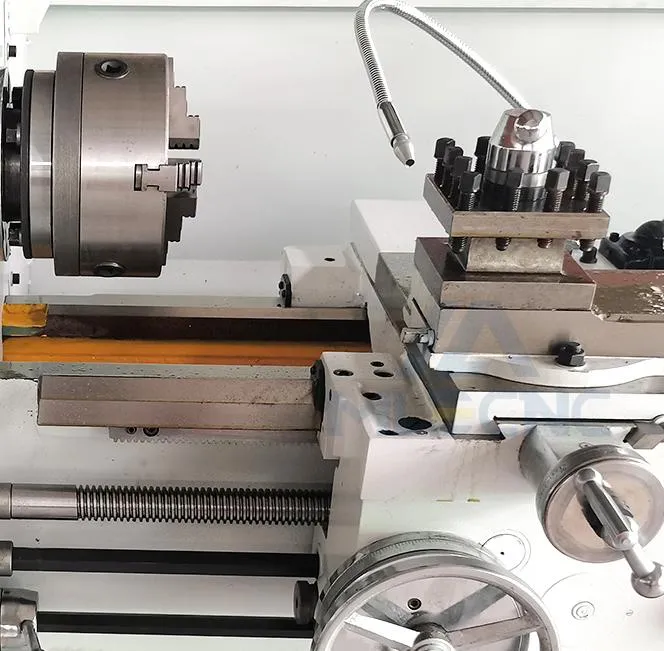

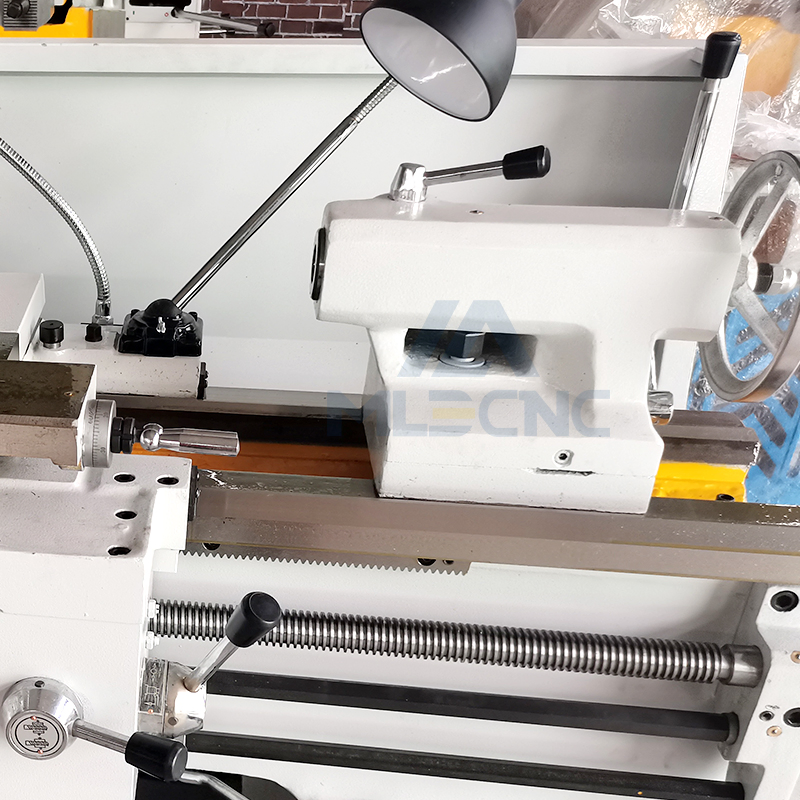

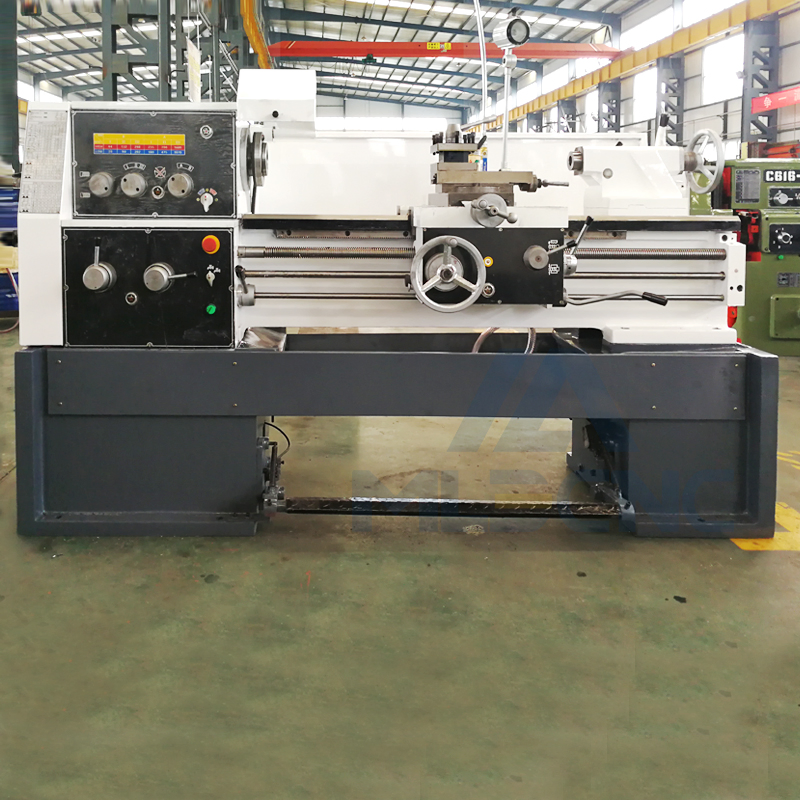

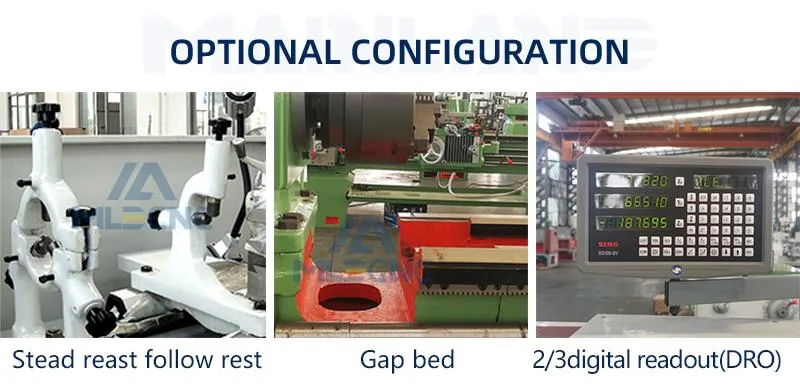

Full Machine View
Manufacturing & Services

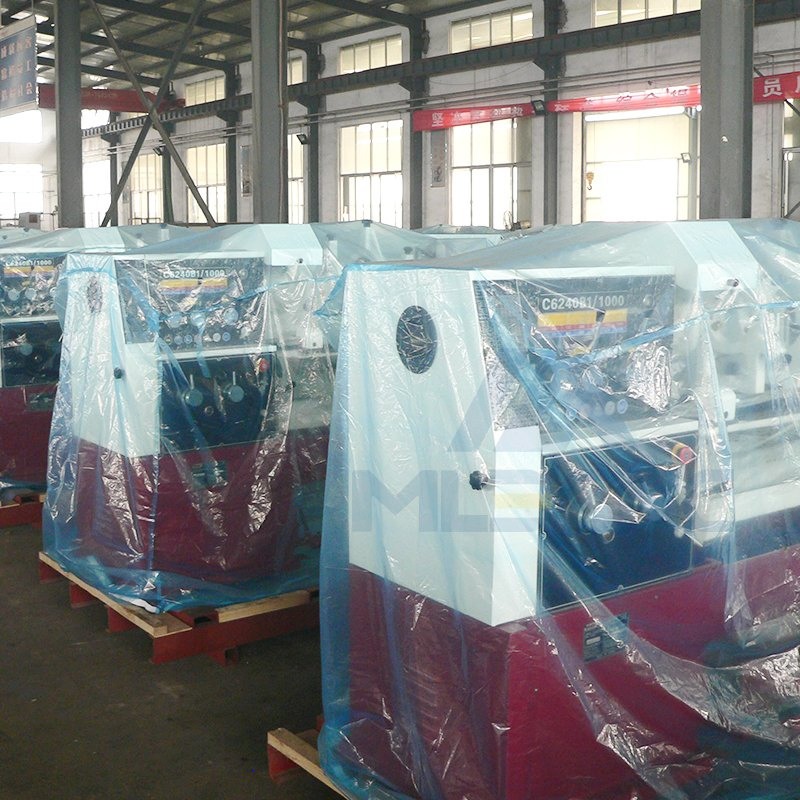

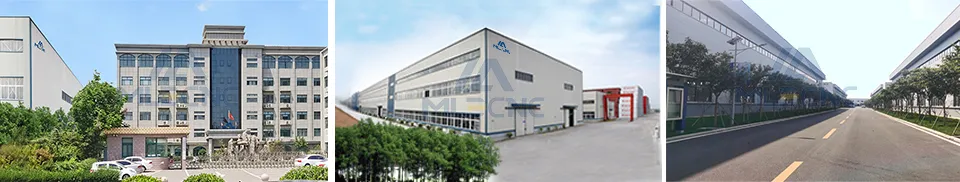

Factory Overview

Professional Manufacturing: We specialize in high-quality CNC lathe machines, milling machines, vertical machining centers, and various metal cutting tools. All products have passed CE, ISO, SGS, and TUV certifications, ensuring global standards of quality and performance.

Global Reach: Our equipment is exported to Europe, America, Southeast Asia, and other regions. We possess rich experience in manufacturing and international logistics to provide a seamless purchasing experience.

Service Team

After-Sales Commitment: We follow a "customer first" concept. Our technicians are available to resolve technical queries effectively via phone or digital communication, aiming for a feedback window within 24 hours.

Logistics
Packing & Certifications

Frequently Asked Questions

How can I get a quotation?
Please provide your required specifications or drawings. We will recommend the most suitable model and provide a detailed quotation based on your processing needs.
What are the main products available?
We specialize in a wide range of machinery including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.
Do you provide training for CNC machine operation?
Yes, we offer free operational training at our facility to ensure your team can handle the equipment efficiently.
What are your warranty terms?
We provide an 18-month warranty starting from the bill of lading date. Defective parts will be replaced during this period. Extended warranties are also available upon request.
What is the typical delivery time and packaging?
Delivery usually takes 30-45 days. All machines are packed in sea-worthy plywood cases to ensure protection during international transit.
What are the accepted payment terms?
Standard terms are 30% initial payment upon order and 70% balance before shipment via T/T, or irrevocable LC at sight.
