💻 Product Description

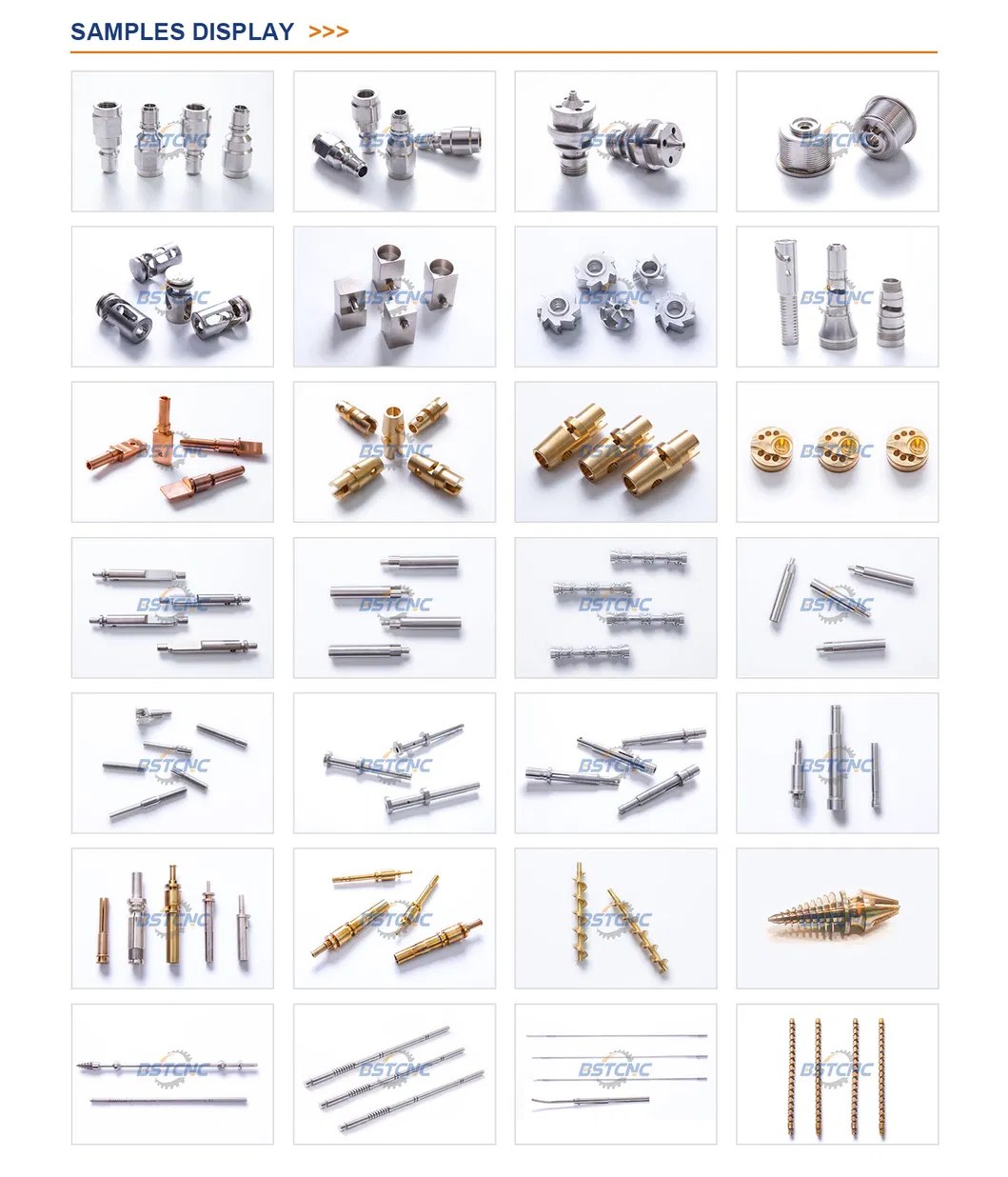

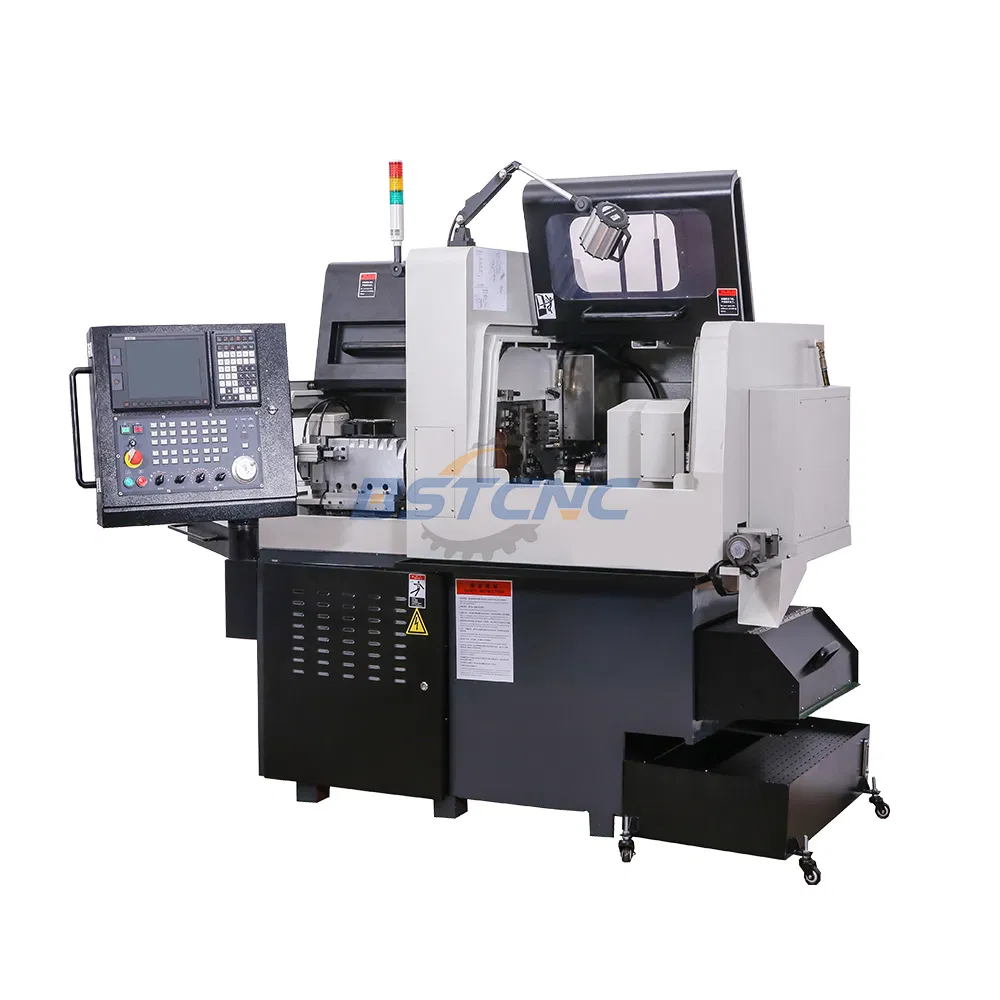

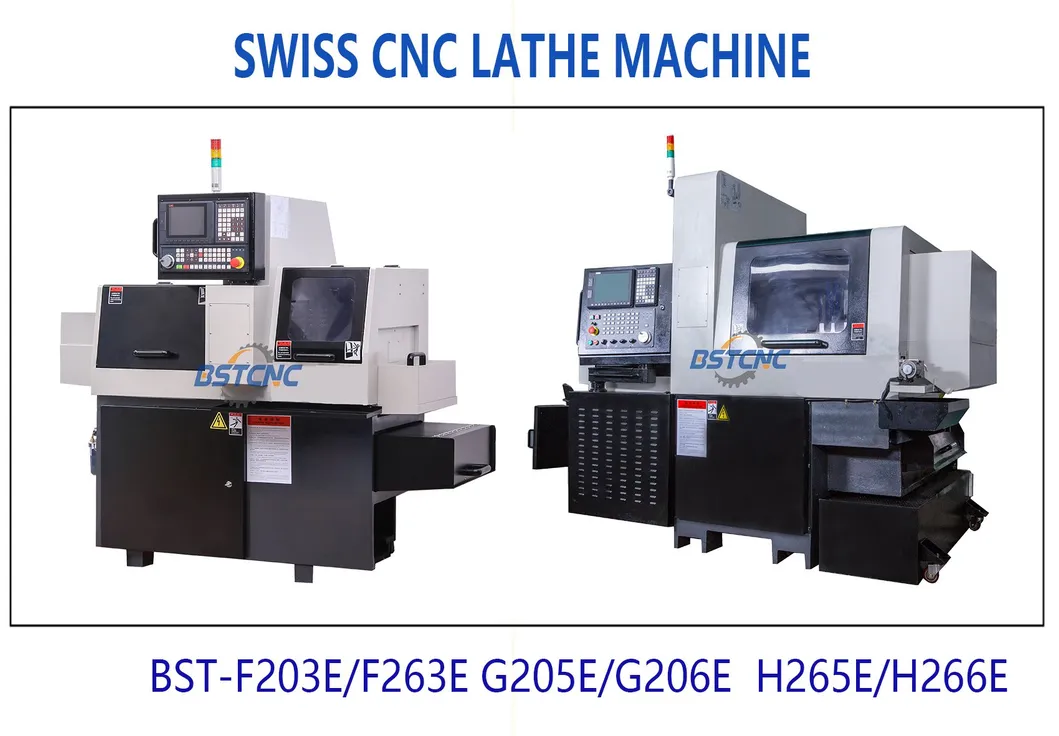

This Swiss machine features turning and milling compound functions and can adopt various CNC systems to achieve automatic control. It is widely used for various machining tasks and is ideal for processing shaft parts with complicated shapes requiring high precision and mass production. Industries include automotive and motor accessories, medicine, micro-axis, electronic components, pneumatic tools, and clock manufacturing. It is specifically designed for slender shaft parts with large length/diameter ratios and small special-shaped parts.
⚙ Specification & Parameter
| Category |
Item |
Unit |
Specification |
| Spindle | Stroke | mm | 75/120 |
| Max. Spindle Speed | rpm | 8000 |
| Max. Turning Diameter | mm | φ20 |
| Spindle Bore Diameter | mm | φ22 |

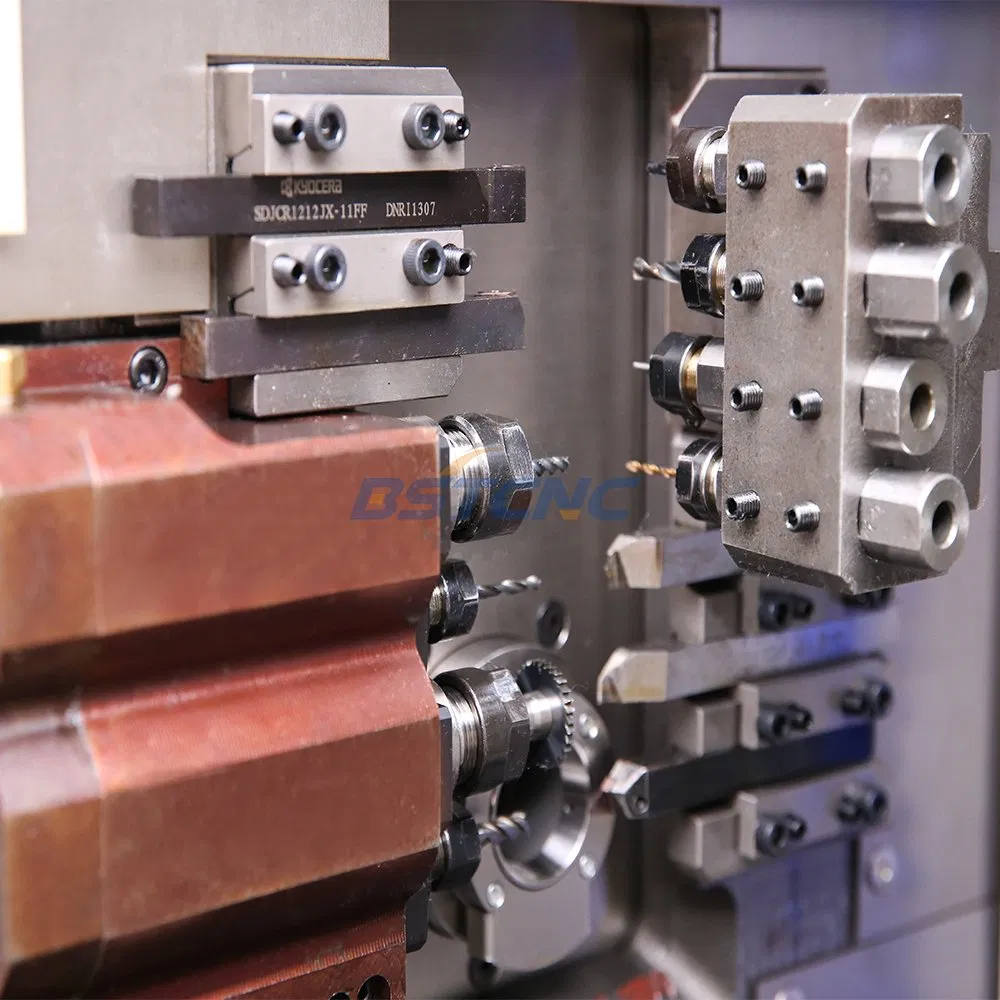

| Tooling | O.D Tools Number | ea | 5 |
| OD Tool Size | mm | 12x12 |

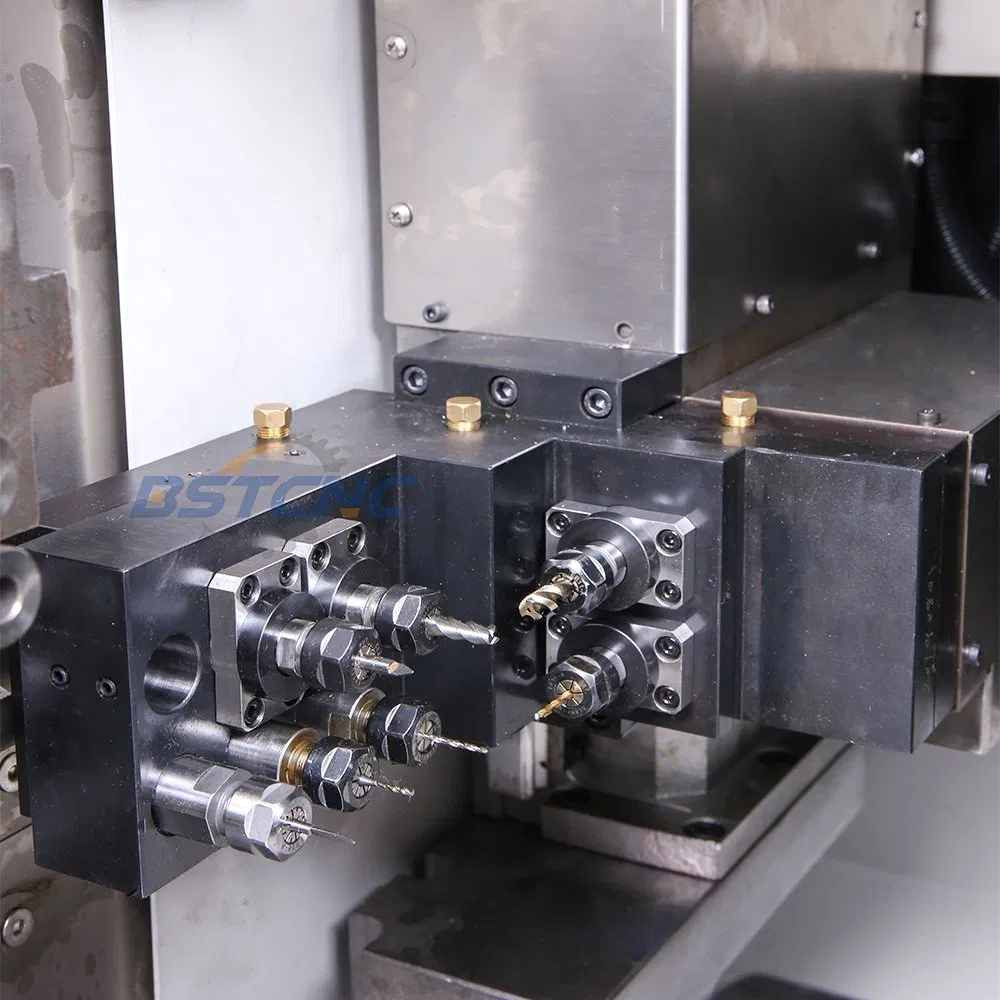

| Cross Driven Tools Number | ea | 4 |
| Cross Max. RPM | rpm | 5000 |
| Motor | Spindle Motor | kw | 3.7/2.2 |
| Servo Motor (X1/Z1/Y/X2/Z2) | kw | 0.75 |
| Rapid Traverse Rate | m/min | (X1/Y/X2/Y2) 30, (Z1/Z2) 24 |
| Others | Dimensions (L×W×H) | mm | 2000×1160×1800 |
| Machine Weight | kg | 2780 |
| CNC Controller | - | Taiwan LNC/Syntec |
❓ Frequently Asked Questions
What is the primary use of the Bst-G206E Swiss Machine?
It is designed for high-precision processing of slender shaft parts with large length/diameter ratios, commonly used in automotive, medical, and electronic industries.
What are the turning and milling capabilities?

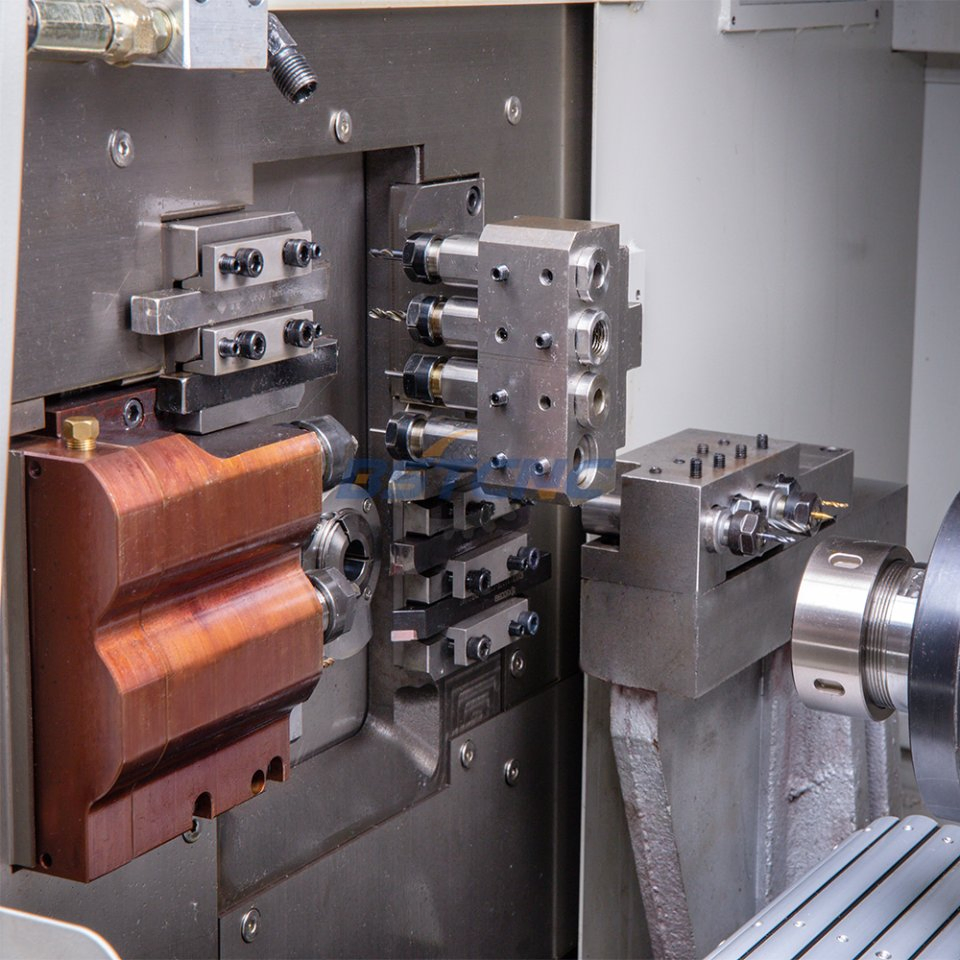

The Bst-G206E is a compound machine that integrates both turning and milling functions, allowing for complex part geometry in a single setup.
What is the maximum spindle speed of this machine?
The machine features a high-performance spindle with a maximum speed of 8000 RPM.
Which CNC control systems are compatible?
The machine typically adopts professional systems such as Taiwan LNC or Syntec for reliable automatic control.
What is the processing precision of this Swiss Lathe?
It is classified as a high-end CNC machine tool, specifically engineered for high-precision mass production of micro-axis and electronic components.

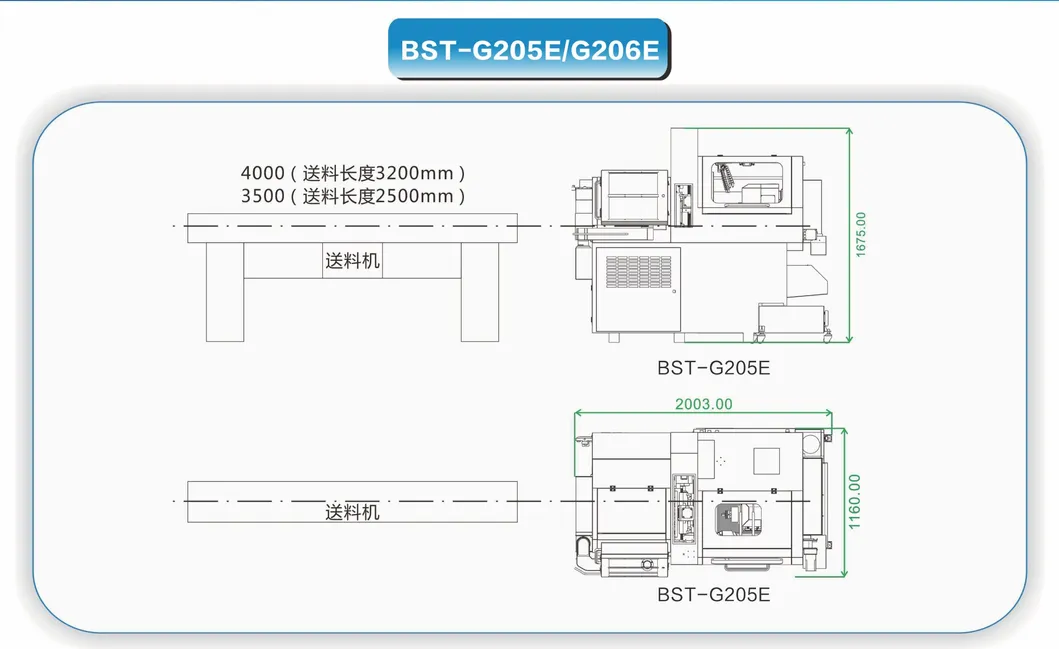

What is the physical footprint of the machine?
The machine dimensions are 2000mm (L) x 1160mm (W) x 1800mm (H), with a weight of approximately 2780kg.
