| Model NO. | YE-1M | Function | Drilling, Chamfering, Tapping, Cutting |
|---|---|---|---|
| Power Supply | Three Phase 380V 50Hz | Max Stroke (Chamfering) | 20mm |
| Max Cutter Diameter | 6mm | Rotating Speed | 1400 RPM |
| Servo Drive & Motor | 400W | Switching Power Supply | 150W |
| Production Capacity | 1000 Set/Year | Origin | China |
| HS Code | 8479819000 | Package | Wooden Case |

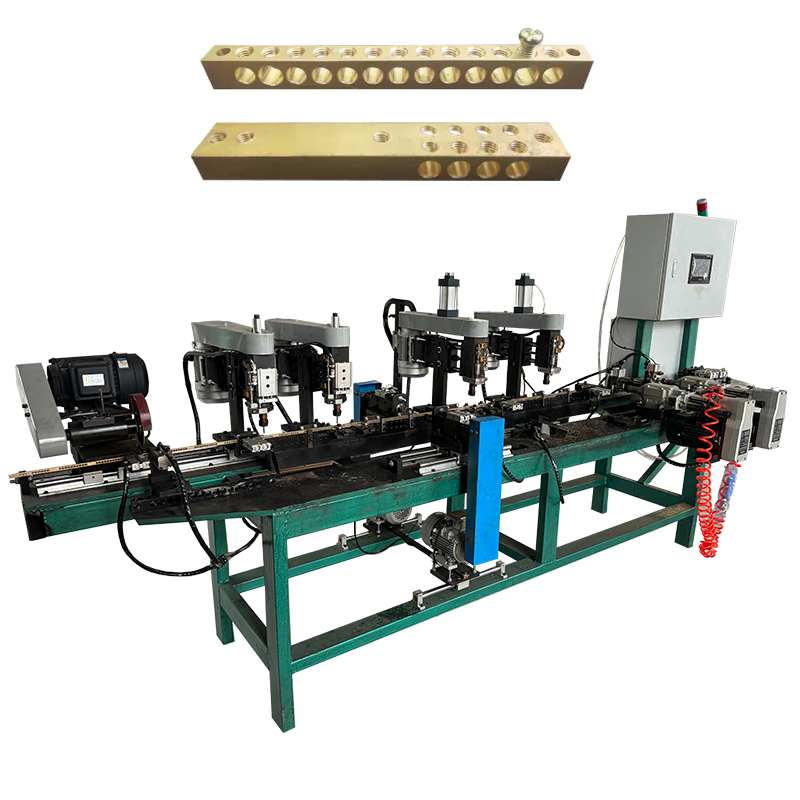

The Automatic bus bar terminal block machine is a highly versatile solution designed for multiple customization needs. This equipment can simultaneously perform cutting, chamfering, punching, tapping, dotting, and printing. It operates at an efficient processing speed of 8,000 to 10,000 pieces per 8-hour shift.
| Mechanism Component | Specifications |
|---|---|
| Sidetracking Large Hole Mechanism | 2 Sets (Max 10mm hole) |
| Side Hole Spindle Speed | 8160, 4800, 2800, 1640 (r/min) |
| Side Hole Motor Power | 750W, 440V, 50Hz |
| Non-Shift Vertical Drilling Mechanism | 2 Sets (Max 5.5mm hole) |
| Vertical Hole Spindle Speed | 5600 r/min |
| Non-Shift Tapping Mechanism | 2 Sets (Max M6 diameter) |
| Tapping Motor Power | 250W, 440V, 1400r/min |
| Chamfering Mechanism | 2 Sets (Max 6mm cutter) |
| Cutting Mechanism | 1 Set (3800 r/min, 0.75kw) |
| Programmable Controller (PLC) | Keyence |
| Touch Screen | Weinview |
| Equipment Size | 3100 * 1150 * 1800 mm |
| Weight | 650 kg (Net) / 3000 kg (Gross with package) |

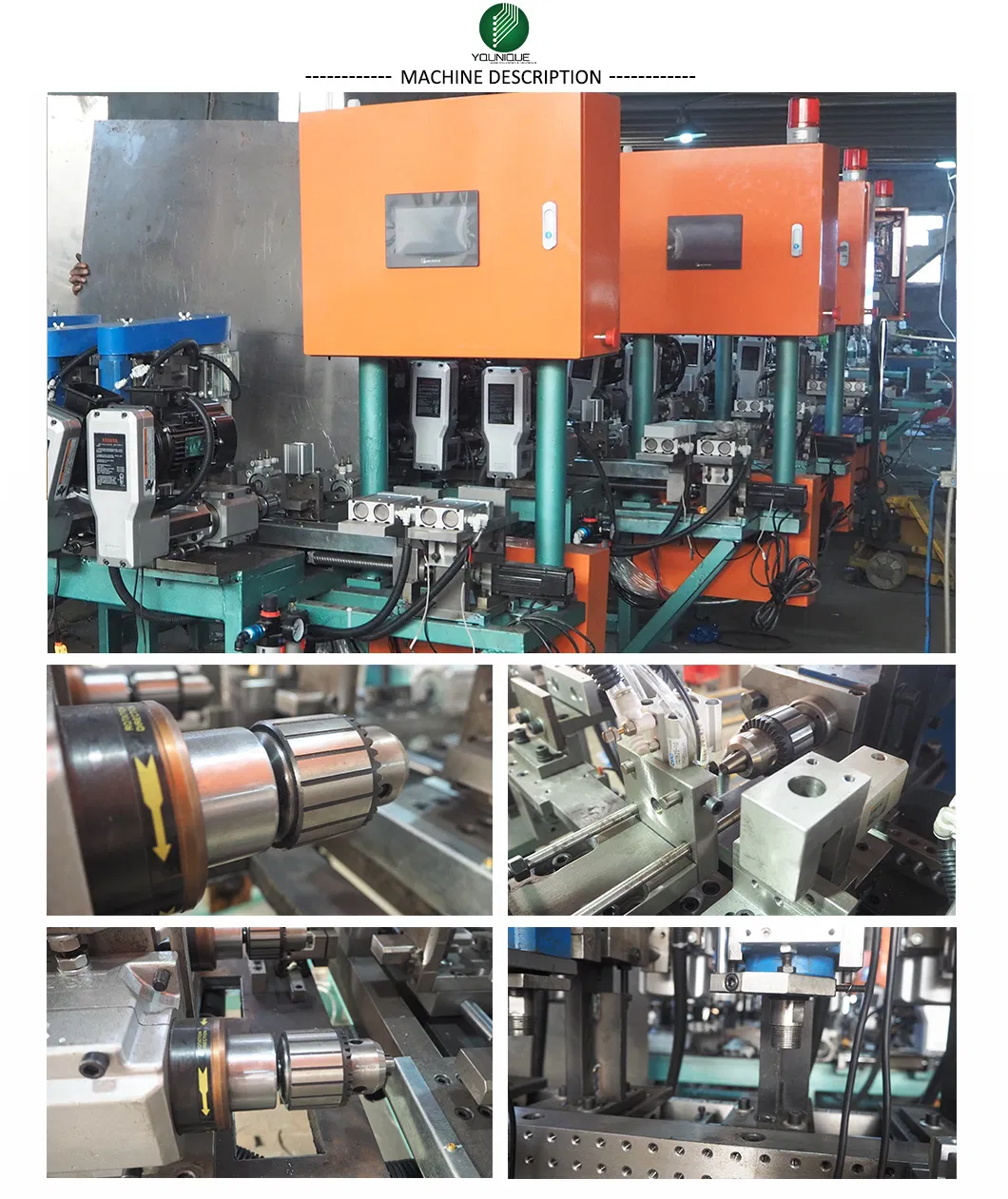

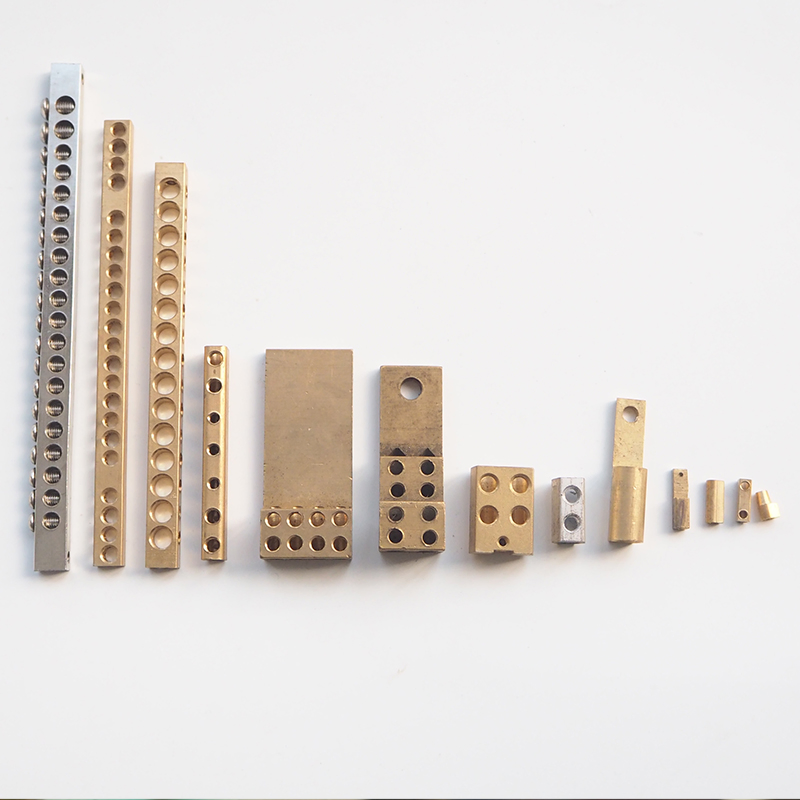

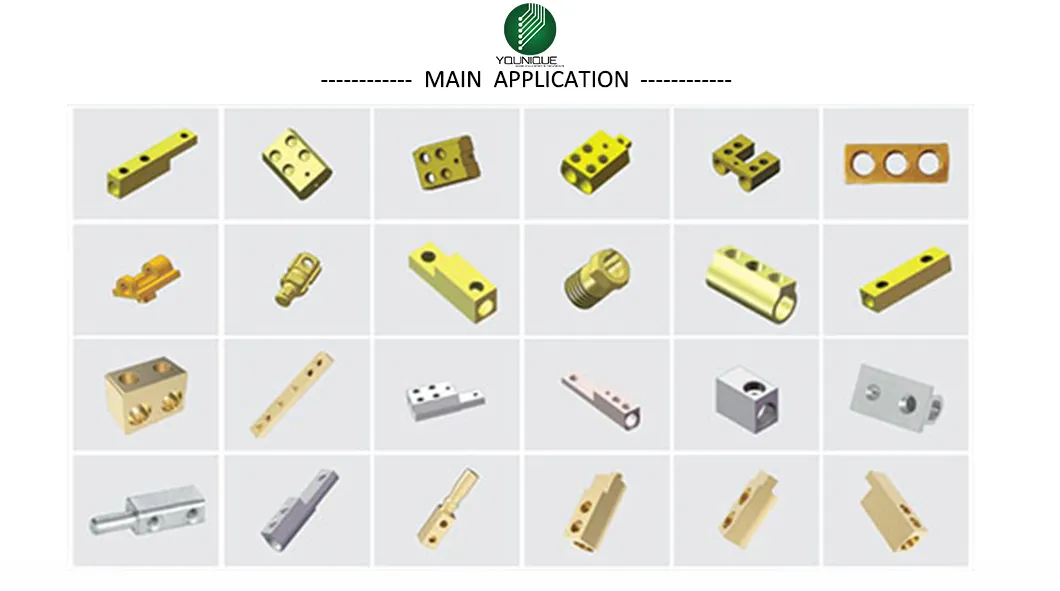

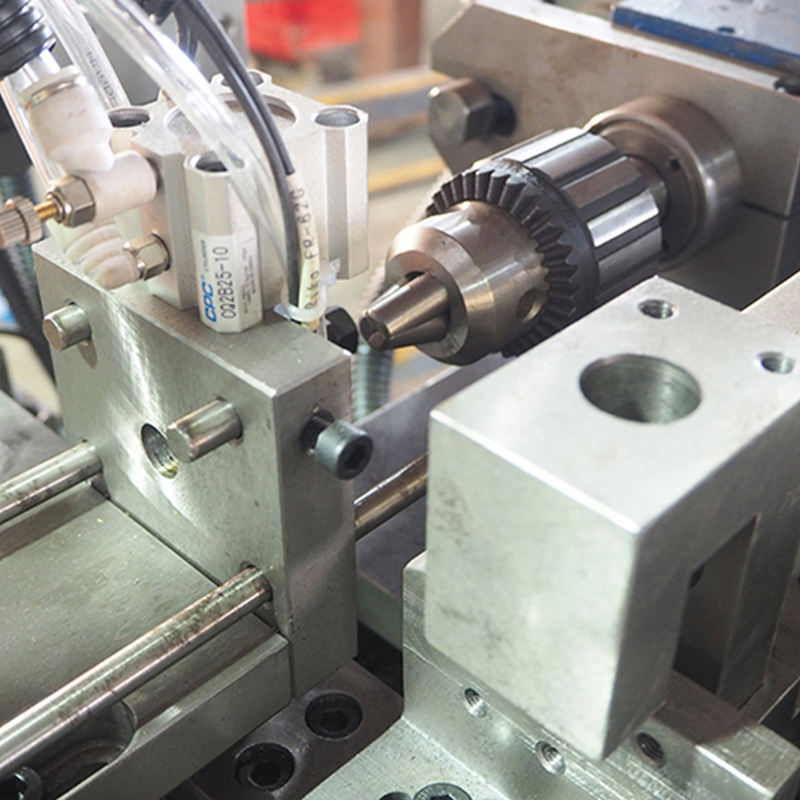

The device is engineered with precision components including servo motors, a ball screw and slideway system, and specialized stations for drilling, tapping, and cutting. It supports the production of 4-way, 8-way, and 12-way brass or copper neutral joints with optional tin or nickel plating.
Customization is available for terminal blocks and neutral bars used in all types of panel boards, switchgears, and electrical switchboards based on specific requirements.
