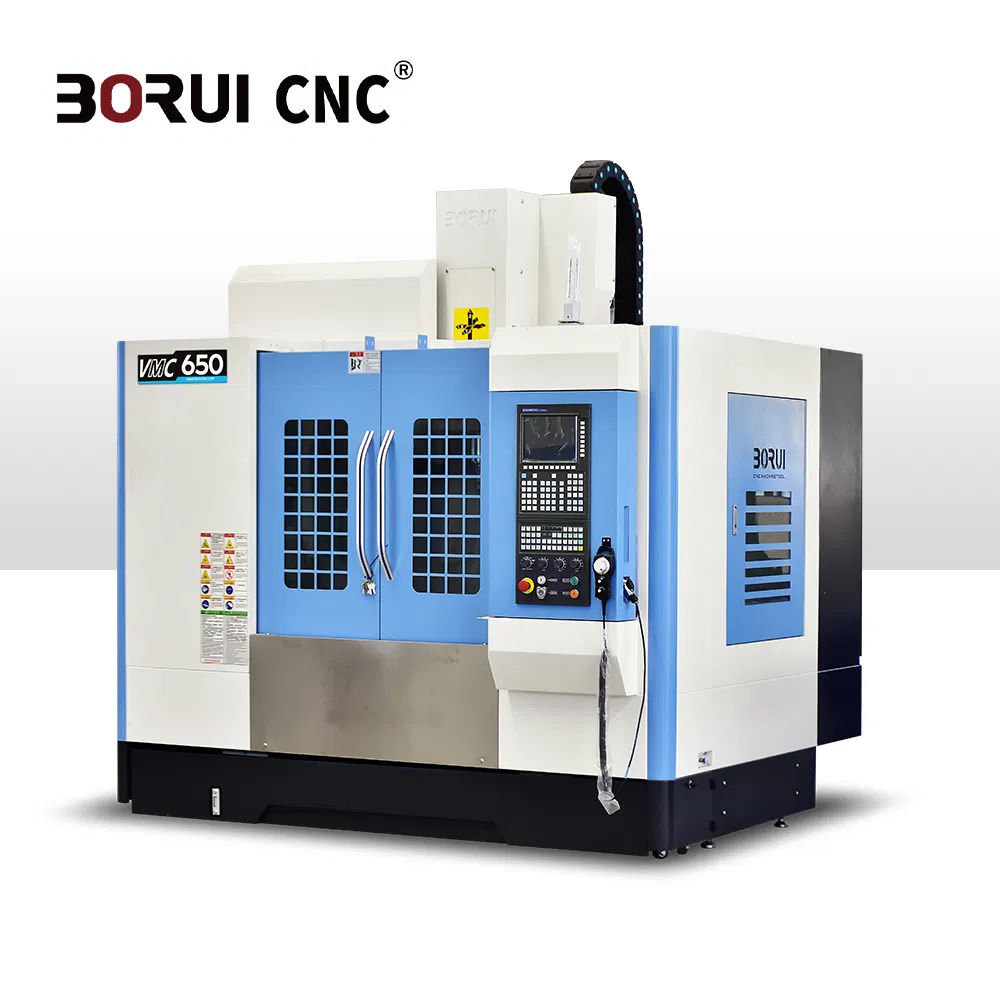

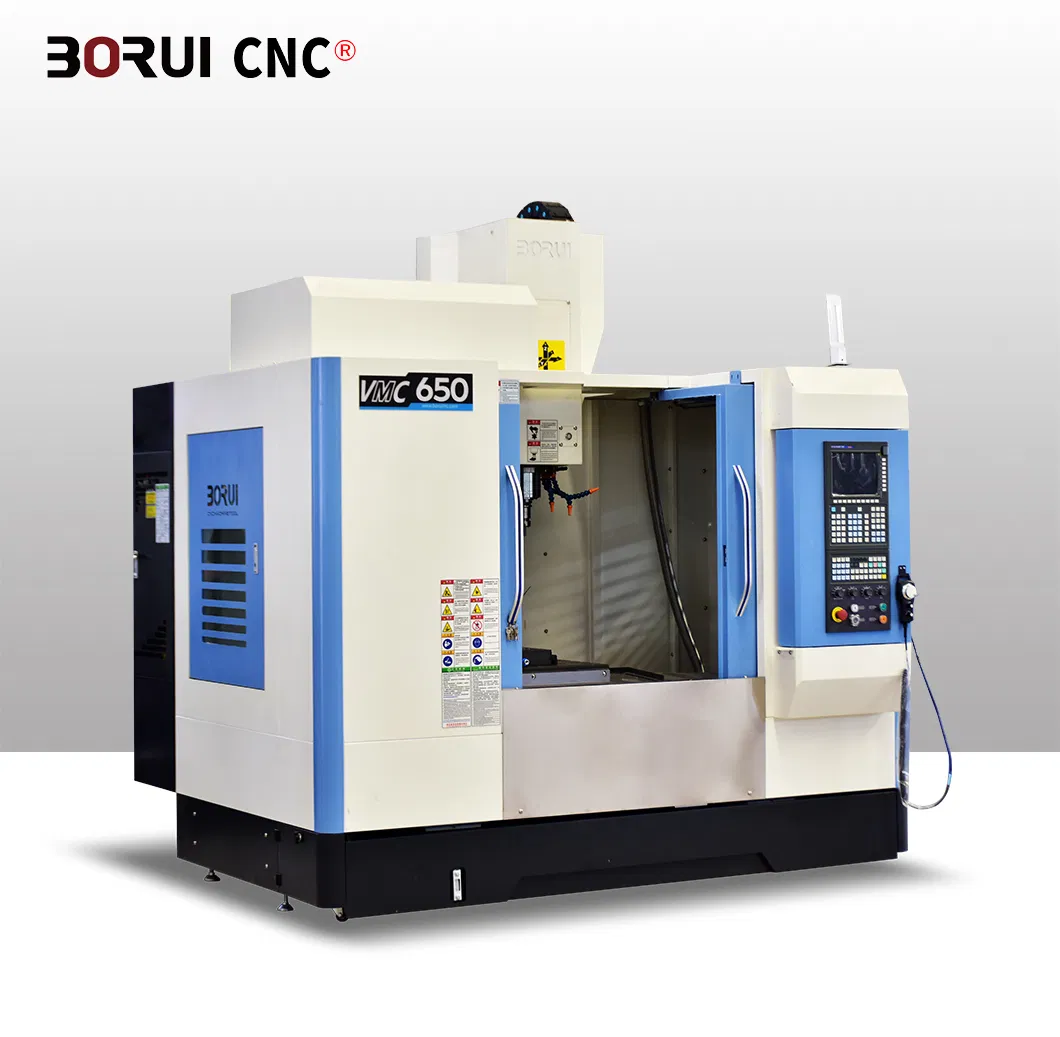

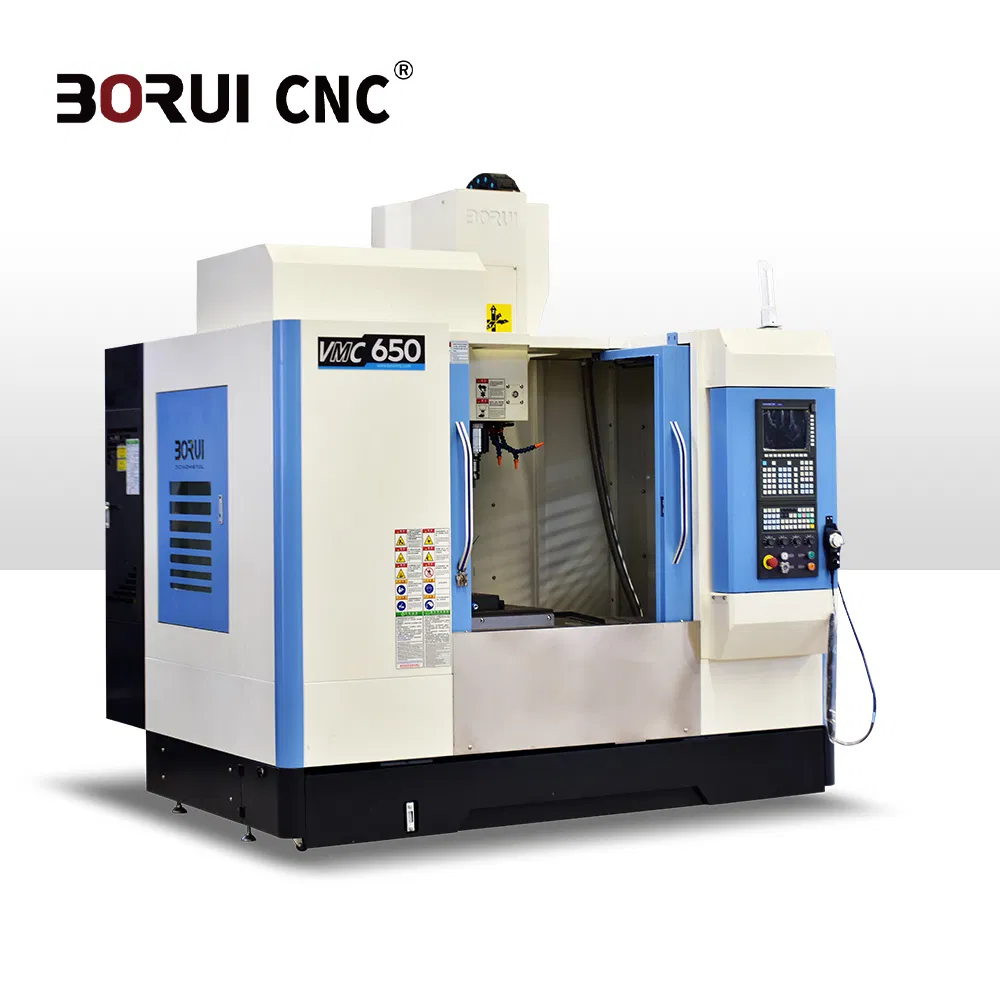

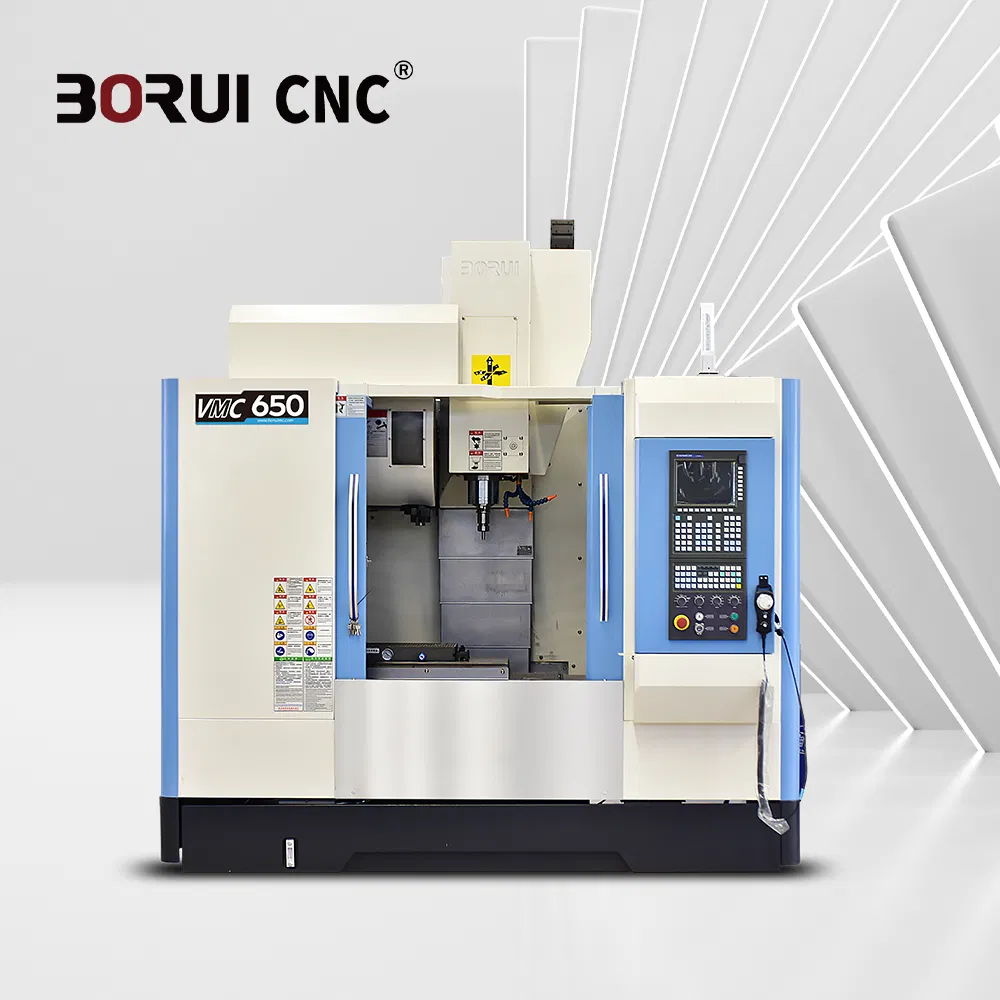

The VMC650 vertical machining center consists of a main engine, CNC system, electrical control system, automatic lubricating system, cooling system, and totally enclosed protective cover. The machine features X, Y, and Z three-axis linkage, allowing for continuous milling, drilling, boring, expanding, hinging, and internal/external screw thread processing in a single clamping. It is suitable for high-precision processing of complex parts, providing quick and perfect integration solutions.

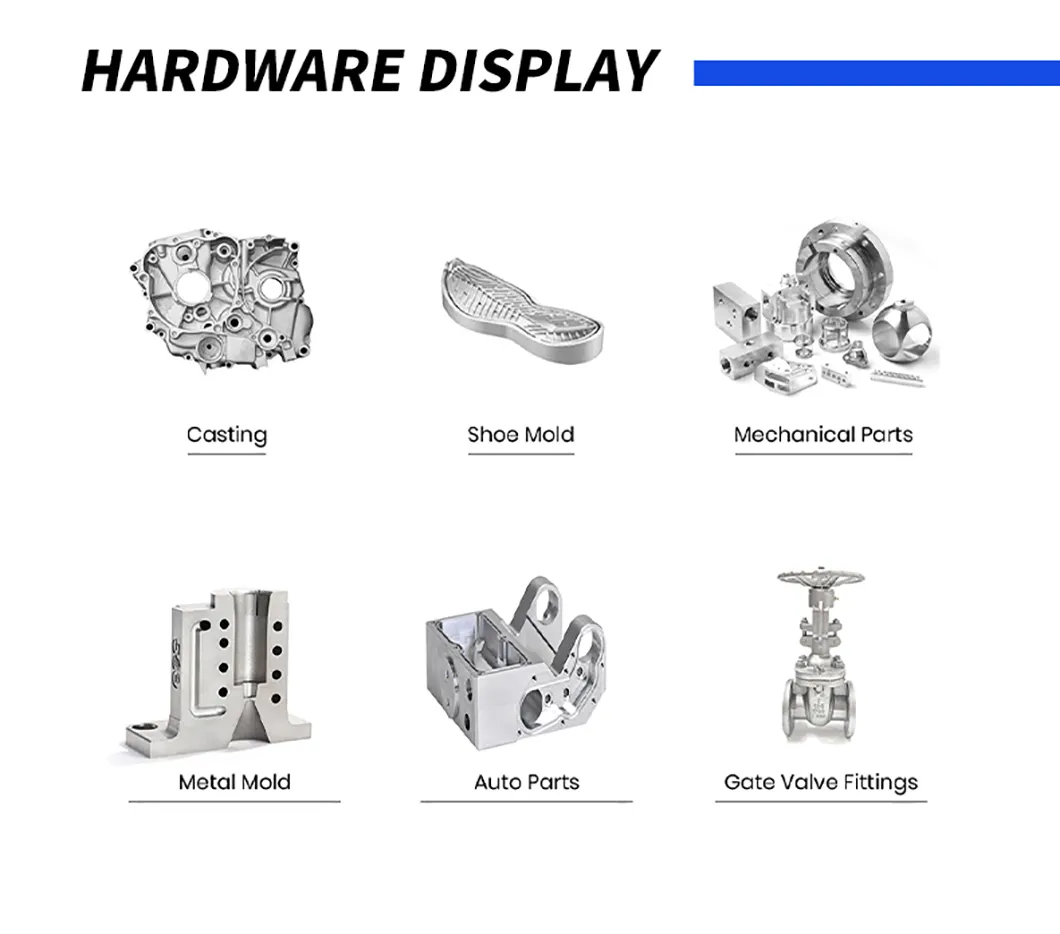

Designed for various plate, shell, and complex parts like CAMs and molds, the VMC650 excels in small-batch production where high precision and multi-procedure machining are required.

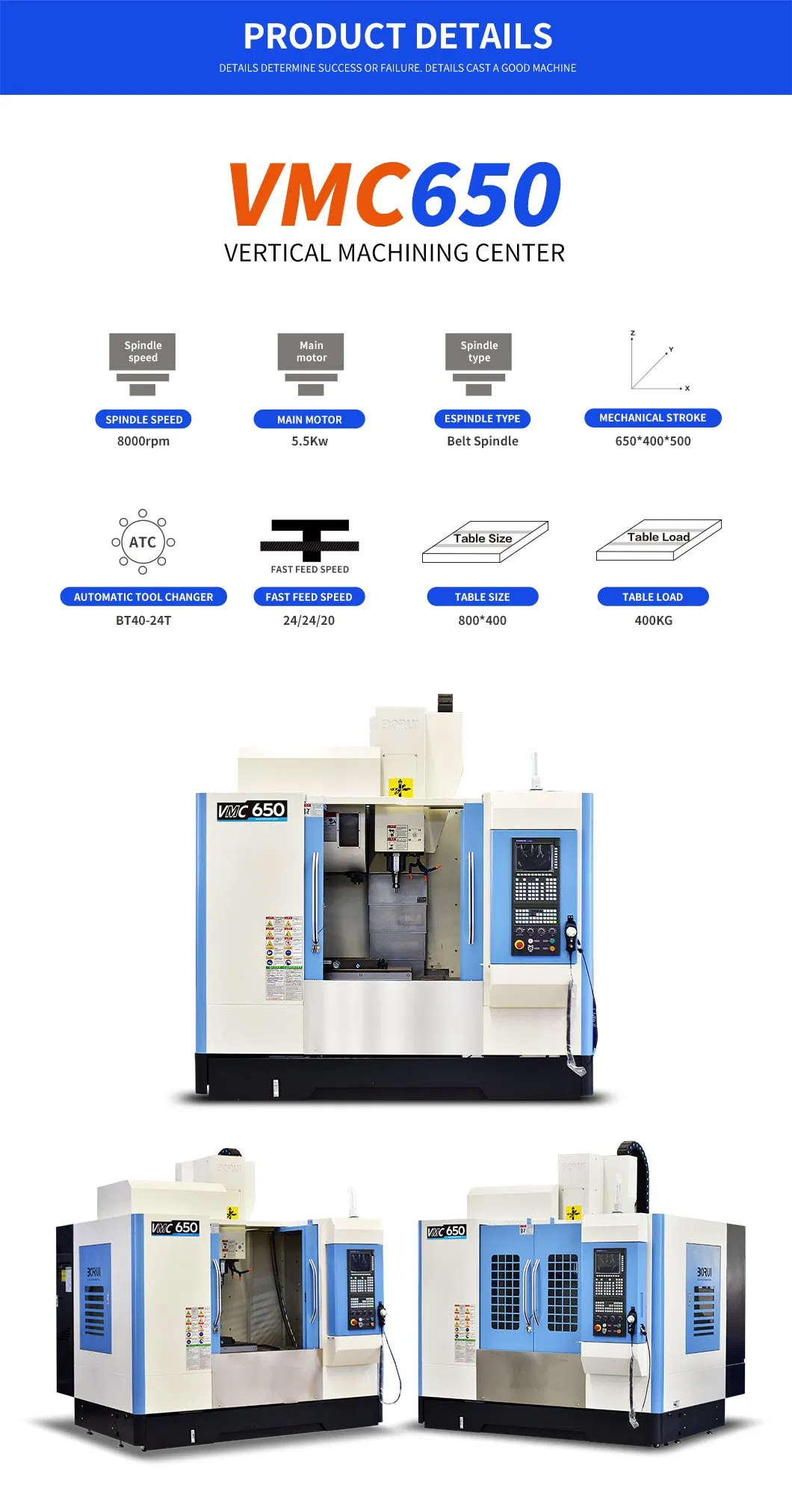

| Specifications | Units | VMC650 |
|---|---|---|

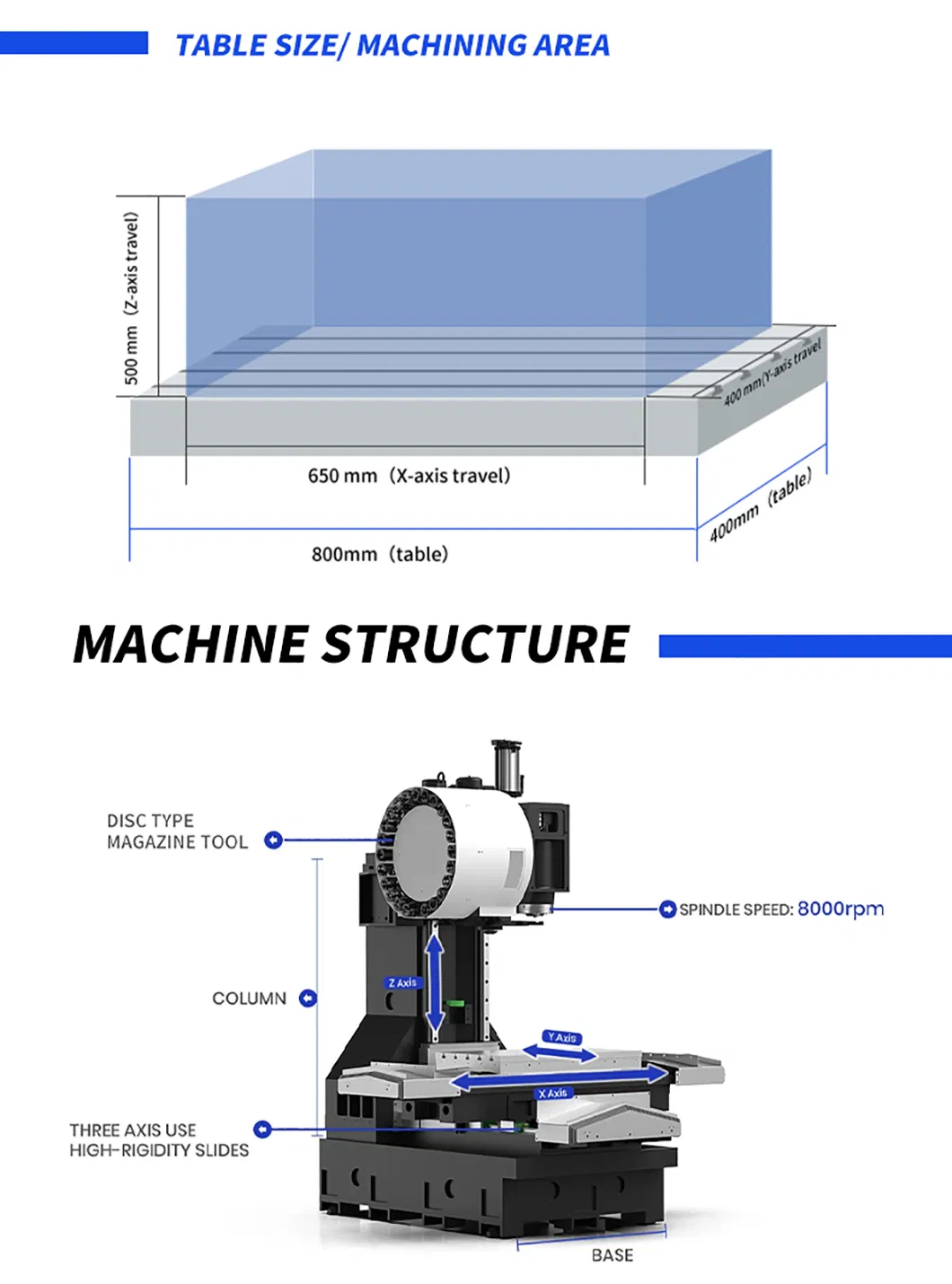

| Table size | mm | 800x400 |
| X axis travel | mm | 650 |
| Y axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Max. worktable load | kg | 400 |
| T slot (number-width-pitch) | mm | 3*18*125 |
| Max. spindle speed | rpm | 8000 |

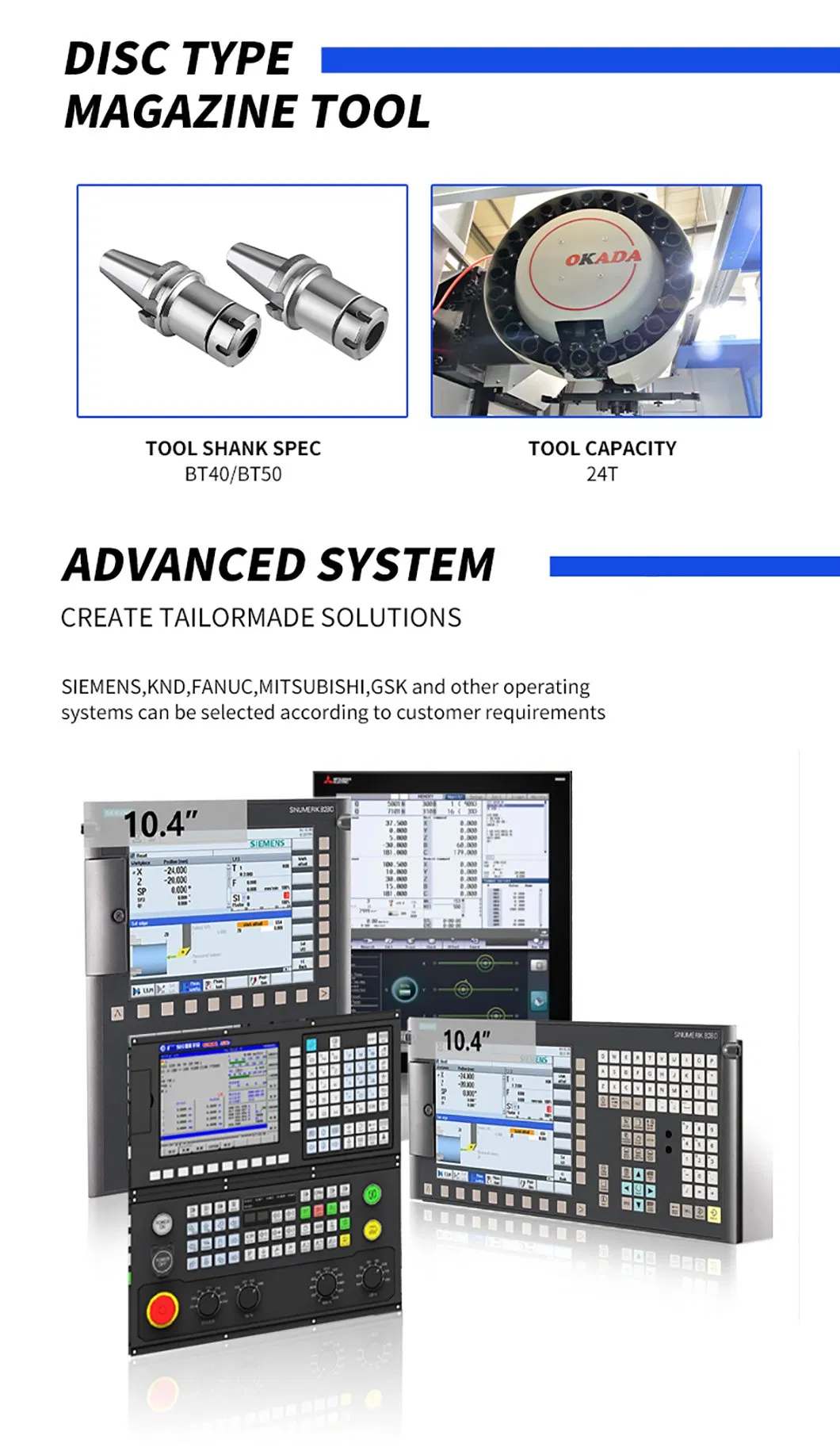

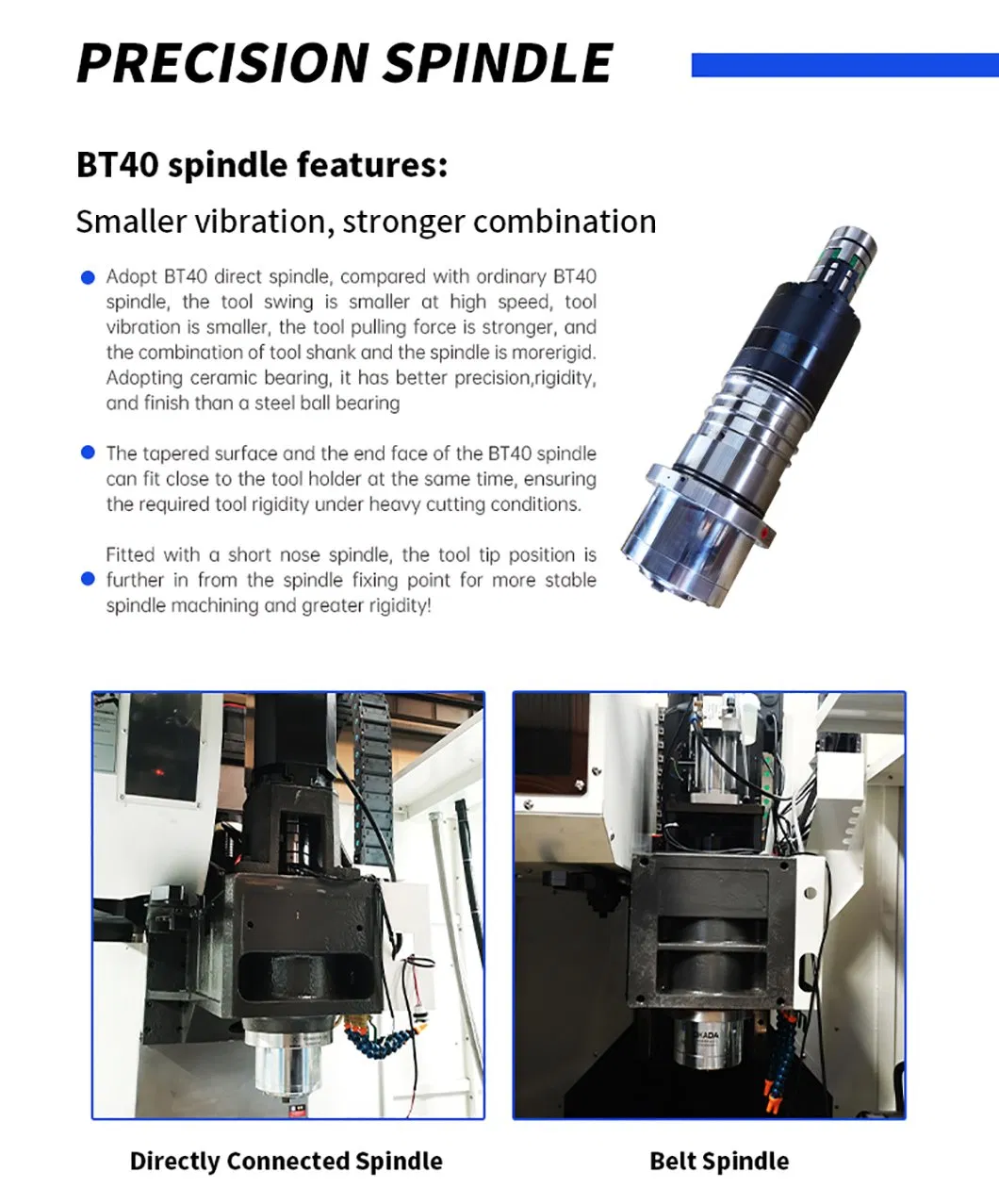

| Spindle taper | - | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-10000 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.005 |
| Machine weight | kg | 4000 |
For Machine: Shipped usually by sea.
For Documents: Delivered by international express (DHL, TNT, or EMS).
Packing: Free fumigation plywood packaging with a sturdy steel base.
