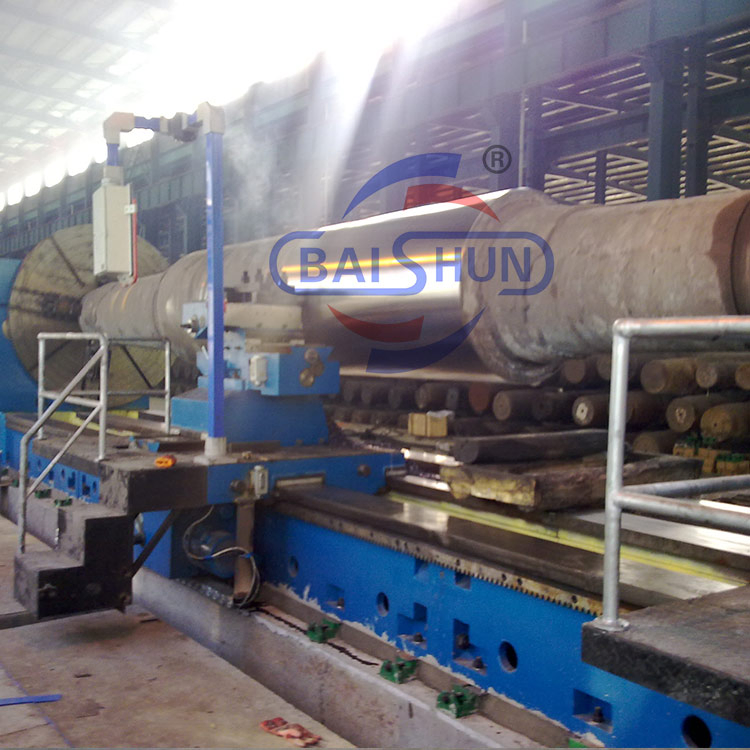

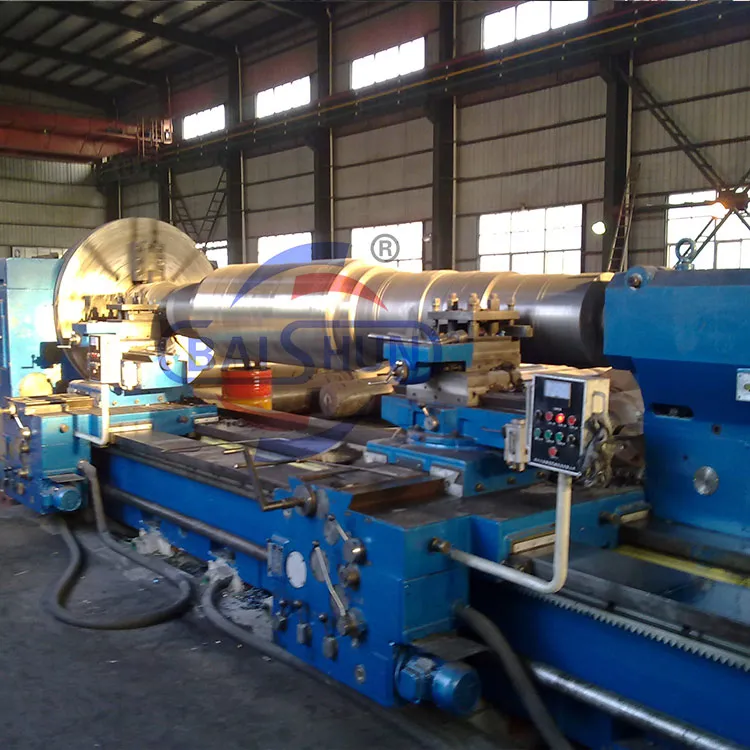

This machine is a conventional heavy-duty horizontal lathe, suitable for high-speed steel hard alloy cutting tools and various material shaft parts, cylindrical and disk-shaped parts processing. It achieves turning cylindrical faces, grooving, cutting, boring, and turning inside and outside the cone. This series is ideal for processing shaft parts of gas turbines, rotors, rollers, and other large high-precision components.
32 Tons Load Capacity Heavy Duty Lathe Series
| Model | Unit | C61160 | C61200 | C61250 | C61315 |
|---|---|---|---|---|---|
| Max. swing over bed | mm | 1600 | 2000 | 2500 | 3150 |
| Max. swing over carriage | mm | 1200 | 1600 | 2000 | 2600 |
| Width of bed | mm | 1600 | 1600 | 1600/2100 | 2100 |
| Max. length of workpiece | m | 5-20 | 5-20 | 5-20 | 5-20 |
| Max. weight of workpiece | ton | 32 | 32 | 32/75 | 75 |
| Range of spindle speed | rpm | 1~200 | 1~200 | 1~200 | 1~200 |
| Main motor power | kw | 75 | 75 | 90 | 118 |

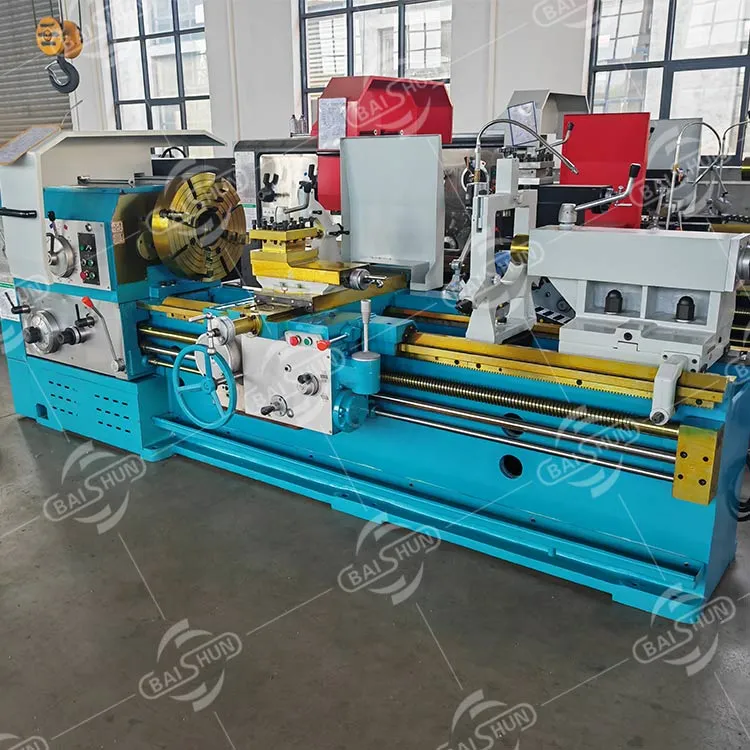

1. CW6163/CW6263 Series (2 Tons Load Capacity)
Swing over bed: 630mm; Bed width: 550mm; Spindle bore: 105mm; Main motor: 11kw.

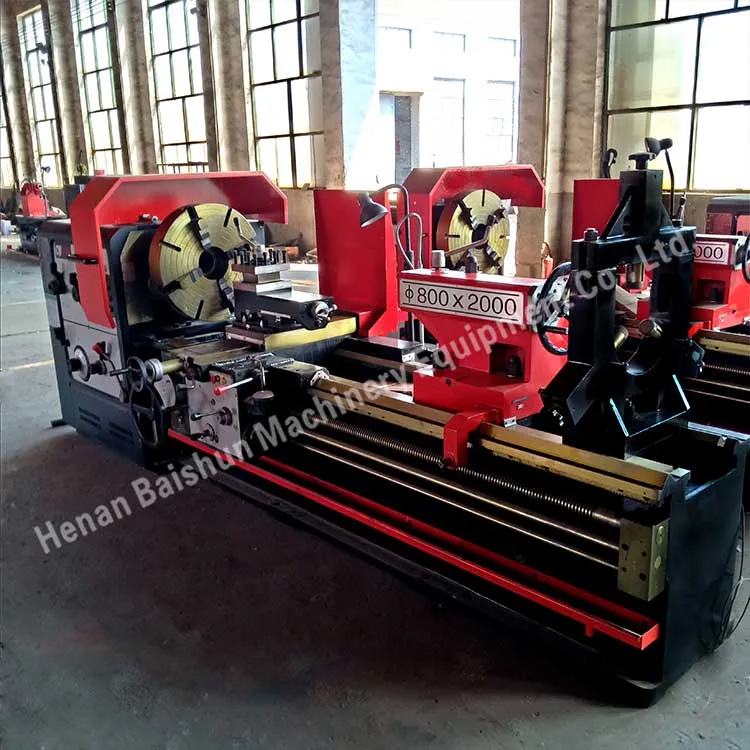

2. CW6180B/CW6280B Series (2.5 Tons Load Capacity)
Swing over bed: 800mm; Bed width: 600mm; Processing length: Customizable; Main motor: 11kw.
3. CW61160 Series (16 Tons Load Capacity)
Swing over bed: 1600mm; Bed width: 1100mm; Spindle bore: 130mm; Main motor: 22kw.

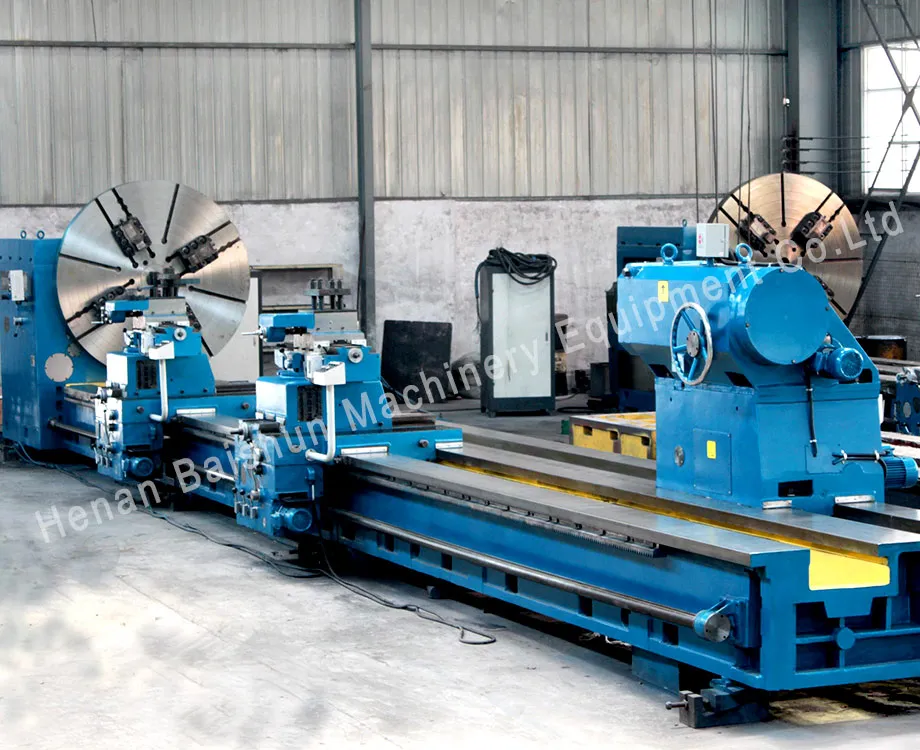

4. C61200 Series (32 Tons Load Capacity)
Swing over bed: 2000mm; Bed width: 1600mm (Three bed ways); Main motor: 75kw.
Comprehensive Services: 7x24-hour online pre-sale support, engineer follow-up, logistics delivery operations, and professional installation services.
Warranty Period: One year warranty for broken parts due to quality problems. Technical support, files, operation videos, and on-site training are provided as standard.
