Customization: Available
After-sales Service: Online Technical Support
Application: Metal
Send Inquiry

Product Description

ℹ Overview
Basic Information
Model NO.XH7136
Process UsageMetal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement MethodLinear Control
Control MethodSemi-Closed Loop Control
Numerical ControlCNC/MNC
Processing Precision0.01~0.02(mm)
Performance ClassificationHigh-End CNC Machine Tools
CertificationCE, ISO 9001
ConditionNew
PrecisionHigh Precision
Main Motor5.5kw
Spindle TaperBt40
Machine Weight3800 Kg
Spindle Speed200-8000rpm
Worktable Size1250×360 mm
Specification3300x2280x2550mm
OriginChina
Production Capacity100 Sets/Year
📝 Product Description

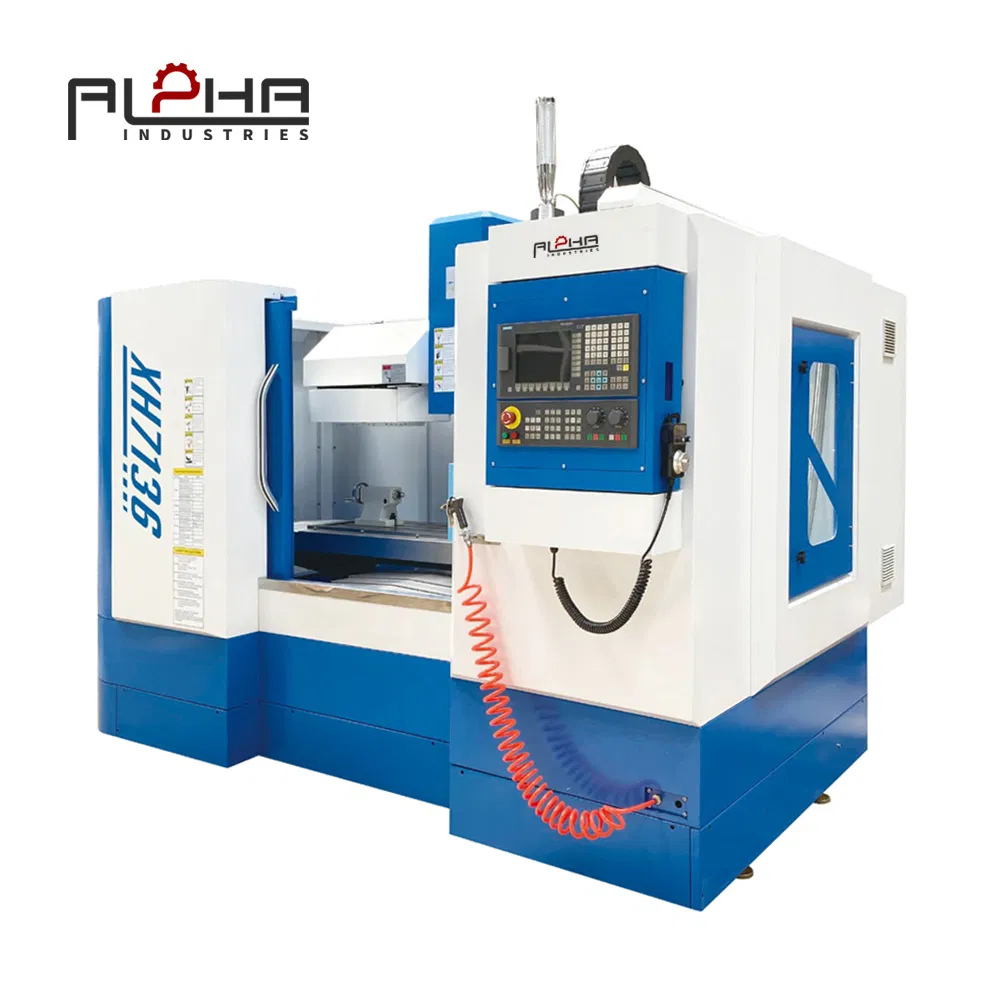

Vmc CNC Industrial Vertical Machine Center
With a CNC milling body, this machine boasts strong carrying capacity, it also has three quench hardening guideways, wide guide rail & broad span as well as compact & reasonable structure and overall dimension; spindle are driven by frequency conversion motor via timing belt. The machine has milling, drilling, boring, reaming and etc. multiple functions, which could realize complex & high-precision components' machining upon plates, boards, shells, molds and etc.
  • High-strength material casting for long-term stability.
  • High-speed, high-precision spindle units with Max. rotating speed up to 6000rpm.
  • X travel of worktable reaches 950mm, rectangular rails with supersonic frequency induction hardening.
  • Three-axis high-precision ball screw and servo motor.
  • Z axis includes clump weight balancing devices for smooth motion.
  • Forced-feed lubrication system to ensure high-efficiency operation.
Vmc CNC Structure
📊 Product Parameters
Item No. Feature Specification (XH7136)
1Main Motor5.5KW (Frequency Conversion Motor)
2Spindle TaperBT40
3Spindle Speed200-8000rpm
4Distance of Spindle End to Worktable100~600 mm
5Distance of Spindle Center to Column460 mm
6Worktable Size1250×360 mm
7Worktable Travel (L/H)900/350 mm
8Max. Load of Worktable400kg
9X/Y Axis Max. Movement10 m/min
10Z Axis Max. Movement8 m/min
11Positioning Accuracy0.02mm
12Repeatable Positioning Accuracy0.01mm
🛠️ Major Components & Accessories
Part Name Origin/Spec Qty

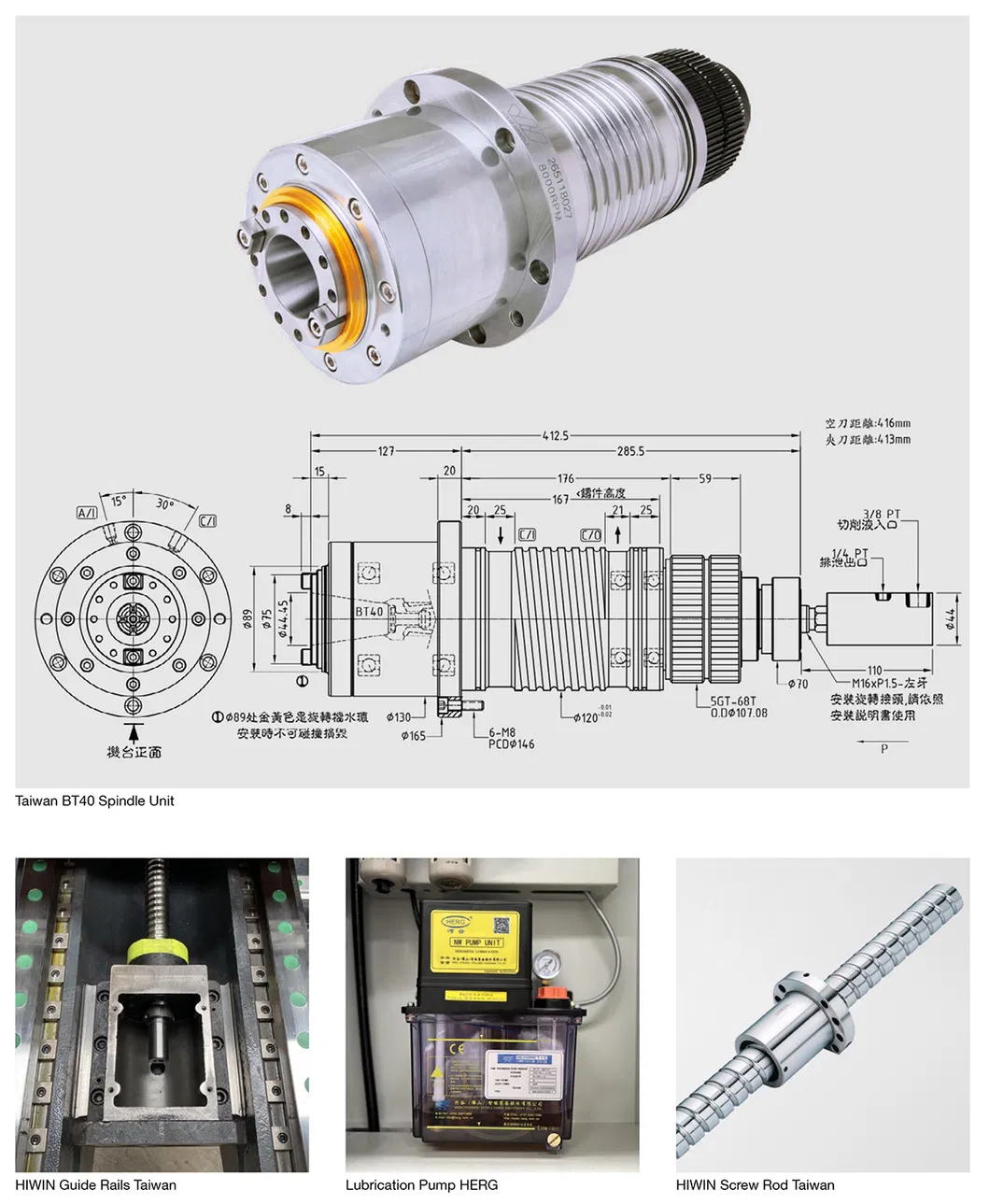

Spindle UnitTaiwan1 Set
Pressure Boost CylinderTaiwan1 Set
X/Y/Z Ball Screw PairJiansuqijian1 Pair Each

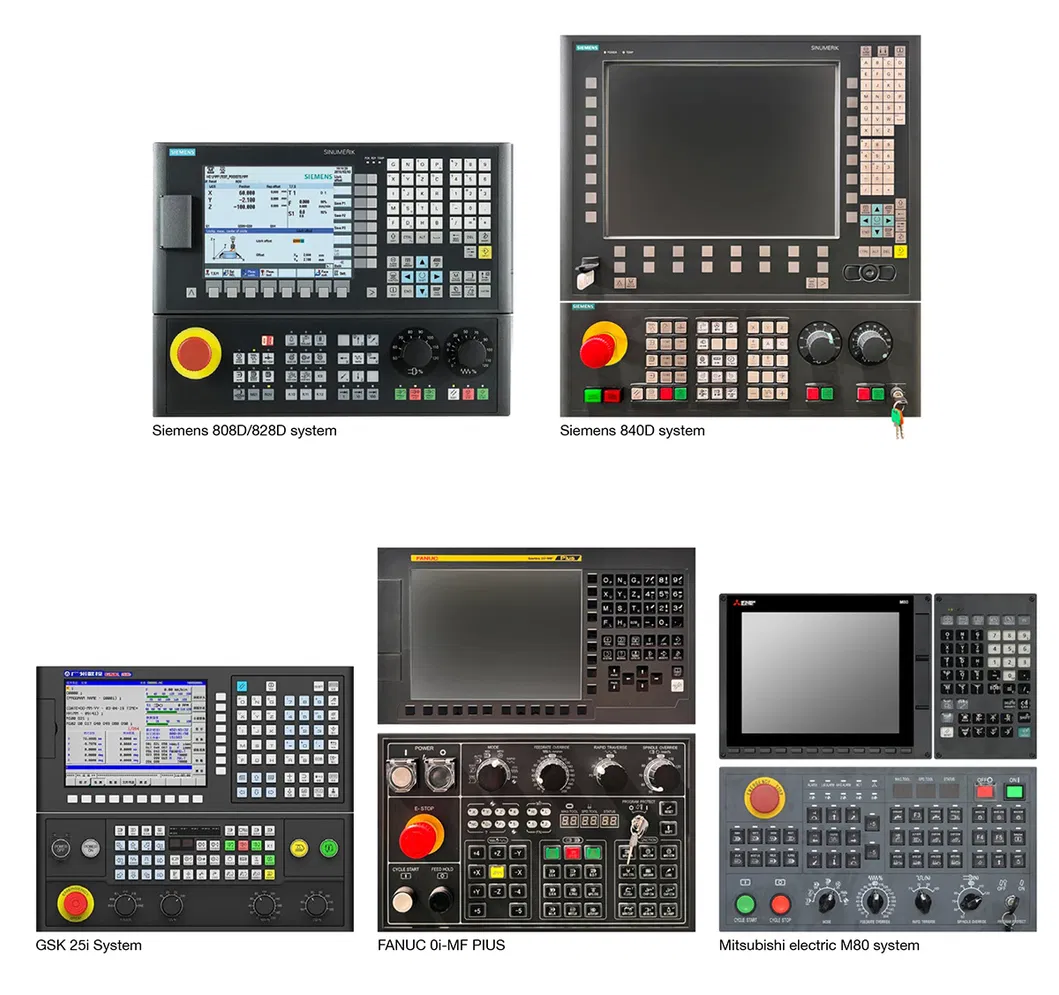

GSK 980MDi SystemStandard1 Set
Spring Clamp HandleBT40-ER32-1001
🖼️ Product & Factory Gallery
Product View 1

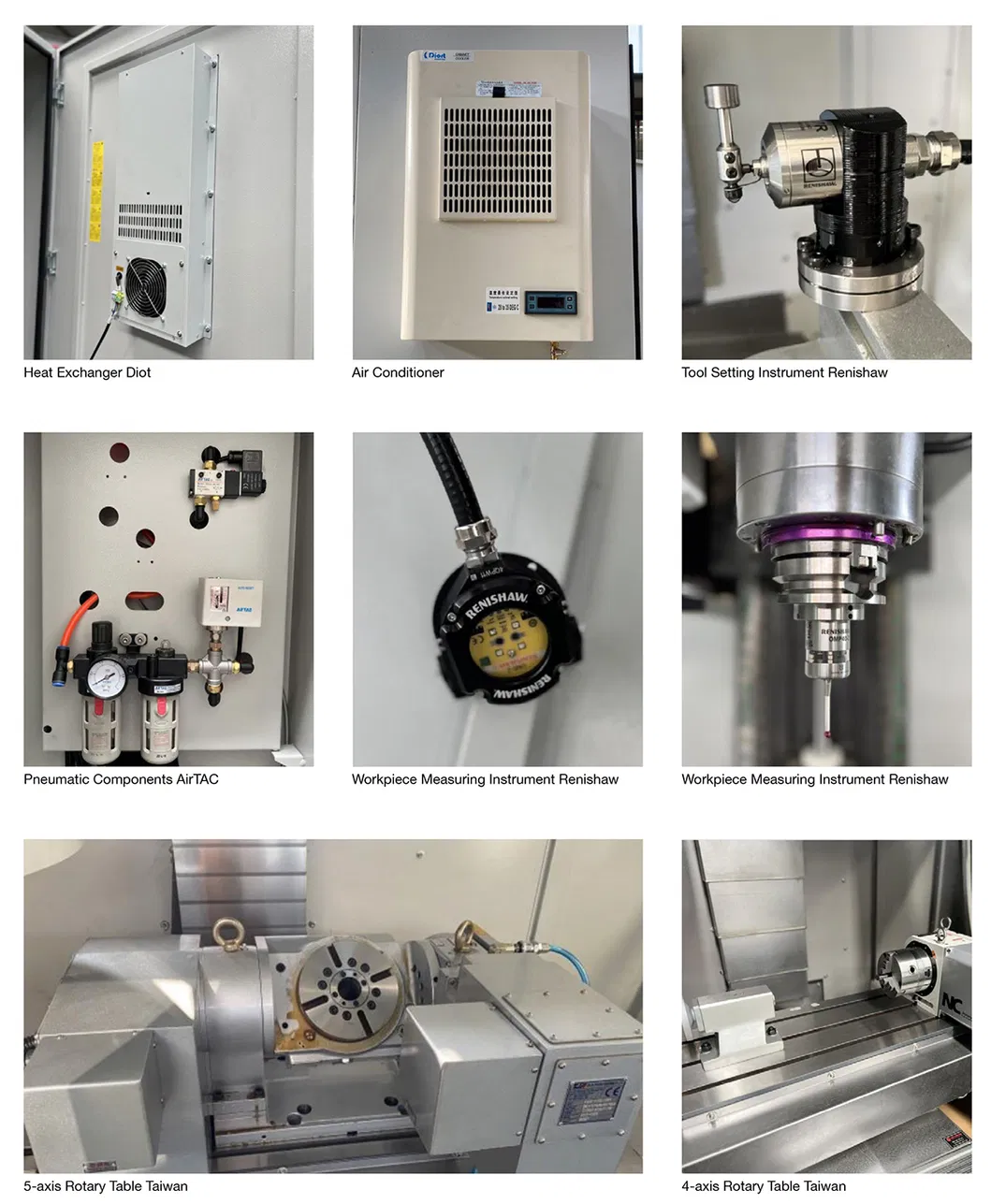

Product View 2

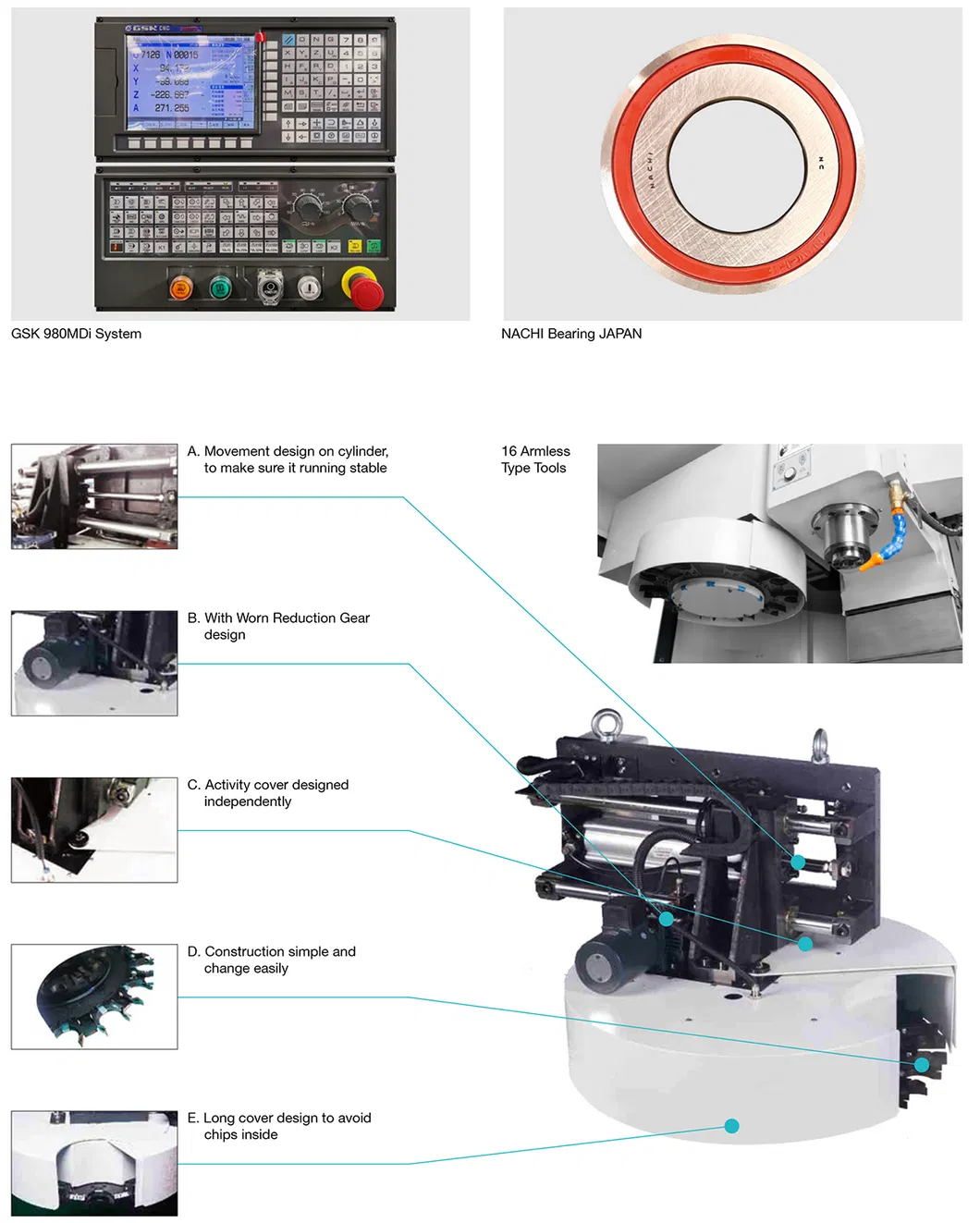

Product View 3
Product View 4
Workshop 1

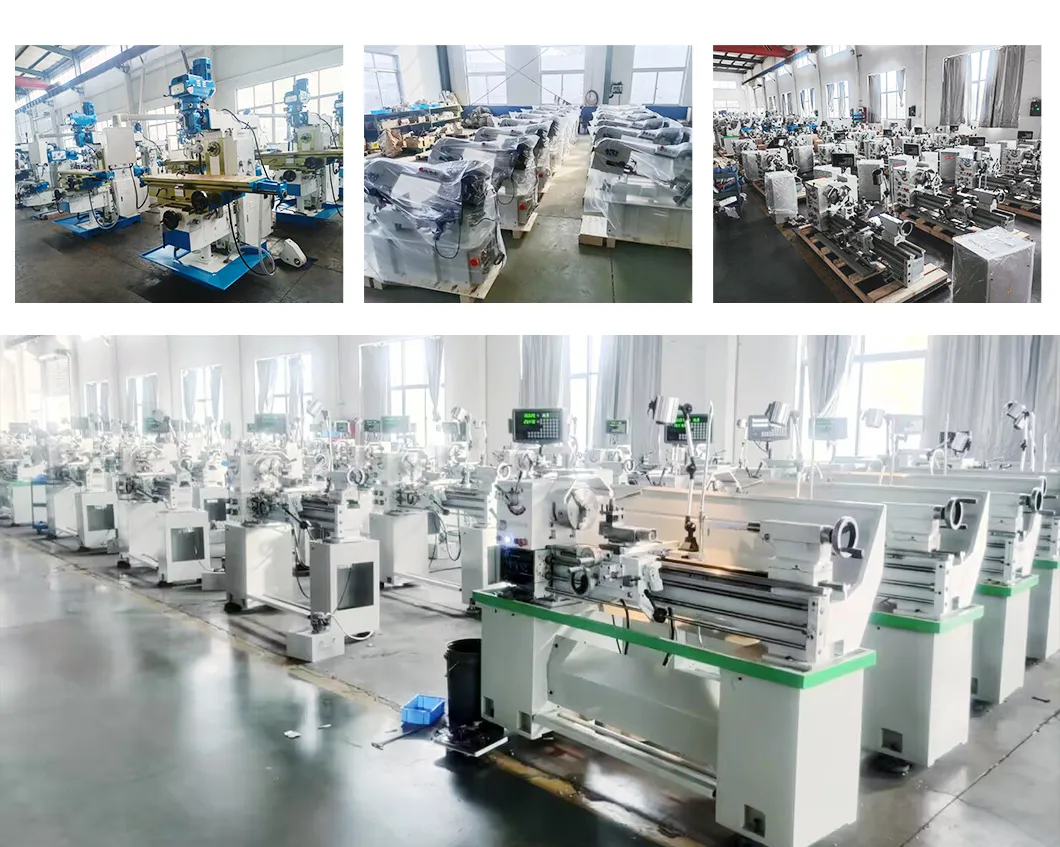

Workshop 2
Exhibition
Certification
Packaging
❓ Frequently Asked Questions
How is the warranty for the machines?
The warranty time is 15 months after the BL date.
Do you have stock for popular models?
We maintain stock for popular models; otherwise, we produce according to specific orders.
What is the Minimum Order Quantity (MOQ)?
The MOQ is just one set.
What quality management systems do you follow?
We are approved by ISO9001:2008, ISO14001, OHSAS18001, and SA8000. Most products meet CE, GS, and UL safety standards.
Can you design and provide customized machines?
Yes, we have professional engineers and designers who can manufacture machines according to your specific requirements.
Is it possible to visit the factory before placing an order?
Absolutely. All visitors are welcome. We can assist with travel arrangements like station or airport pickup and accommodation booking.
