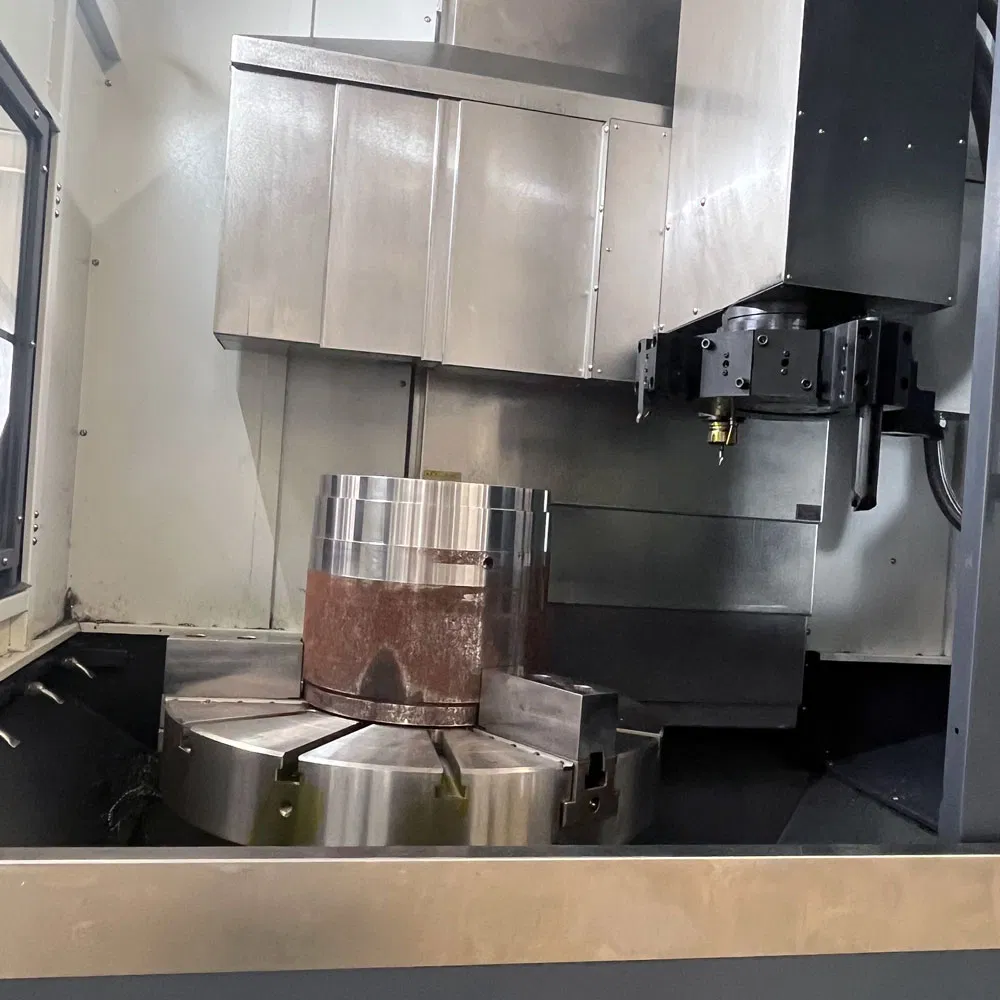

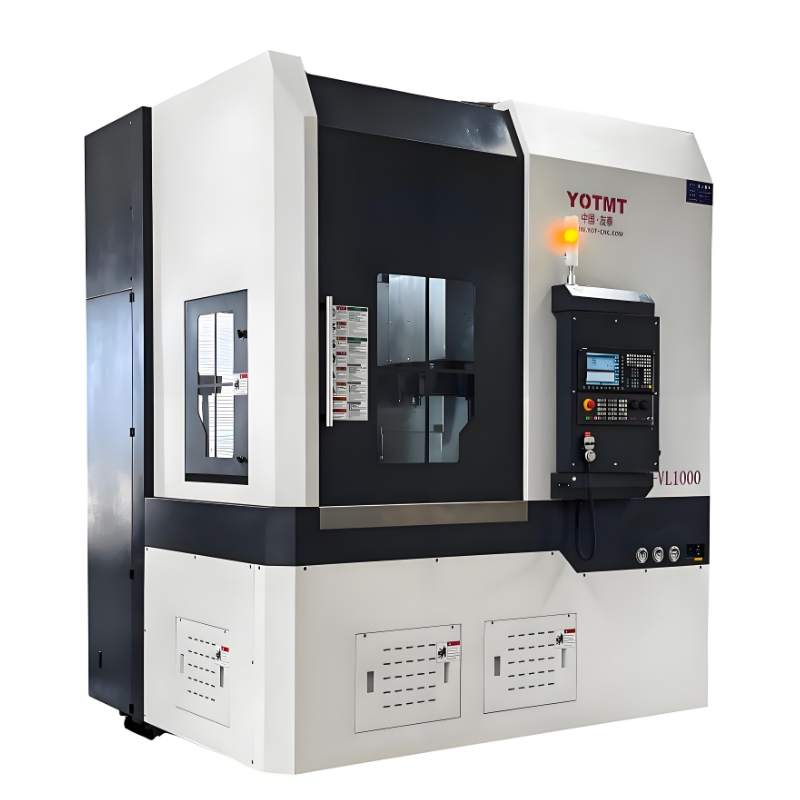

Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm

1 / 5

Heavy Duty Turret Turning CNC Vertical Lathe Machine with Diameter 1000mm

Customization:	Available
After-sales Service:	on Site / Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

H-VL

Type

Vertical Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Vertical

Tool Holder

Double-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

Certification

GS, CE, RoHS, ISO 9001

Core Advantage

Heavy Duty, Customized, High Rigidity, High Torque

CNC Type

CNC Brand Optional

Product Description

Expert Professional Manufacturer Specializing in Metal Turning Vertical CNC Lathe Machines

Expertly crafted with an exceptional array of experience in professional production line customization design, our solutions are tailored to deliver precise and innovative results. Our offerings are meticulously aligned with the unique and personalized needs of each user, ensuring perfect harmony and satisfaction.

💎

Key Technology Highlights

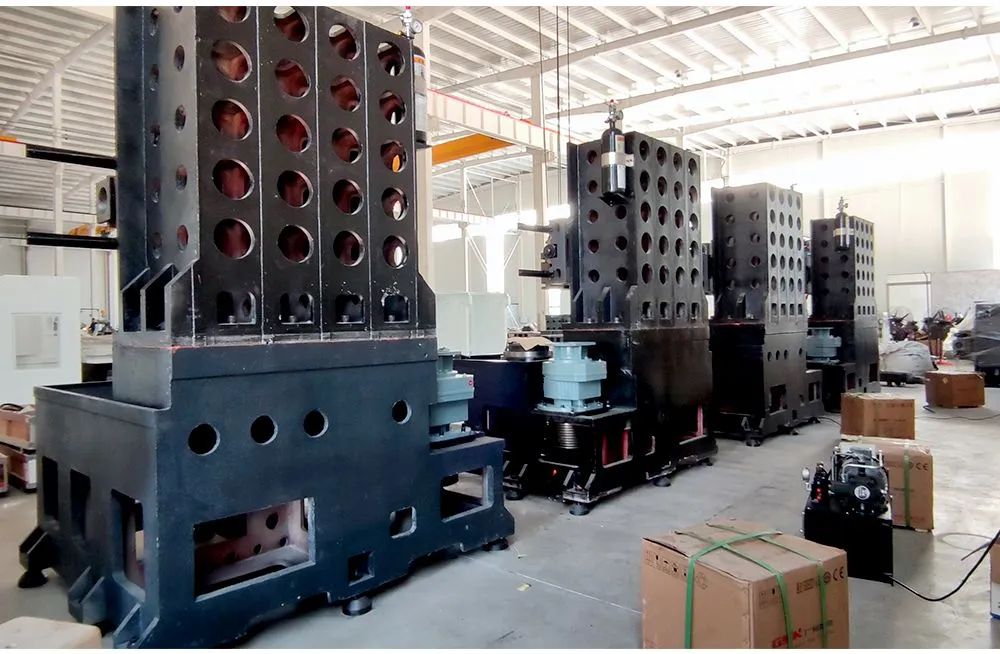

Robust and Rigid Bed Design: Utilizing an integral casting process reinforced with rib structures, complemented by high-precision, widened 3+2 heavy-duty cylindrical roller screw guide rails, the bed is engineered for superior anti-deformation abilities.

⚙️

High-Torque Intelligent Drive System: Fitted with customizable high-torque servo motors, achieving an impressive low-speed cutting torque of 3000N·m, flawlessly catering to processing high-strength materials like cemented carbide and titanium alloy.

🤖

Intelligent Production Module: Offers optional features such as an automatic tool setting instrument, tool breakage detection system, and a cloud data management platform for 24-hour unmanned production.

Product Parameters

MODEL	SWING DIAMETER (MM)	TURNING DIAMETER (MM)	WORKPIECE LENGTH (MM)
H-VL700	770	700	650/750
H-VL850	920	850	650/1000

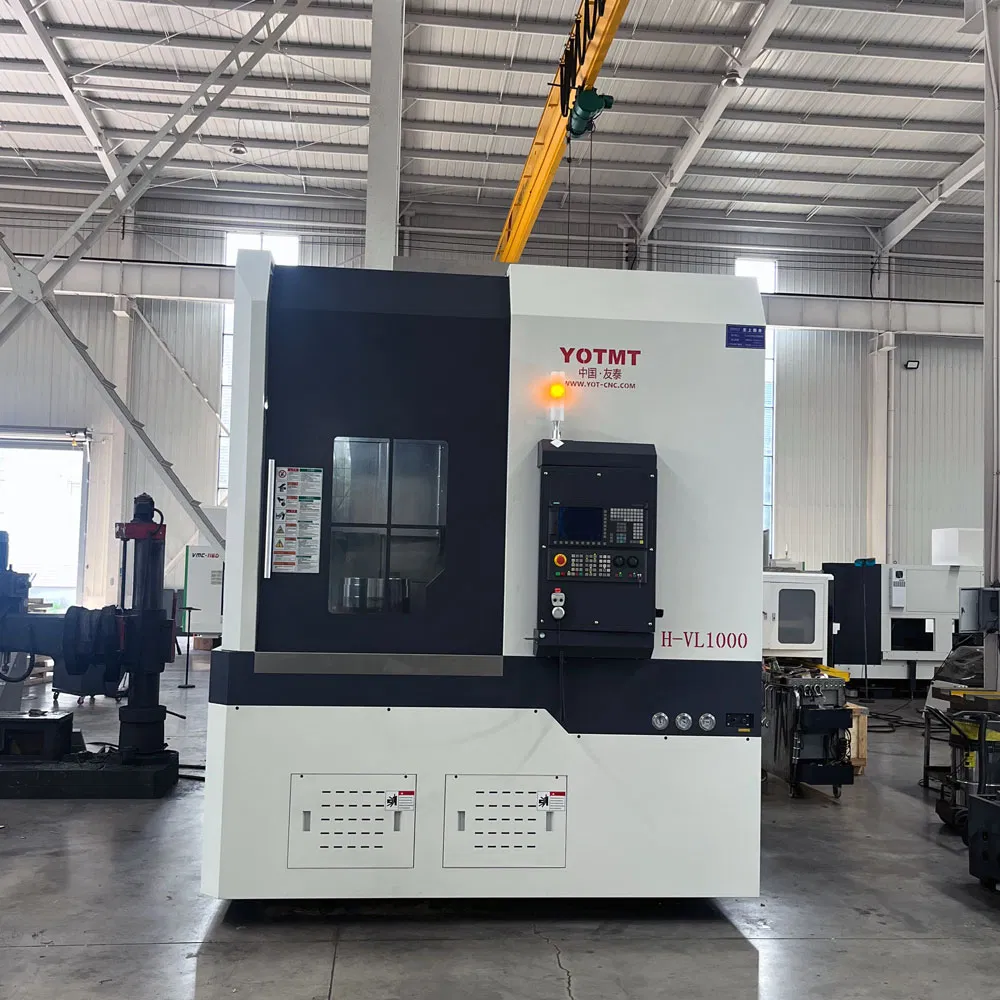

H-VL1000	1100	1000	800/1200

ITEM	UNIT	H-VL700	H-VL850	H-VL1000
SPINDLE SPEED	RPM	50-1500	50-1500	30-800
X/Z AXIS STROKE	MM	580/650-750	580/650-1000	700/800-1200
REPEAT POSITIONING	MM	0.005/0.008	0.005/0.008	0.006/0.009
SPINDLE POWER	KW	18.5	22	30

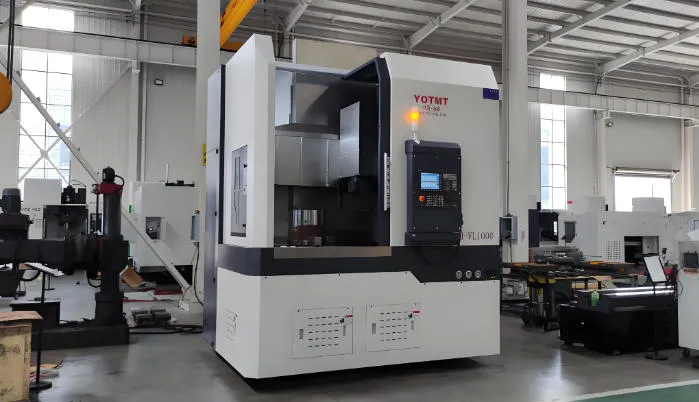

Tailored Customization Options

1. Tool Rest and Cutting System

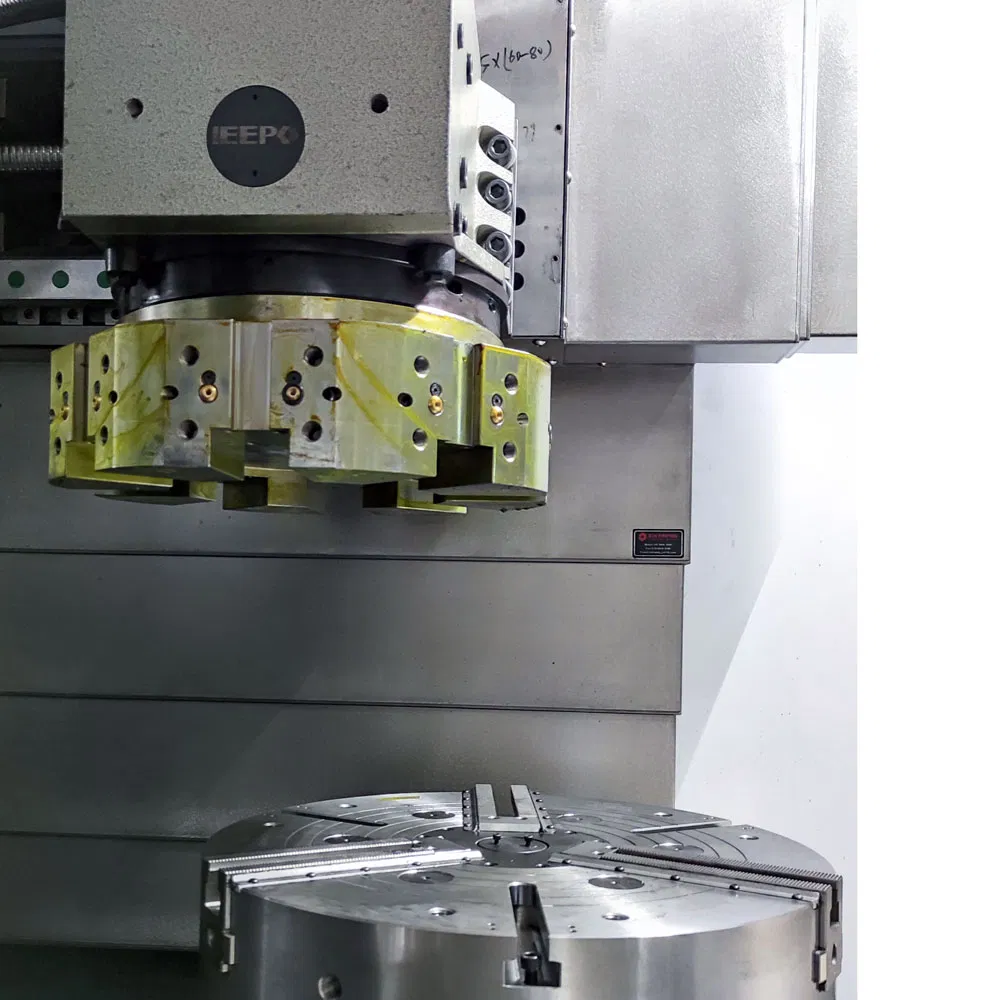

Multi-turret configuration and dual tool rest synchronous processing.
Optional four-axis/five-axis linkage tool rest for milling and drilling.
Heavy-duty static pressure guide tool rest for high-speed cutting.

2. Automation and Auxiliary Devices

Automatic tool change system (12 to 40 stations).
Pallet exchange device and robot integration (FANUC/KUKA).
High-pressure internal cooling and automatic lubrication.

3. Accuracy and Control

Laser interferometer pitch compensation module.
Online measurement probes (Renishaw/Heidenhain).
CNC Systems: GSK, KND, Siemens 828/840, Fanuc, Mitsubishi.

Certifications & Expertise

Recognized as a leader in the manufacturing of CNC machine tools designed for double-sided processing, fortified by hundreds of technical patents.

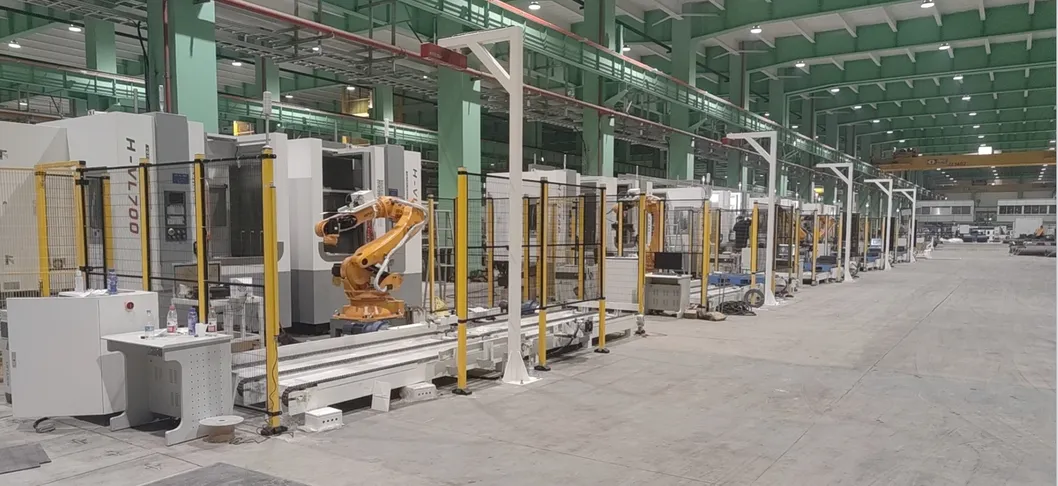

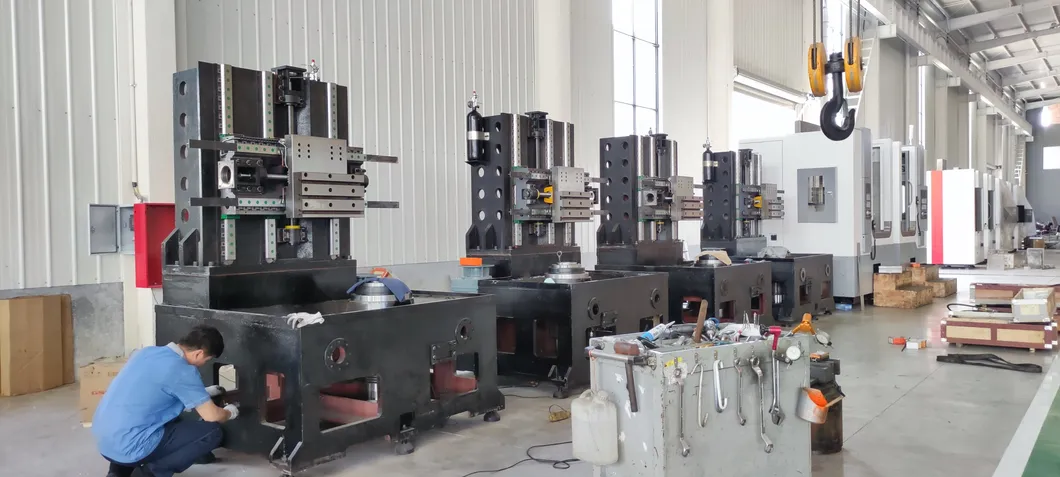

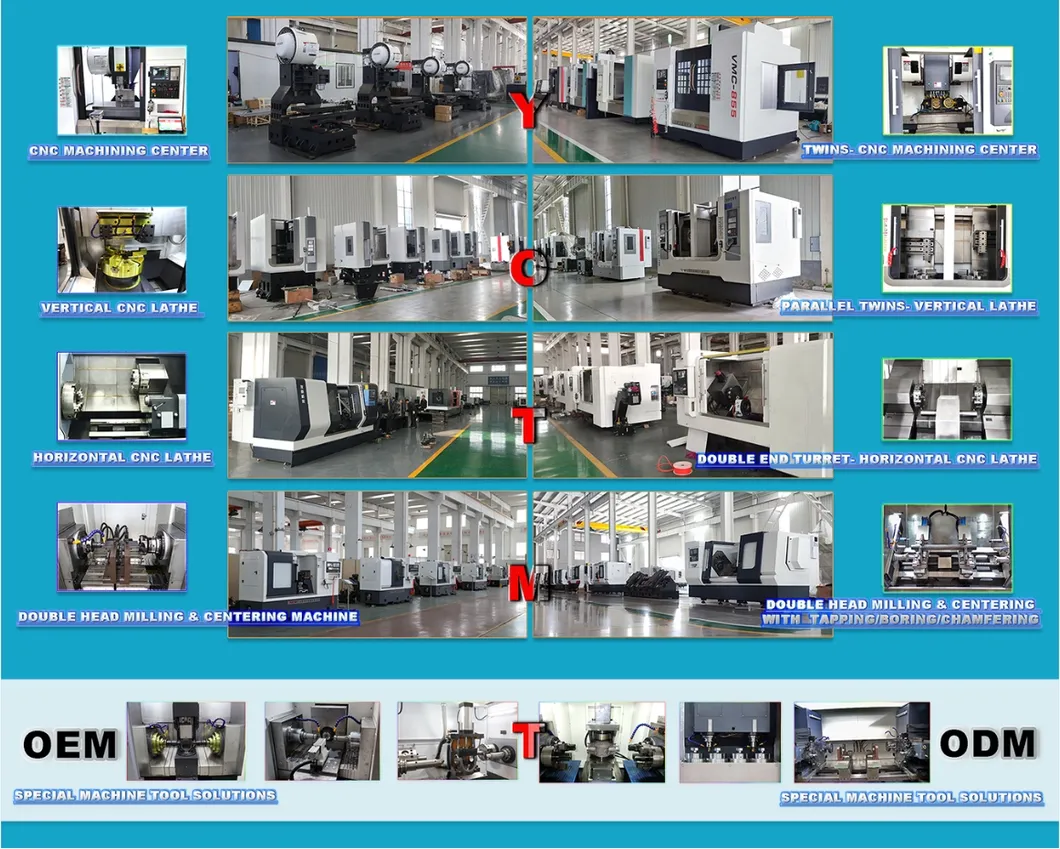

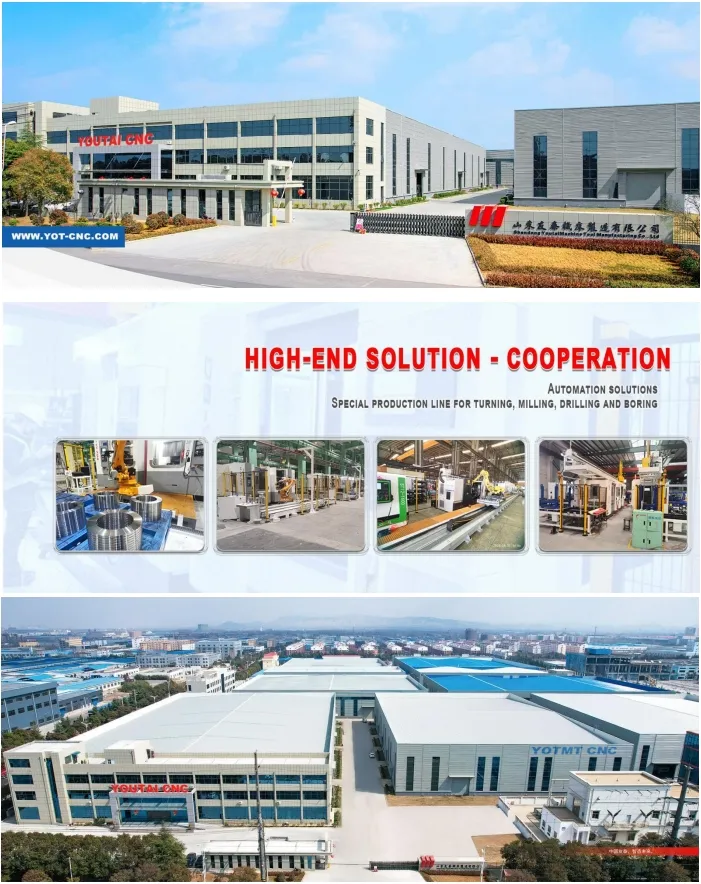

Our manufacturing facility spans over 50 acres, with 30,000 square meters of cutting-edge workshops. Equipped with precision gantry machining centers and CNC guide rail grinders, we ensure the production of superior, high-quality products. Our dynamic team of over 100 professionals, including 30+ technical experts, focuses on relentless independent R&D to serve industries worldwide.

More Recommended Models

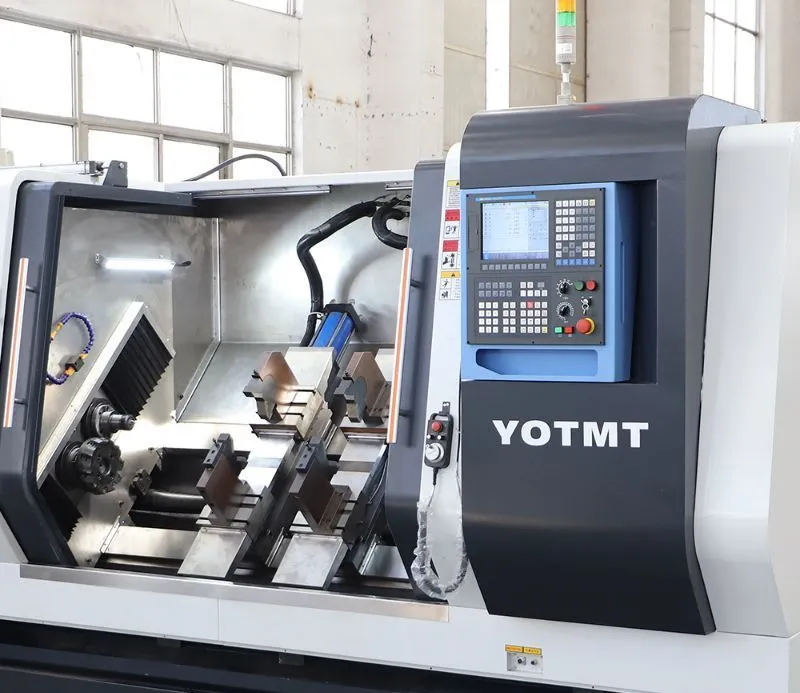

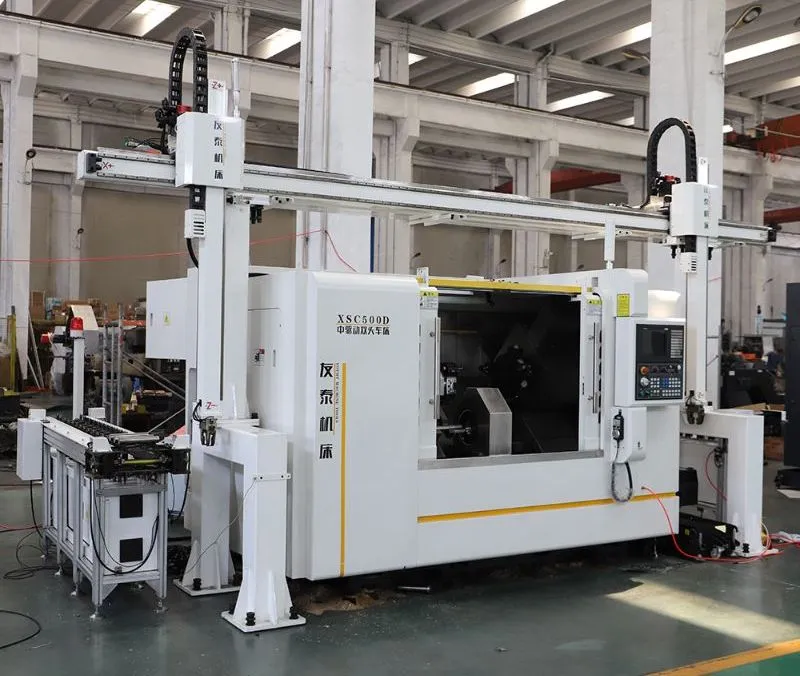

Double Side Machining Centers and Facing machines designed for maximum precision and industrial performance.

Frequently Asked Questions

What materials can this vertical CNC lathe process?

It is designed for high-strength materials, including cemented carbide, titanium alloy, and various metals used in heavy-duty components.

What makes the bed design superior for heavy workpieces?

The machine utilizes an integral casting process with rib structures and 3+2 heavy-duty cylindrical roller screw guide rails for maximum rigidity and stability.

Can the machine be integrated into an automated production line?

Yes, it features a robot integration interface compatible with FANUC and KUKA, and supports automatic tool/head change systems.

What CNC systems are available for selection?

Users can choose from GSK and KND for basic needs, or high-end systems like Siemens 828/840, Fanuc 0I-MF PLUS, and Mitsubishi.

What industries benefit most from this equipment?

Key industries include aerospace, shipbuilding, wind power energy, rail transportation, and heavy machinery manufacturing.

What is the positioning accuracy of these lathes?

With laser interferometer pitch compensation, the machine can achieve a positioning accuracy of ±0.005mm/m.
