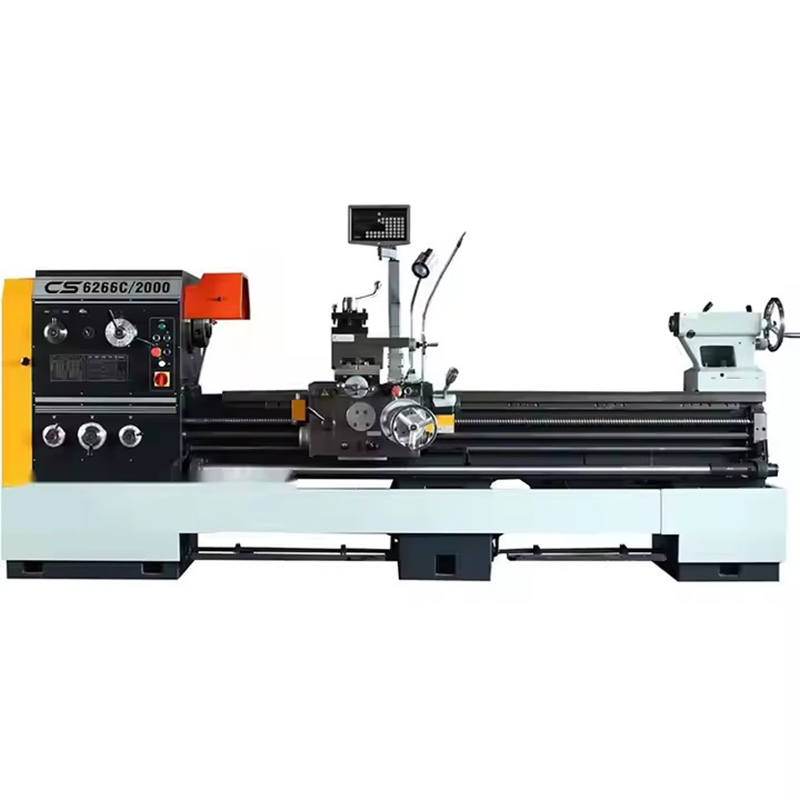

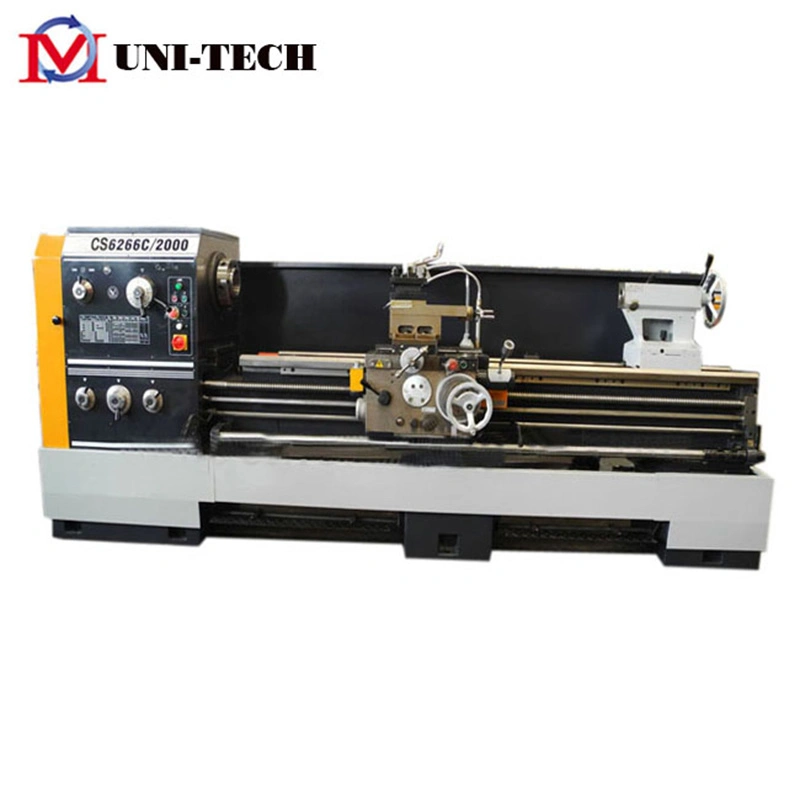

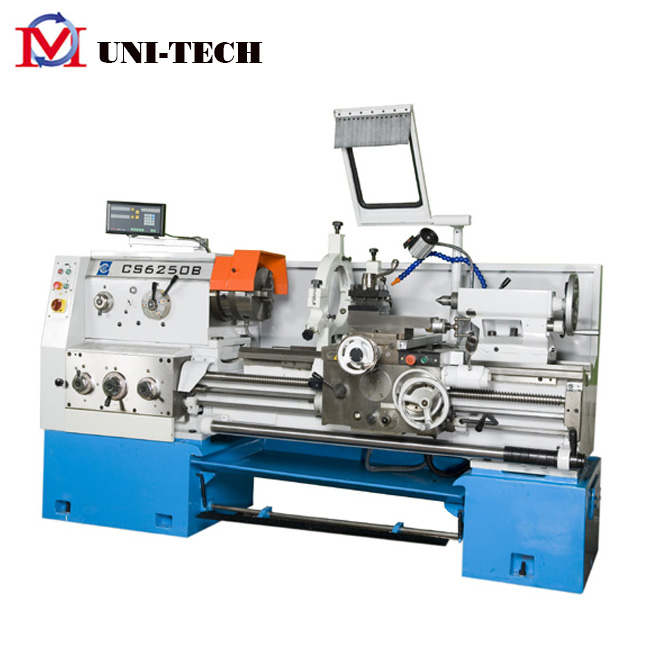

CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
1 / 5
CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine

CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model NO.
CS6266C
Type
Horizontal Lathe
Processing Accessory
Metal Construction
Guide Rail
Horizontal Guide Rail
Tool Holder
Manual Lathe
Power Source
Electric
Controlling Mode
Manual Lathe
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Swing Over Bed
660 mm
Spindle Bore
105 mm
Spindle Speed
36-1600rpm
Motor
7.5kw
Product Features

CS6266C Universal Metal Lathe - High Precision Horizontal Gap Bed Turning Lathe

  • High quality casting body with precision ball screws.
  • Hardened and ground bed way coated for durability.
  • High precision spindle with 24 speed changes.
  • Ground gear and kinetic-balanced spindle for smooth, low-noise operation.
  • Camlock spindle nose for easy clamping.
  • Large spindle thru-bore (105mm) for large diameter bar stock.
  • Big swing over bed suitable for special shaped and large diameter workpieces.
  • Available with left-handwheel or right-handwheel apron, equipped with quick travel device.
  • Three-axis sliding mechanism in feed box for extensive feed and thread ranges.
  • Tailstock spindle with two-speed movement for easy drilling.
Technical Specifications
Specifications C6266C Details
Distance between centers1000/1500/2000/3000 mm
Swing over bed660 mm
Swing over carriage420 mm
Swing over gap870 mm
Bed width405 mm
Spindle bore105 mm
Taper of spindle bore113 mm 1:20
Spindle noseD1-8
Range of spindle speeds36-1600 rpm (12 steps)
Range of metric threads1-14 mm
Range of inch threads28-2 T.P.I
Motor power7.5 kw
Packing size2500/3000/3500/4500x1100x1650 mm
Net weight3000/3200/3400/3900 kg

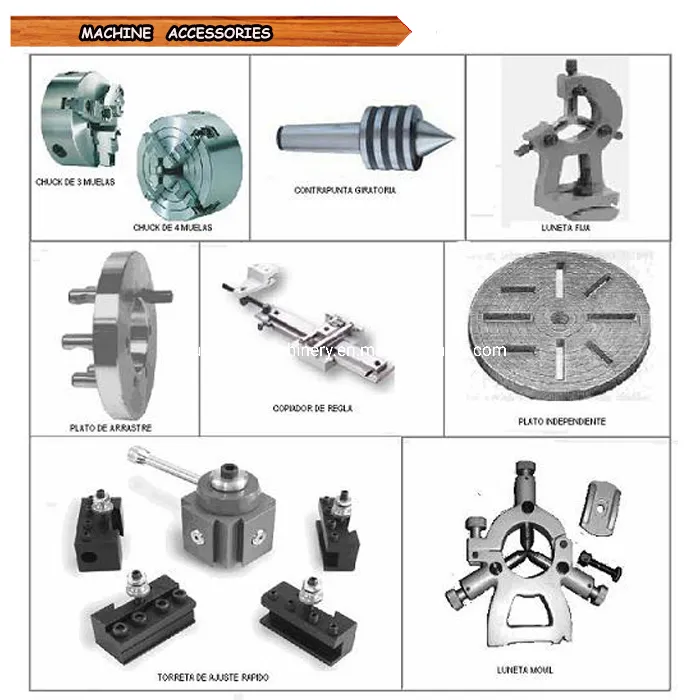

Accessories
Standard Accessories Optional Accessories
3-jaw chuck (325mm) / 4-jaw chuck (400mm)Quick change tool post
Steady rest / Follow restDigital readout system (DRO)
Face plate & Splash guardTaper turning attachment
Halogen work lamp & Coolant systemLeadscrew cover / Chuck guard
Foot brake & Five position carriage stopTurning tools
Detailed Photos
Manual Lathe Machine View

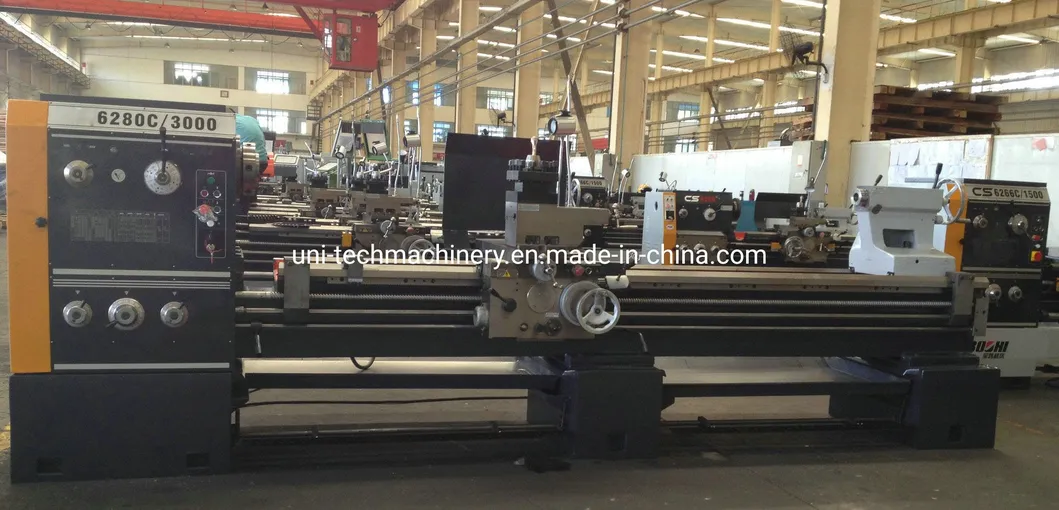

Lathe Headstock Detail

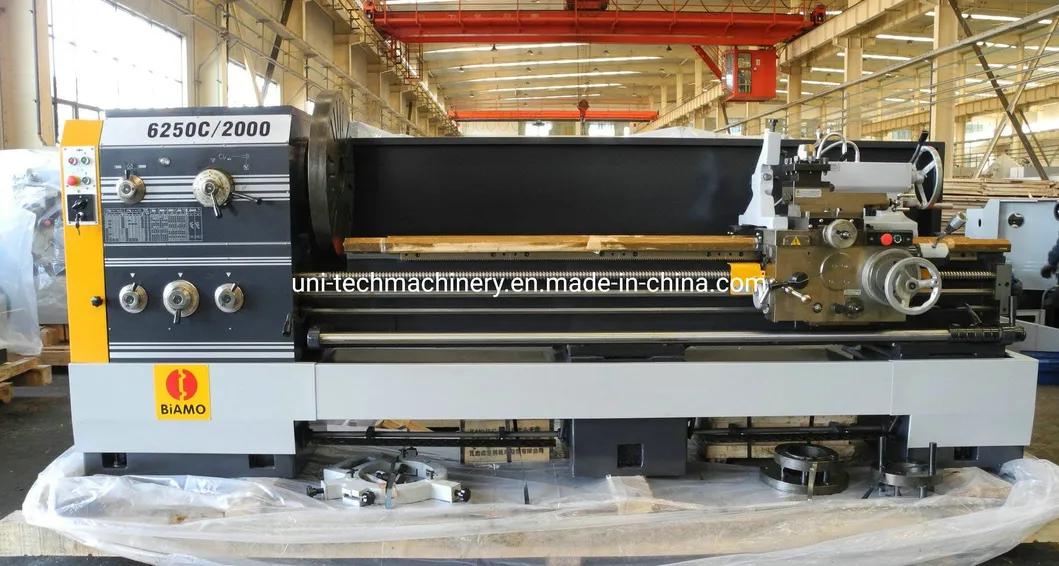

Lathe Bed and Carriage

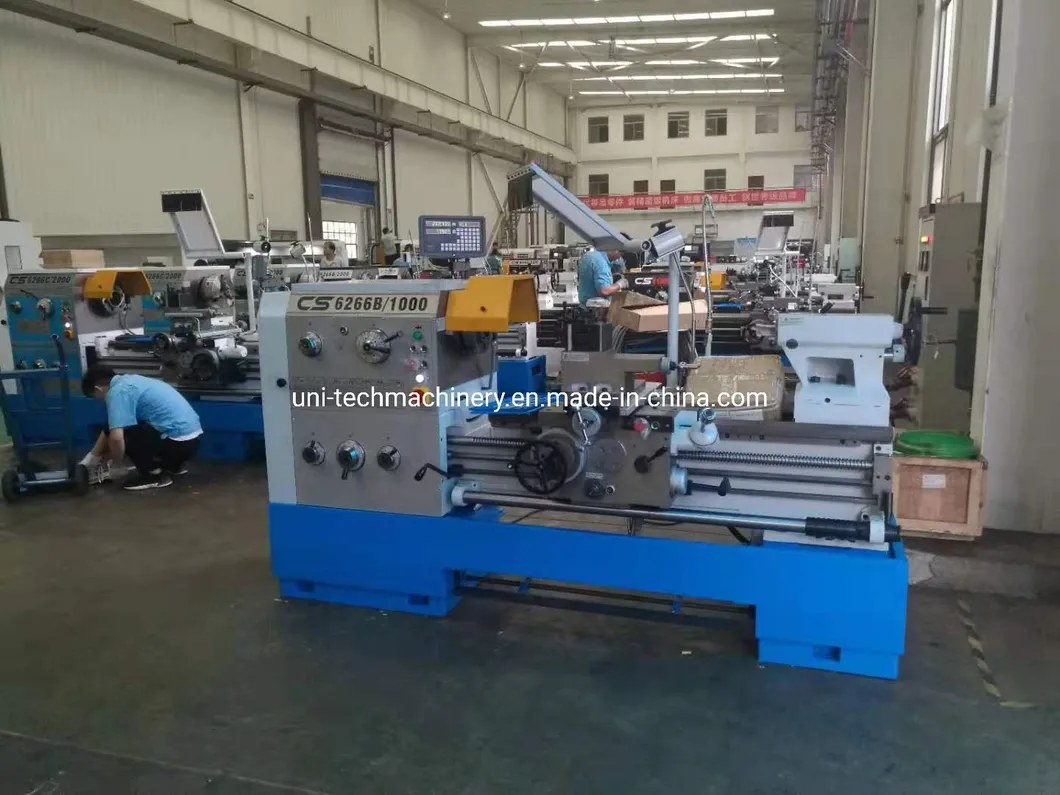

Feed Box Controls

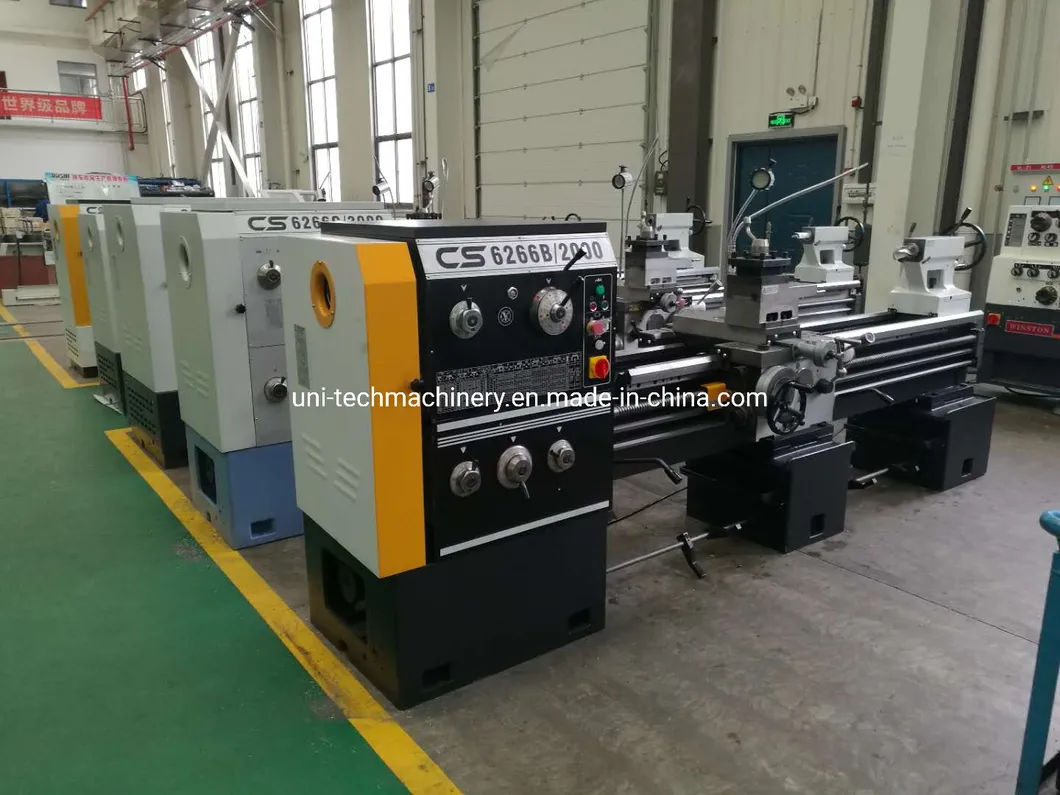

Tool Post Detail
Tailstock Detail
Gap Bed Lathe Operation

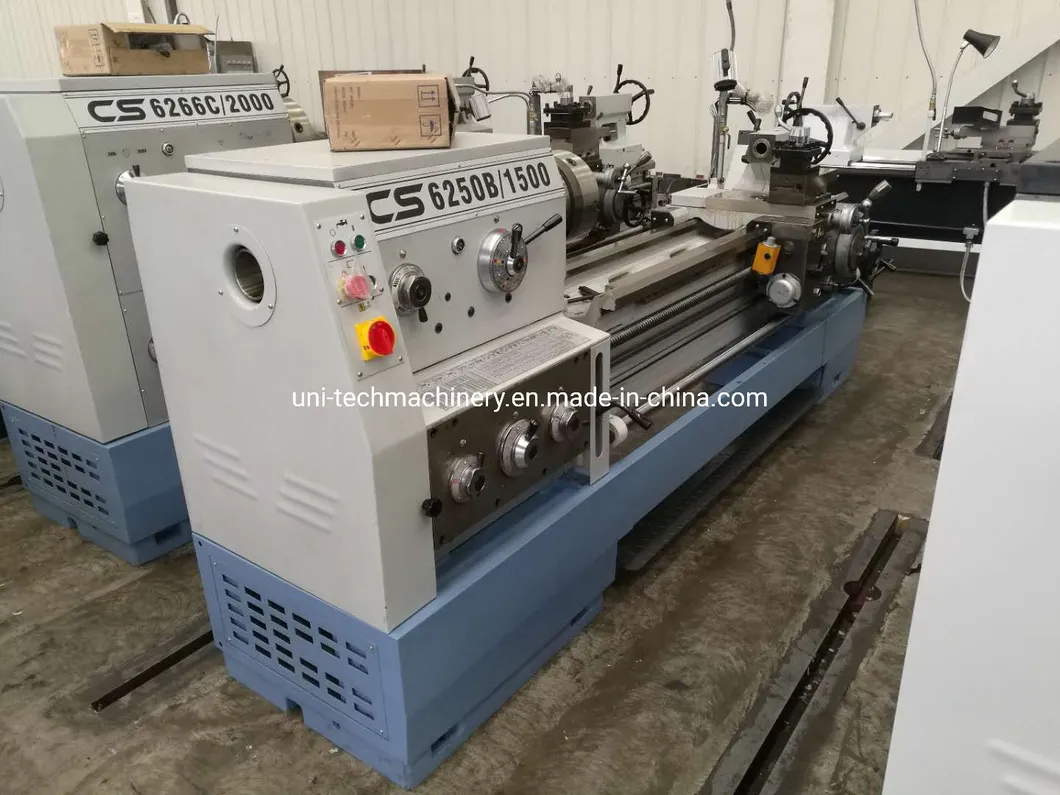

Gap Bed View
Spindle Detail
Manual Lathe Rear View
Frequently Asked Questions
What is the spindle bore size of the CS6266C lathe?
The CS6266C features a large spindle bore of 105 mm, making it ideal for holding large diameter bar stock.
Does this machine support both metric and inch threading?
Yes, it is designed with a wide range of threading capabilities, supporting metric threads from 1-14 mm and inch threads from 28-2 T.P.I.
What are the main advantages of the gap bed design?
The gap bed allows for a larger swing diameter (up to 870 mm in the gap), which is perfect for processing special shaped or dish-like workpieces with large diameters.
Is the lathe bed hardened?
Yes, the machine uses a high-grade casting bed with induction hardened and precision ground guideways for long-term accuracy and durability.
What power source is required for the CS6266C?
The machine is powered by a 7.5 kw electric motor, suitable for heavy-duty metal turning operations.
What is the maximum spindle speed?
The spindle speed ranges from 36 to 1600 rpm with 12 steps, providing versatility for various machining tasks.
