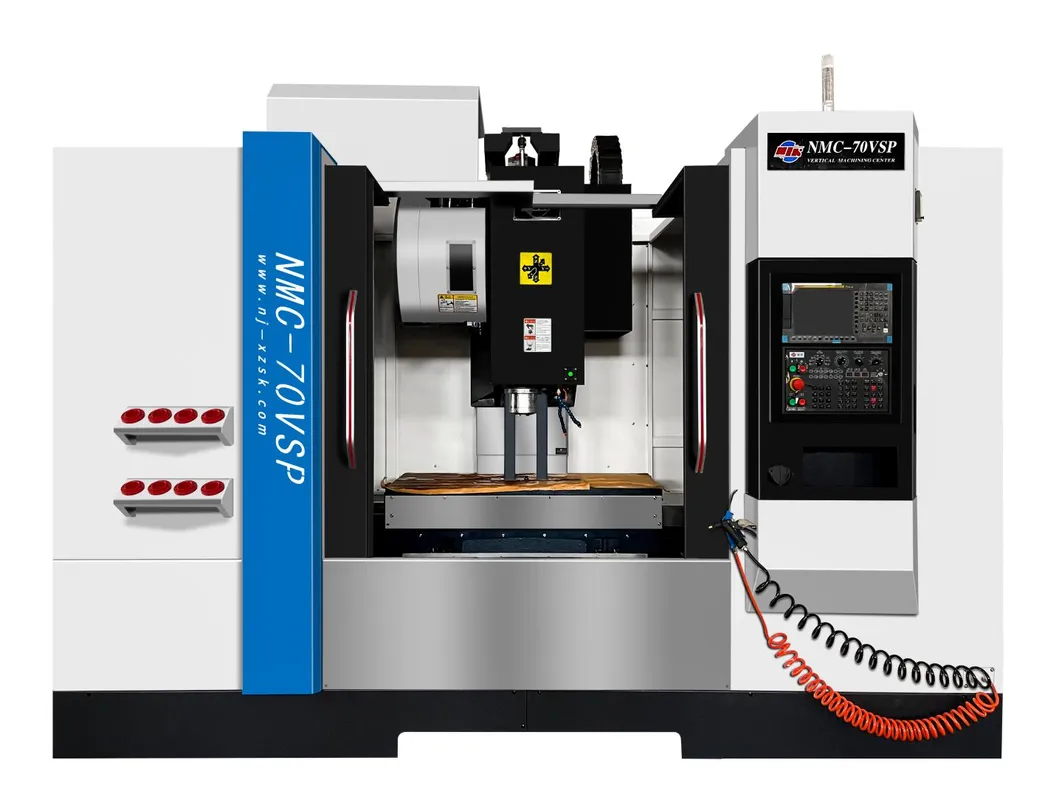

Machine Tool Features: The main shafts adopt wide-area high-torque spindle motors with wide constant power range, large output torque, and low noise. High-rigidity integrated spindle units improve heavy-duty cutting capability significantly, with output torque twice that of ordinary models.
The main structure adopts modularization and a closed box design for overall rigidity. Equipped with X/Y axis heavy-duty roller linear guideways for stable performance during high-speed operations.

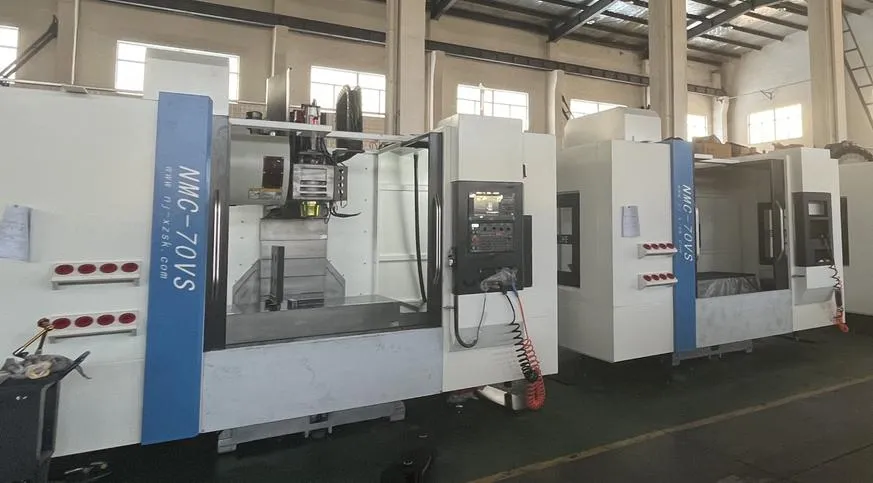

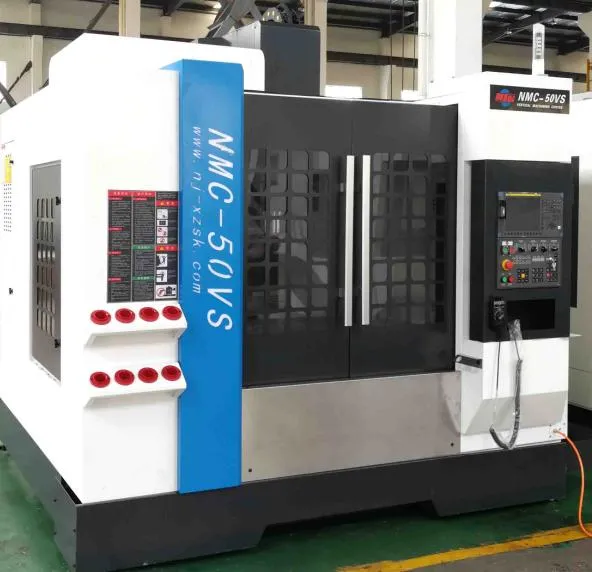

| Item | Specification | Unit | NMC-50VS | NMC-70VS |
|---|---|---|---|---|
| Travelling | X/Y/Z axis | mm | 800/550/550 | 1300/700/730 |
| Worktable | Size (L*W) | mm | 1000*550 | 1400*700 |
| Spindle | Speed | rpm | 10000 | 10000 |
| Accuracy | Positioning | mm | ±0.005 | ±0.006 |
| No. | Name | Manufacturer | Remark |
|---|---|---|---|
| 1 | CNC Control System | FANUC | FANUC-OI-MF plus |
| 2 | X,Y,Z Axis Bearing | NSK | High Precision |
| 3 | Ball Screw | HIWIN/PMI | C3 Grade |
| 4 | Main Pneumatic | AirTAG | Stable performance |
Power supply: 3-AC 380V±10% 50Hz±1Hz. Ambient temperature: 5~45°. Humidity: ≤85%. No corrosive gas or strong vibration.
1. One-year "Three Guarantees" service from the BL date.
2. Failure response: Diagnosis provided immediately; onsite support within a week depending on distance.

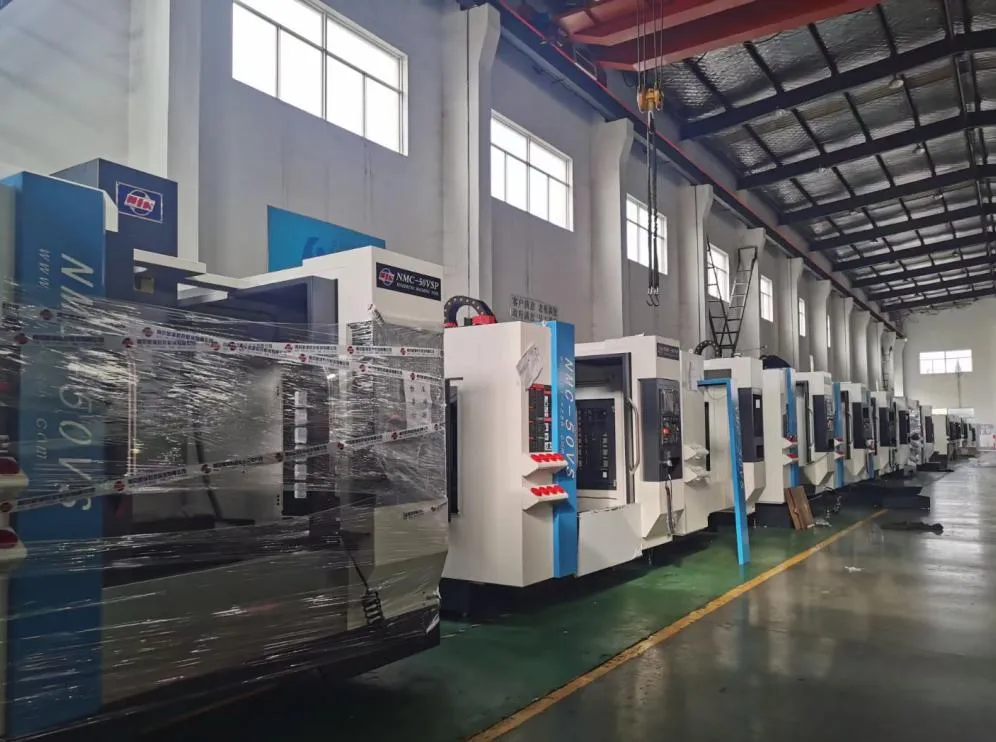

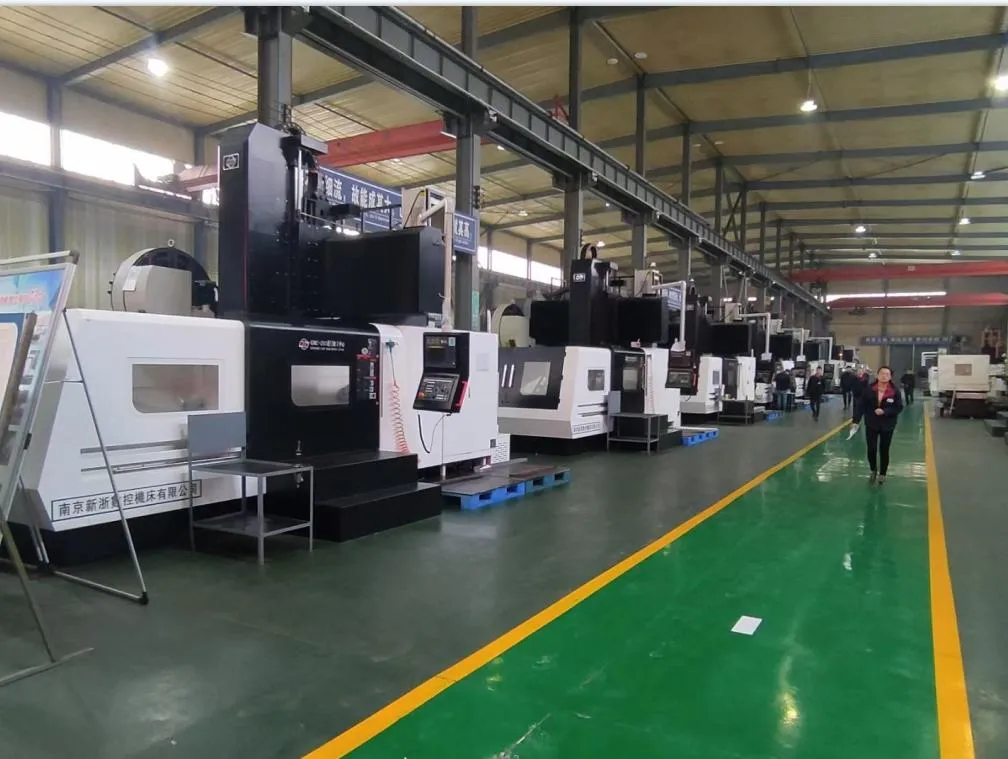

Engaged in R&D, manufacturing, and technical consulting of CNC machine tools and intelligent manufacturing systems. Main products include vertical, horizontal, gantry, and five-axis machining centers.
