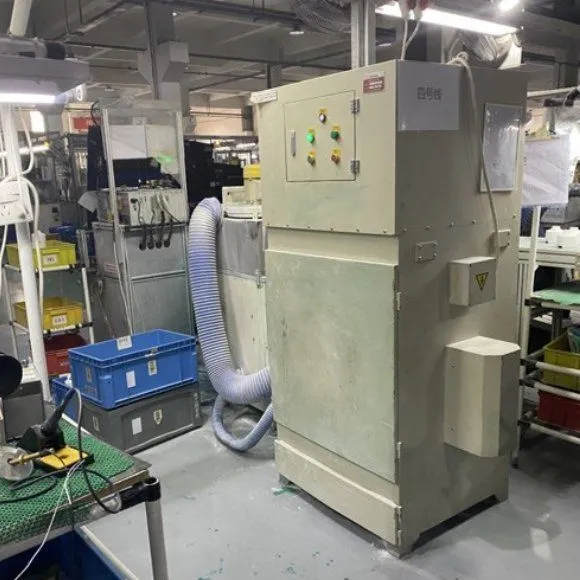

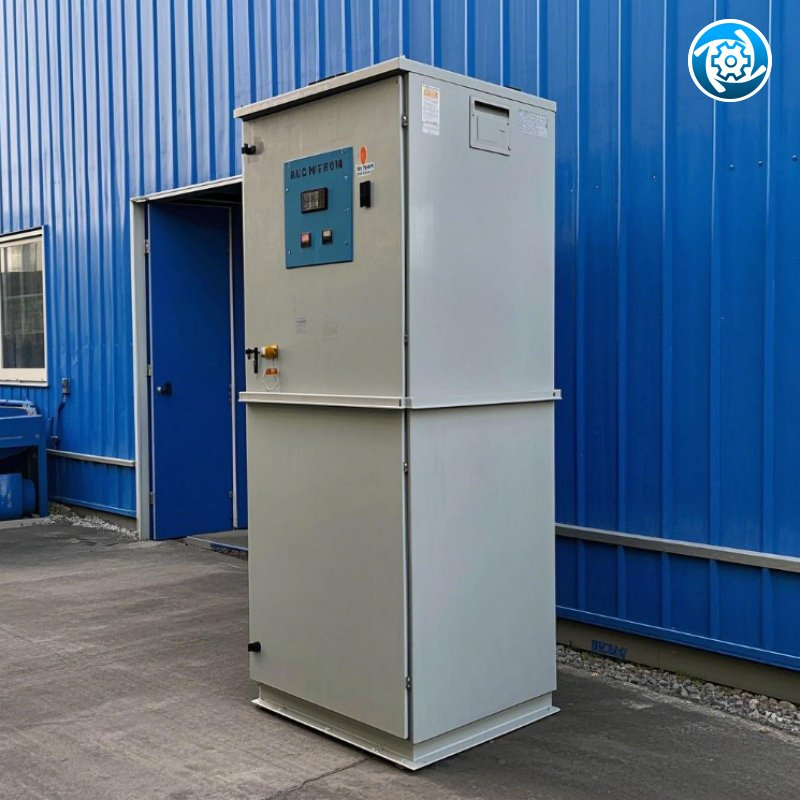

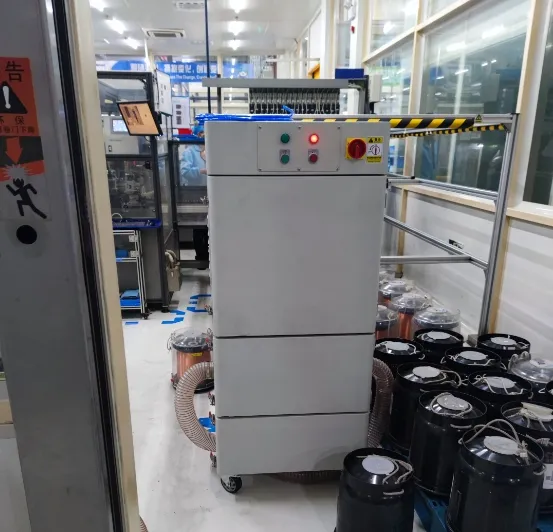

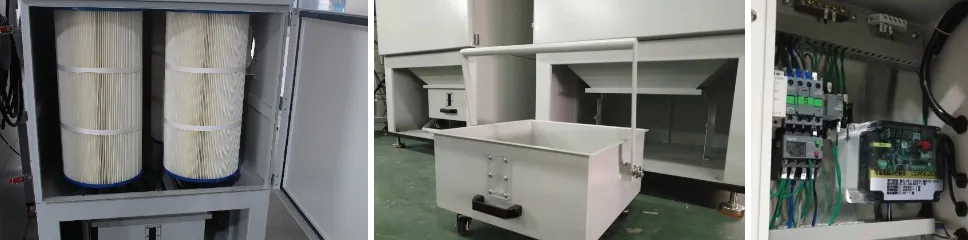

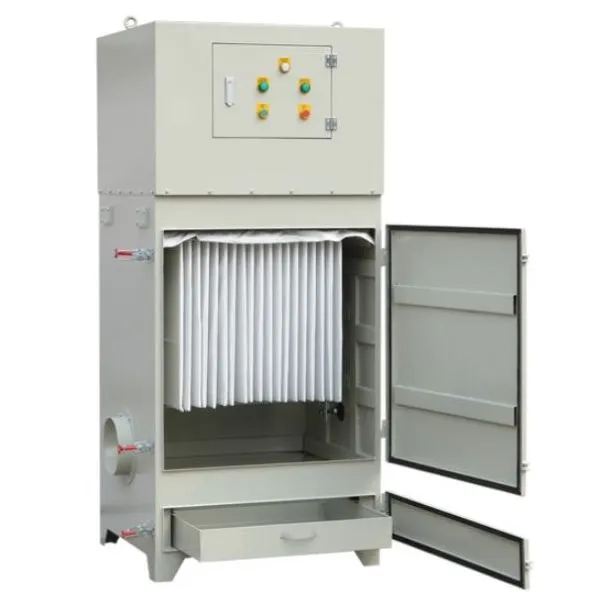

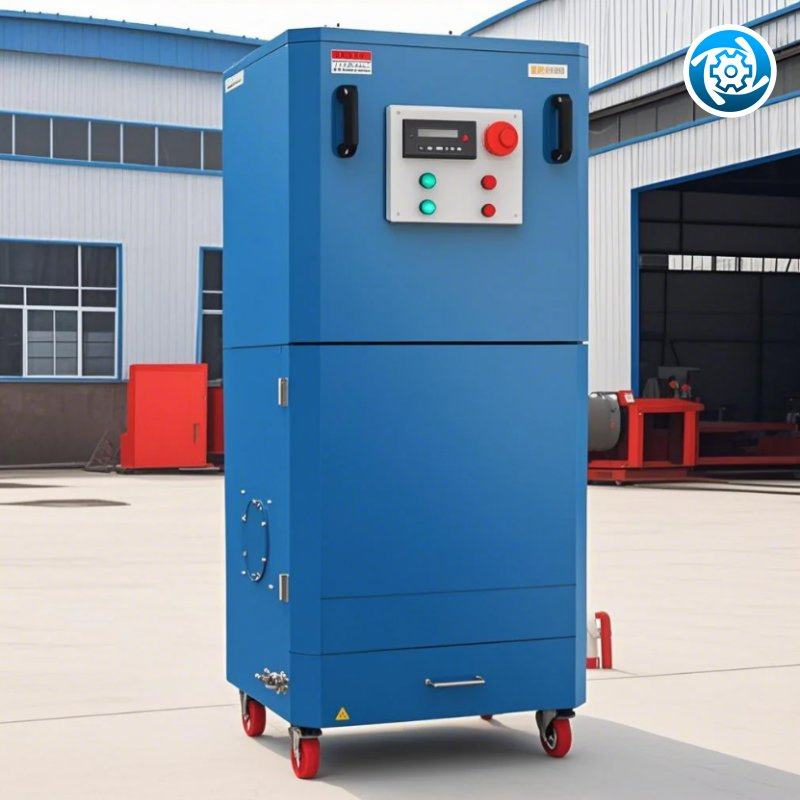

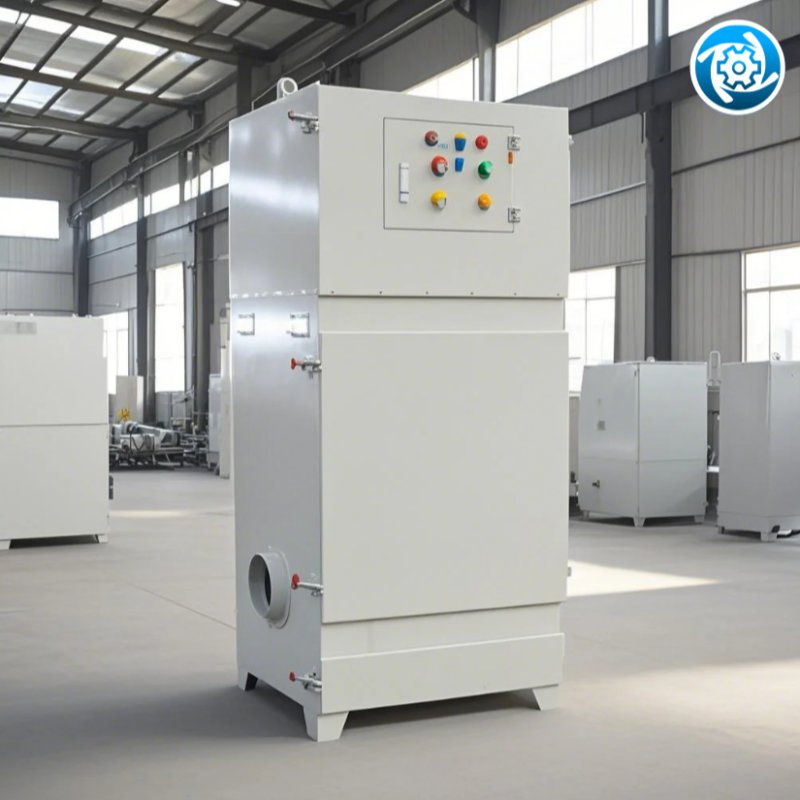

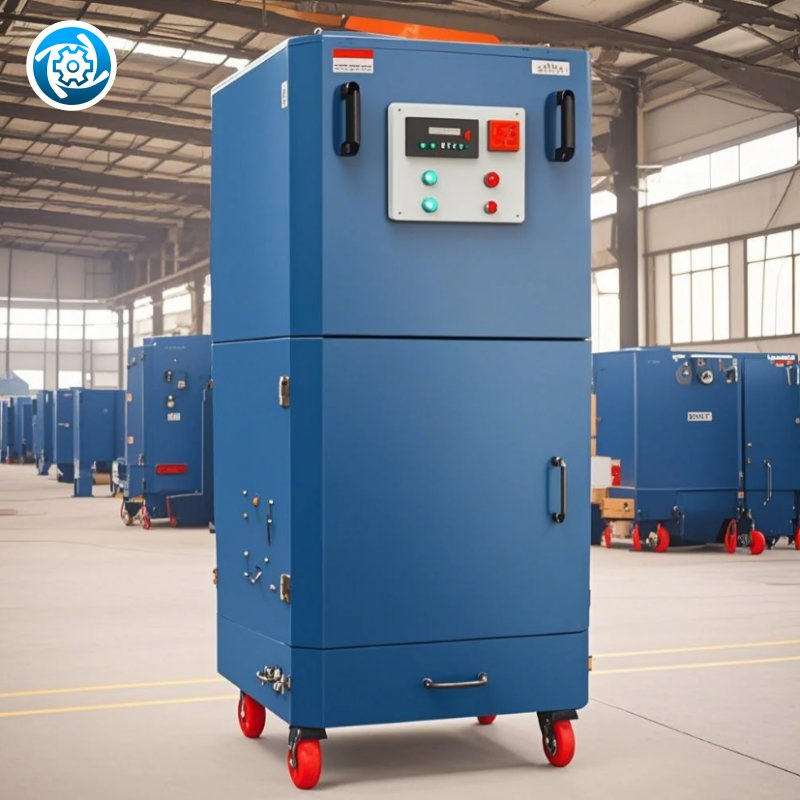

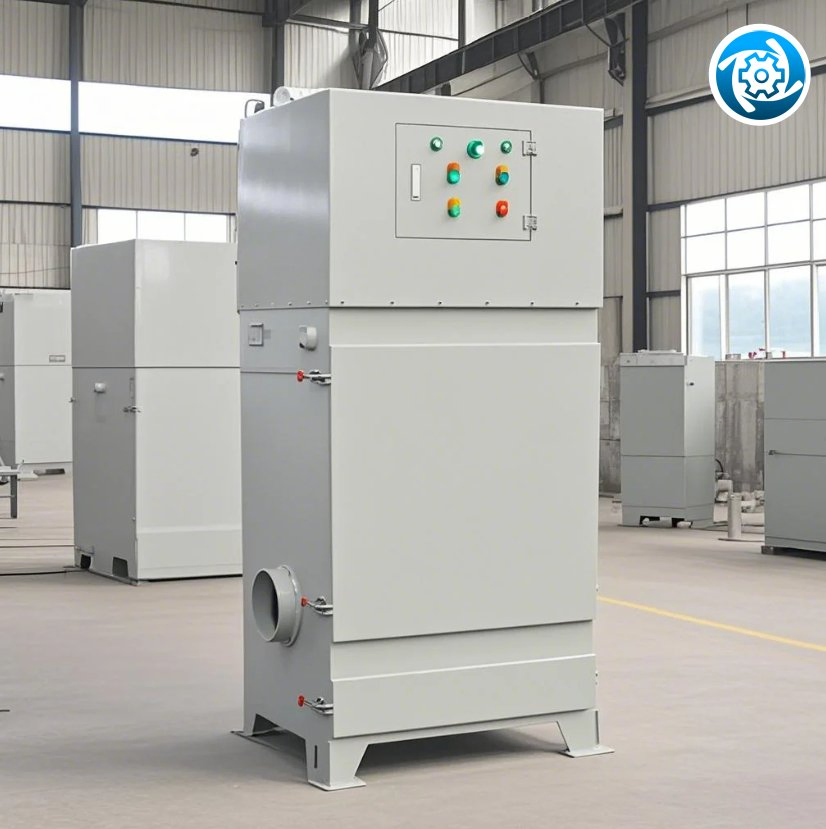

This single-unit dust collector is a dry-type dust removal device. The structure includes a direct-drive fan, filter, motor, cleaning device, and dust collection box. It features a scientific design, reliable operation, and flexible maintenance.

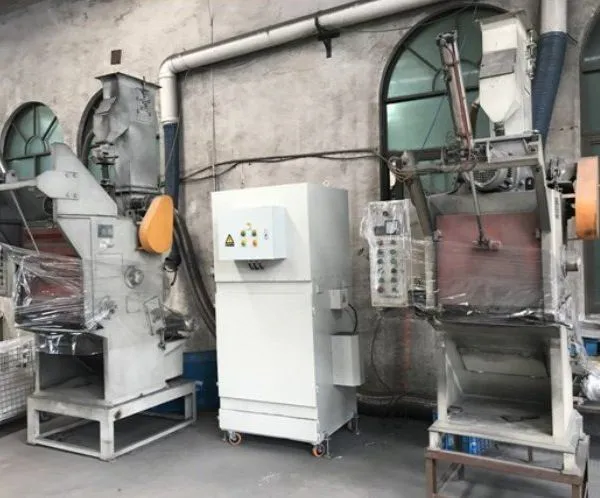

Widely utilized in foundry, ceramics, glass, refractory materials, cement, chemical, pharmaceutical, and machinery processing industries for maintaining air quality and dust-free environments.
| Model | Airflow (m³/h) | Pressure (Pa) | Filtration Area (m²) | Inlet Size (mm) | Motor (kw) | Purification (%) | Dimensions (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|
| PL-800/A | 800 | 800 | 4 | Ø120 | 1.1 | >99.5 | 550×550×1400 | 160 |
| PL-1600/A | 1600 | 850 | 10 | Ø150 | 2.2 | >99.5 | 740×580×1600 | 260 |
| PL-2200/A | 2200 | 1000 | 12 | Ø200 | 3 | >99.5 | 720×660×1700 | 280 |
| PL-3200/A | 3200 | 1000 | 15.3 | Ø200 | 4 | >99.5 | 790×700×1850 | 300 |
| PL-4500/A | 4500 | 1000 | 21.5 | Ø250 | 5.5 | >99.5 | 900×800×2000 | 420 |
| PL-6000/A | 6000 | 1200 | 30 | Ø300 | 7.5 | >99.5 | 1200×900×2300 | 750 |
Selection depends on the air volume required (m³/h), the nature of the dust (dry, oily, or hazardous), and the temperature of the exhaust gas. Our technical team can help calculate the required filtration area based on your equipment layout.
The PL-Series unit achieves a high purification efficiency of over 99.5%, making it suitable for strict environmental compliance and indoor air quality maintenance.
The unit utilizes a vibration cleaning mechanism. It includes a swing motor and connecting rod system that automatically shakes the filter bags to dislodge dust into the collection box.
Yes, Type B models are designed without a dust box specifically to be connected directly to silos, hoppers, or belt conveyors for seamless integration.
Regularly emptying the dust collection box and periodic inspection of the filter bags and motor belts are the primary maintenance tasks required to ensure longevity.
The standard units are designed for temperatures between 5-80°C. For applications exceeding this range, specialized filter materials can be discussed upon request.
