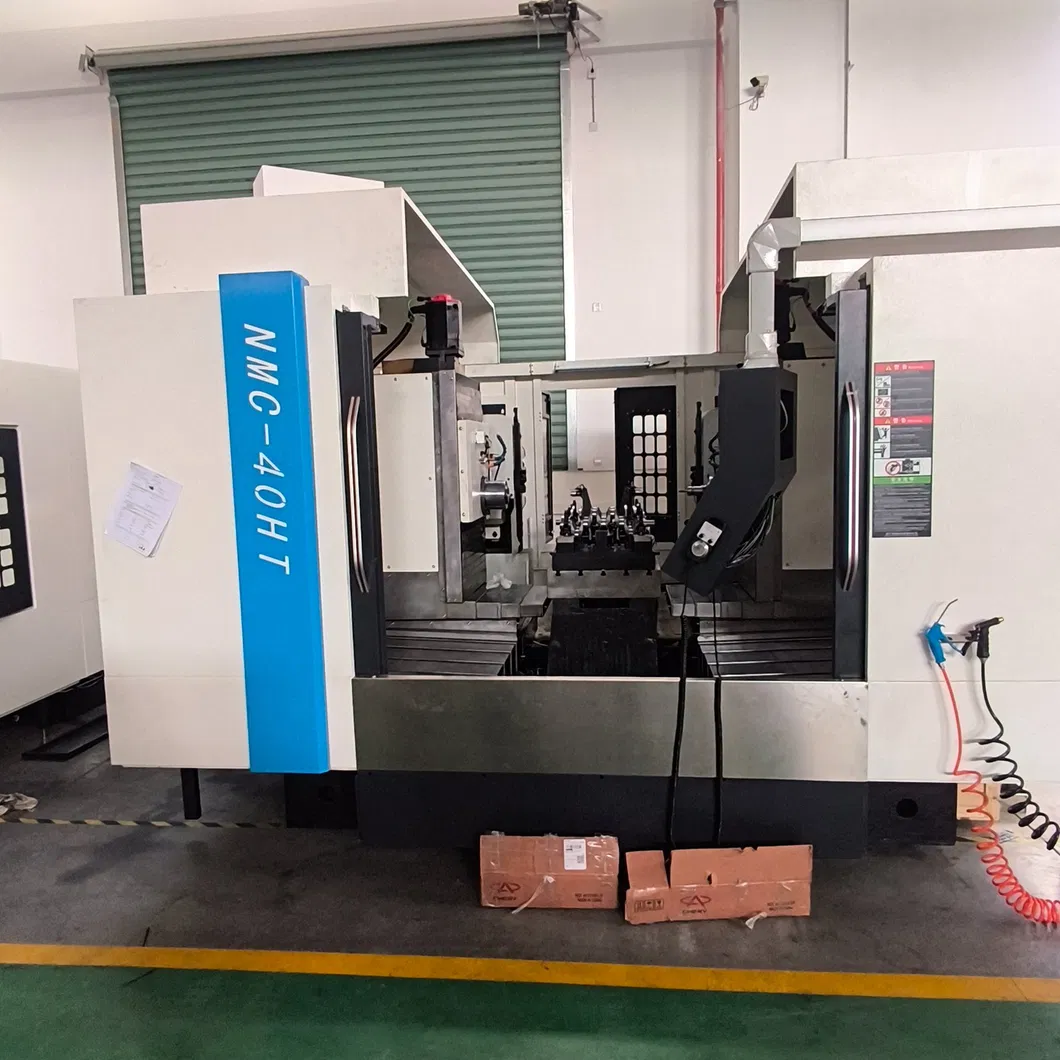

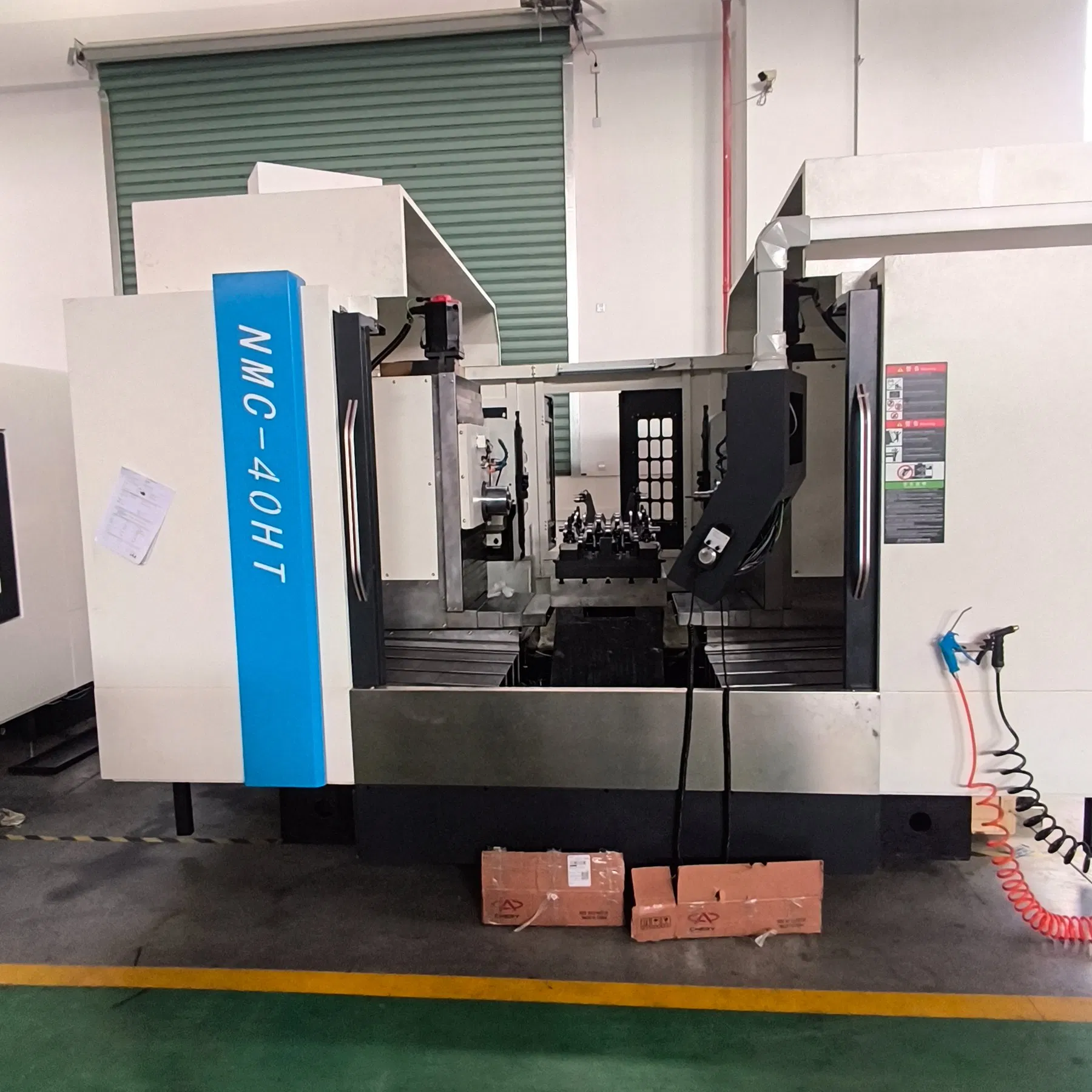

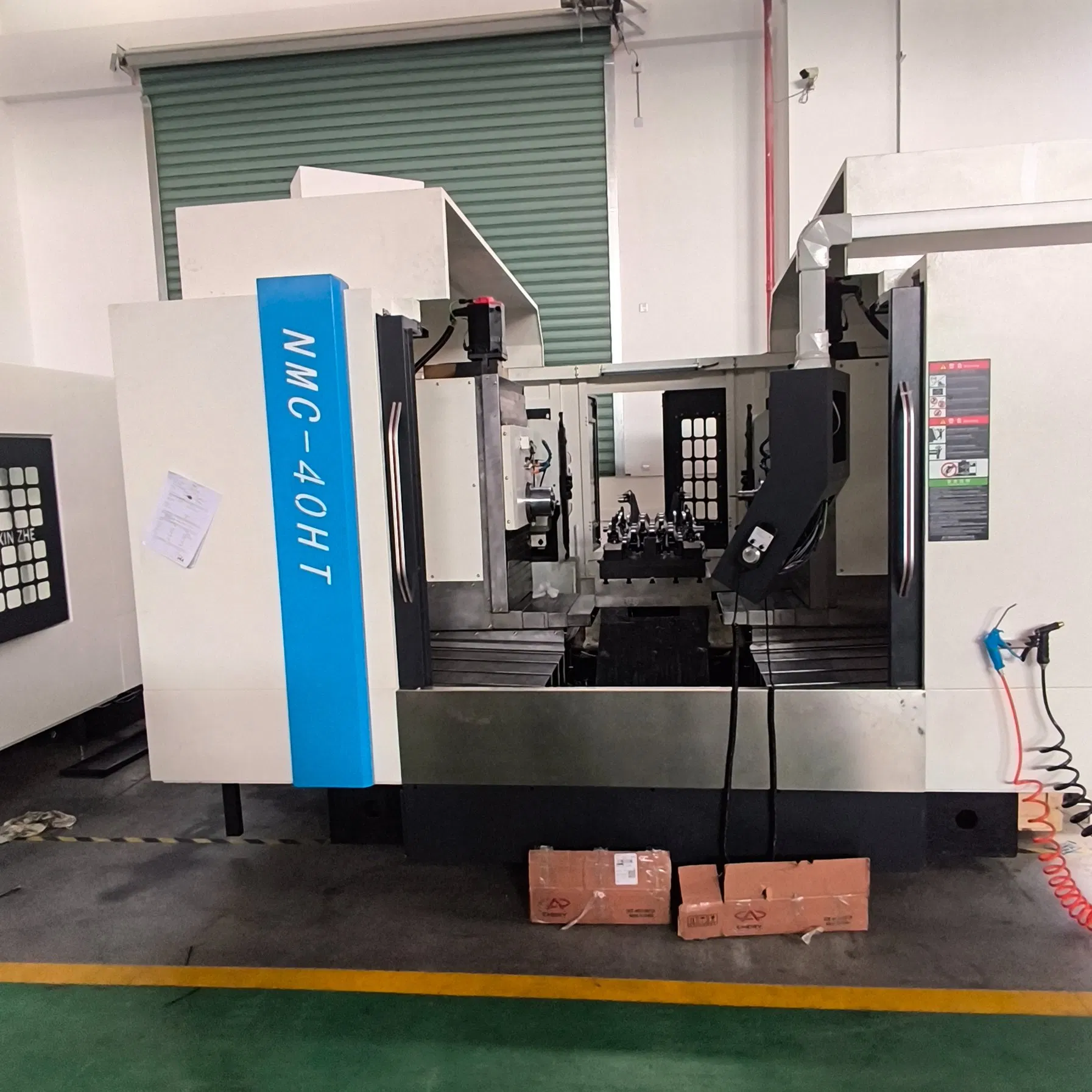

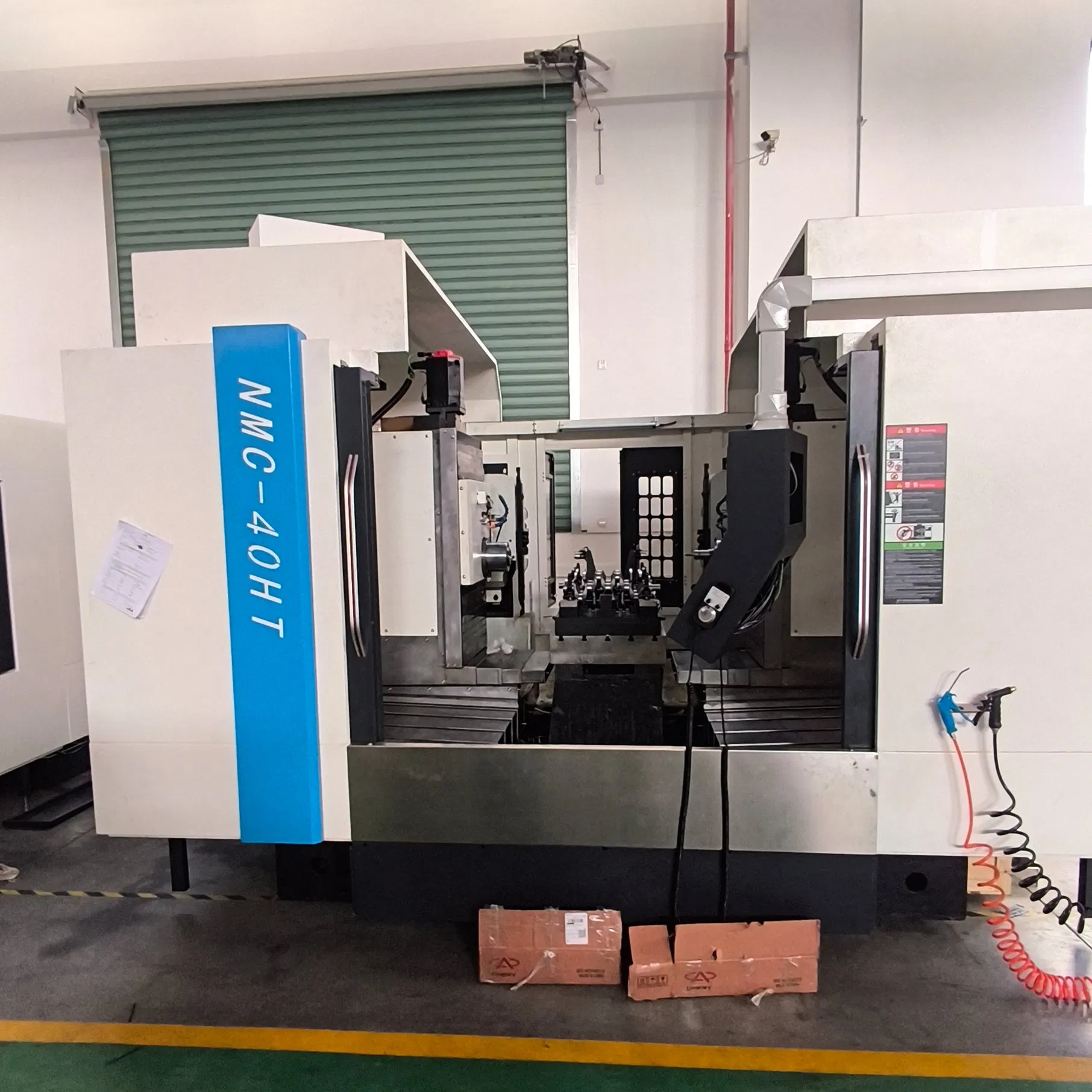

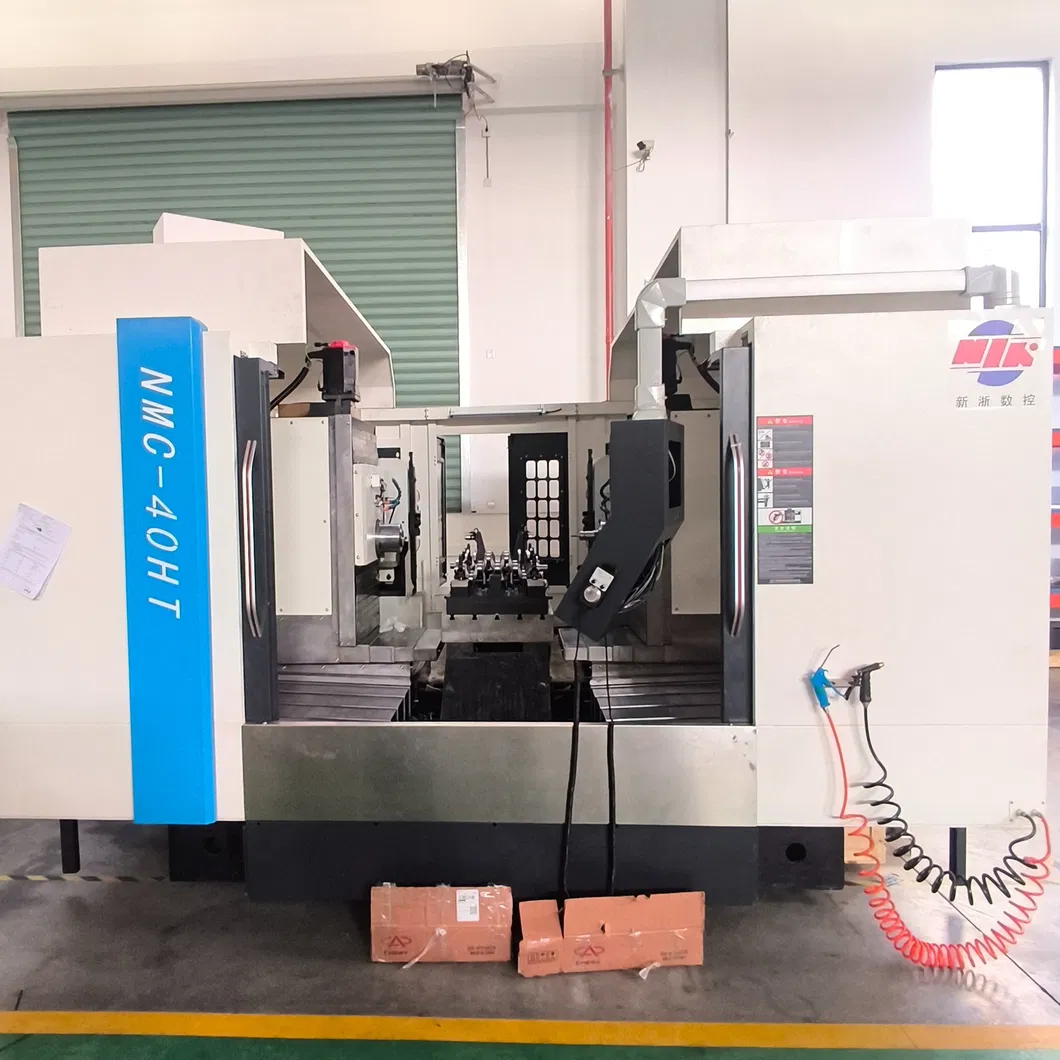

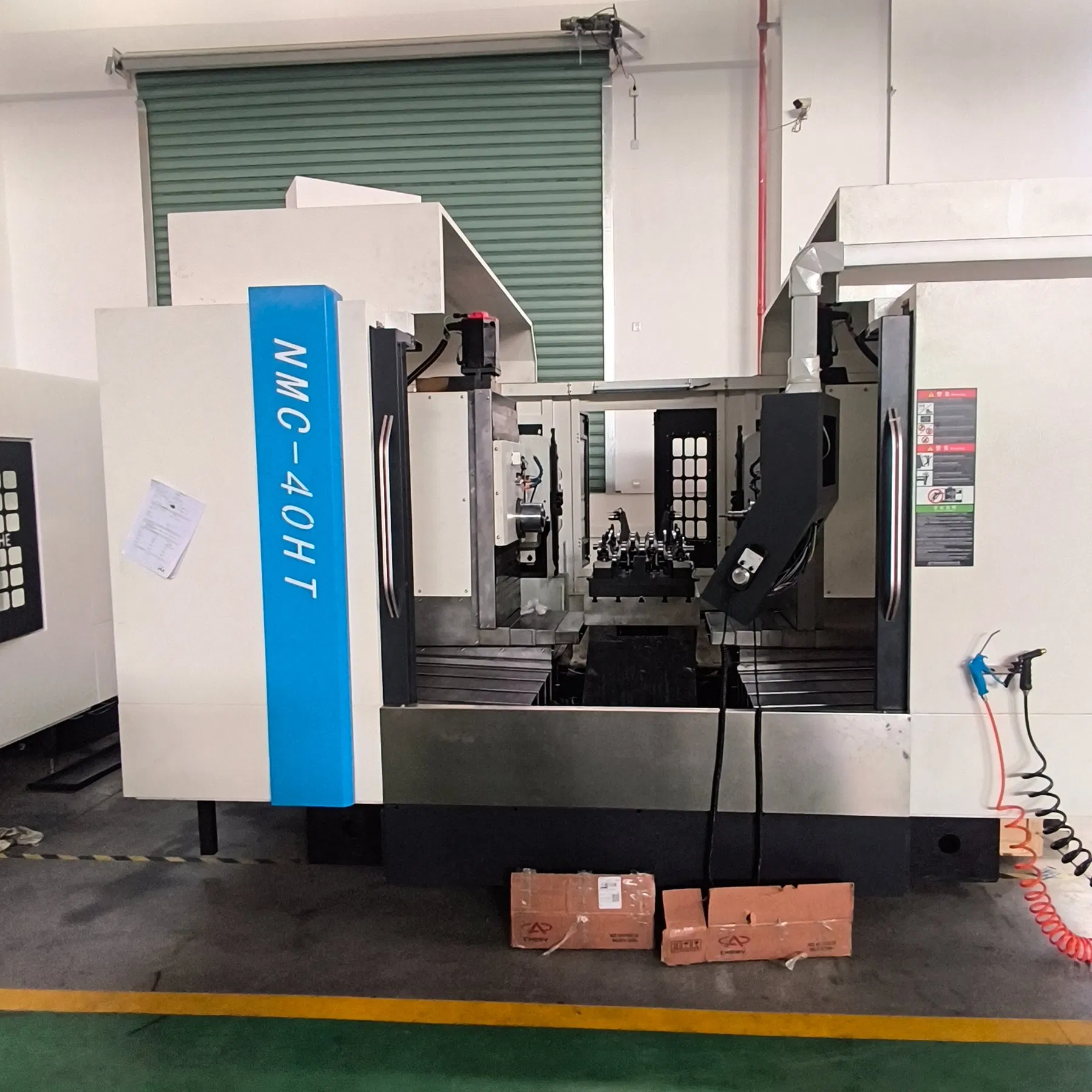

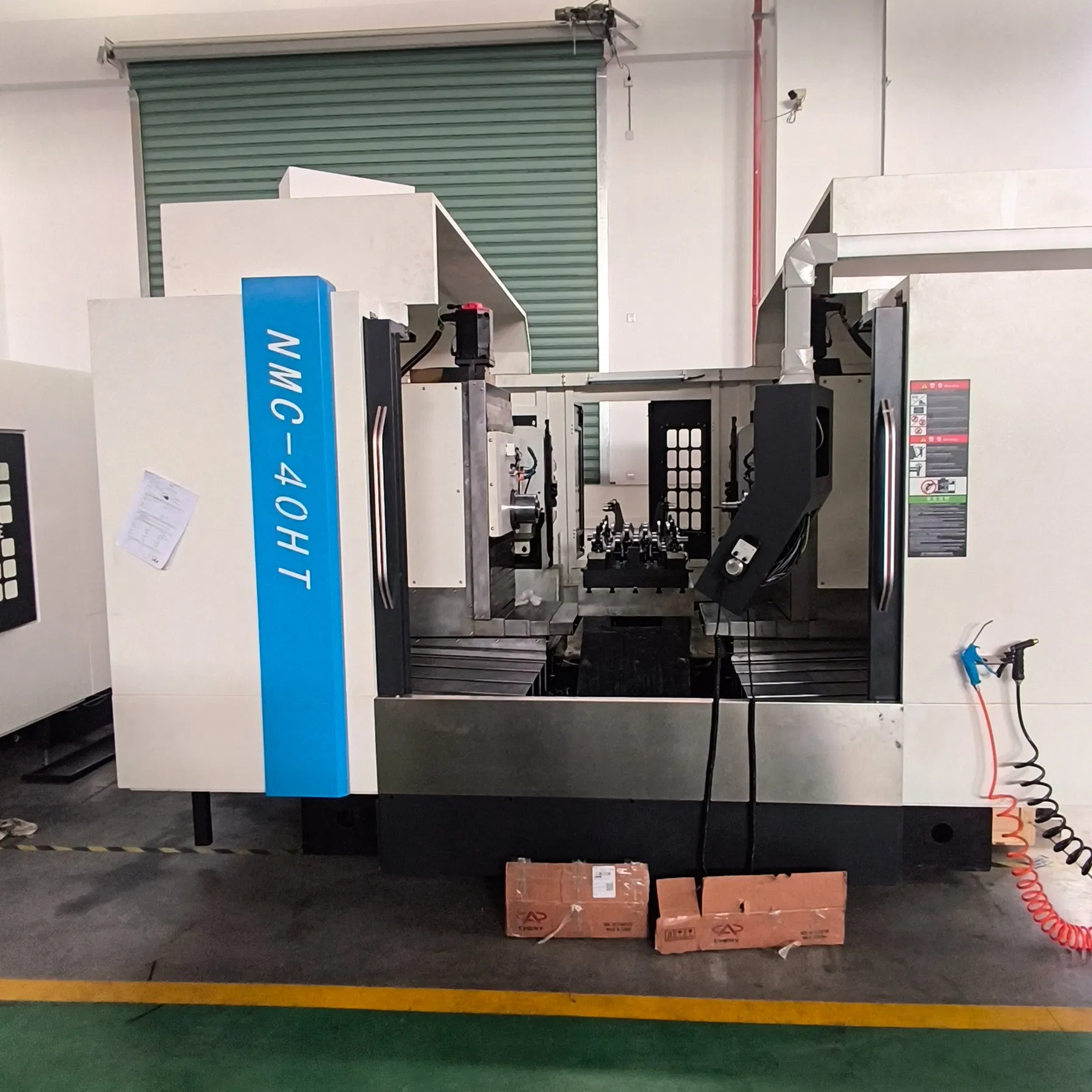

Nmc - 40ht Double - Sided Horizontal Machining Center Incorporating Advanced Cooling System

Basic Specifications

Application:Metal Cutting

Movement Method:Linear Control

Control Method:Closed-Loop Control

Numerical Control:CNC/MNC

Processing Precision:0.05~0.06(mm)

Certification:GS, CE, RoHS, ISO 9001

Condition:New

Type:Horizontal Machining Center

Tool Magazine:40T Capacity

Production Capacity:300 Sets/Year

Product Description & Features

The main shafts adopt wide-area high-torque spindle motors with wide constant power range, low noise, and low failure rate. Integrated with a high-rigidity spindle unit, the heavy-duty cutting capability is significantly improved, delivering output torque twice that of ordinary models.

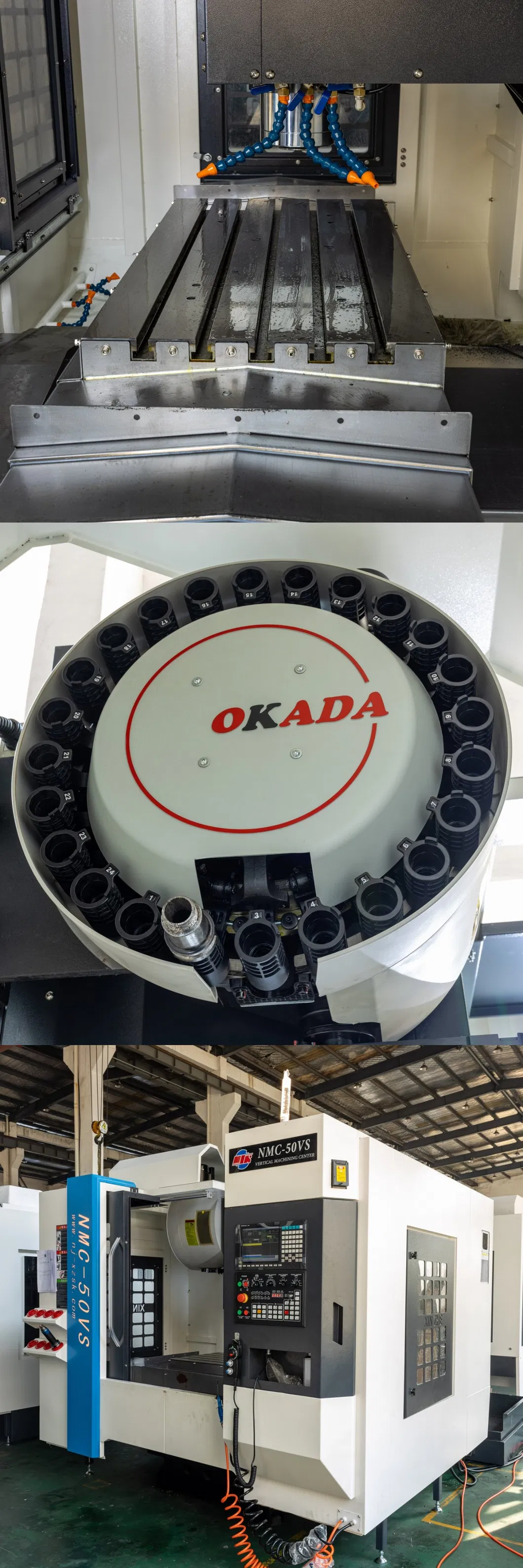

The modular closed-box structure ensures excellent overall rigidity. The X/Y axis is equipped with heavy-duty roller linear guideways for precision and stability.

⚙️

Precision Components: Adopt Taiwan HIWIN or PMI line rails (45mm width for Y/Z axes).

🏗️

Stable Structure: Ultra-wide base and "herringbone" column design for maximum stability.

🔩

Thermal Control: C3 grade screw rods with NSK original bearings, pre-tensioned to prevent thermal displacement.

Technical Specifications

Item	Specification	Unit	NMC-50VS	NMC-70VS
Travelling	X/Y/Z axis	mm	800/550/550	1300/700/730
Worktable	Size (L*W)	mm	1000*550	1400*700
Spindle	Max Speed	rpm	10,000	10,000
Accuracy	Positioning	mm	±0.005	±0.006
Weight	Machine Weight	t	5.5	9.0

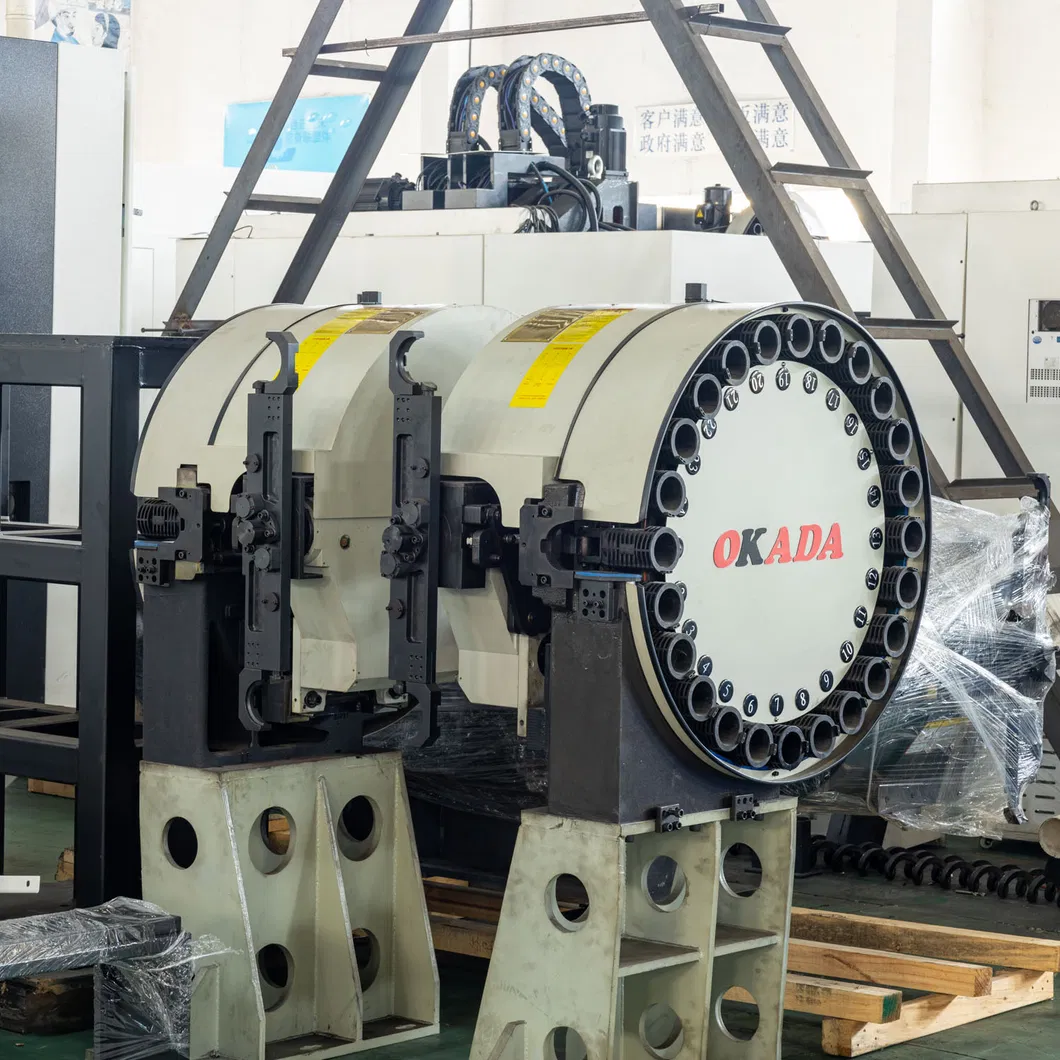

Main Accessories

No.	Component Name	Manufacturer	Remark
1	CNC Control System	FANUC	FANUC-OI-MF plus
2	X,Y,Z Servo Motor	FANUC	High Performance
3	Axis Bearings	NSK	Original Import
4	Linear Guideway	HIWIN/PMI	45mm Width
5	Tool Magazine	Taiwan Brand	24-disc type

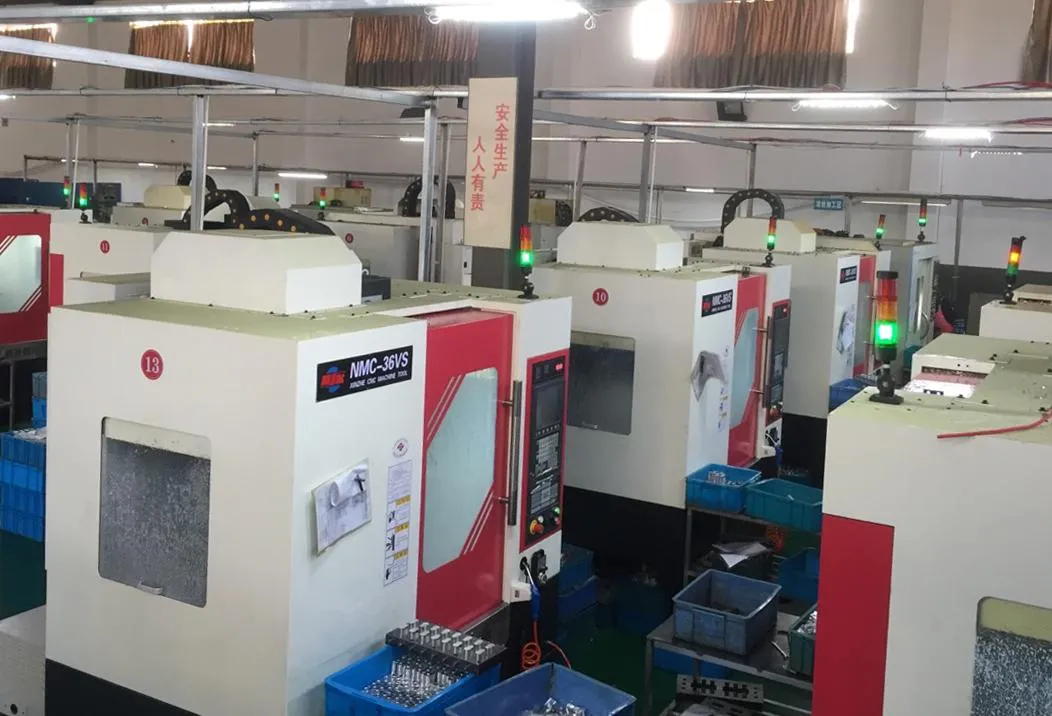

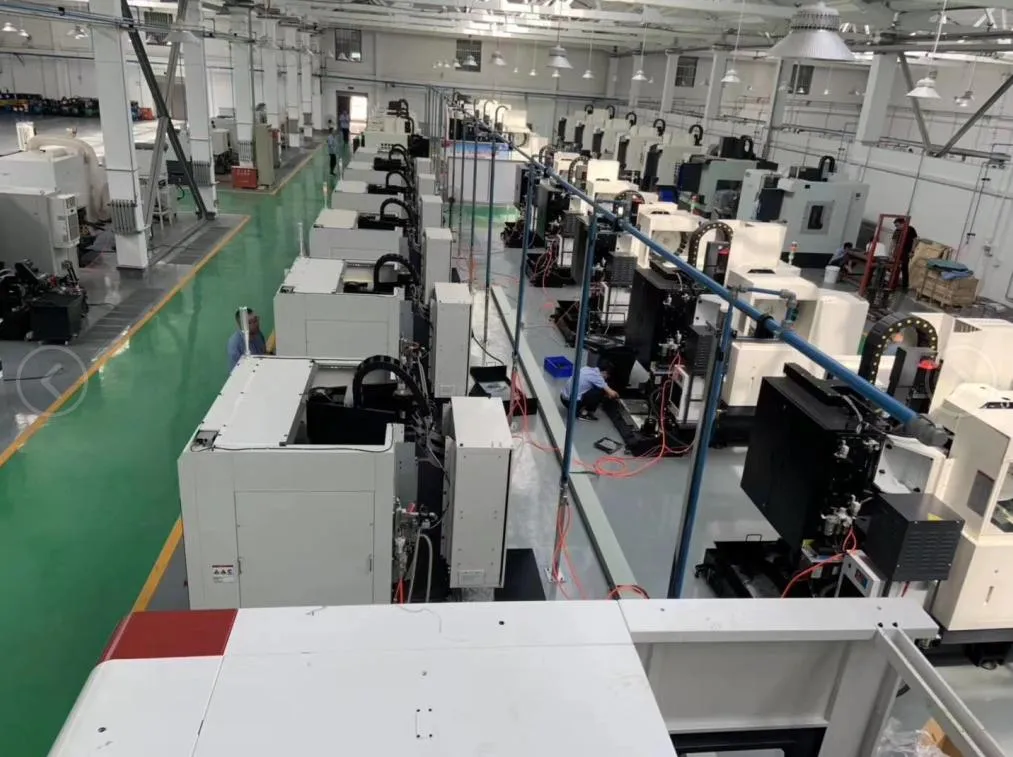

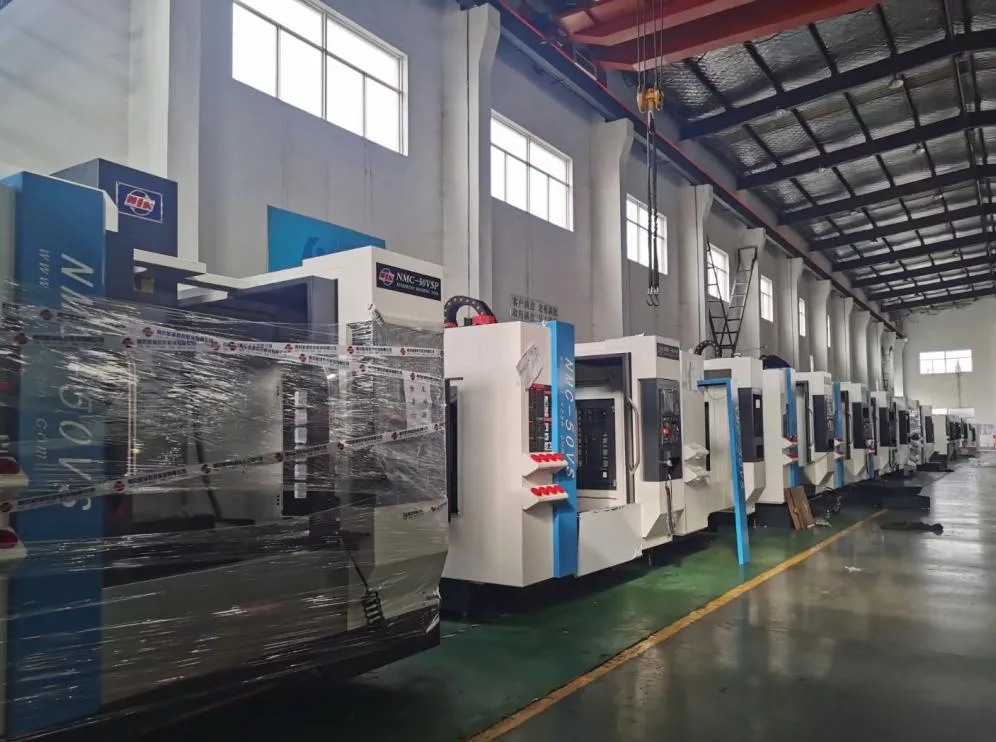

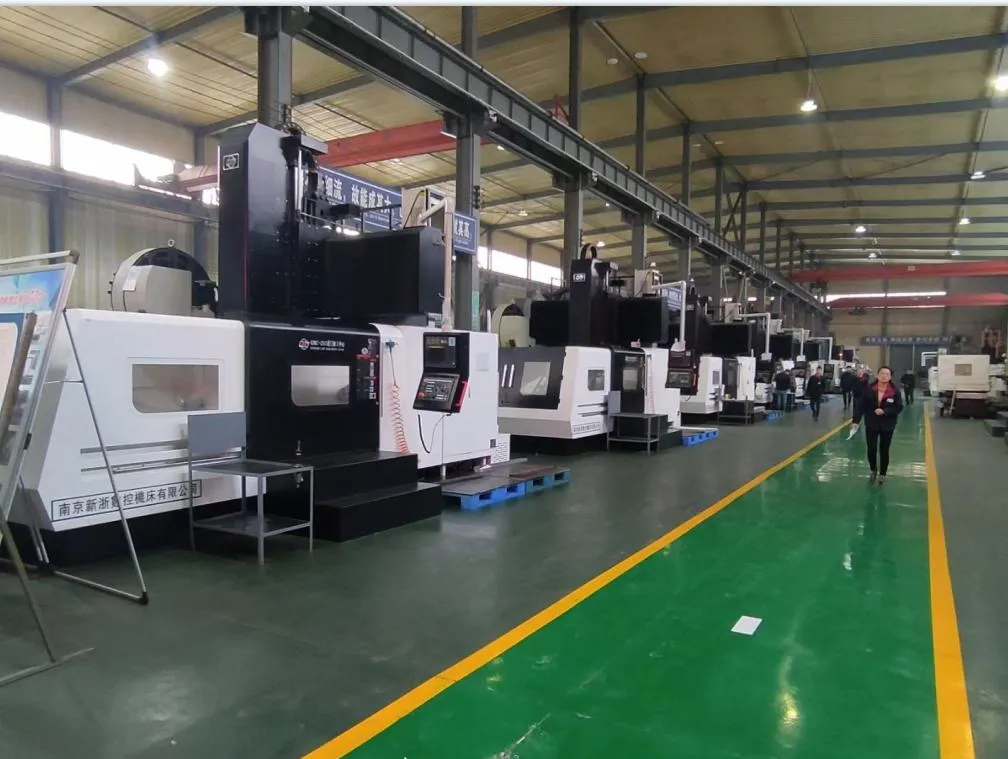

Manufacturing Facility

Our production base focuses on the R&D and manufacturing of intelligent CNC equipment and systems, including vertical, horizontal, and gantry machining centers.

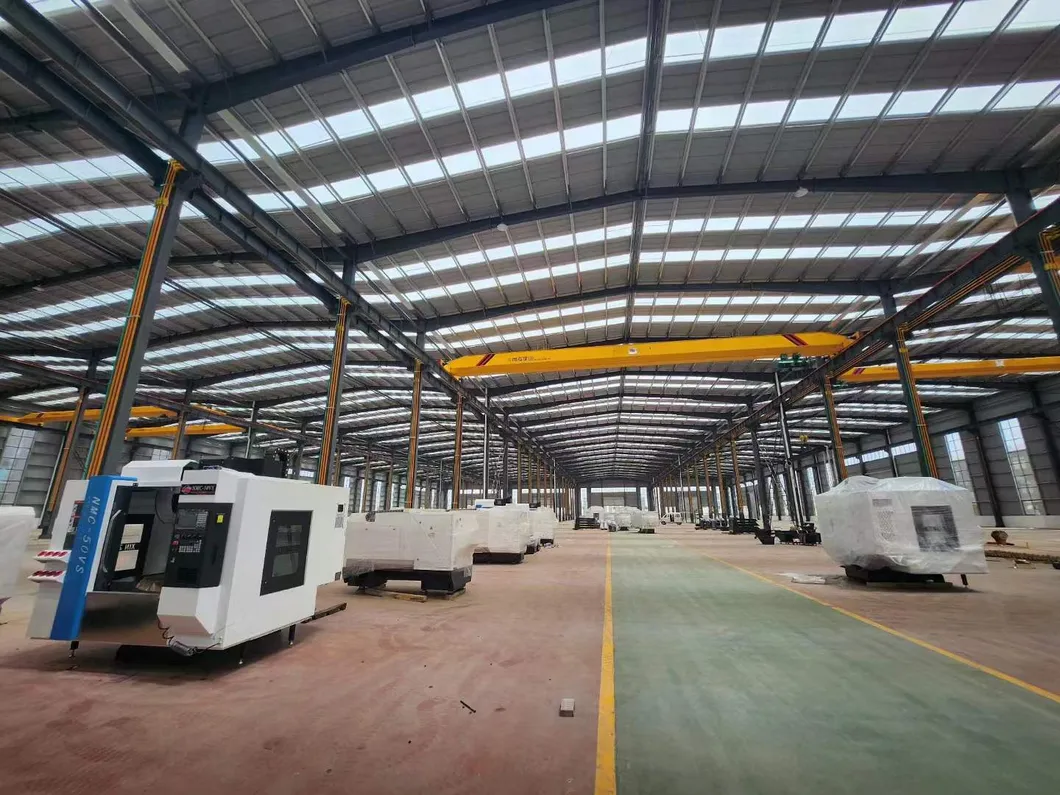

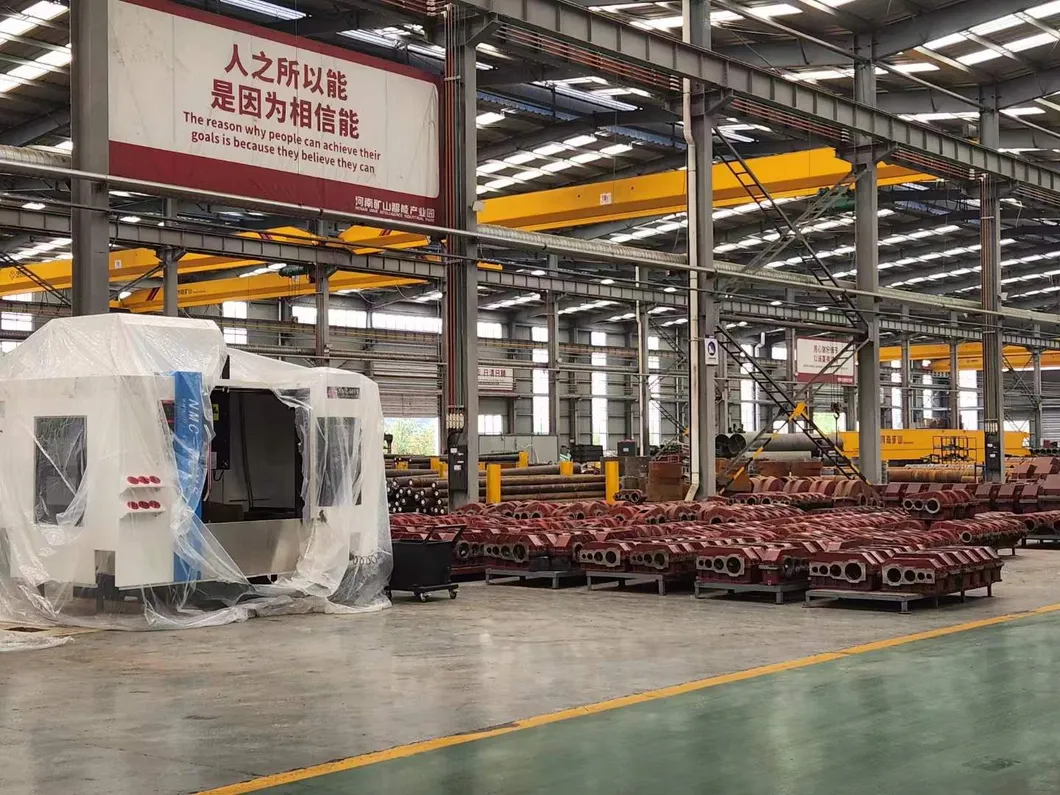

Customer Site Installations

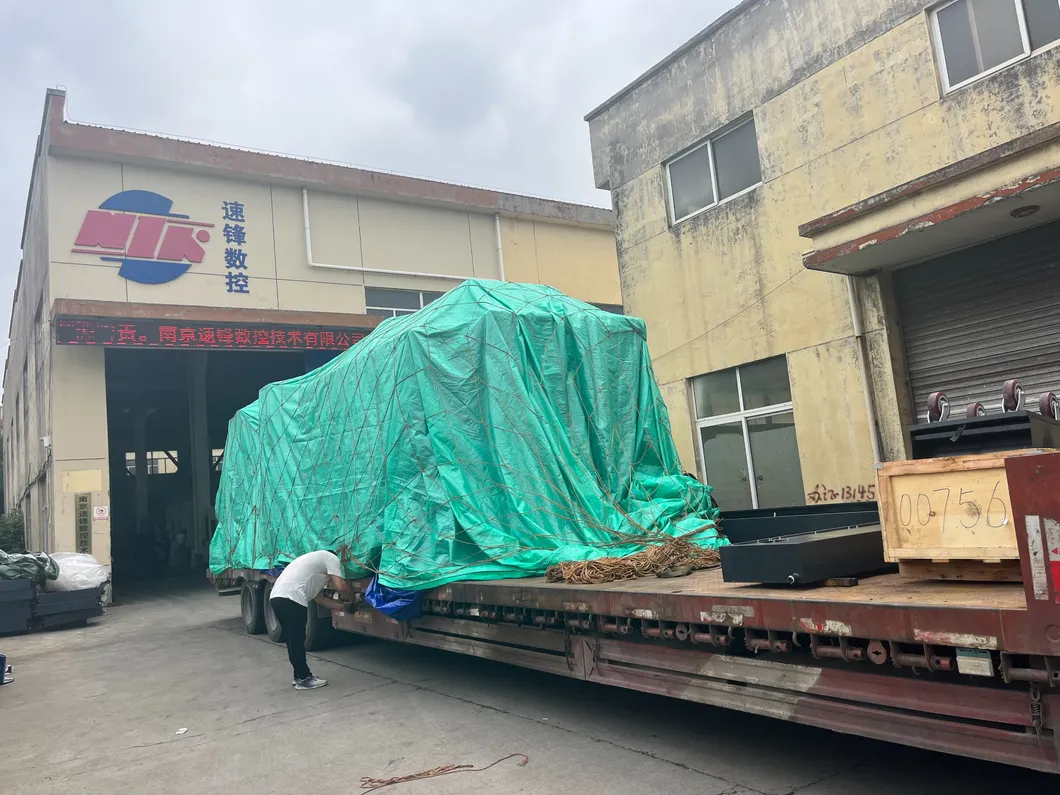

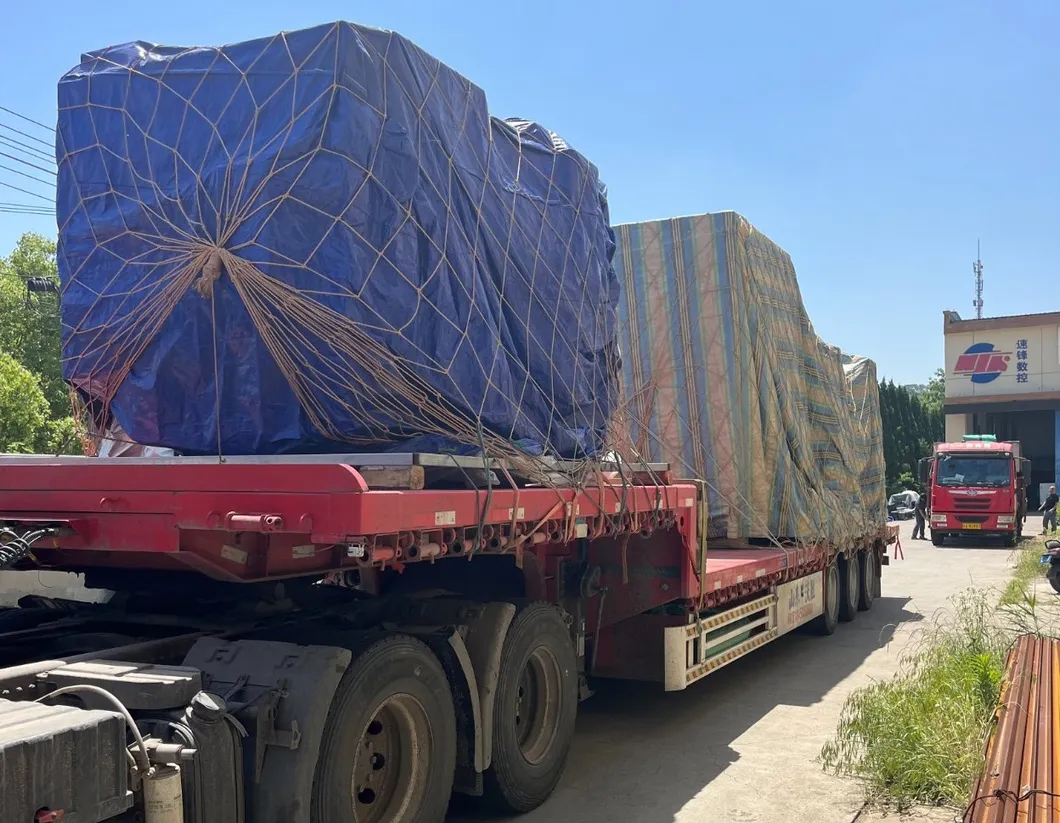

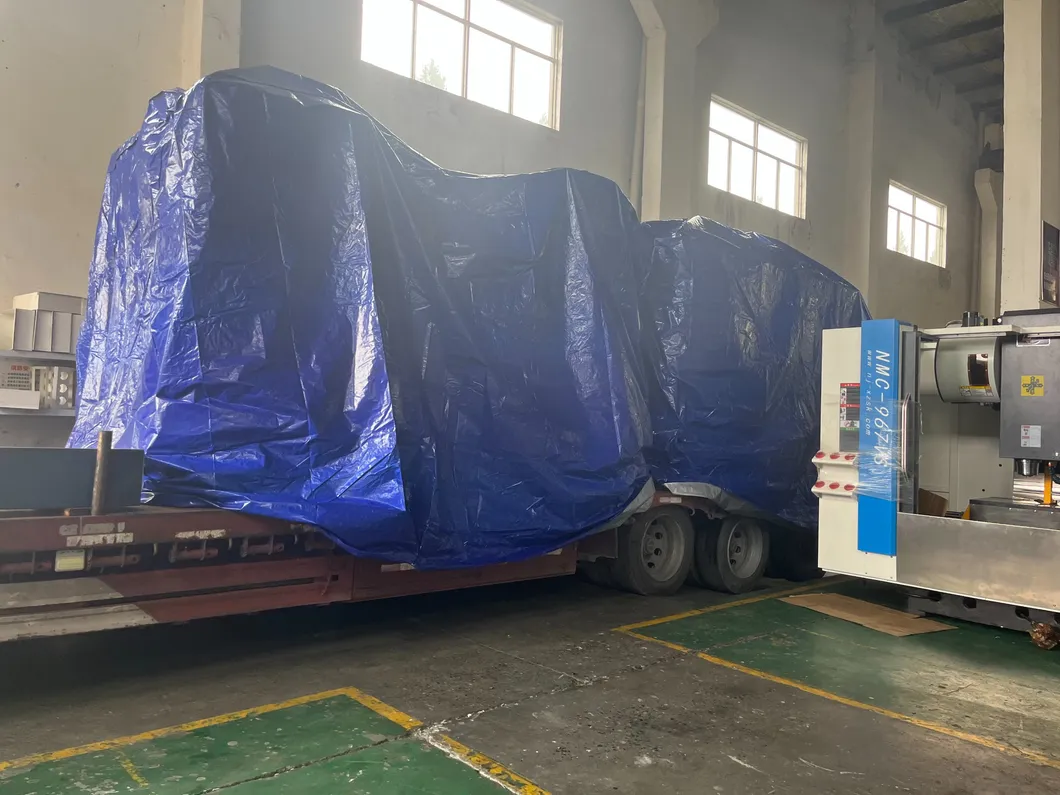

Packaging & Delivery

Frequently Asked Questions

Q1: How can I choose the most suitable machine?

Please provide your specifications or workpiece drawings. Our professional engineering team will evaluate your requirements and suggest the most suitable model for your production needs.

Q2: What is the warranty policy for your CNC machines?

We provide a one-year warranty from the BL date. If any parts are damaged under correct operation within this period, we will provide replacement parts via air or express immediately free of charge.

Q3: What is the typical delivery time?

Due to our high production volume, we maintain a steady flow of machines. For standard orders of 1-5 sets, our fastest delivery time is typically within one month.

Q4: Do you offer installation and training services?

Yes. We provide comprehensive installation documents and video support for free. If on-site training is required, we can arrange for engineers to visit your facility.

Q5: How do you ensure product quality?

We are ISO9001:2008 and ISO14001 certified. Most of our products meet European and American safety standards, including CE, GS, EMS, and UL. 90% of our products are exported worldwide.

Q6: What are your primary payment terms?

Standard terms are T/T with a 30% initial payment upon ordering and the remaining 70% balance before shipment. We also accept Irrevocable LC.
