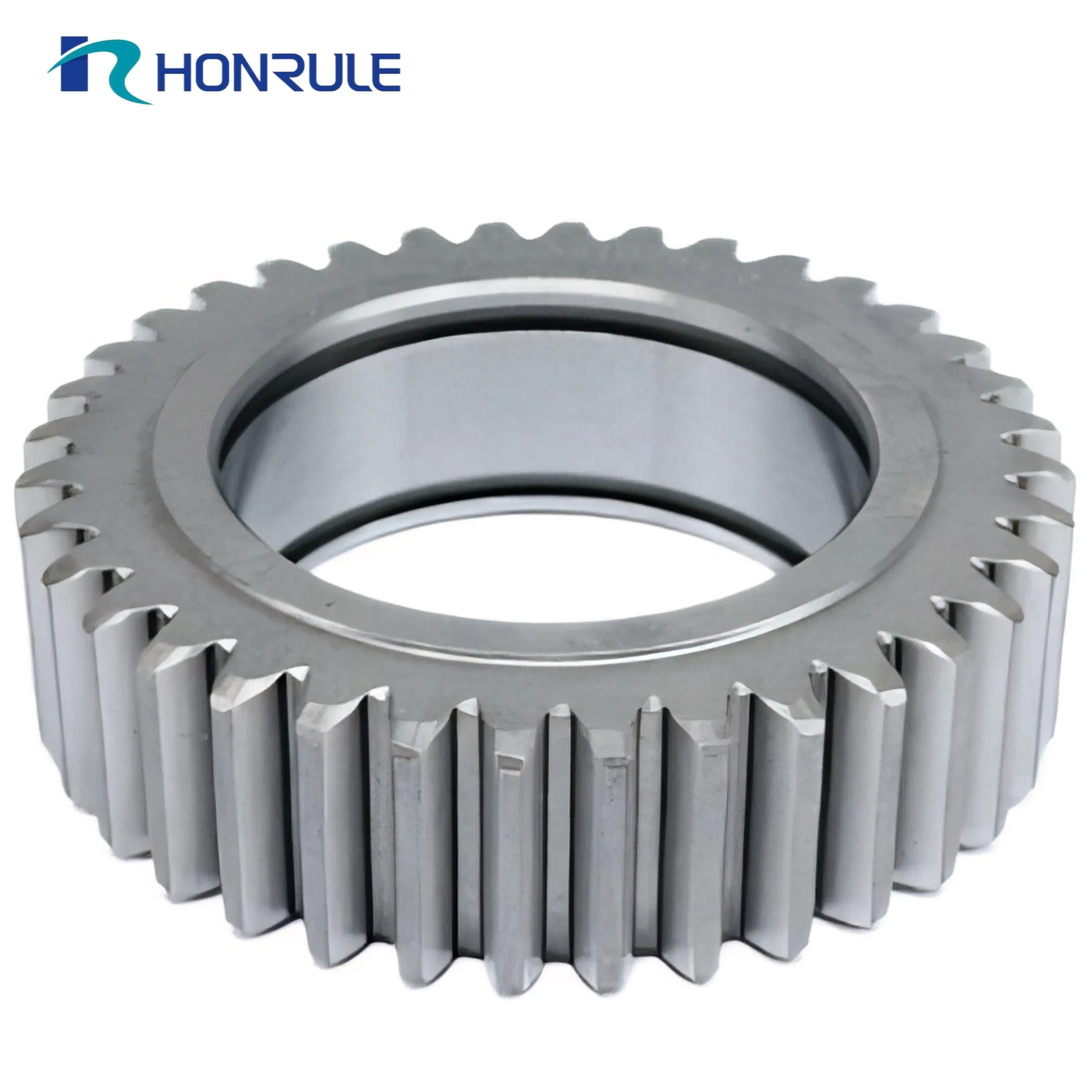

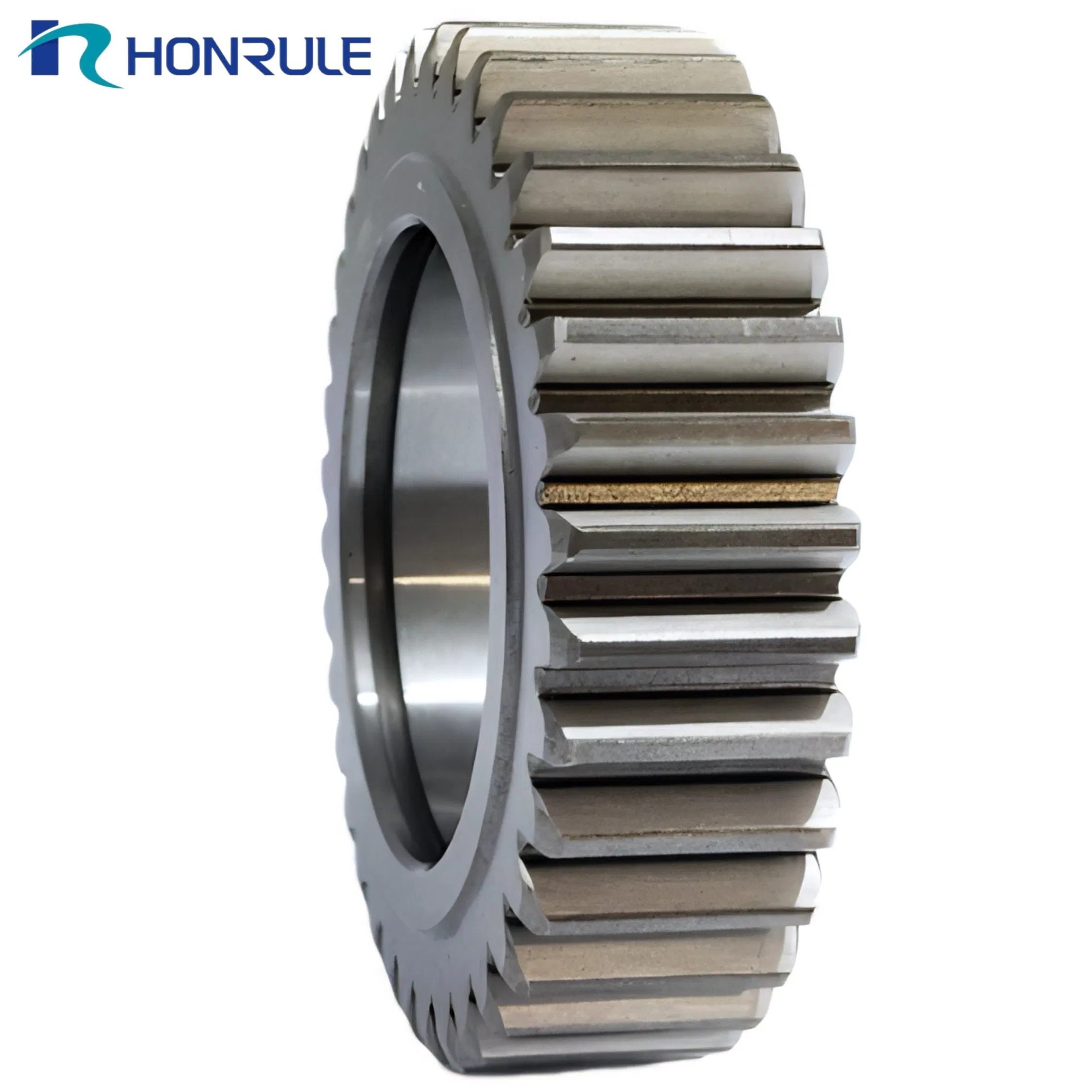

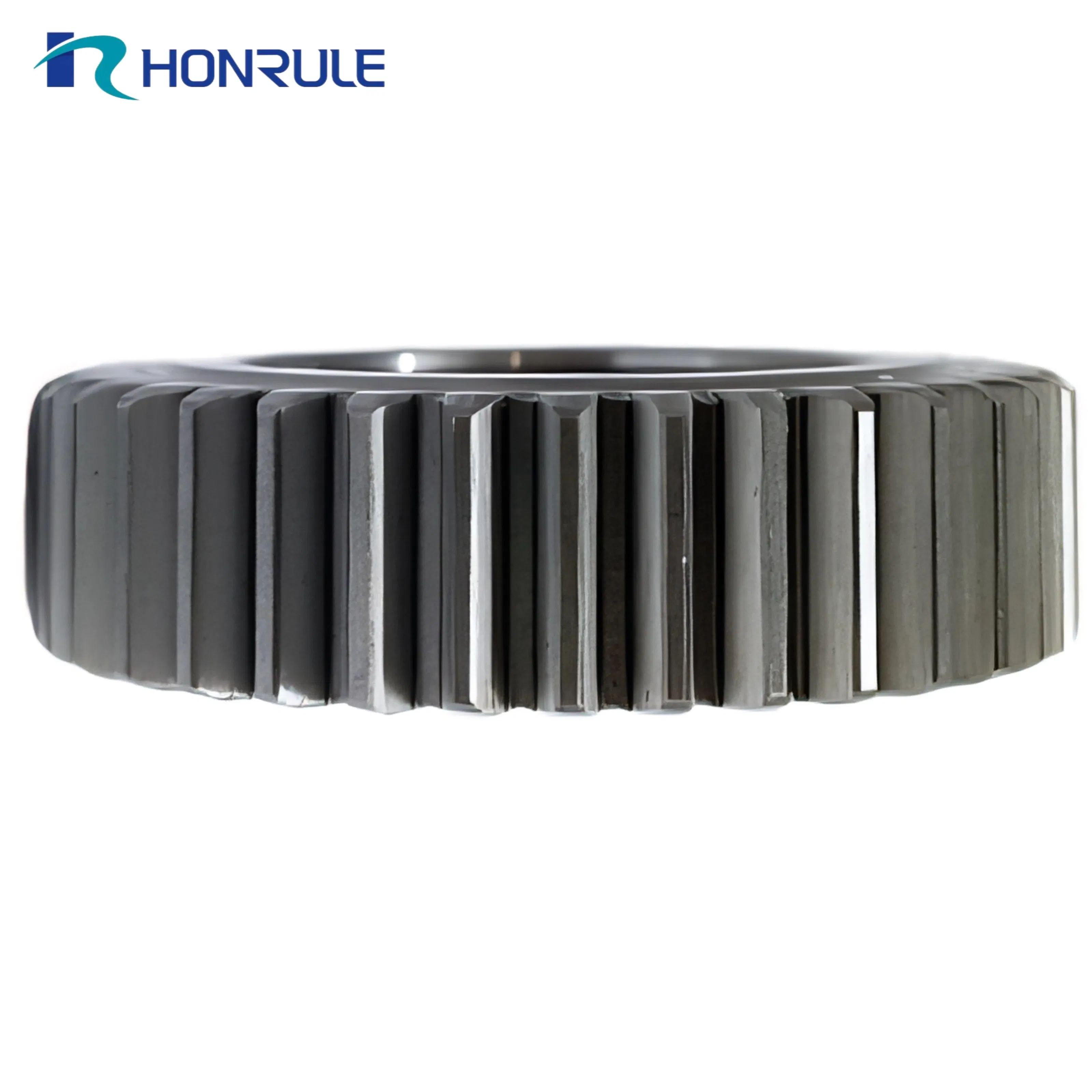

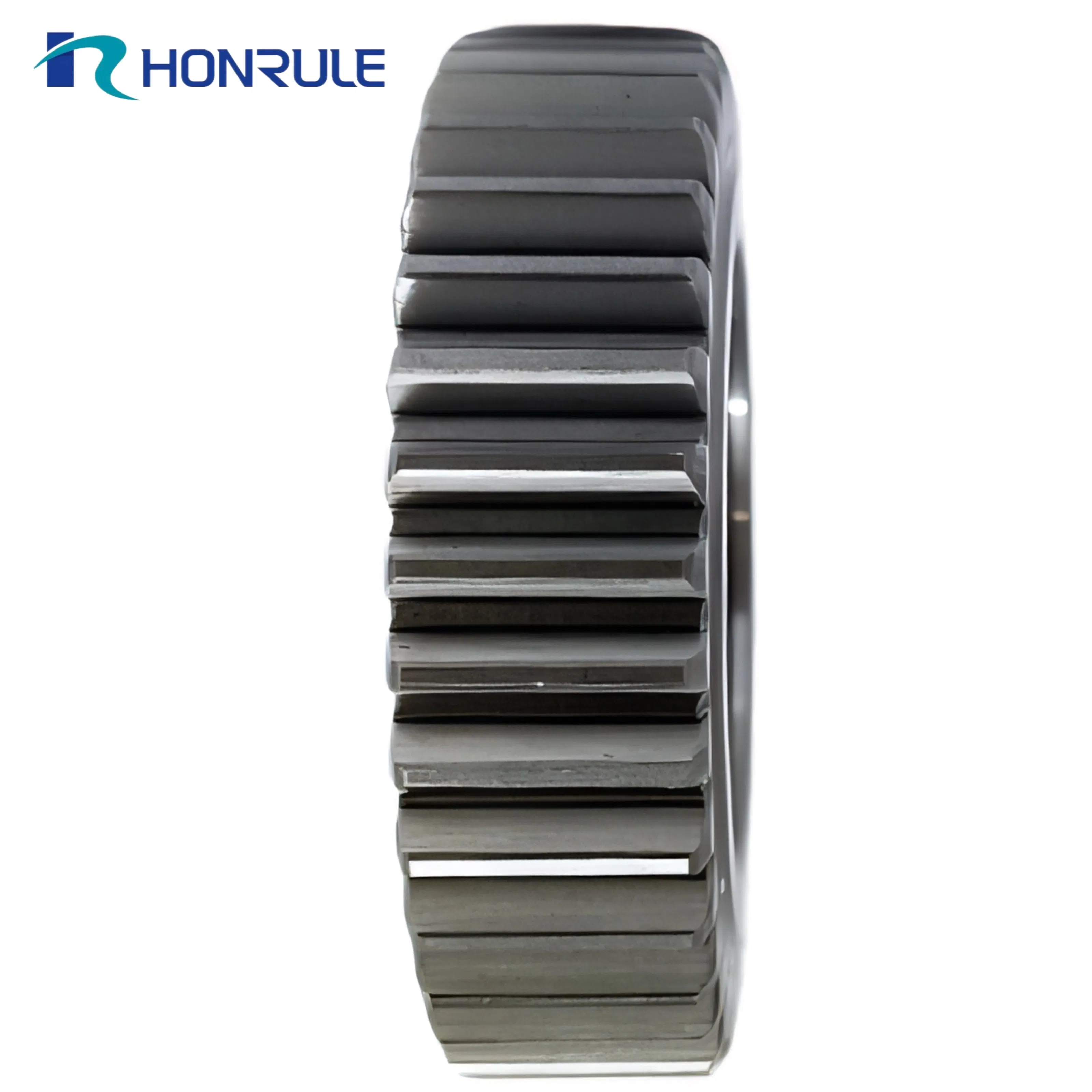

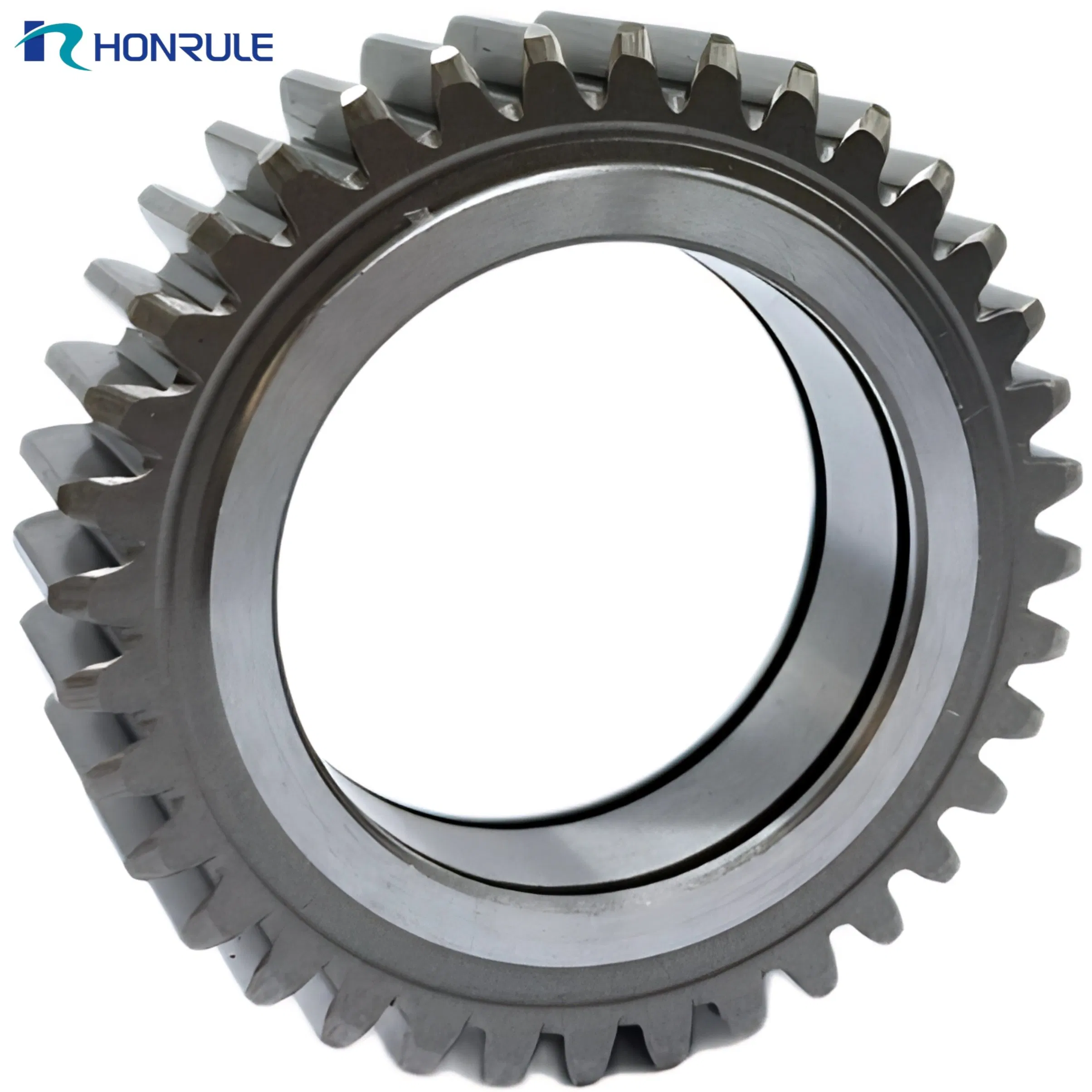

Casting Iron Gear Helical Toothed Planet Gear Planetary Gear System From Huirong Zhejiang Gear Factory

Basic Information

Model NO.

HR2607

Gear Position

External Gear

Manufacturing Method

Rolling Gear

Toothed Portion Shape

Spur Gear

Material

45#,20crmo,40cr,20crmnti,20cr,20mncr5,35CrMo,38crm

Type

Circular Gear

Teeth

From Z15 to Z150

Max Helix Angle

0-45°

DIN Class Level

DIN6-7

Standard

DIN JIS ASTM GB

Certifications

CE, IATF16949, ISO9001, ISO14001, ISO45001 etc

Processing

CNC Machining, Turning, Milling, Stamping, Grinding

Tolerance

CNC Machining: +/-0.001 to 0.005mm

Macro Hardness

55-62HRC

Production Capacity

500,000 PCS/ Year

Product Description

High-Quality Material: Crafted from excellent durable iron, ensuring long-lasting performance in various industrial applications.
Standard Production: Meets industry requirements with standard model numbers and hobbing processing for seamless integration.
Comprehensive Warranty: Core components come with a warranty of more than 5 years.
Quality Assurance: Professional test reports from imported testing machines and online video-inspection available.
Reasonable Pricing: Competitive pricing for high-quality helical/spur gears and gear shafts since 1995.

Capabilities & Specifications

Capabilities	Internal Gears	External Gears
Max O.D.	15-300 mm
Module	M0.8-6
DIN Class Level	DIN class level range 4-7
Tooth Finish	Ra 0.4-1.6
Heat treatment	High Frequency Quenching, Hardening and Tempering, Carburizing, etc
Manufactured method	Hobbing, Milling, Drilling, Shaving, Grinding
Surface treatment	Blacking, Polishing, Anodization, Chrome Plating, Zinc Plating, Nickel Plating

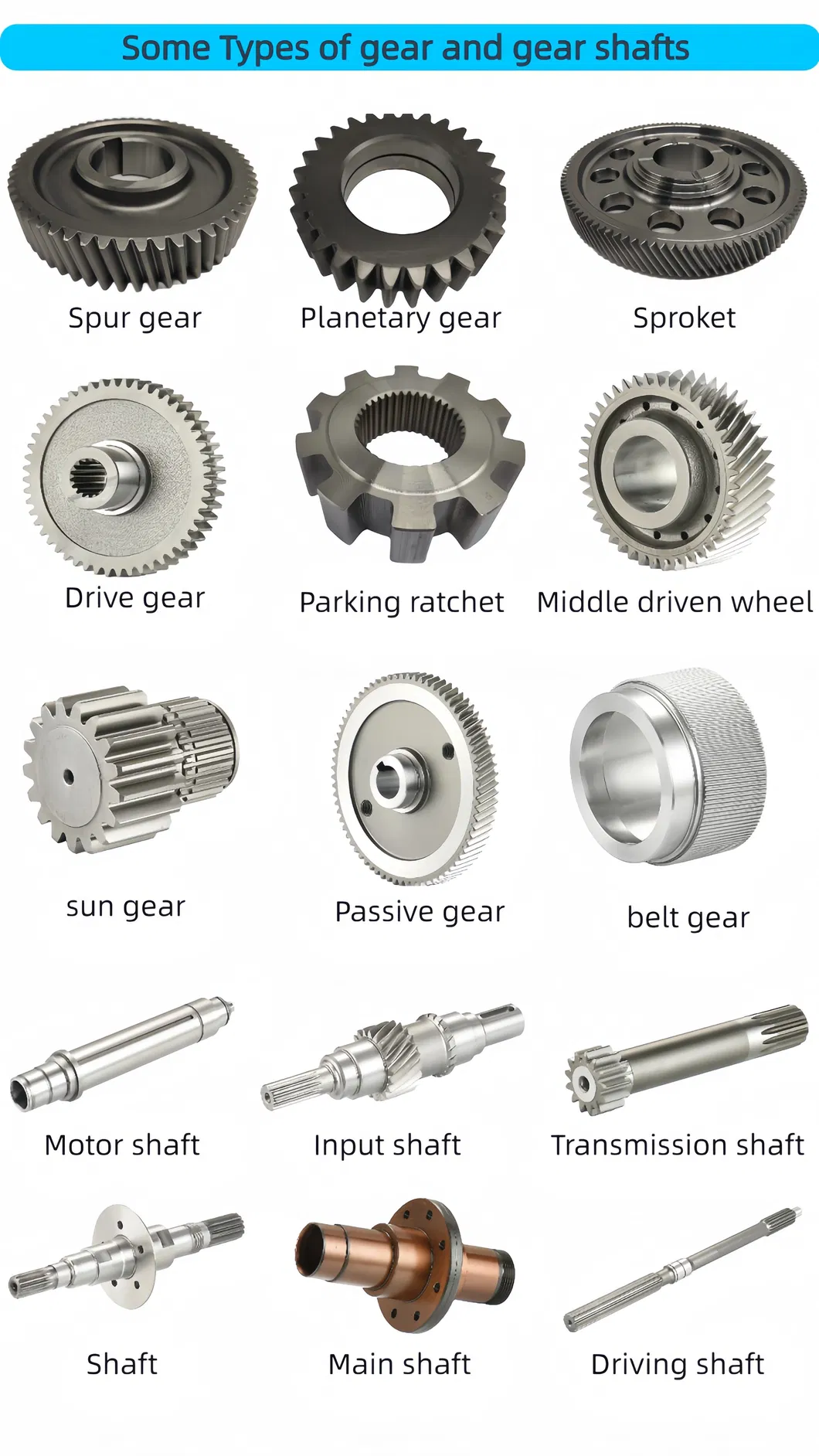

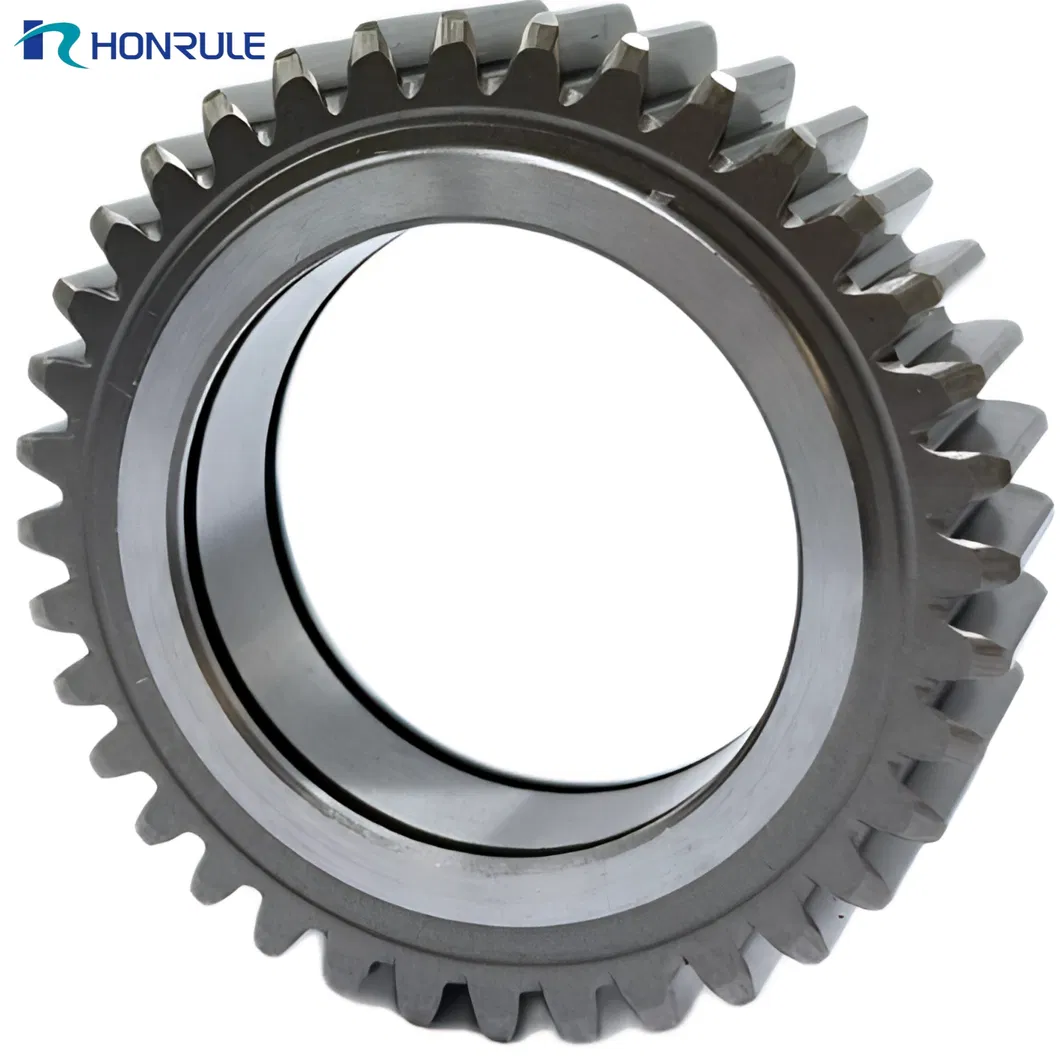

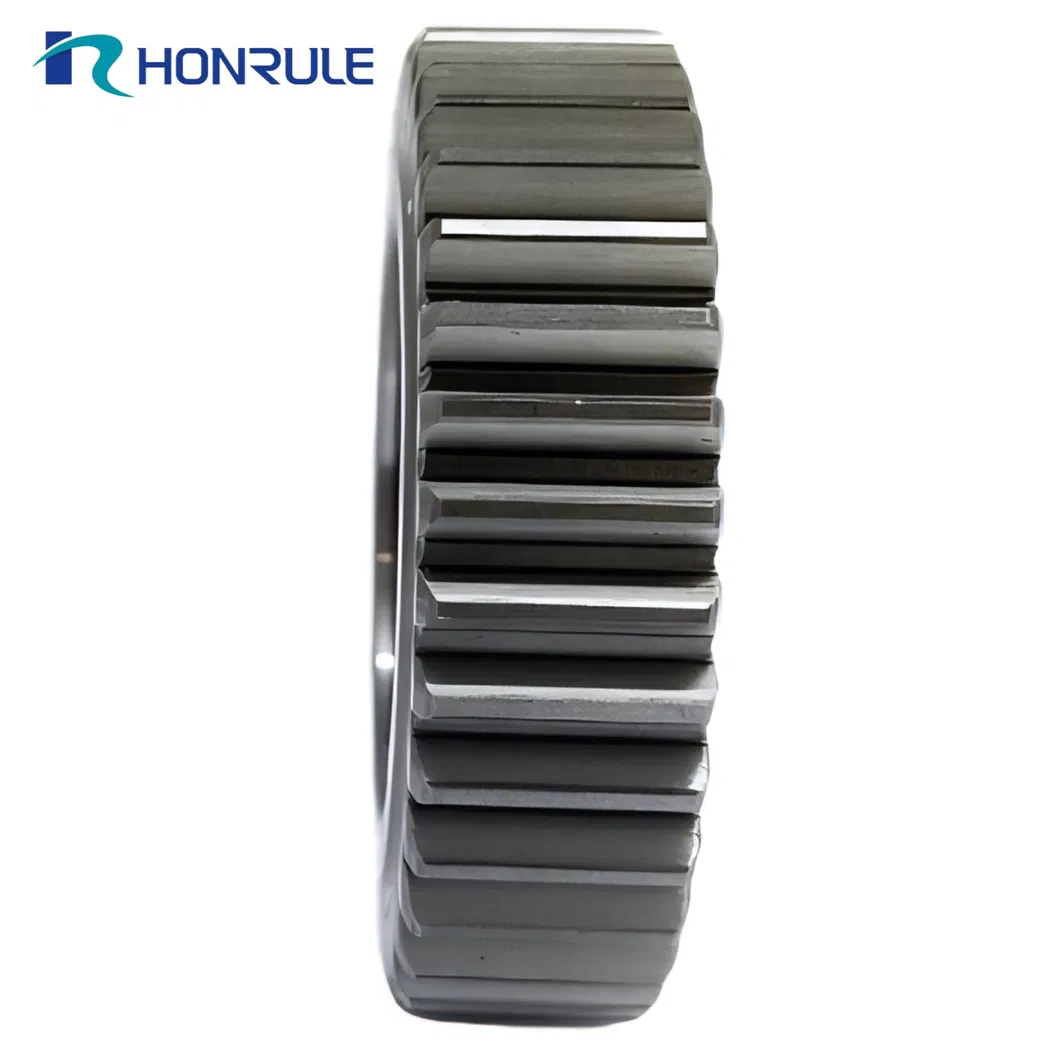

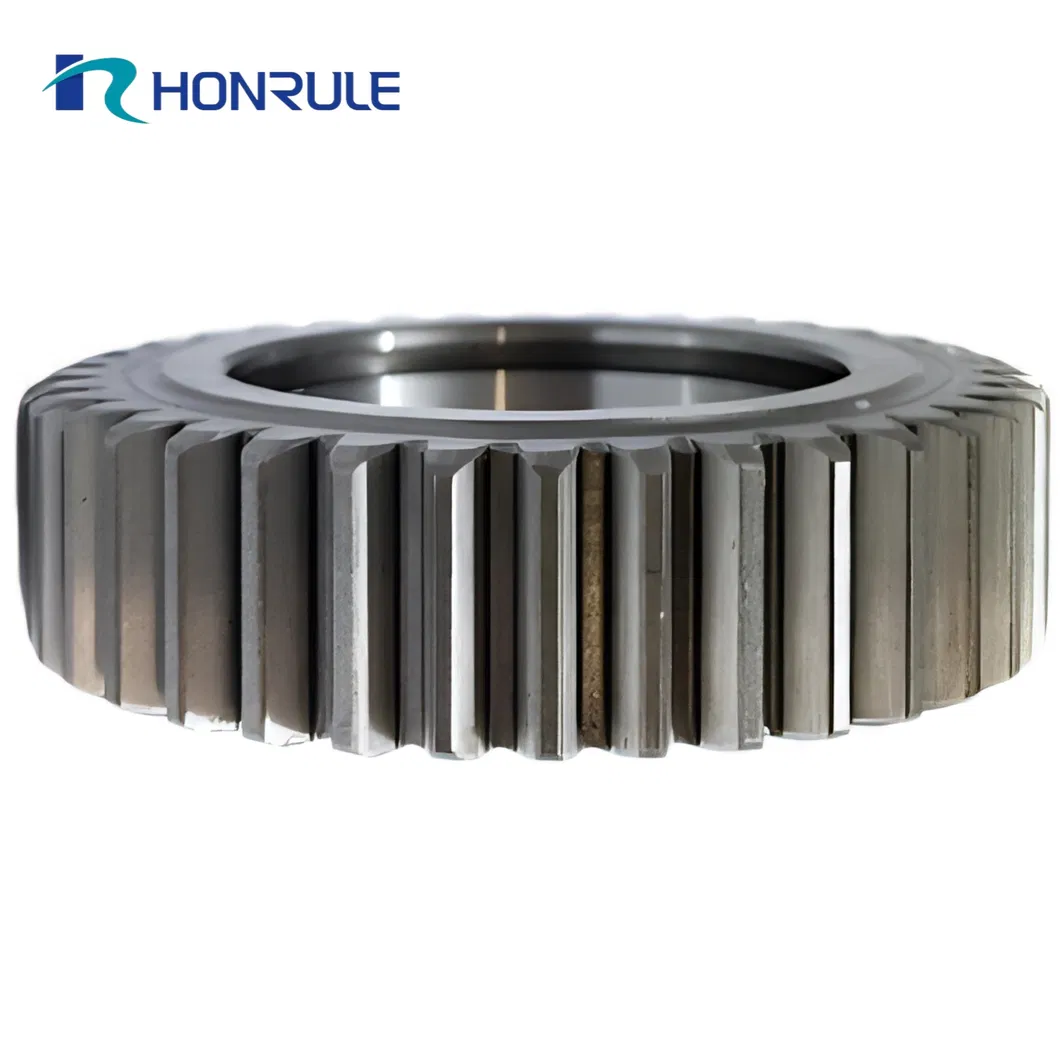

Detailed Photos

1. Spur Gear: Simplest type of gear with teeth projecting radially.

2. Helical Gear: Teeth cut at an angle to the axis for smoother operation.

3. Worm Gear: Transmits power through non-intersecting shafts at right angles.

4. Herringbone Gear: Two helical gears joined side to side with no space between faces.

5. Hypoid Gear: Similar to spiral bevel gears, functioning in non-intersecting shafts.

6. Internal Gear: Teeth cut into the inside of a cylinder or cone.

7. Planetary Gear: Gear reduction assembly where one gear revolves around another.

Packaging & Shipping

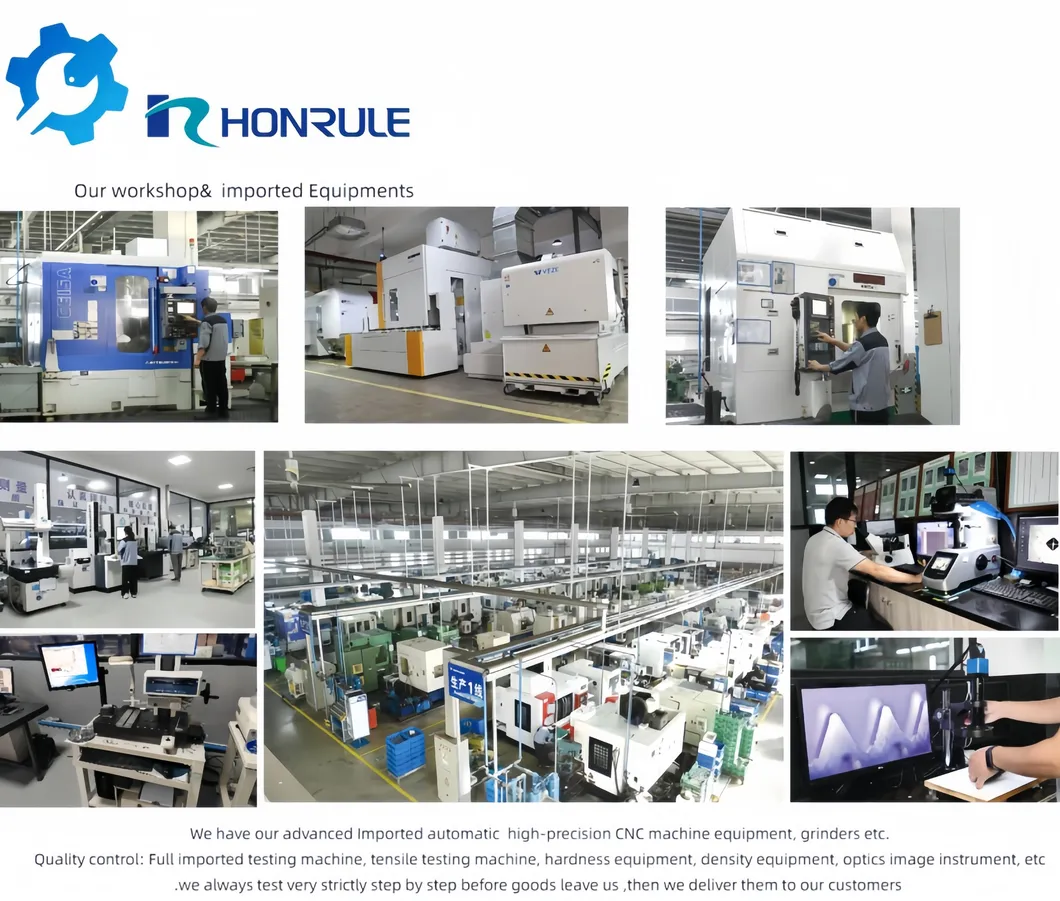

Factory Overview

Frequently Asked Questions

1. Are you a manufacturer or a trading company? We are a factory with 20 years of rich experience, covering more than 10,000 square meters. Our facilities include 3D quality inspection equipment, MES systems, and over 100 machines.

2. How to get a quote? Please provide detailed drawings (PDF/STEP/IGS/DWG...) including delivery dates, materials, quality requirements, quantity, and surface treatments.

3. Can I get a quotation without drawings? Yes, our engineering team can work with your samples, pictures, or detailed size drafts to provide an accurate quotation.

4. Can you provide samples before mass production? Of course. A sample fee is required and, where possible, it will be credited back during mass production.

5. What is the typical delivery date? Generally, sample production takes 1-2 weeks and batch production lasts for 3-4 weeks.

6. How do you control the quality? We perform material inspection, first-article inspection for mass production, sampling inspection before warehousing, and a 100% pre-shipment inspection by our QC team.
