Product Description

Basic Information

Model NO.	Draft Gear System for Railway
Type	Train Coupler
Certification	ISO14001, ISO/TS16949, ISO9001
Standards	AAR, UIC, EN, GOST, IRIS, KSR, BS, JIS, TB
Application	Train, Railway Wagon, Passenger Car, Locomotive
Product Material	42CrMo, 4140, 50mn, Customized Materials
Size Type	CA-3, SA-3, WC, E and LA Type
Production Capacity	500,000 PCS/Year

Product Description

The Draft Gear System, also known as the coupler system, is a critical mechanism for connecting rolling stock within a train. We supply completed Draft Gear systems for freight wagons, passenger coaches, and locomotives tailored to specific railcar designs.

Material	Grade E Plus Cast Steel
Quality Standard	AAR M-201
Product Features	Drop proof, High structure strength, Interchangeable, High safety
Service Life	Not less than 600,000 cycles
Operating Temp	-34ºC to +121ºC (-30ºF to +250ºF)

Detailed Gallery

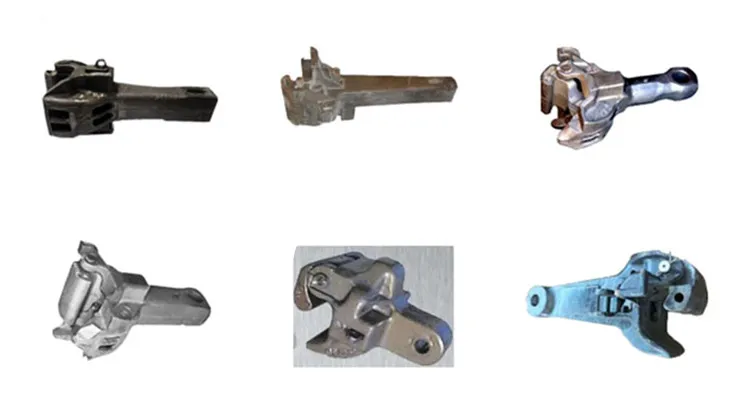

Draft Gear System 1

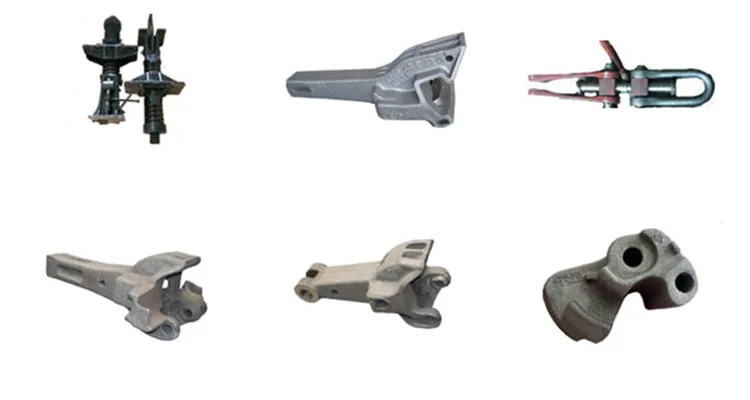

Draft Gear System 2

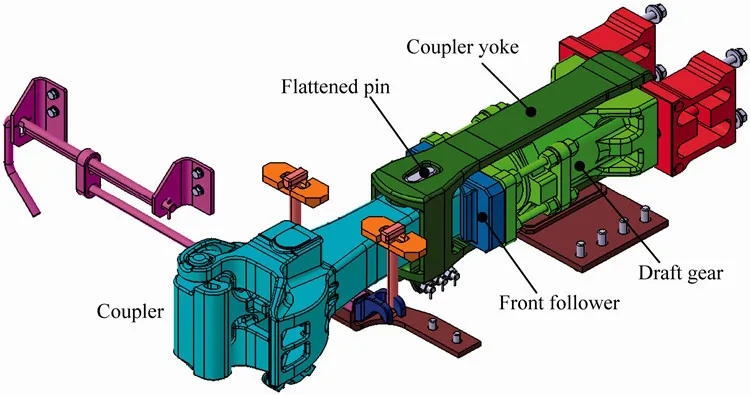

Draft Gear Components

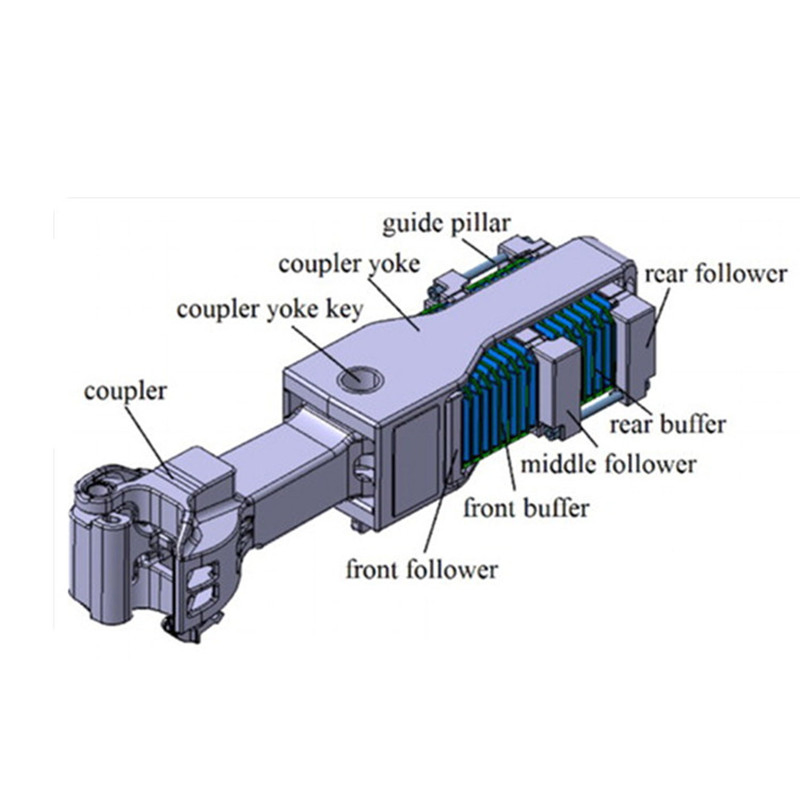

Component Breakdown

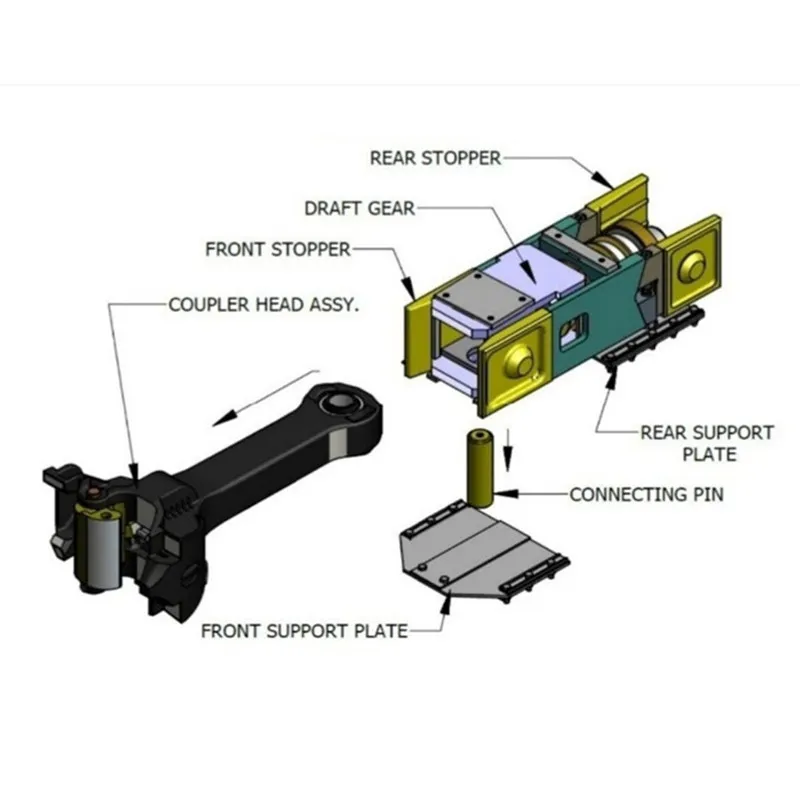

Part Detail 1

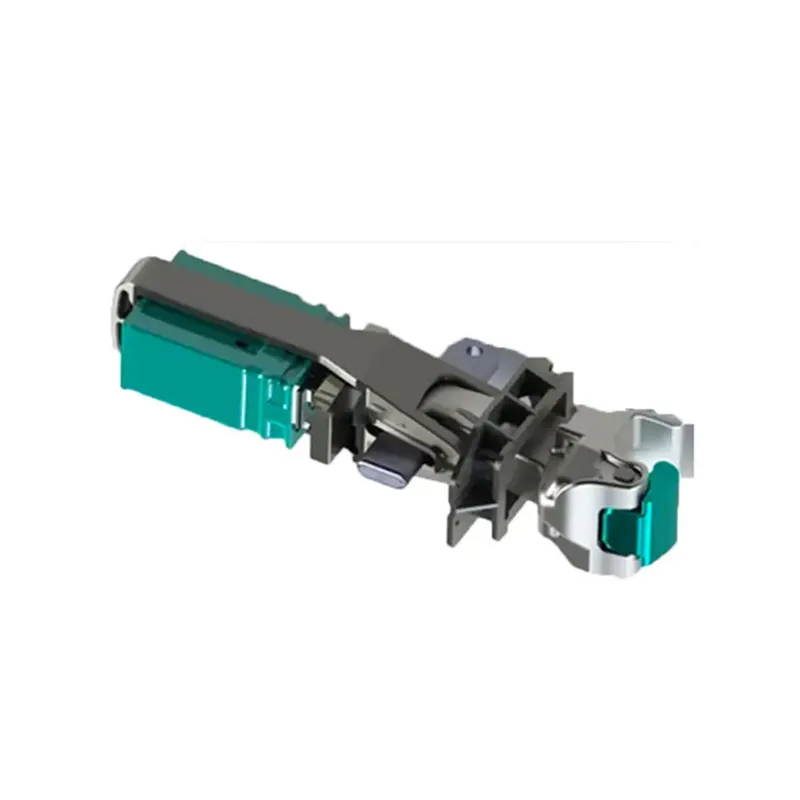

Part Detail 2

Part Detail 3

Part Detail 4

Applications

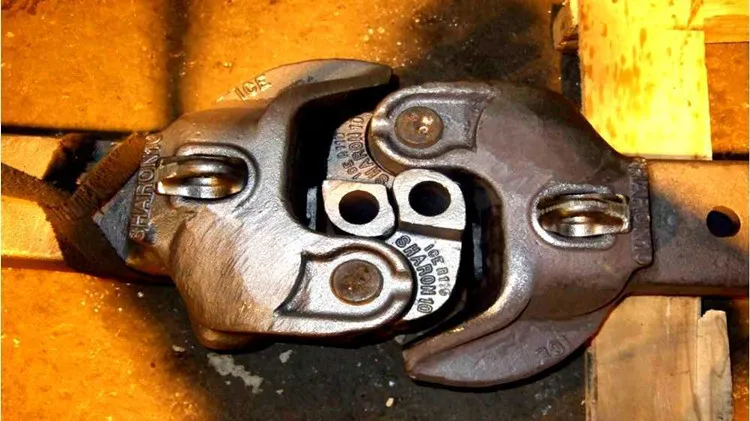

Railway Application 1

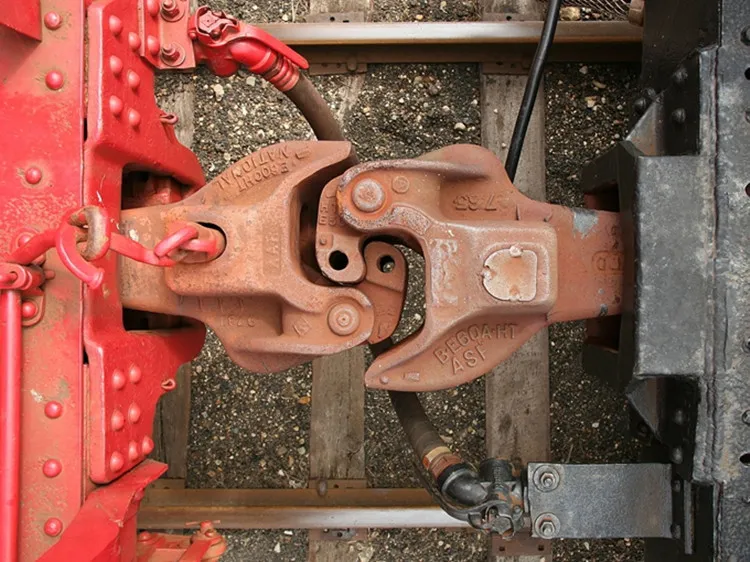

Railway Application 2

Service & Support

OEM and customized service based on specific railway requirements.
Comprehensive machining, primer coating, and surface treatment.
Rigorous material testing process for every batch.
Strict quality control and 5-8 years of service support.

Frequently Asked Questions

How can I obtain a quotation?

Please provide detailed information for a quote, including technical drawings, material specifications, weight requirements, and order quantity.

What is the lead time for sample production?

Typically, it takes 20-30 days for mold creation and sample production. The exact timing depends on the specific complexity of your product.

Do you accept small or trial orders?

Yes, we accommodate mini orders and trial orders to help our clients evaluate quality and compatibility.

What are your standard payment terms?

For mold costs: 100% TT in advance. For the main order: 40% deposit, with the remaining 60% balance paid against the copy of the B/L.

What quality standards do your railway parts meet?

Our products are manufactured according to international standards such as AAR M-201, UIC, EN, and are ISO9001 certified.

What is the expected service life of the draft gear?

The system is designed for high durability, with a service life of not less than 600,000 cycles under standard operating conditions.

If you have any questions, please feel free to contact us for more information.
