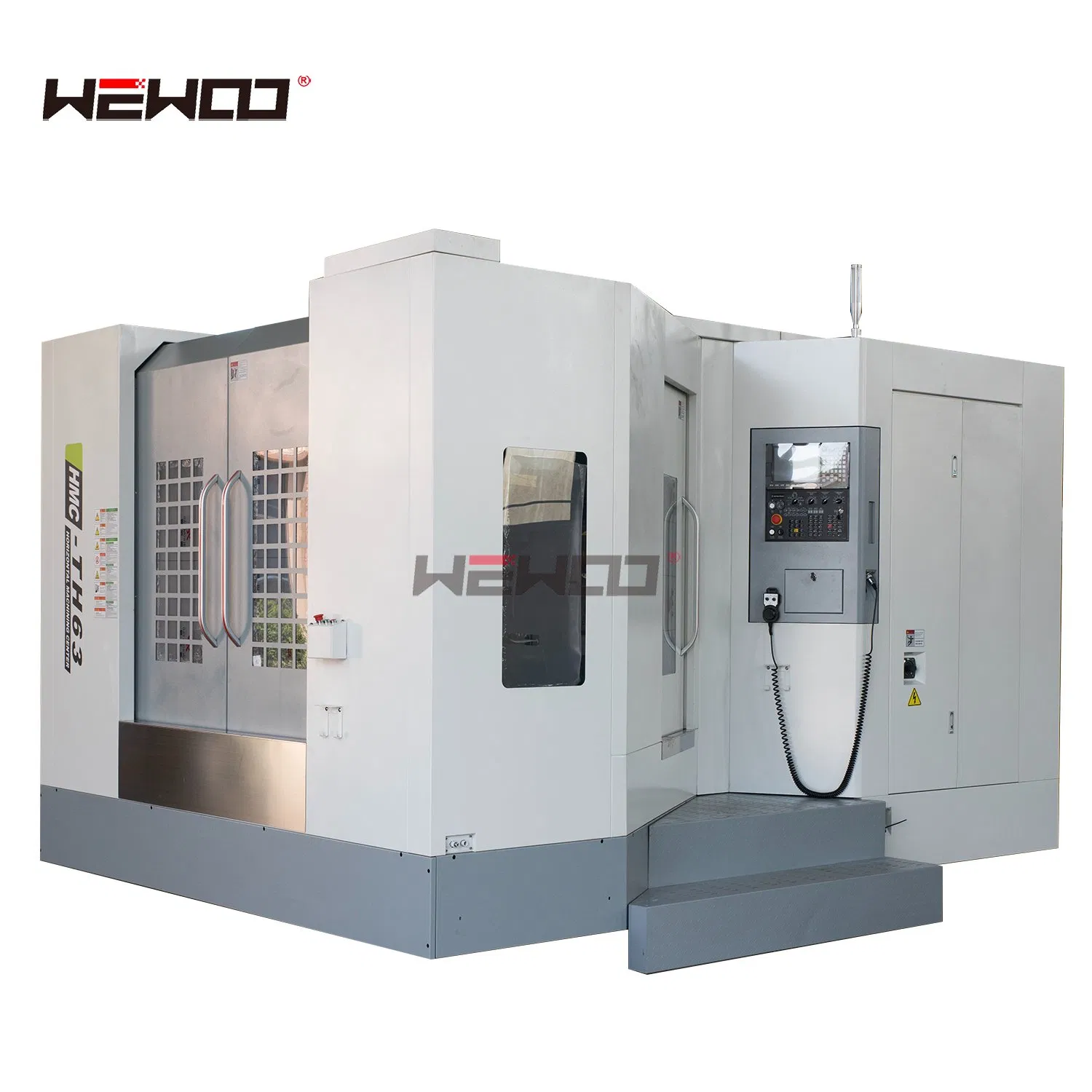

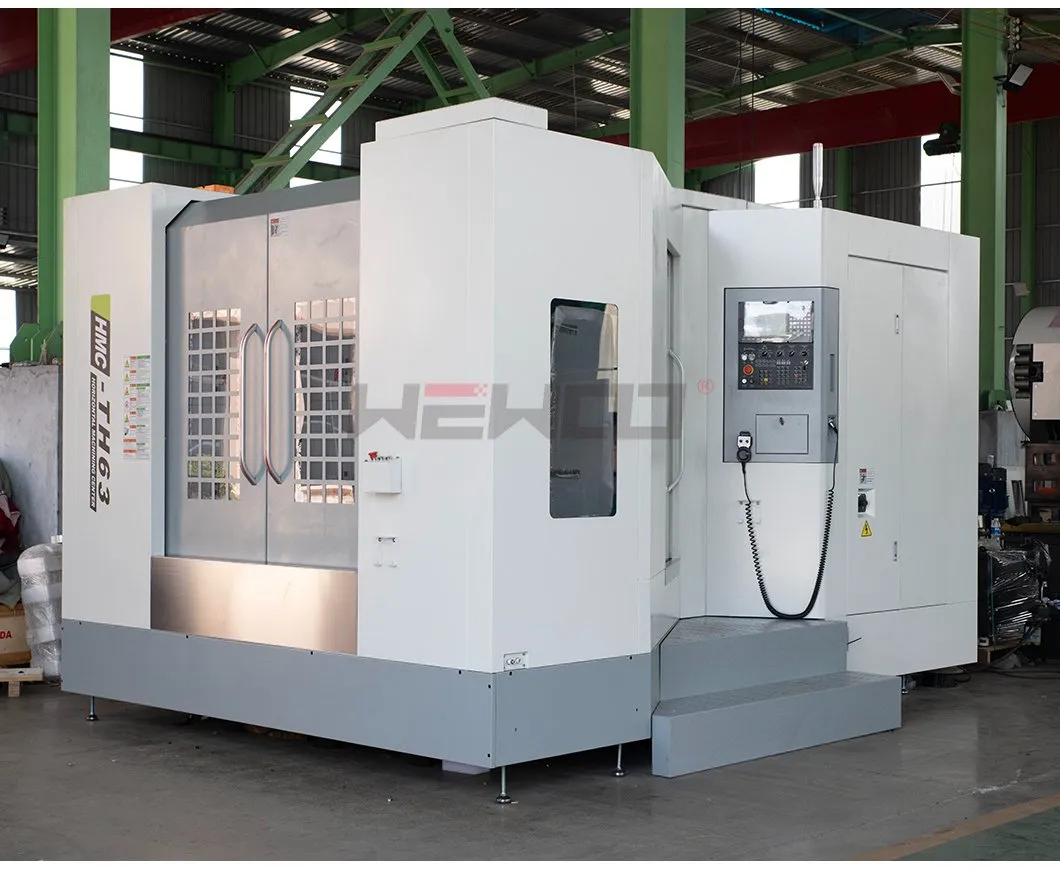

Horizontal Machining Center Hmc630 Cross Slide Table Inverted T-Shaped Fanuc System

Basic Specifications

Model NO.

HMC630

Application

Metal

Movement Method

Linear Control

Control Method

Closed-Loop Control

Processing Precision

0.01~0.02(mm)

Table Size

630X630mm

Max. Spindle Speed

6000rpm

Main Motor Power

15/18.5kw

Spindle Taper

BT50

Weight

10000kg

Product Description

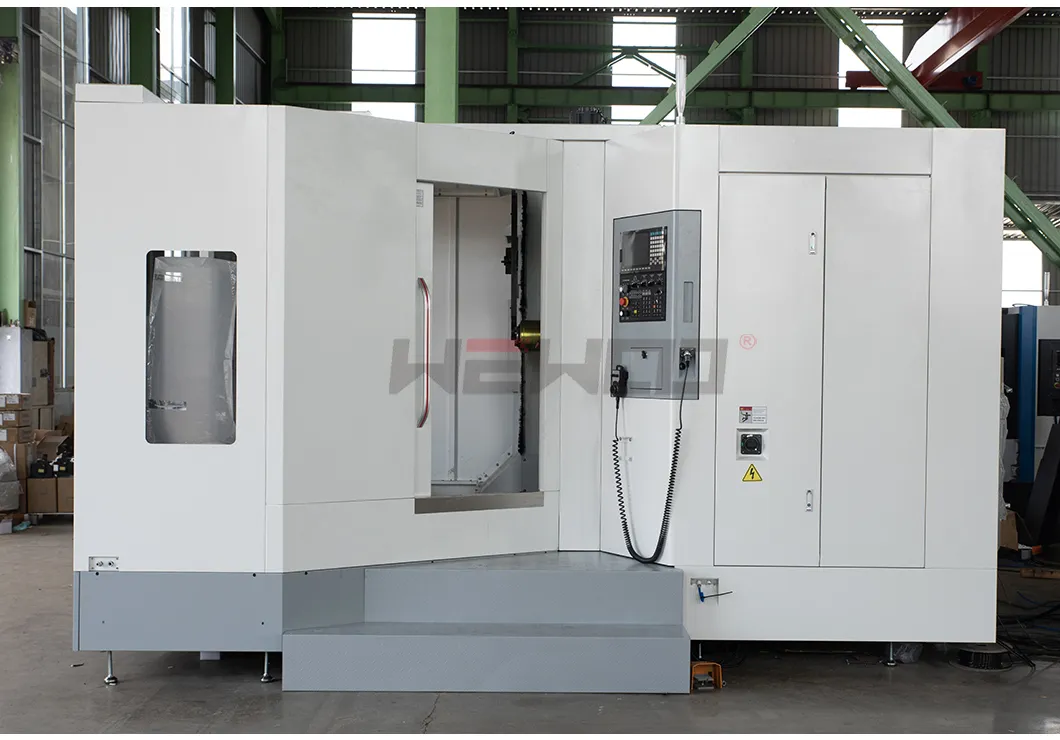

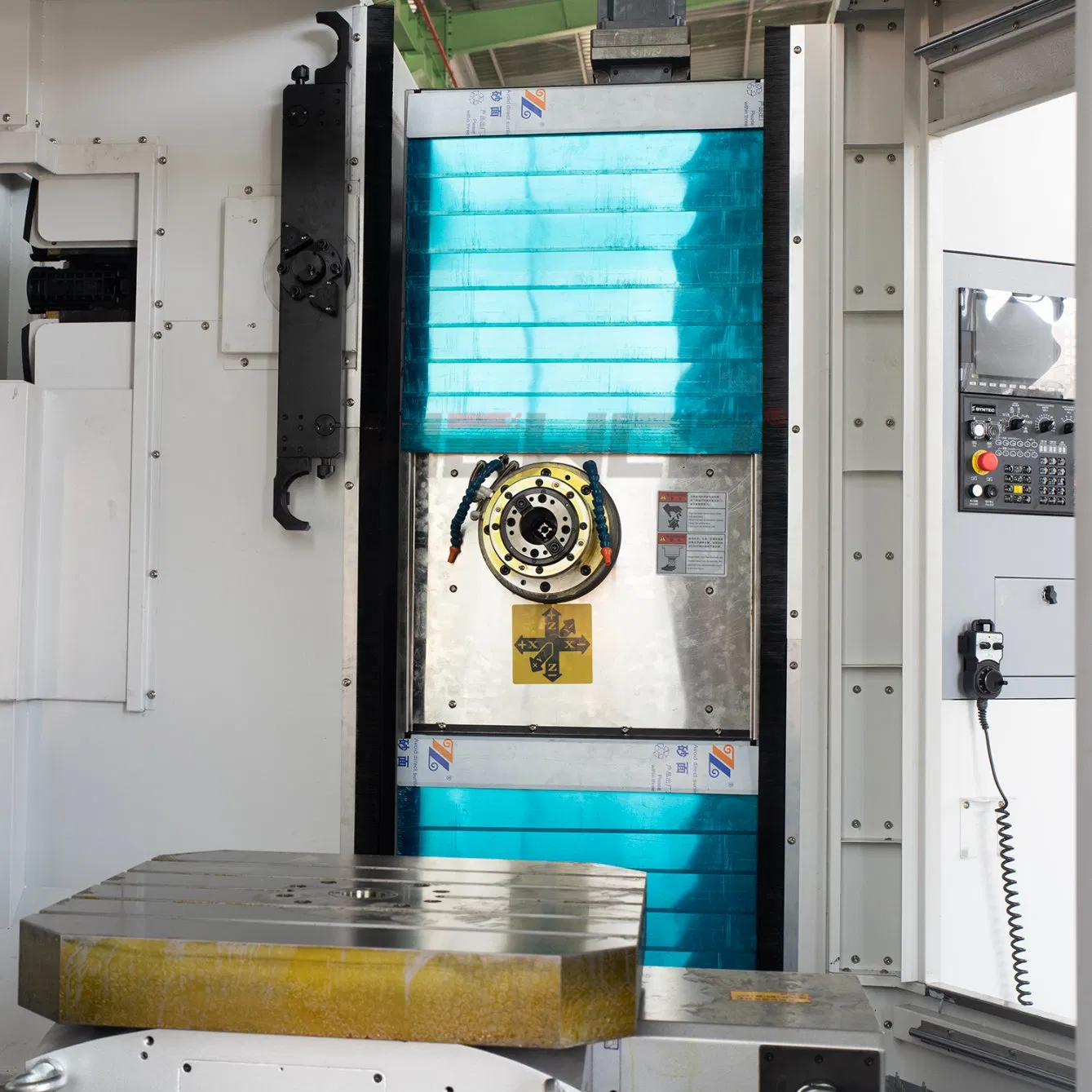

Horizontal Machining Center HMC630 Cross Slide Table Inverted T-Shaped System

🔹

Key Features: High quality resin sand, Taiwan spindle, Taiwan ball screw and locking nut, Automatic lubrication system.

🔹

Versatile Application: Suitable for mechanical processing and mold making. Adapts from rough machining to finish machining procedures like milling, drilling, tapping, and boring.

Technical Parameters

Model	HMC500	HMC630	HMC800	HMC1000
X-axis travel	900mm	1050mm	1300mm	1300mm
Y-axis travel	600mm	900mm	800/1000mm	800/1000mm
Z-axis travel	600mm	1100mm	1300mm	800mm
Table size	500*500mm	630*630mm	800*800mm	1000*1000mm
Max. Load	1000kg	1200kg	2500kg	3000kg
Spindle taper	BT50	BT50	BT50	BT50
Spindle speed	6000rpm	6000rpm	6000rpm	6000rpm
Machine weight	7500kg	10000kg	12500kg	15000kg

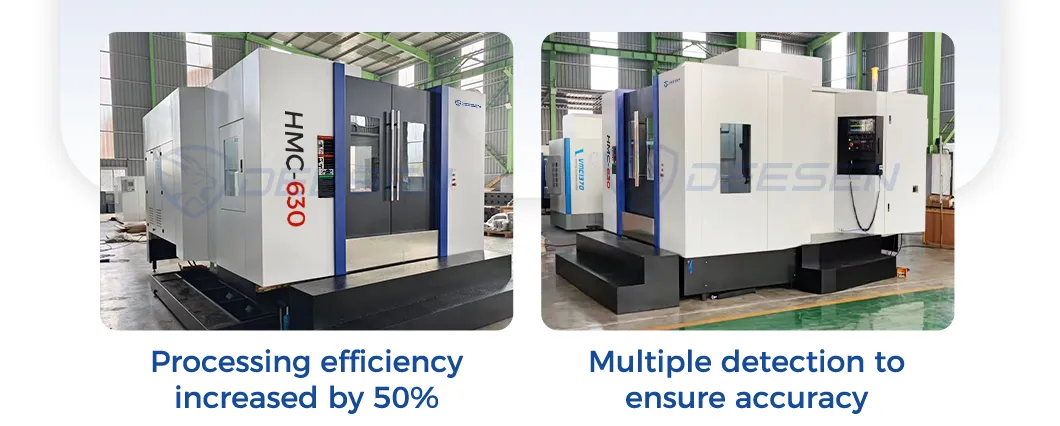

Boring and Milling Machine Structure: High cutting force, high cost performance and rigidity increased by 30%

Component Details

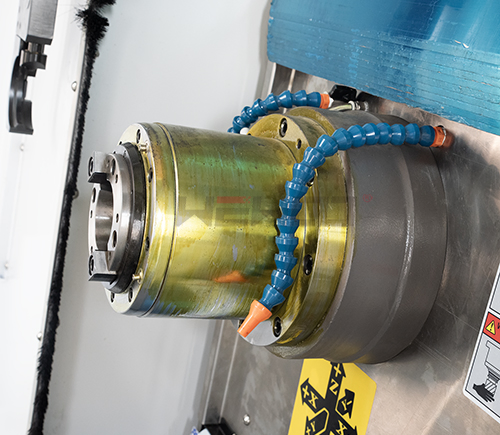

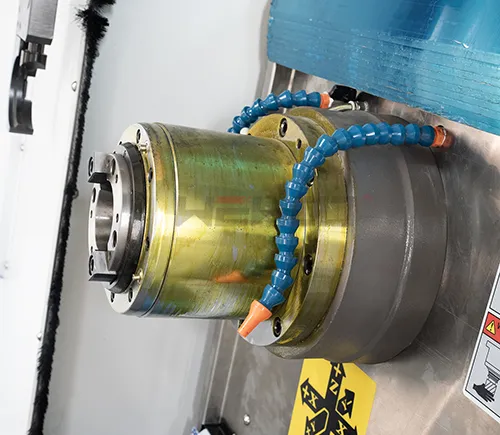

TAIWAN PRECISION SPINDLE

1. Spindle taper is BT50;
2. Spindle speed 6000rpm, can enlarge to 10000rpm;
3. Passed dynamic balance ISO rating test.

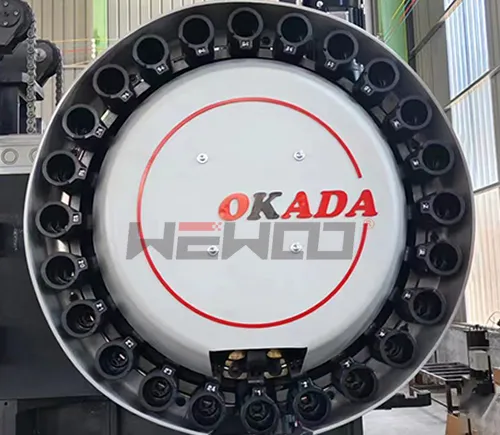

TAIWAN TOOL MAGAZINE

1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA

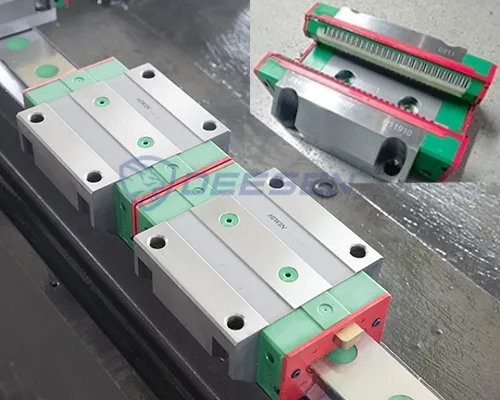

PRECISION LINEAR RAILS

1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class.
2. Brand: HIWIN or PMI

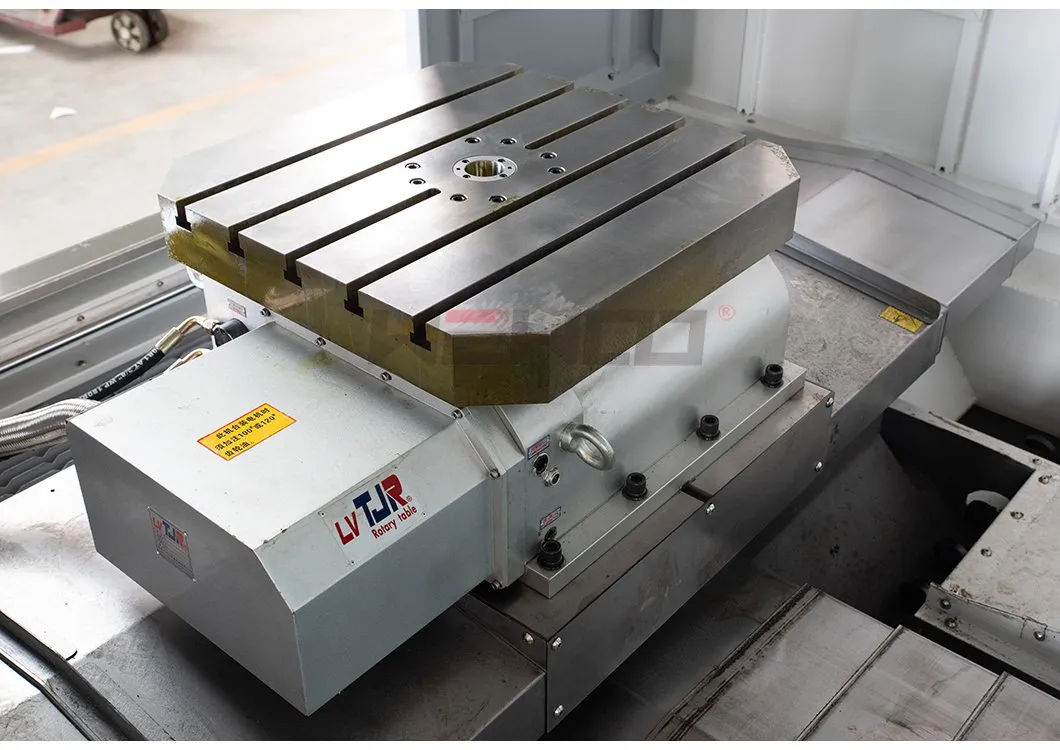

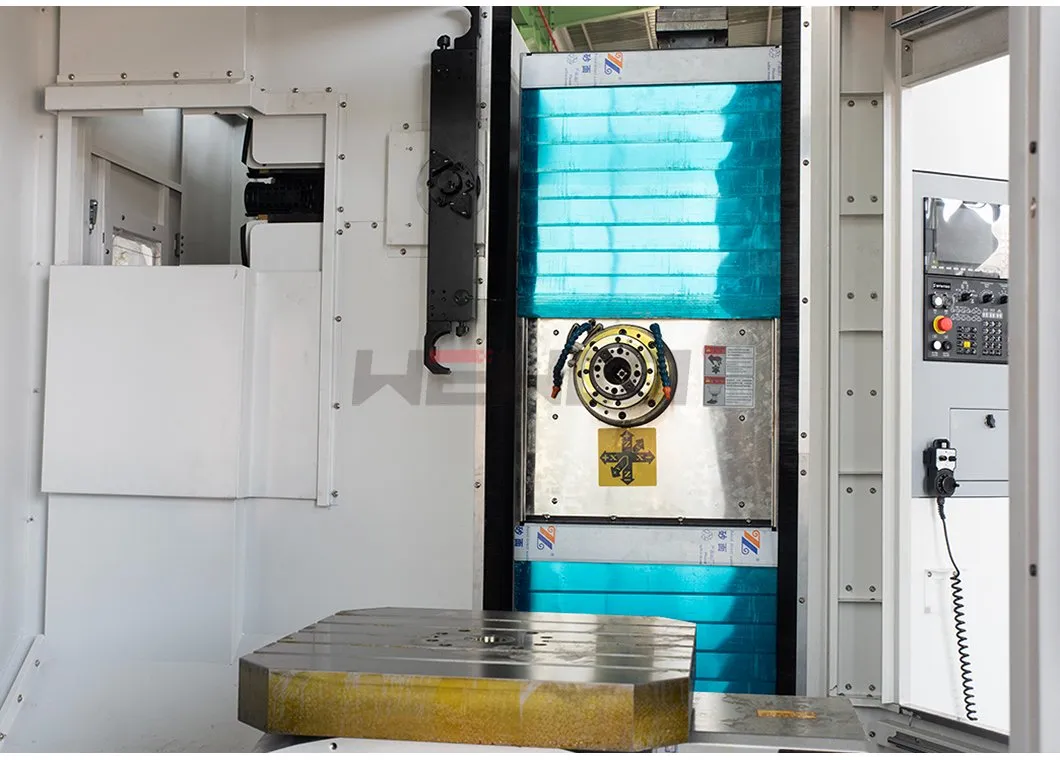

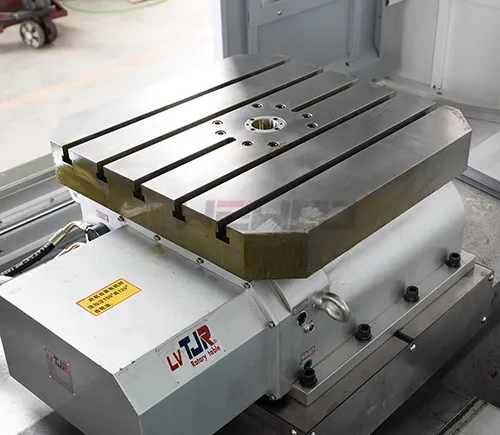

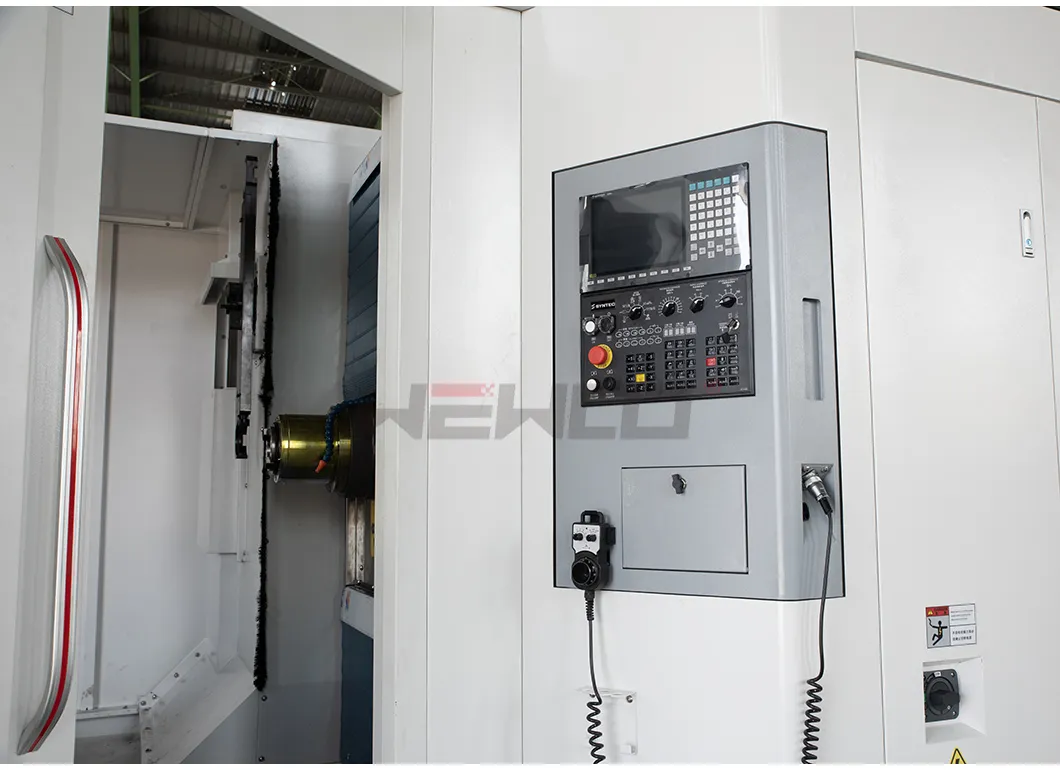

WORKTABLE & CONTROL

The worktable features excellent chip removal, strong rigidity, and high configuration. Control systems available: GSK, KND, Siemens, FANUC, or Syntec.

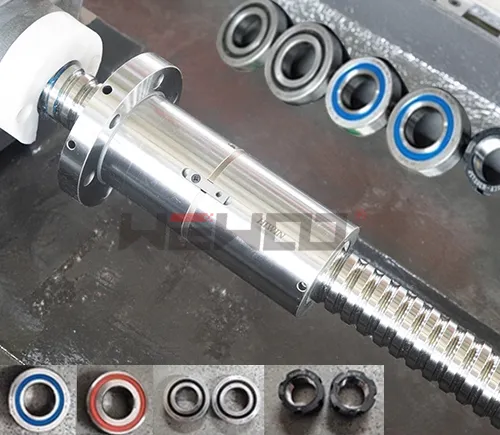

LEAD SCREW AND COUPLING

1. Lead screw bearings use SKF or NACHI bearings.
2. Coupling R+W directly connected for maximum precision.

Factory & Manufacturing

Frequently Asked Questions

Q1: How can I choose the most suitable machines?

A: Please provide your specifications or product drawings, and we will recommend the best model for your specific processing needs.

Q2: What are your main product lines?

A: We specialize in a wide range of machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.

Q3: Where is your factory located?

A: Our factory is located in Tengzhou City, Shandong Province. We warmly welcome visitors to inspect our facilities.

Q4: What are your accepted trade terms?

A: We accept FOB, CFR, and CIF trade terms.

Q5: What are the payment terms?

A: Typically, we require a 30% initial payment upon ordering, with the 70% balance due before shipment. Irrevocable LC at sight is also acceptable.

Q6: What is the Minimum Order Quantity (MOQ)?

A: The MOQ is 1 set for most of our high-end machinery.
