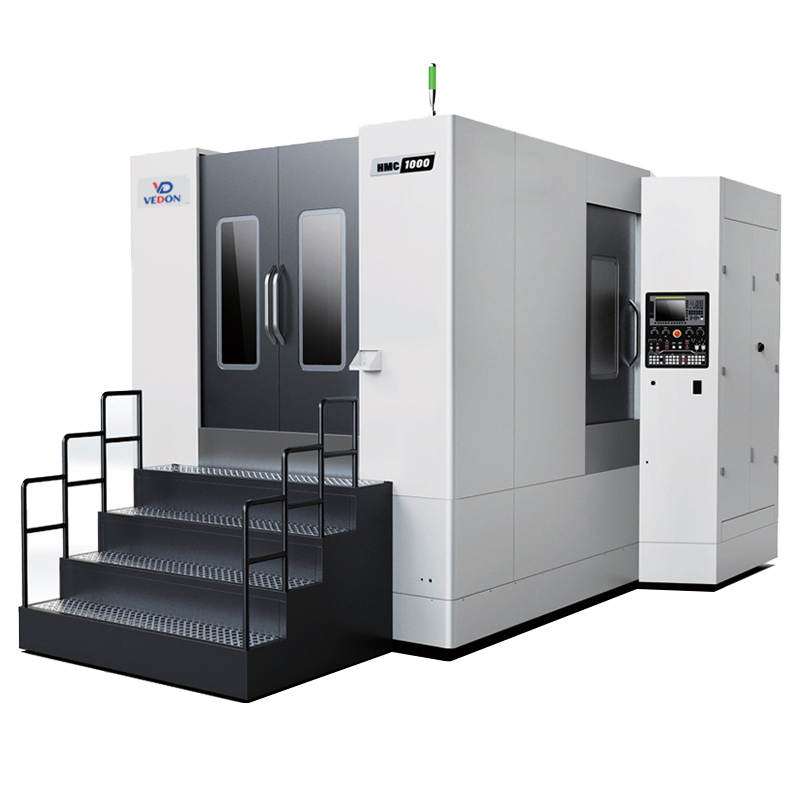

Hmc1000 Nanolock Ultra-Precision Horizontal Machining System for Medical Device Manufacturing

1 / 5

Hmc1000 Nanolock Ultra-Precision Horizontal Machining System for Medical Device Manufacturing

Customization:	Available
After-sales Service:	on-Line/off-Line Service
Warranty:	1 Year

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

HMC1000

Application

Metal

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Table Travel(X,Y,Z)

1800*1200*1200mm

Table Size

1000*1000mm

Max.Load of Worktable

3000kg

Spindle Speed

30-6000rpm

Main Motor Power

30/37kw

Machine Weight

22000kg

⚙️

Product Description

The HMC800 and HMC1000 are heavy-duty horizontal machining centers engineered for batch production of complex parts requiring multi-face, deep-cavity, and high-precision machining. Built with high-rigidity cast iron frames, roller linear guides, and forced-cooled spindles, they deliver stable accuracy and efficient material removal across automotive, aerospace, energy, and general engineering industries.

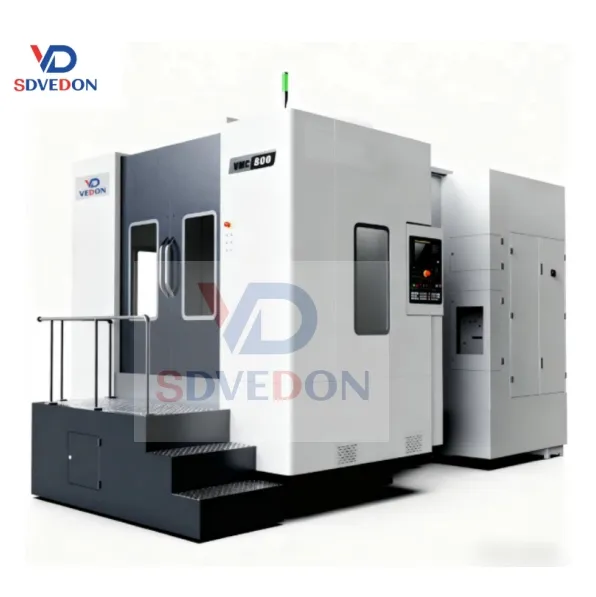

HMC800: Ideal for medium-size workpieces—gearboxes, valve bodies, pump housings, and mold cores requiring high precision and moderate throughput.

HMC1000: Suited for larger, heavier components—engine blocks, turbine casings, structural frames, and heavy-duty industrial parts needing higher load capacity and deeper Z-axis travel.

💎

Core System Features

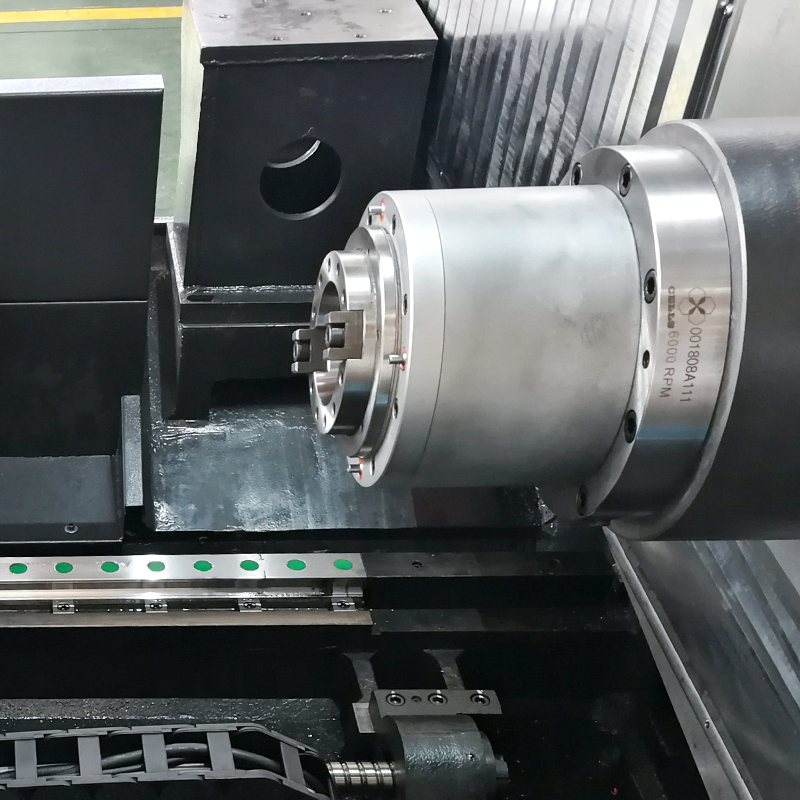

Spindle System: Modular design with forced water cooling + air curtain sealing to reduce thermal deformation.

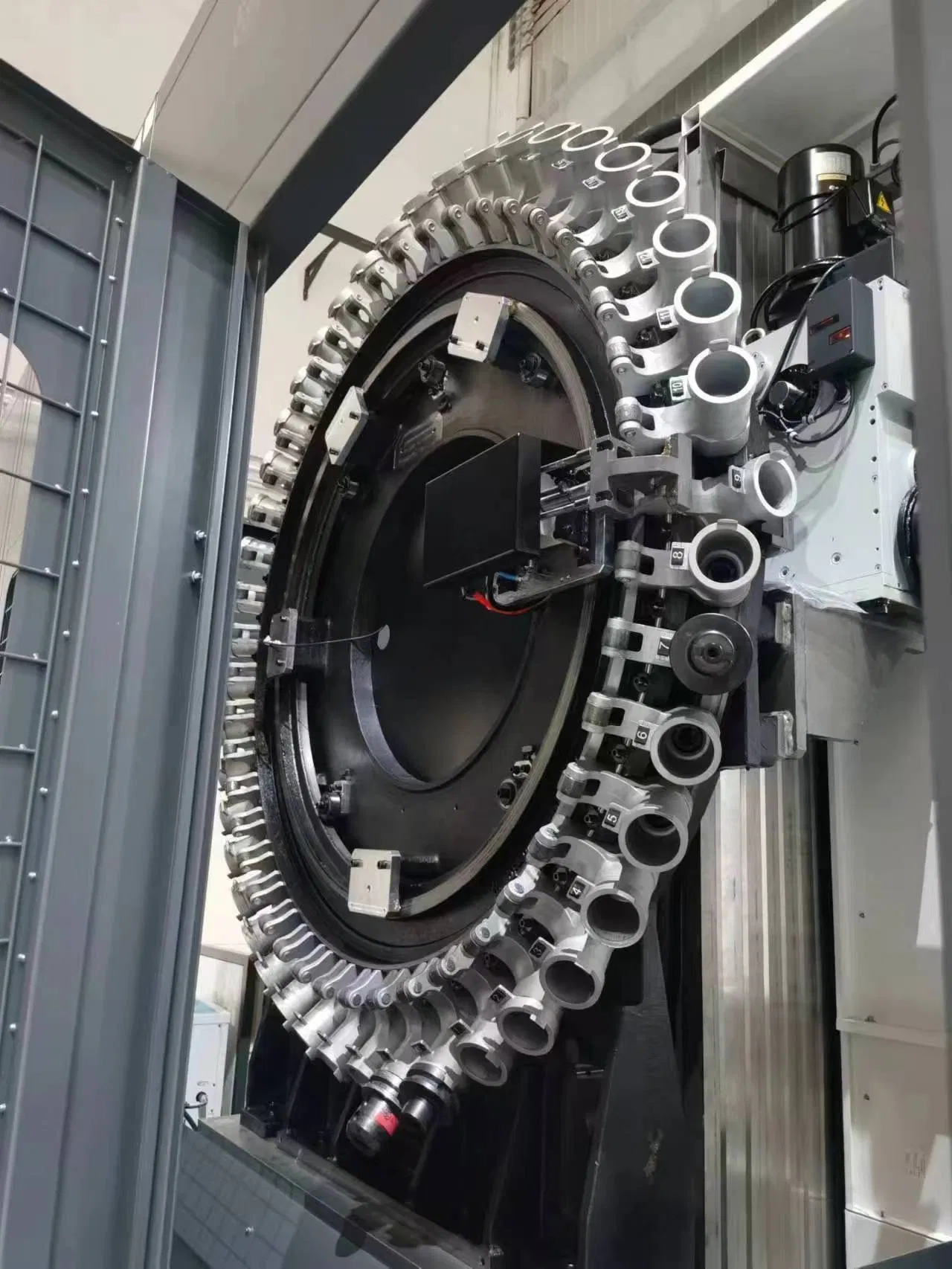

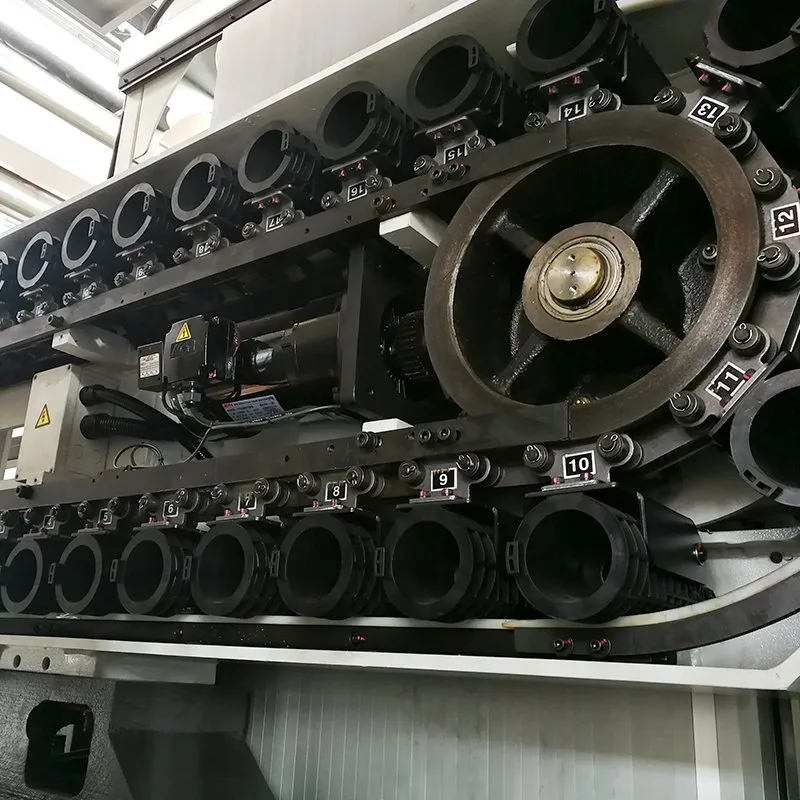

Tool Changer: Cam-driven robotic arm with double protection for dust and chip prevention.

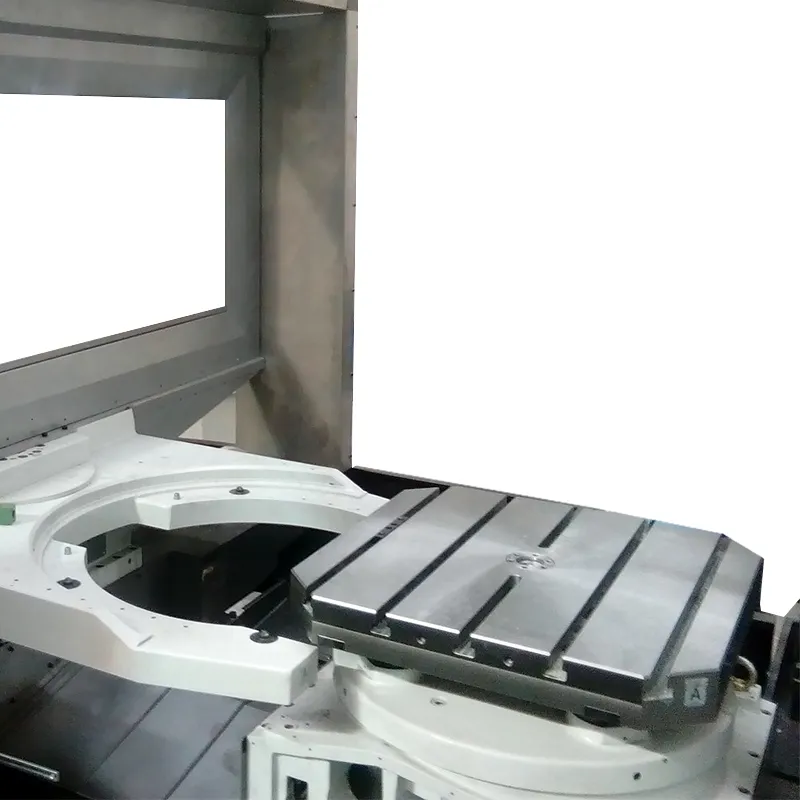

Worktable: High-rigidity cast iron with double aging treatment. Supports B-axis indexing.

CNC System Control: Supporting multi-axis linkage, precision compensation, and remote diagnosis. Configurable with FANUC or SIEMENS systems for high-precision scenarios.

📊

Technical Specifications

Item	Unit	HMC800 Specification	HMC1000 Specification
Table Size	mm	800×800	1000×1000
Max. Table Load	kg	2000	3000
X/Y/Z-axis Travel	mm	1200/1000/1000	1800/1200/1200
Spindle Power	kW	22/26	30/37
Max. Spindle Speed	r/min	6000	6000
Tool Capacity	pcs	32/40/60	40/60/80
Positioning Accuracy	mm	±0.003	±0.0035
Repeatability	mm	±0.001	±0.0015

❓

Frequently Asked Questions

1. What industries are these horizontal machining centers suitable for?

They are specifically designed for high-precision batch production in automotive (engine blocks), aerospace, energy (turbine casings), and heavy industrial engineering.

2. What is the maximum workpiece weight the HMC1000 can handle?

The HMC1000 supports a maximum worktable load of 3000kg, making it suitable for heavy-duty industrial components.

3. How does the spindle system prevent thermal deformation?

The spindle utilizes a modular design equipped with forced water cooling and an air curtain sealing structure to effectively manage temperature and prevent cutting fluid intrusion.

4. Which CNC systems are compatible with these machines?

The systems are typically configured with high-end controllers like FANUC 0i-MF or SIEMENS 828D/840D sl to ensure precision and reliability.

5. What is the tool change speed for these centers?

The tool-to-tool change time is highly efficient, with the HMC800 achieving ≤3.7 seconds and the HMC1000 achieving ≤4.0 seconds.

6. What level of positioning accuracy can be expected?

These machines offer ultra-precision positioning accuracy of ±0.003mm to ±0.0035mm, with a repeatability of up to ±0.001mm.
