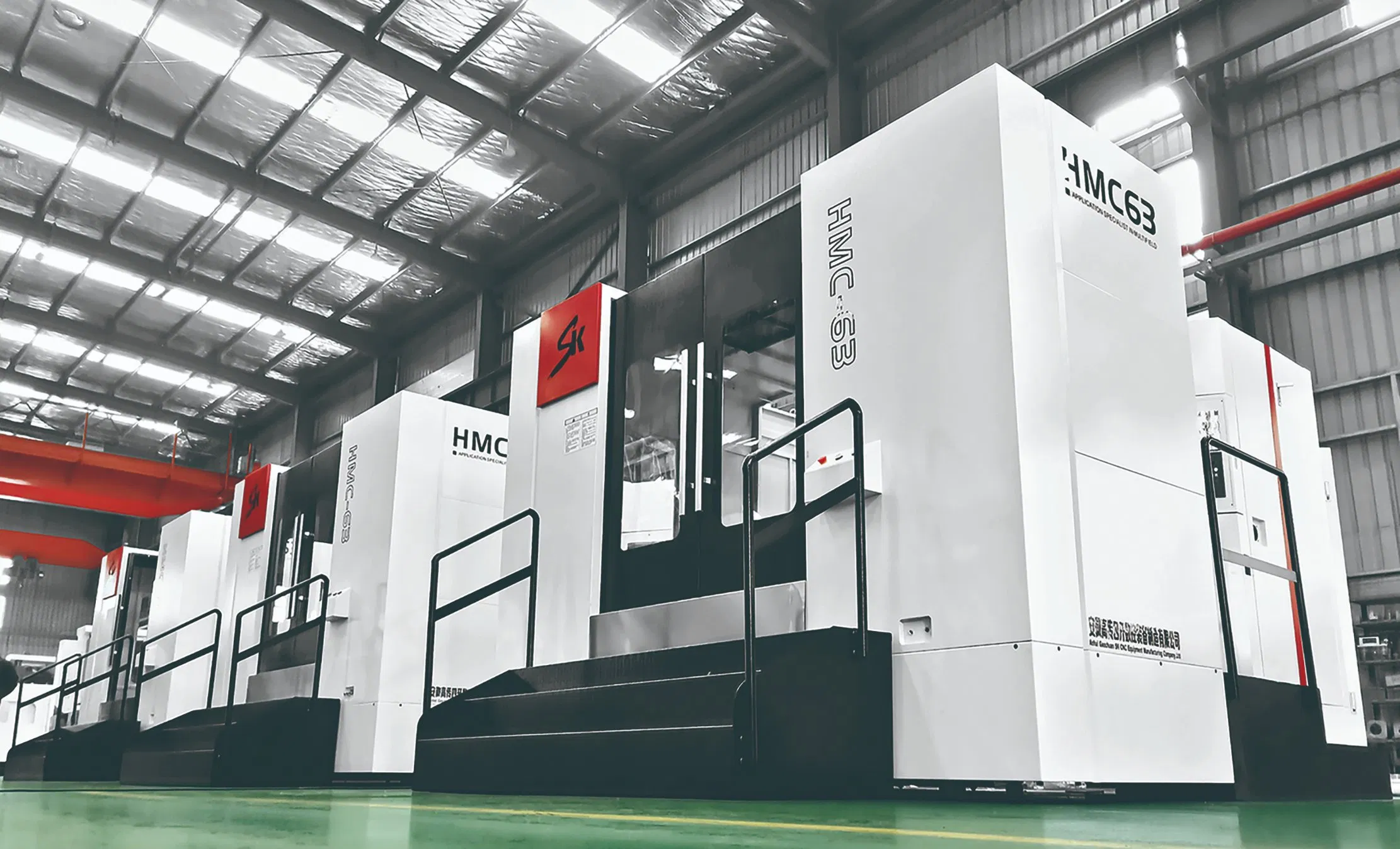

Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine
Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine
Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine
Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine
Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine
1 / 5
Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine
Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine
Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine
Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine
Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine

Heavy Duty CNC Horizontal Machining Center Hmc-63 Longitudinal Turning Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
HMC-63
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
HMC63 3/4/5 Axis Horizontal CNC
Spindle Speed
6000rpm
Core Components
System / Spindle / Ballscrew
Tool Capacity
40t / 30 / 60
Table Size
630*630
Main Motor
15/18.5kw
⚙️ Product Description & Features

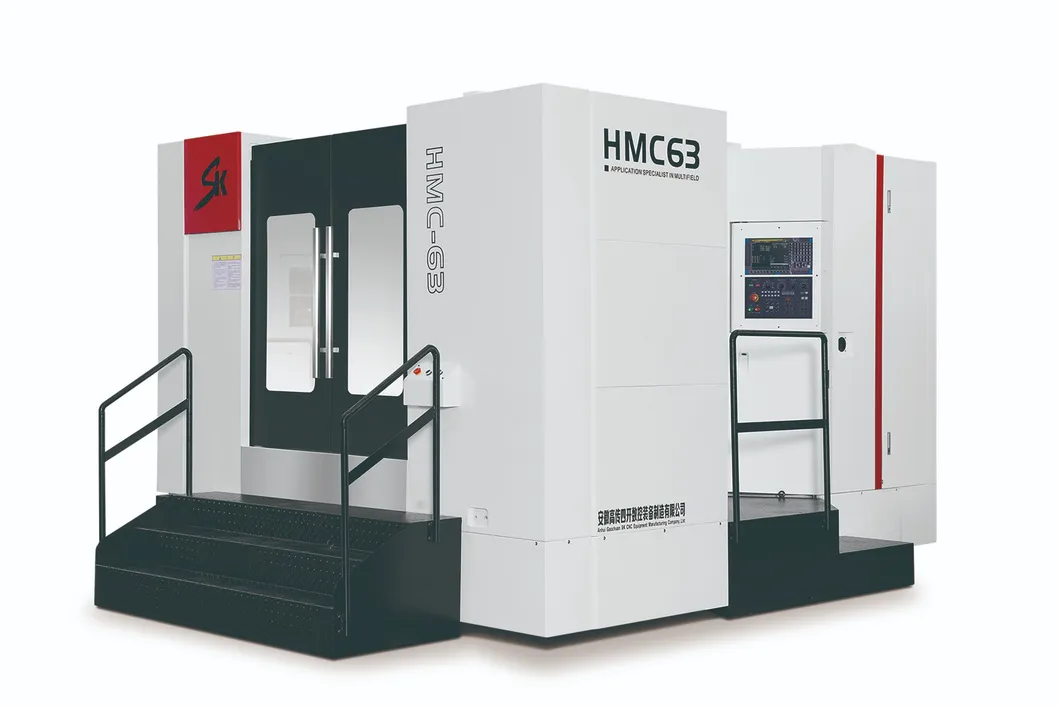

Horizontal CNC Milling Machine Detail

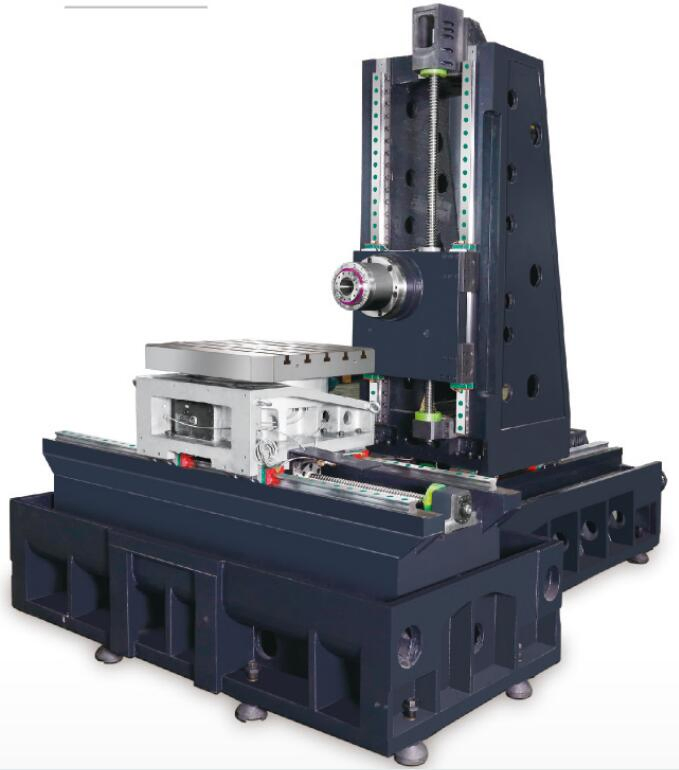

  • Classic column moving structure with a rigid base and oil-water separation system.
  • Side layout manipulator tool magazine for fast, reliable, and protected tool changes.
  • Large inclination angle X-direction guide cover with double-sided spiral and chain rear chip removal.
  • Three-axis heavy-duty roller linear guides for excellent acceleration and high-efficiency processing.
  • High rigidity spindle configuration with a high-torque motor for strong re-cutting capabilities.
  • Flexible configuration and convenient expansion to meet various industrial requirements.
  • Fully servo-driven dual-pallet exchange device for smooth and stable movement.
📊 Technical Parameters
Specification Unit HMC50 HMC63 HMC80 HMC100 HMC125
X/Y/Z axis travelmm660/580/6201050/750/9001300/1000/10001600/1000/14002000x1300x1400
Spindle end to centremm130-750150-1050200-1200250-1650350-1750
Workbench sizemm500x500630×630800x8001000x10001250x1250
Max. loadKg7001200200022003500
Spindle TapertypeBT40BT50BT50BT50BT50
Spindle Speedrpm800060006000600060000
Rapid Feedm/min34/34/3430/30/3024/24/2424/24/2418/18/18
Tool Capacitytools2430303030
Machine Weightt812.516.52027
🛠️ Standard Accessories
• 30 Tool Magazines
• Cooling System
• Auto Lubrication
• Rigid Tapping
• Tri-color Light
• Cleaning Water Gun
• Full Enclosed Cover
• Heat Exchanger
📸 Product Gallery
CNC Machine Gallery 1
CNC Machine Gallery 2
CNC Machine Gallery 3
CNC Machine Gallery 4
CNC Machine Gallery 5
📦 Packaging & Delivery
Package Size
260.00cm * 330.00cm * 260.00cm
Gross Weight
8000.00kg
Frequently Asked Questions (FAQ)
1. What materials is the HMC-63 suitable for? The HMC-63 is specifically designed for high-precision metal cutting and processing across various industrial applications.

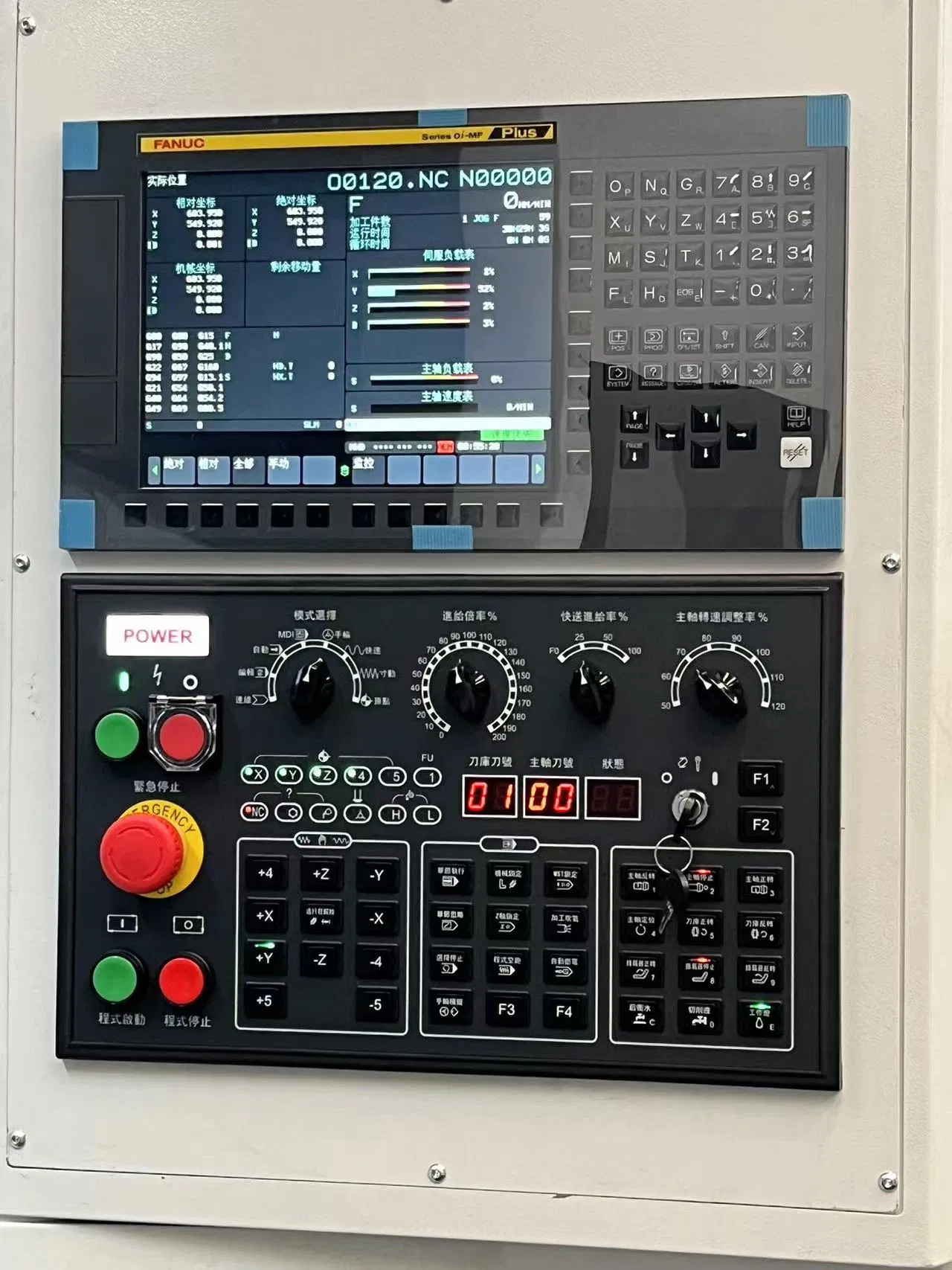

2. Which CNC control systems are compatible with this machine? The system supports various world-class controllers including Fanuc, GSK, Siemens, Mitsubishi, and HNC.
3. What is the tool magazine capacity? The standard configuration typically includes a 30-tool magazine, but options for 40 and 60 tools are also available to meet different production needs.
4. How does the machine handle chip removal? It features a large inclination angle guide cover combined with a double-sided spiral and chain plate rear chip removal system for smooth operation.
5. What is the positioning accuracy of the HMC series? The XYZ positioning accuracy ranges from 0.008mm to 0.012mm depending on the specific model and configuration.
6. Does the machine support high-speed processing? Yes, it is equipped with three-axis heavy-duty roller linear guides providing excellent acceleration performance for high-efficiency processing.
