⚙️ Basic Specifications
Model NO.

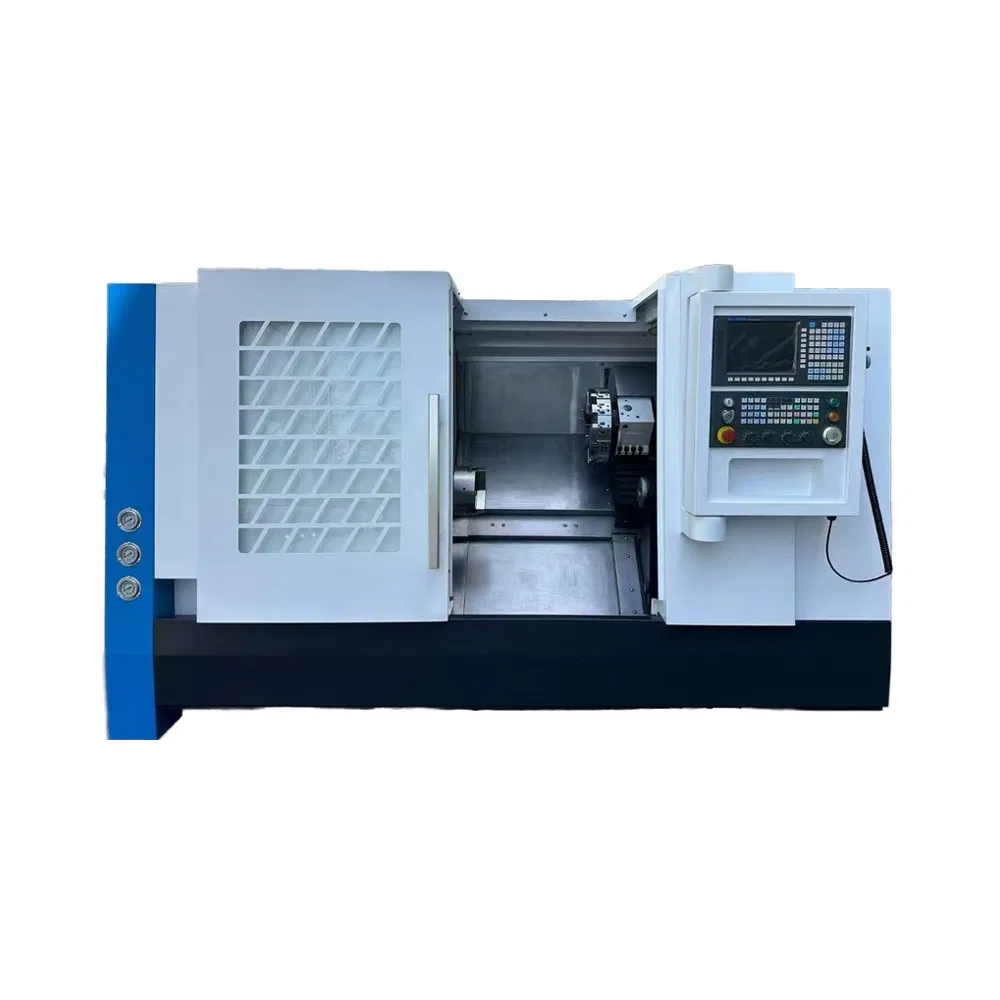

TCK56Y CNC Turning and Milling Machine
Type
Turning and Milling Machine
Automatic Grade
Automatic
Certification
CE, ISO 9001
Max. Swing Over Bed
650 mm
Guide Way Type
Linear Rail
📘 Product Overview

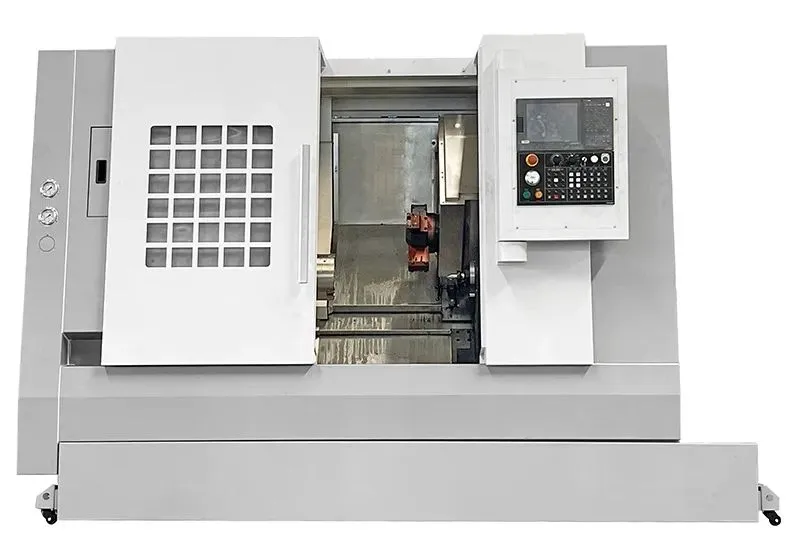

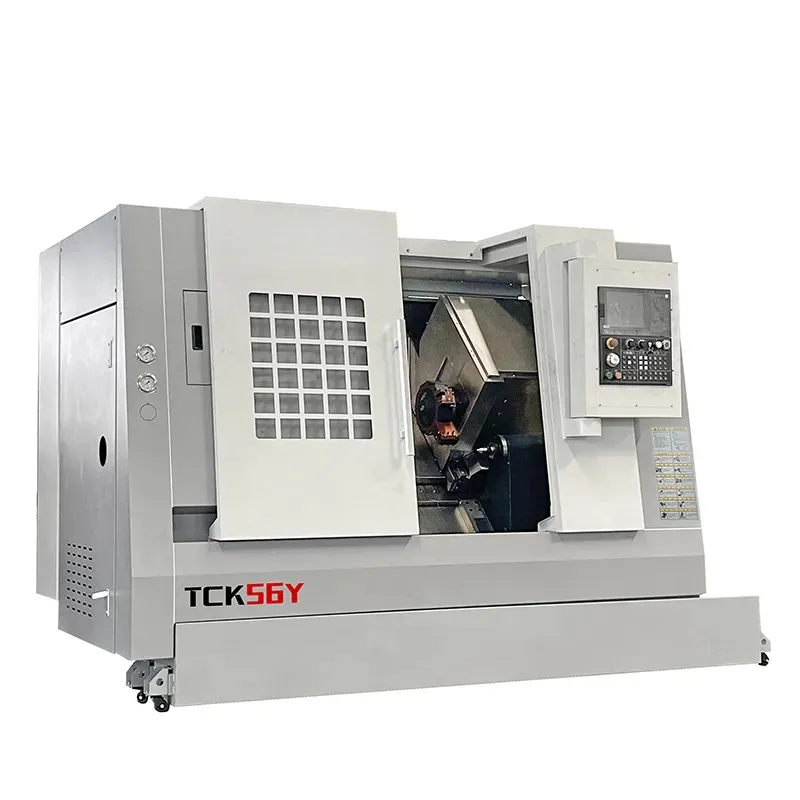

The TCK56Y CNC turning-milling compound machine is a highly versatile "all-rounder." It successfully integrates the core functions of a turning center and a milling center, making it particularly suitable for processing parts with diverse varieties, small batches, complex shapes, and high precision requirements.
Core Positioning and Name Interpretation:
- 1. TCK: Series code for "Numerical Control Lathe."
- 2. 56: Maximum workpiece turning diameter on the bed (560 millimeters).
- 3. Y: Represents "milling" or "power," equipped with power tools and C-axis functionality.
📊 Technical Specifications
| SPECIFICATIONS |
Unit |
TCK56Y |
| Max.swing over bed | mm | 650 |
| Max.swing over slide | mm | 500 |
| Max.processing length | mm | 500/1000/1500 |
| Max.bar capacity | mm | 52(optional 75) |
| Spindle speed range | min | 4000(optional 3500) |
| Spindle motor power | kw | 15 |

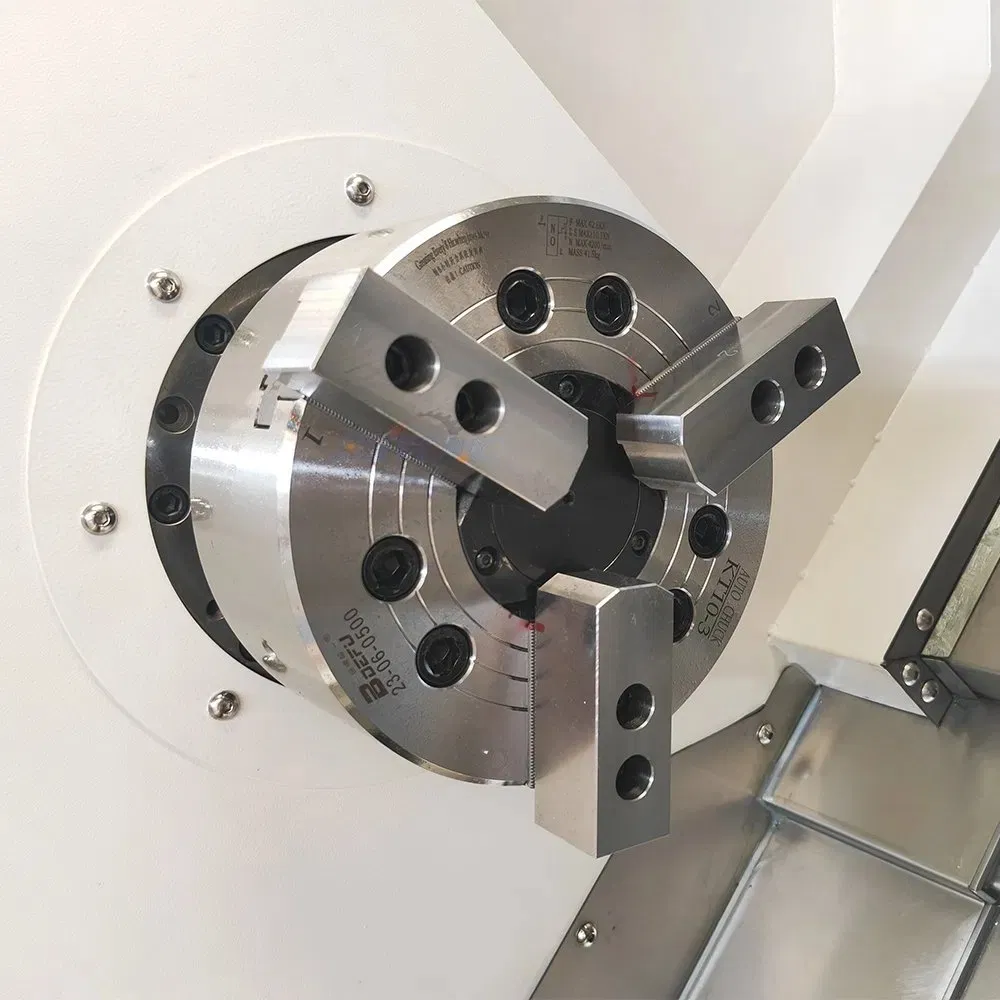

| Chuck size | Inch | 12 |
| X/Z/Y axis rapid traverse | m/min | 12 / 15 / 12 |

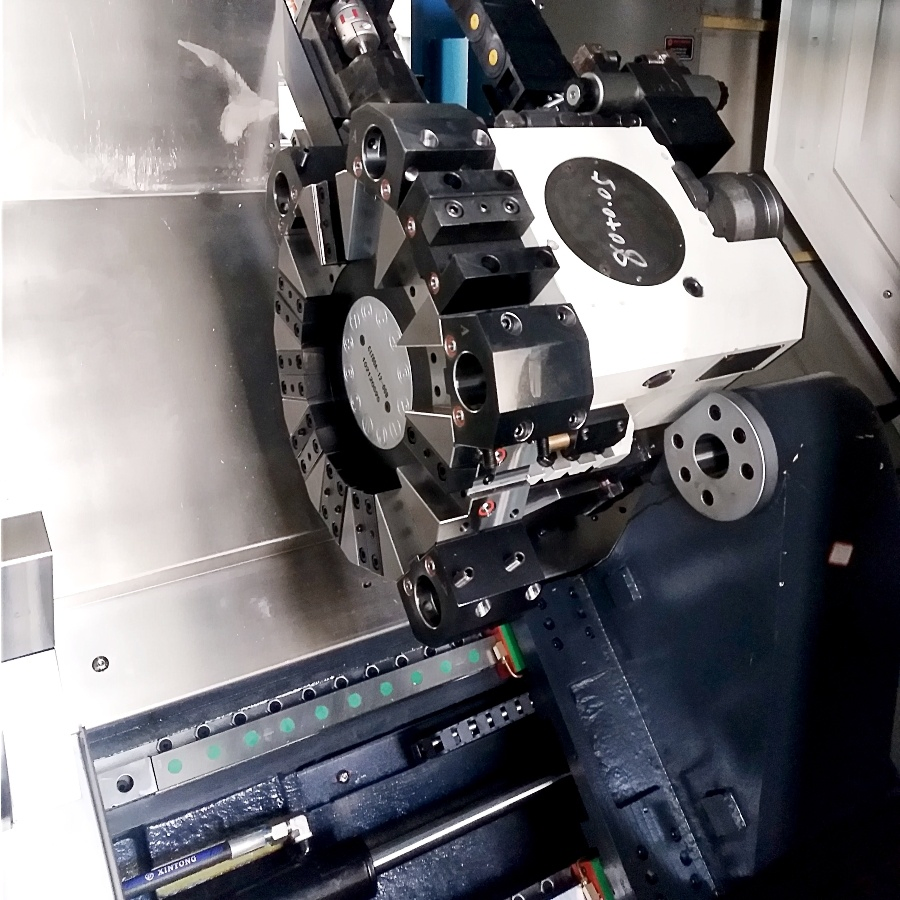

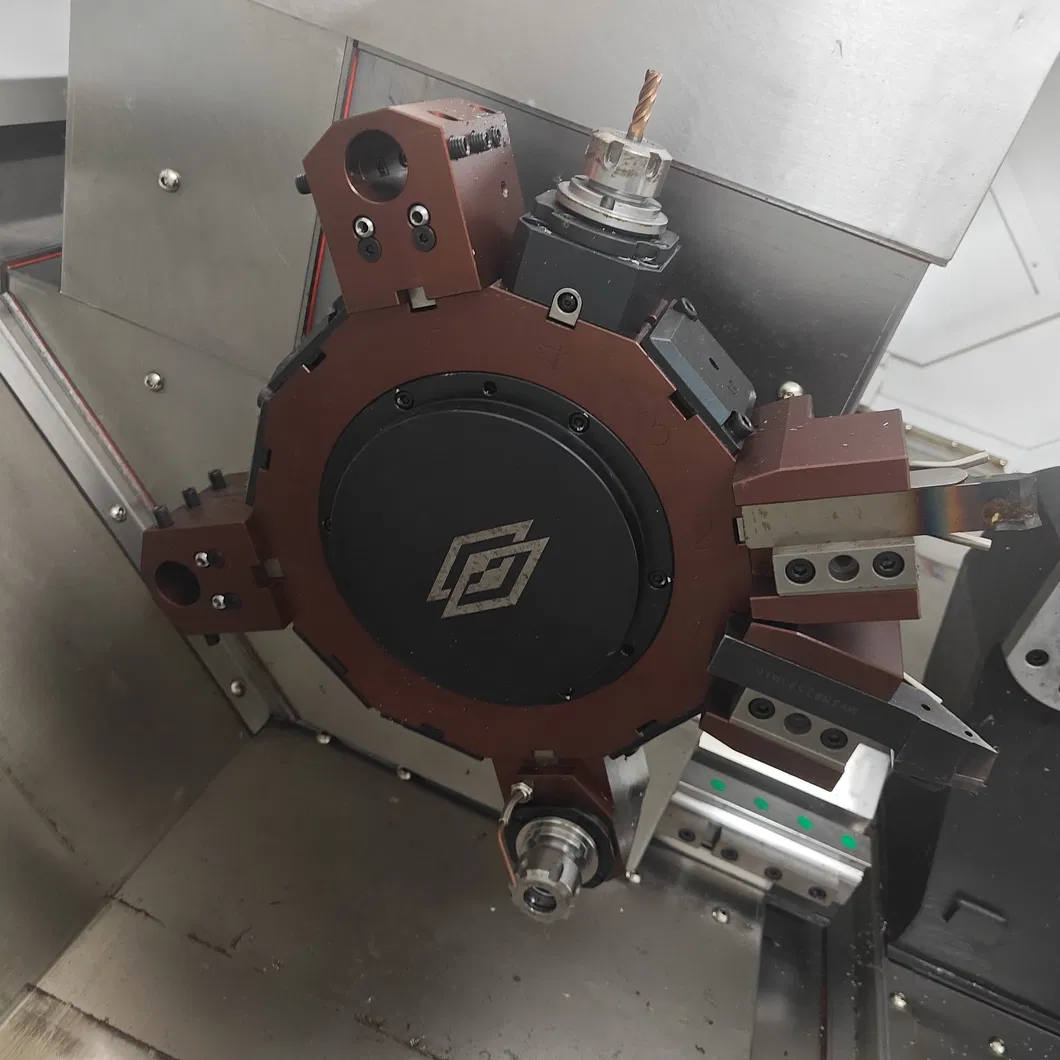

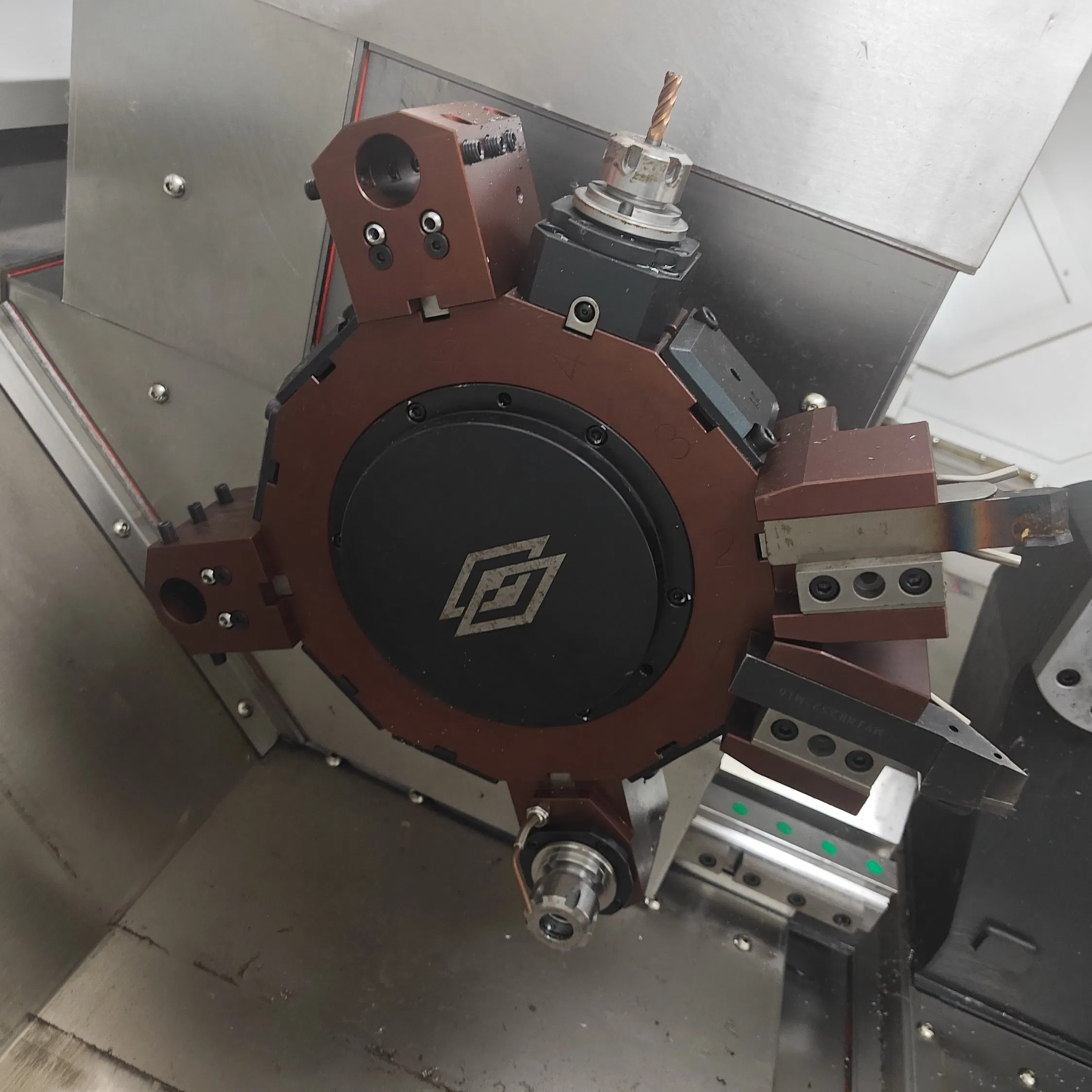

| Tool post type | - | 12-station power turret |
| Machine dimension (L×W×H) | mm | 5000/5500/6000/7000+×2150×2350 |
⭐ Core Functions & Advantages
- ✔ Highly concentrated processes: Integrating turning, milling, drilling, tapping, and boring reduces setup times.
- ✔ Improved accuracy: Avoids benchmark errors from multiple setups.
- ✔ Enhanced efficiency: Achieves "seamless connection" between front and backside machining.
- ✔ Complex Part Machining: C-axis linkage allows for eccentric holes, spiral grooves, and polygons.
- ✔ Cost savings: Reduces floor space, fixture quantity, and labor force.
🔧 Typical Machined Parts
- • Complex shaft/disc parts with lateral holes
- • Hydraulic & pneumatic components
- • Automotive components (transmission shafts)
- • Medical device implants
- • Aerospace small engine parts
❓ Frequently Asked Questions
How can I get a quotation?
Please provide your specifications or product drawings. We will recommend the most suitable model and provide a detailed quote.
What are your main products?
We specialize in a wide range of CNC machines, including CNC Lathes, Milling Machines, Vertical Machining Centers, Drilling Machines, and Sawing Machines.
Do you provide training for CNC machine operation?
Yes, we provide free operational training at our facility to ensure your team can effectively use the equipment.
What are your warranty terms?
We provide a 12-month warranty for defective parts starting from the bill of lading date. Extended warranties are also available upon request.
What is the delivery time and packaging?
The standard delivery time is 30-45 days. All machines are packed in sea-worthy professional packaging for safe transport.
What are your payment terms?
We typically accept T/T (30% initial payment, 70% balance before shipment) or irrevocable LC at sight.
