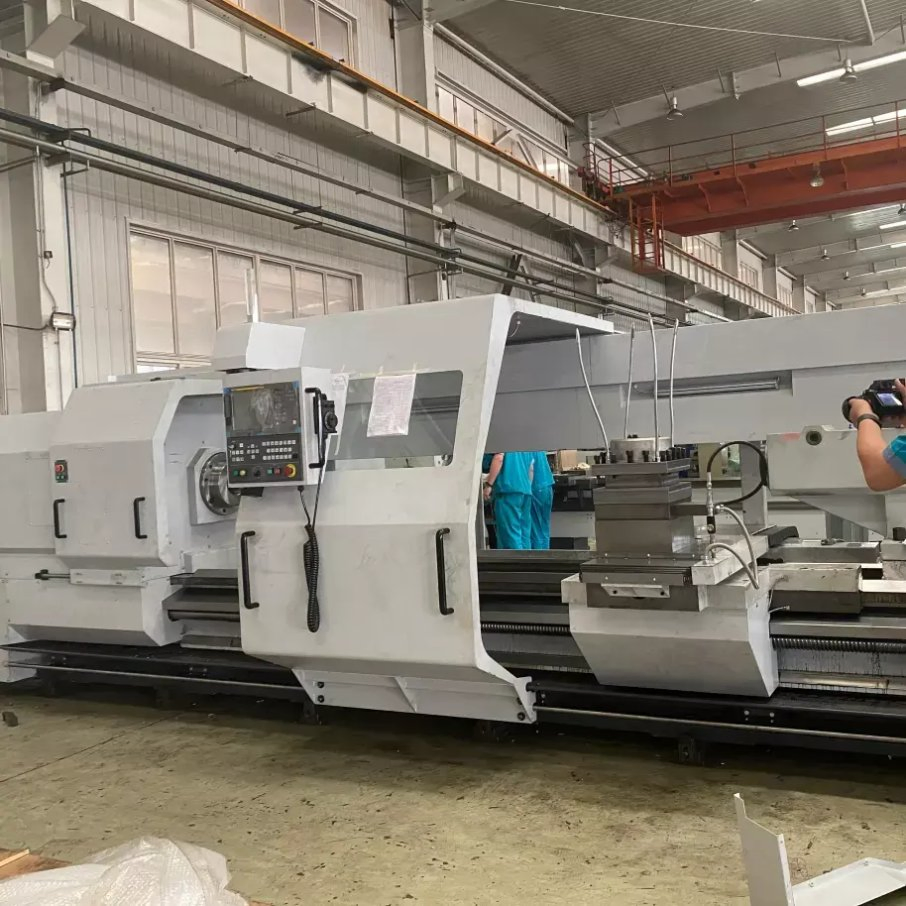

Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine
Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine
Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine
Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine
Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine
1 / 5
Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine
Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine
Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine
Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine
Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine

Dmtg Cka611100m Heavy Duty Flat Bed CNC Lathe Turning Machine

After-sales Service: 24 Hours Service
Warranty: 1 Year
Application: Metal
Send Inquiry

Product Description

Basic Specifications

Model NO.
CKA61100M
Process Usage
Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Precision
0.05~0.06(mm)
Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Package
Wooden Case Packing
Origin
Liaoning
Capacity
100 Sets/Month

Product Description

CKA611100M Heavy Duty Flat Bed CNC Lathe Turning Machine

Heavy Duty Flat Bed CNC Lathe

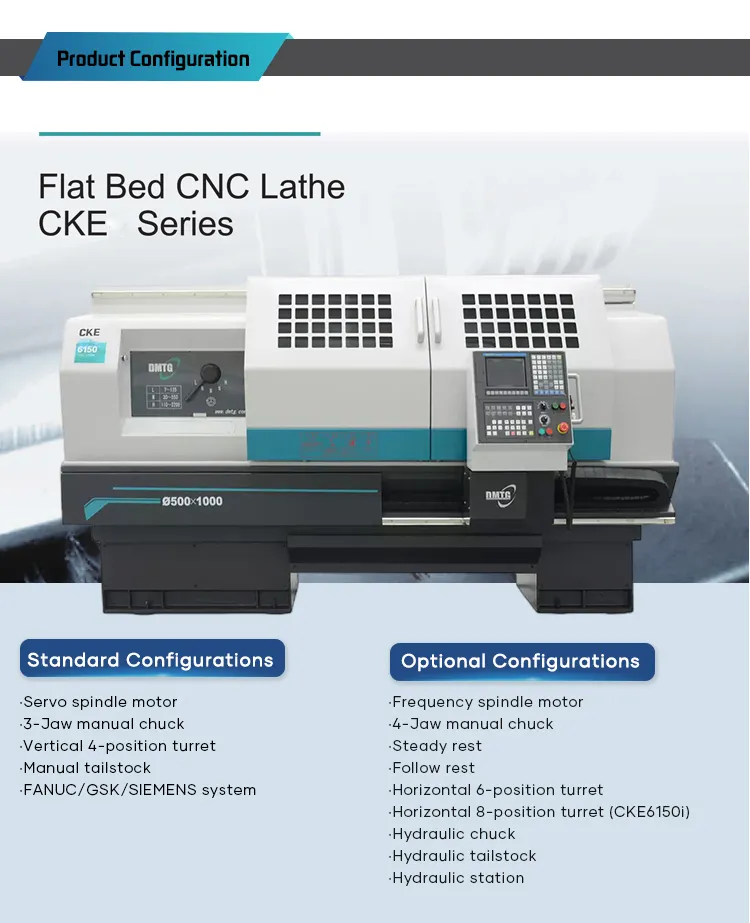

CNC Lathe Detail 1
CNC Lathe Detail 2

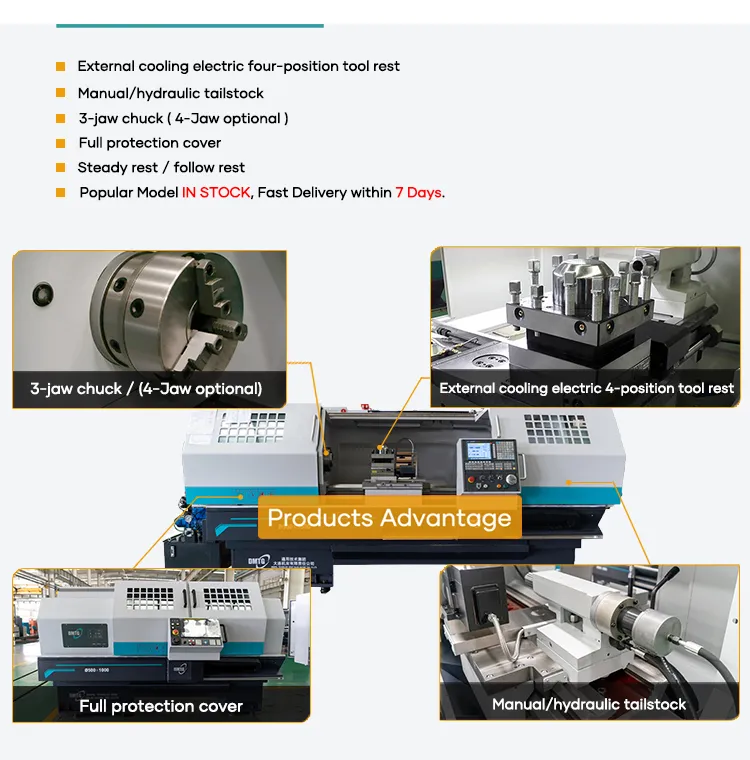

CNC Lathe Detail 3
MAIN PARAMETERS Max swing diameter over bed mm φ1000
Max swing diameter over cross slide mm φ630
Max workpiece length mm 1500/2000/3000/4000/5000/6000
Max cutting length mm 1400/1900/2900/3900/4900/5900
Max turning diameter mm φ1000
Spindle center height mm 500
Bed guideway width mm 755
SPINDLE Spindle motor power kW 22/26
Spindle bore mm φ130

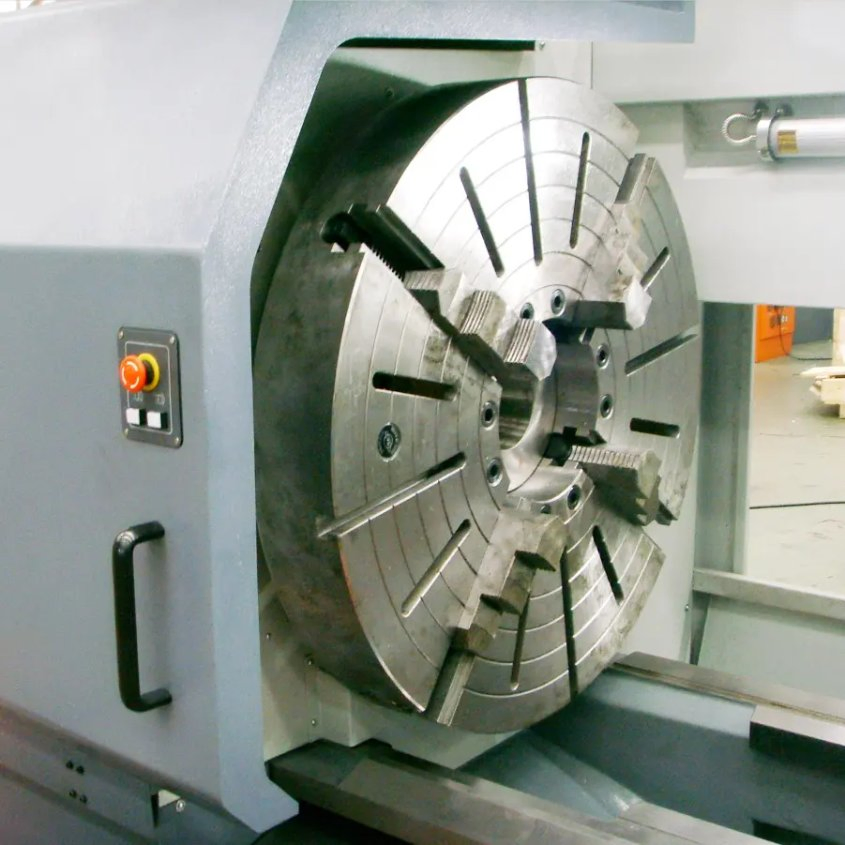

Chuck size mm φ1000
Taper of spindle bore - Front end φ140 1:20
Type of spindle nose - A2-15
Spindle speed ranges r/min 2-500
TAILSTOCK Diameter of tailstock quill mm φ200
Travel of tailstock quill mm 300
Taper of tailstock quill - No.6 MT
TOOLPOST Tool shank size (Vertical 4-position) mm 40X40
ACCURACY X/Z axis positioning accuracy mm 0.021/0.026
X/Z axis repeatability accuracy mm 0.008/0.014

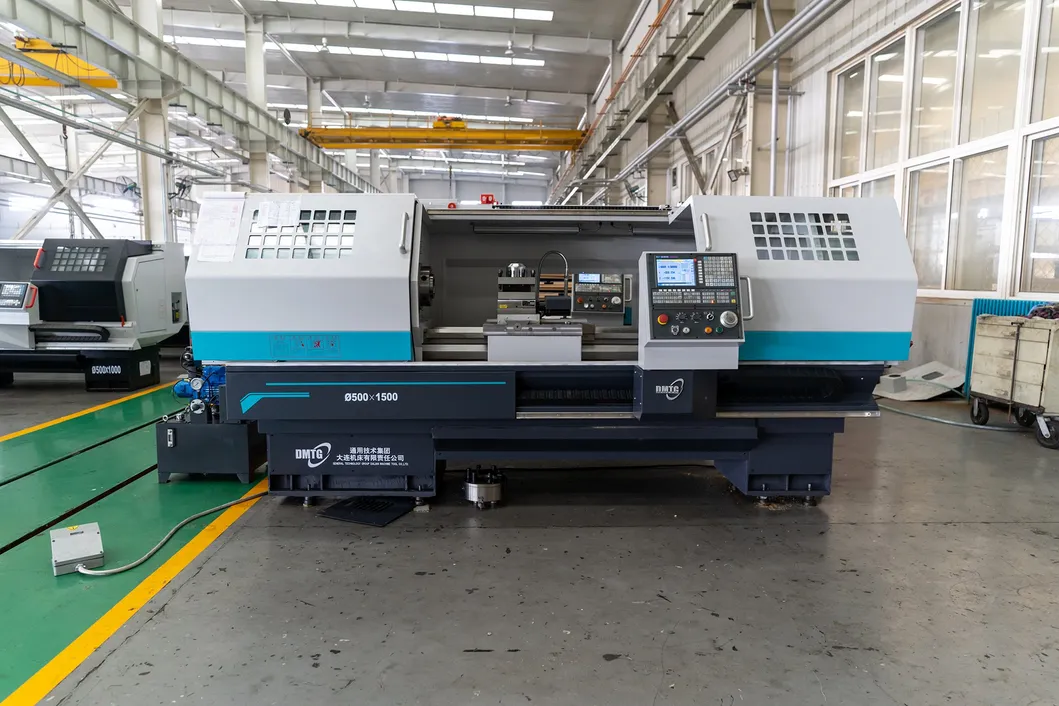

Machine Internal 1

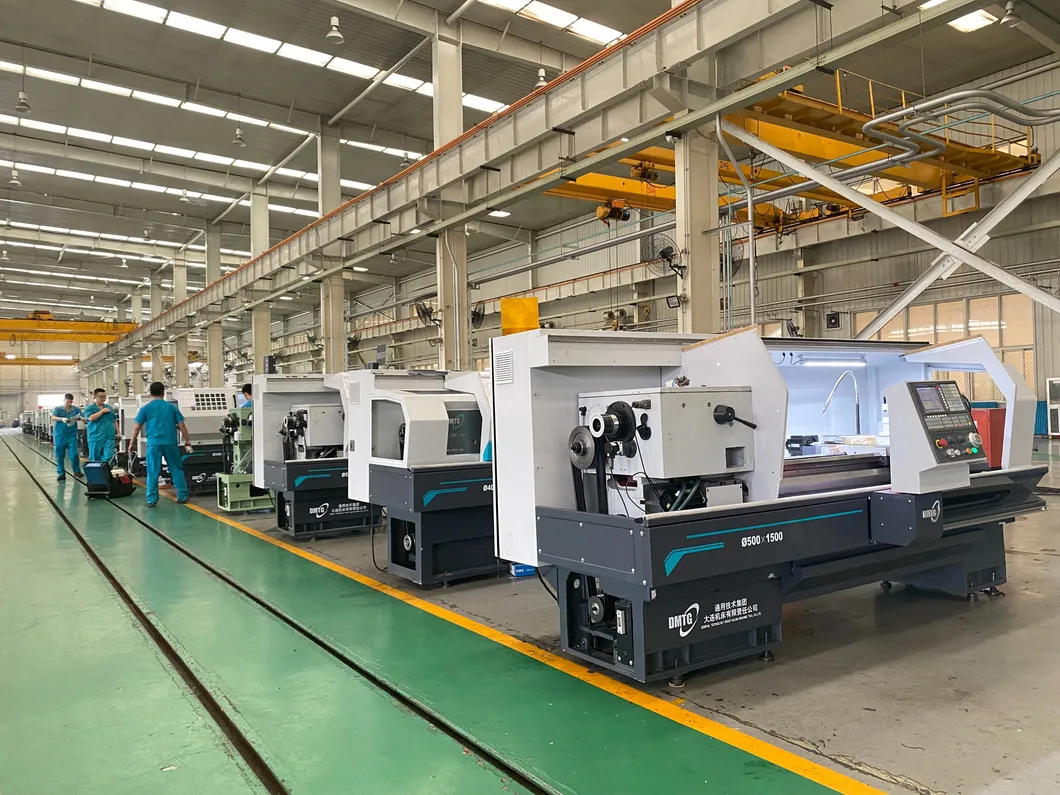

Machine Internal 2
Machine Internal 3
Structural Diagram
Processing View 1
Processing View 2
Processing View 3

Frequently Asked Questions

What is the maximum swing diameter for the CKA61100M?
The maximum swing diameter over the bed is φ1000mm, and over the cross slide, it is φ630mm.
What kind of processing precision does this CNC machine offer?
This model provides a processing precision range of 0.05mm to 0.06mm, making it suitable for high-accuracy metal-forming tasks.
What are the available spindle speed ranges?
The machine operates within a spindle speed range of 2 to 500 r/min.
Does the machine come with international certification?
Yes, the CKA61100M is CE certified, ensuring it meets European safety and quality standards.
What are the tailstock specifications?
The tailstock has a quill diameter of φ200mm, a travel distance of 300mm, and utilizes a No.6 MT taper.
How is the machine packed for transport?
The unit is securely packed in a robust wooden case to ensure safety during shipping and delivery.
