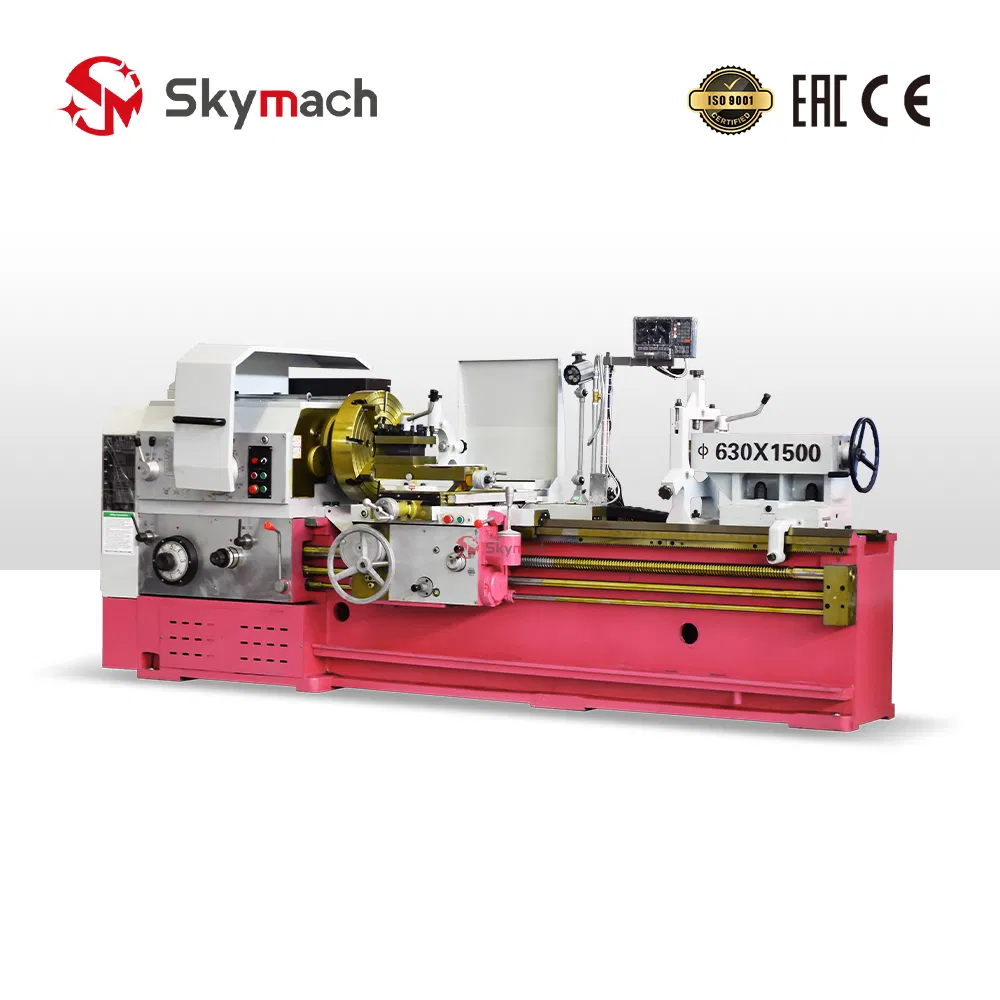

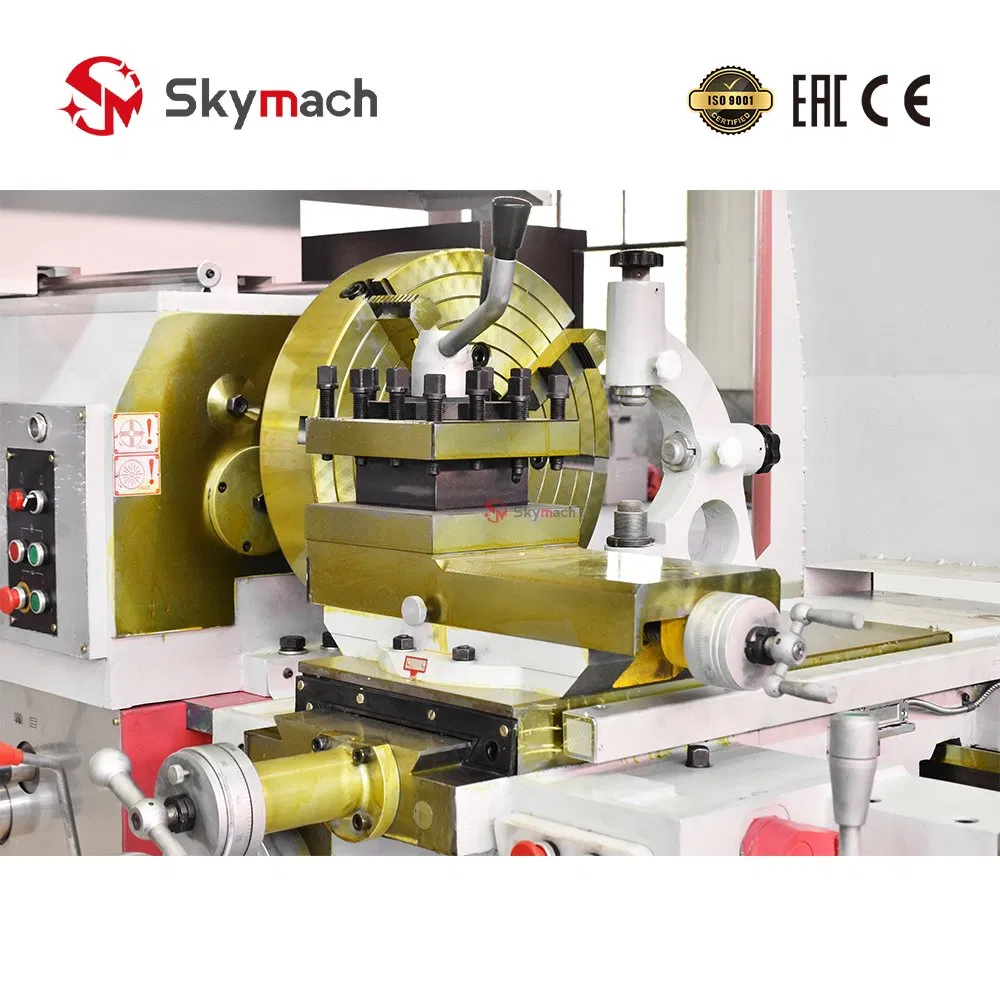

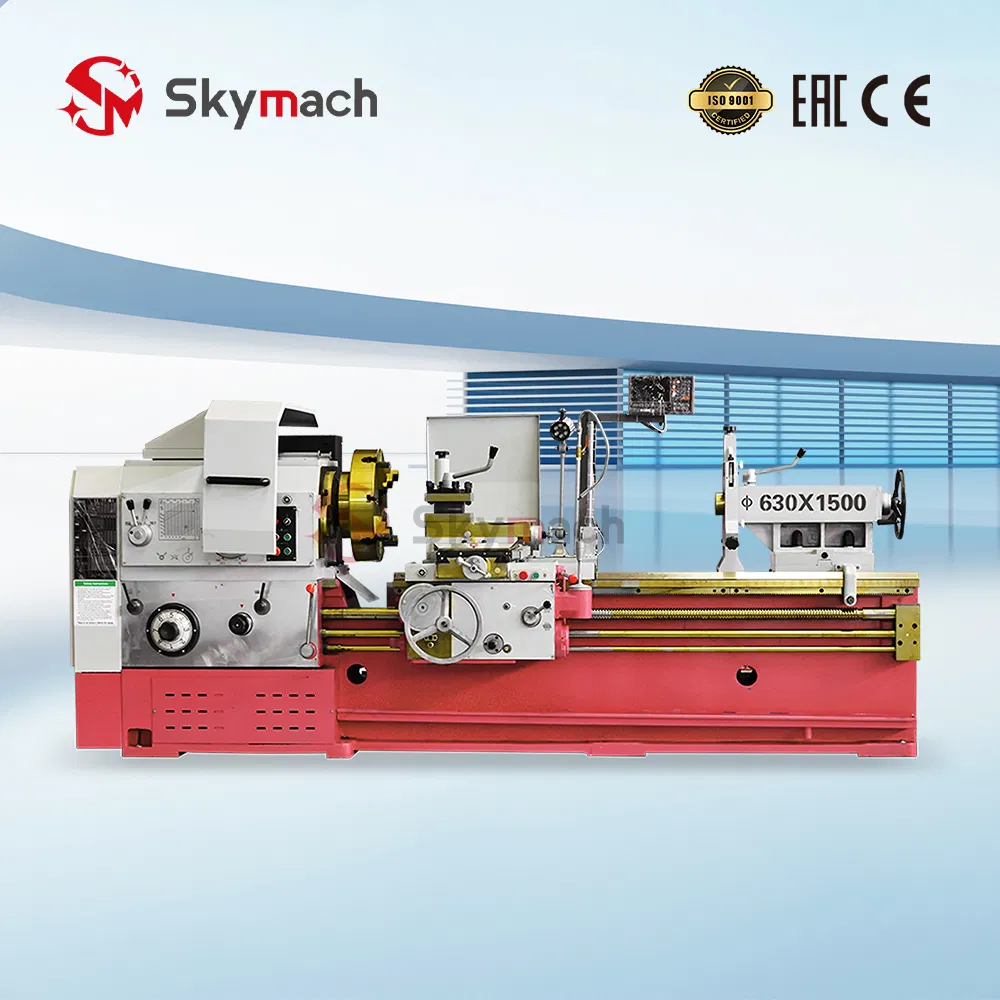

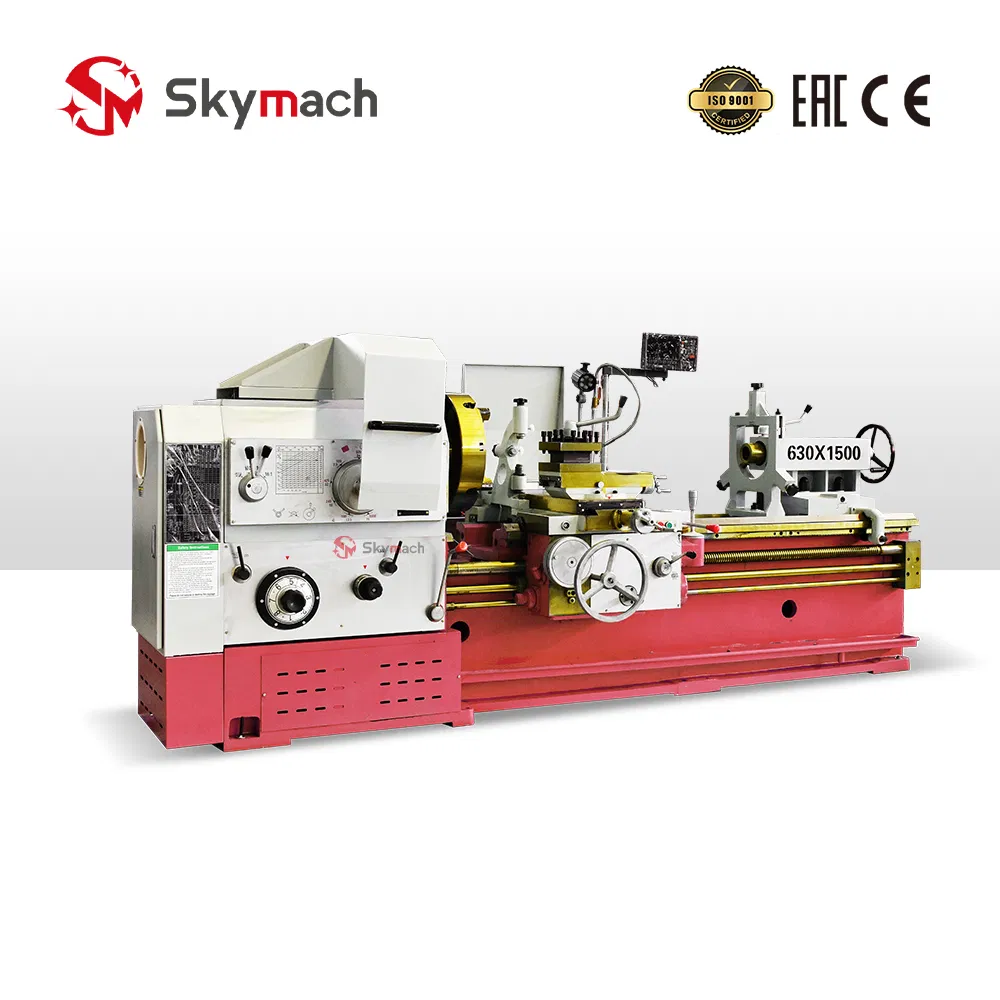

Cw6263 Manual Lathe Machine Featuring a Wide Bed and Geared Drive System for Machining Large Shafts, Flanges, and Common Industrial Components.

1 / 5

Cw6263 Manual Lathe Machine Featuring a Wide Bed and Geared Drive System for Machining Large Shafts, Flanges, and Common Industrial Components.

Customization:	Available
After-sales Service:	2 Year
Warranty:	2 Year

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

CW6263

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Inclined Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Manual

Setting Mode

Table

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Spindle Taper

Mt5

Rapid Speed

4000mm/Min

Max.Work Piece Length

1500mm/2000mm/3000mm

Spindle Speed

7.5-1000r/Min

Product Name

Precision Metal Bench Lathe

Power(W)

📦 Packaging & Delivery

Package Size

550.00cm * 160.00cm * 190.00cm

Package Gross Weight

4700.000kg

Transport Package

Free Fumigation Plywood Packaging Steel Base

🛠️ Product Description

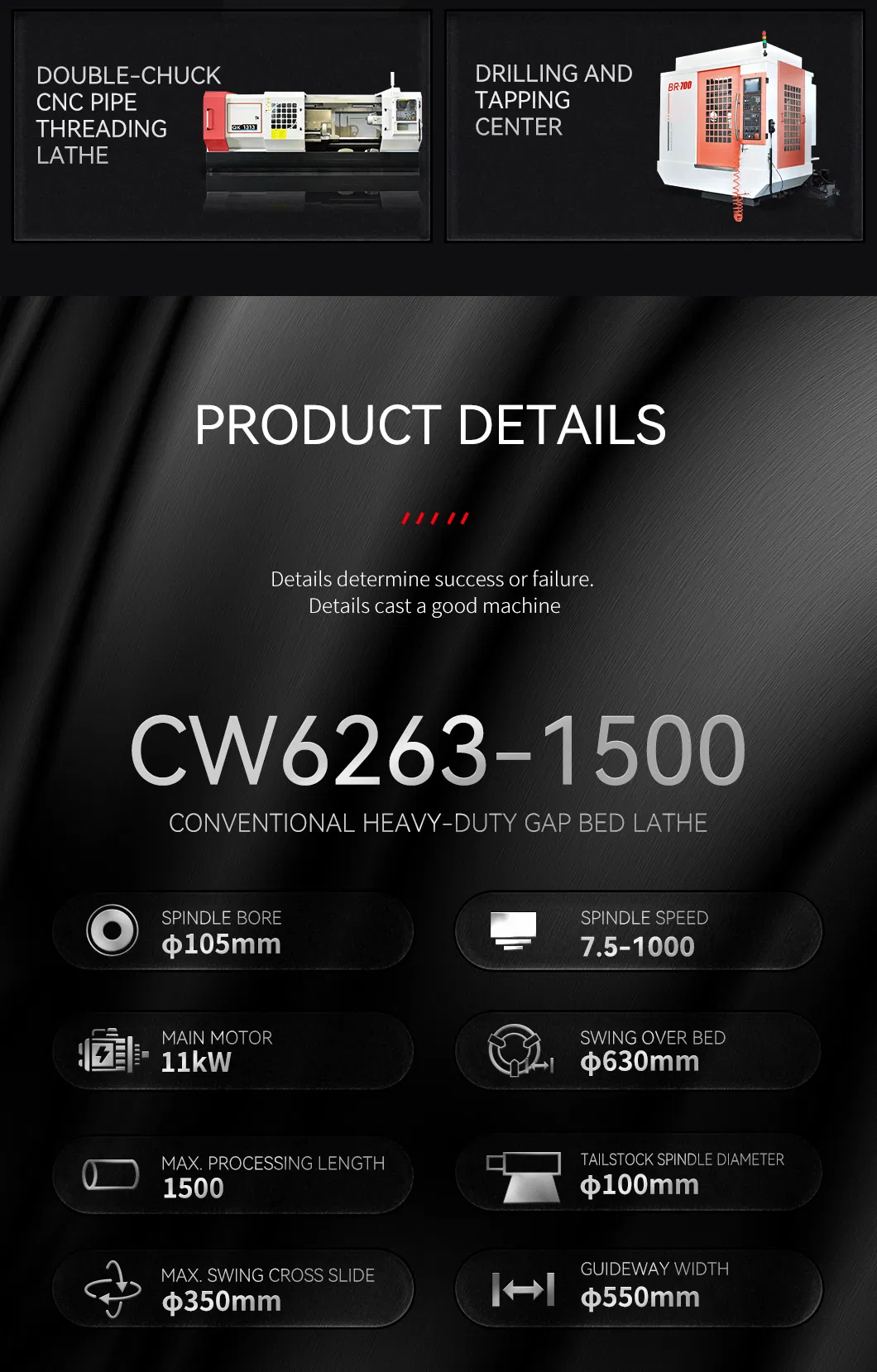

CW6263 Universal Heavy duty large chuck lathe

Type	CW6163B	CW6263B	CW6180B	CW6280B
Max. swing over bed	630mm		800mm
Max. swig over cross slide	350mm		550mm
Max. length of work piece	1500/3000/4000/5000/6000mm
Max. swing in gap	-	800mm	-	1000mm
Width of bed	550mm
Spindle bore	105/130/150mm
Spindle motor	11kw
Spindle speed	7.5--1000rpm		6--800rpm
Saddle rapid traverse speed	4000mm/min
Size of tool section	30×30mm
Net weight	3700/4700kg

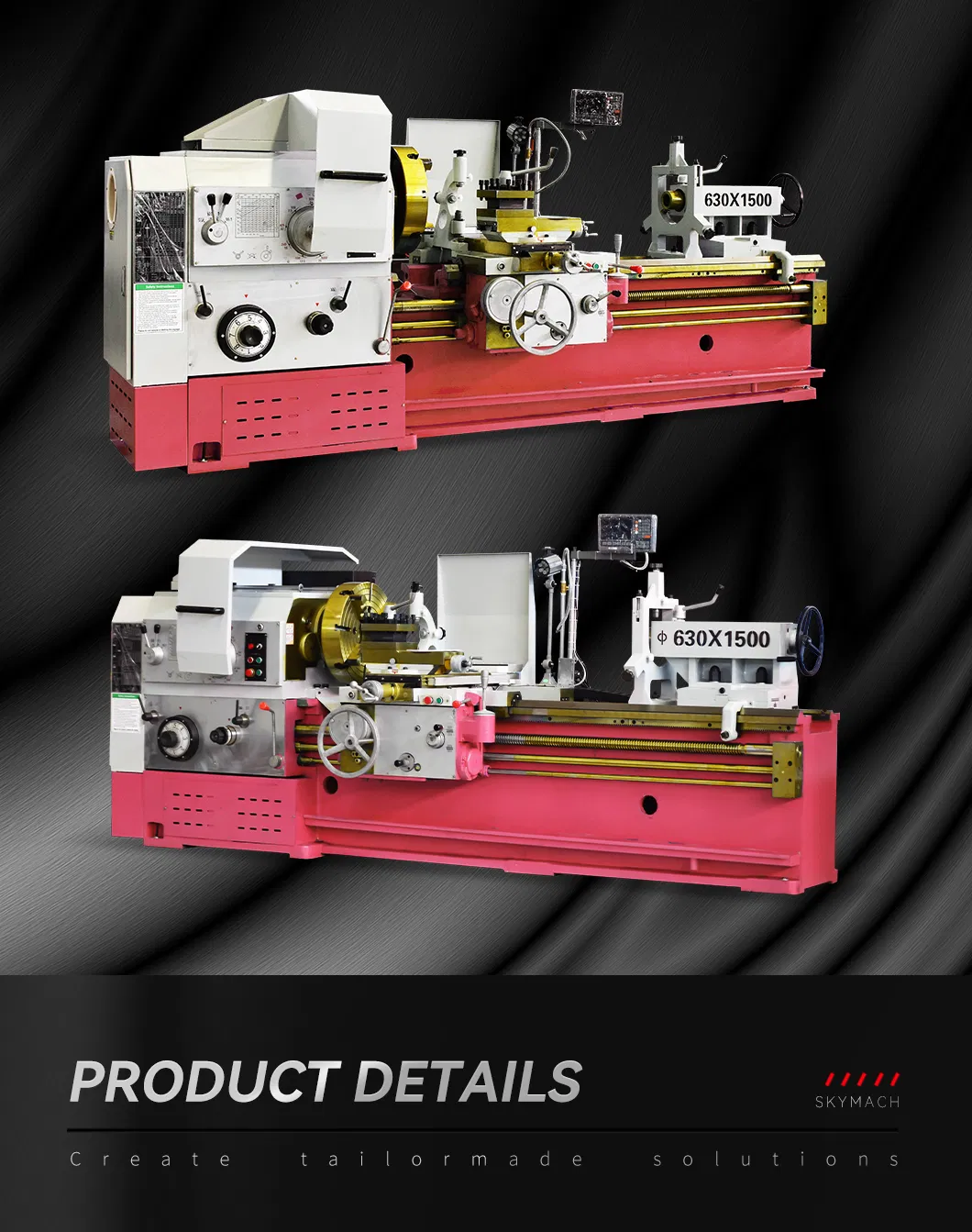

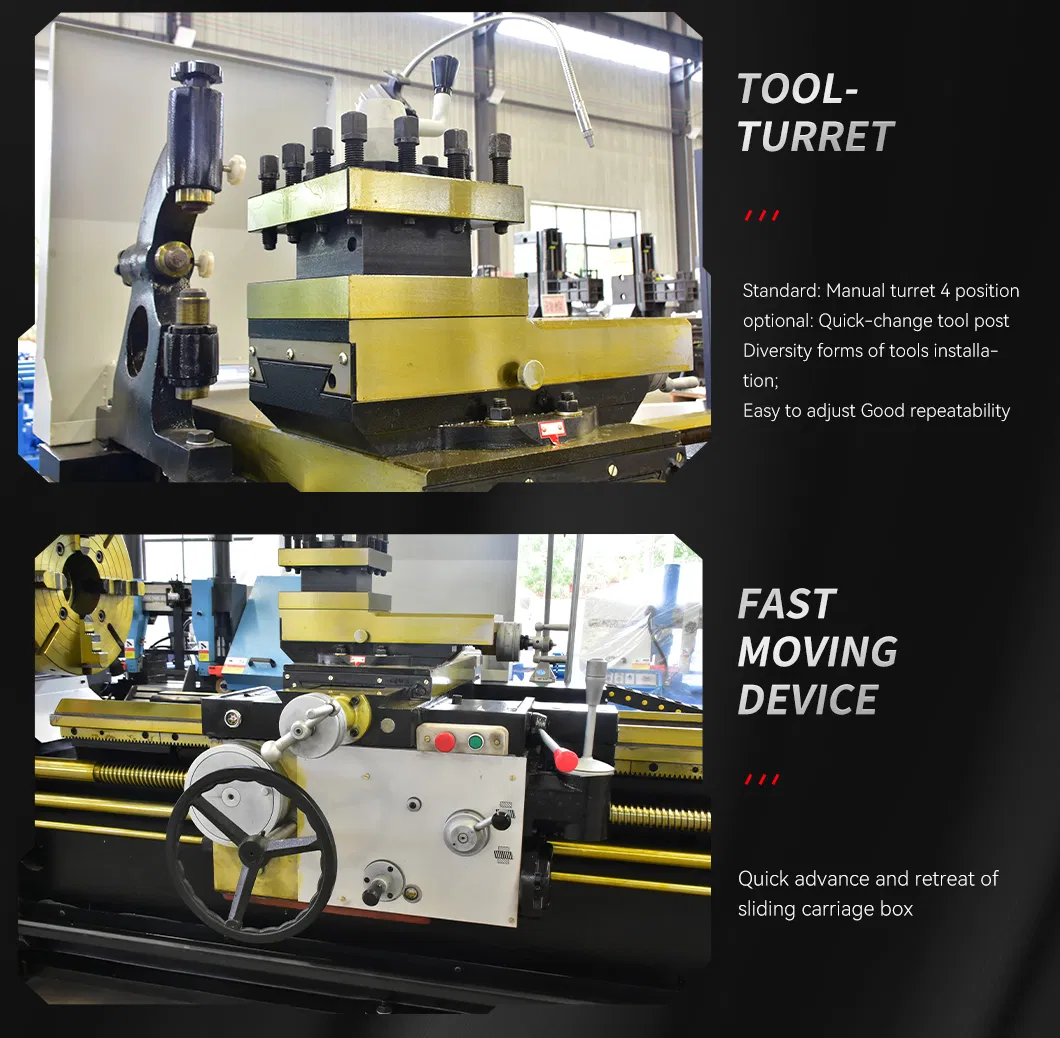

🔍 Details Display

❓ FAQ

How can I choose the most suitable machines?

Please tell us your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, and we will choose the most suitable machines for you.

What are the main products of your company?

We specialized in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, and Shaper machine.

What are your trade terms?

FOB, CFR and CIF are all acceptable trade terms for our transactions.

What are the Payment Terms?

T/T, 30% initial payment when order, 70% balance payment before shipment; or Irrevocable LC at sight.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set. (Only some low cost machines may require more than 1 set).

What information is needed for an accurate recommendation?

Please provide your Industrial Voltage and the size/material of your workpiece. If possible, send us a workpiece drawing and destination port for CIF pricing.
