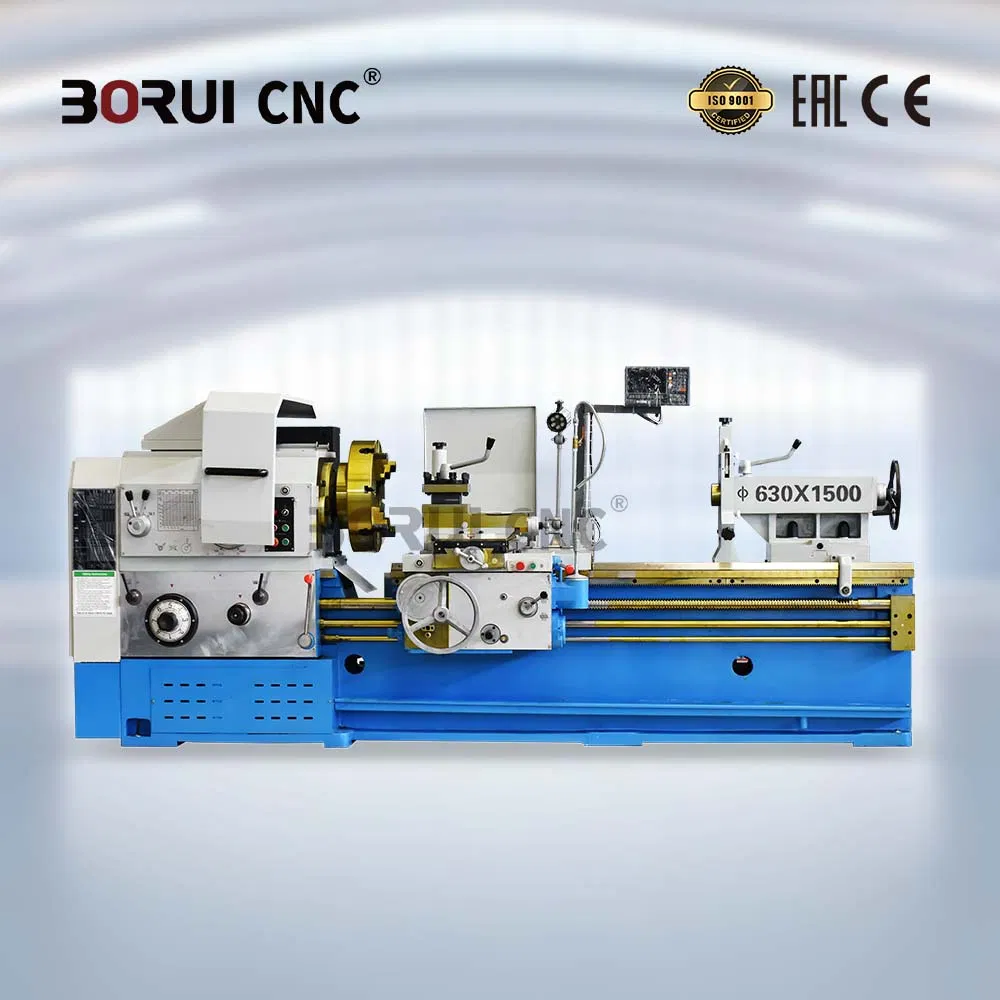

Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning
Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning
Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning
Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning
Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning
1 / 5
Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning
Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning
Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning
Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning
Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning

Cw6263 Heavy Duty Manual Lathe Machine with Gap Bed for Metal Turning

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

📊 Basic Information
Model NO.
CW6263
Type
Horizontal Lathe
Processing Accessory
Chuck Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Hydraulic Pressure
Automatic Grade
Automatic
Precision
Precision
Condition
New
Weight
4800kg
Max. Swing Diameter
630mm
Spindle Bore
105mm
Production Capacity
500 Pieces/Year
📦 Packaging & Delivery
Package Size
600.00cm * 145.00cm * 1544.00cm
Gross Weight
4700.000kg
Package Type
Wooden Box
🛠️ Product Description

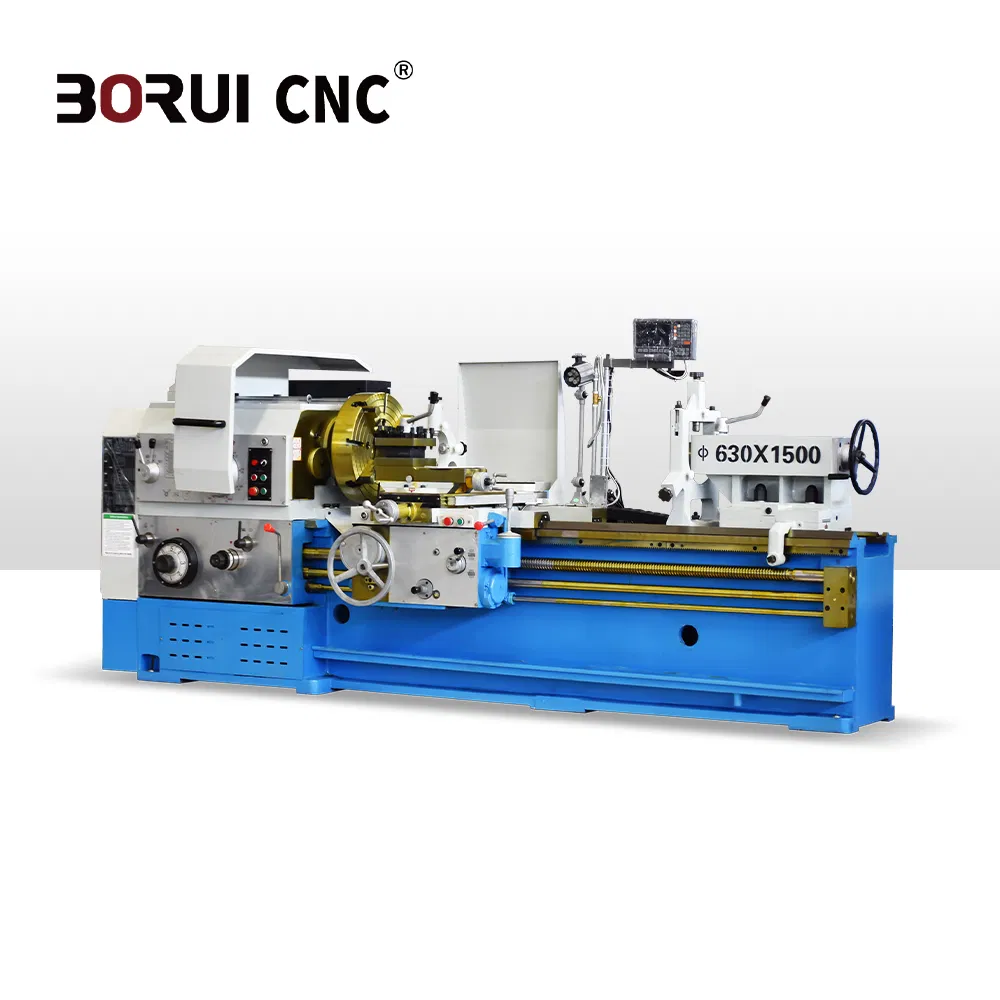

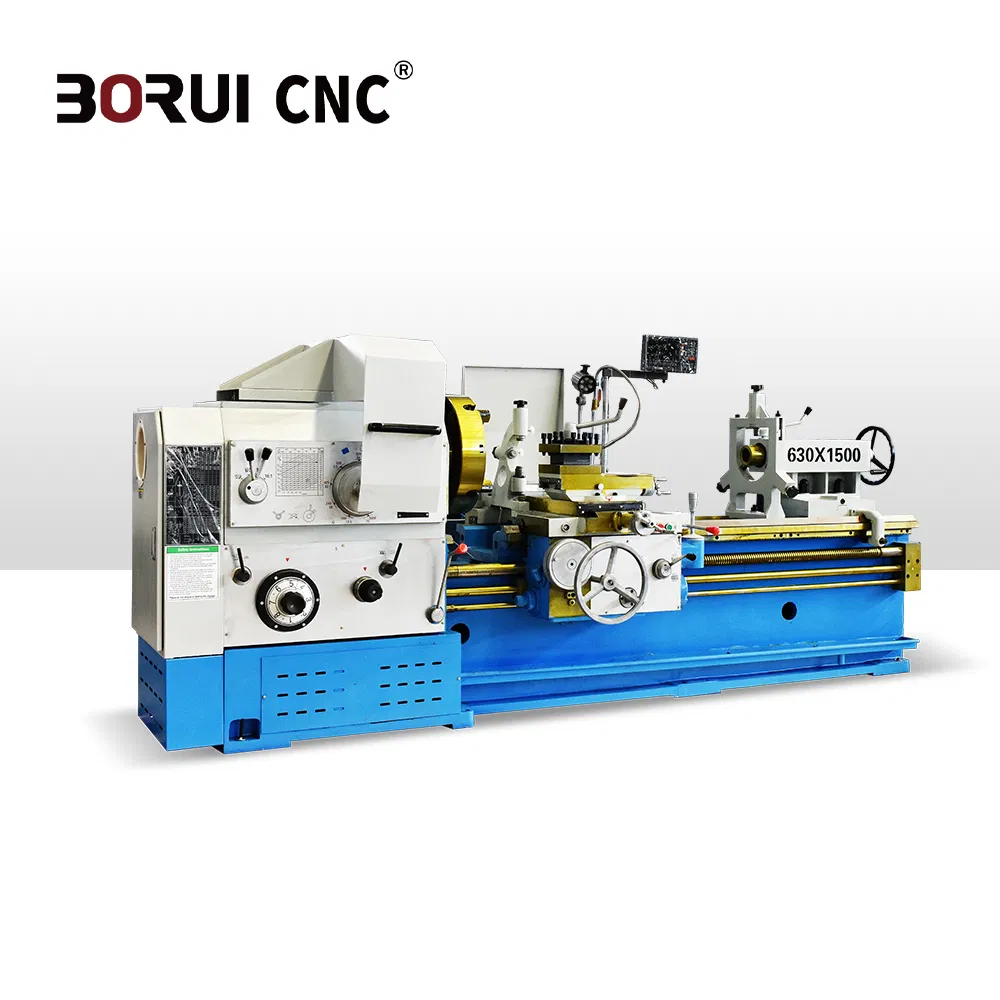

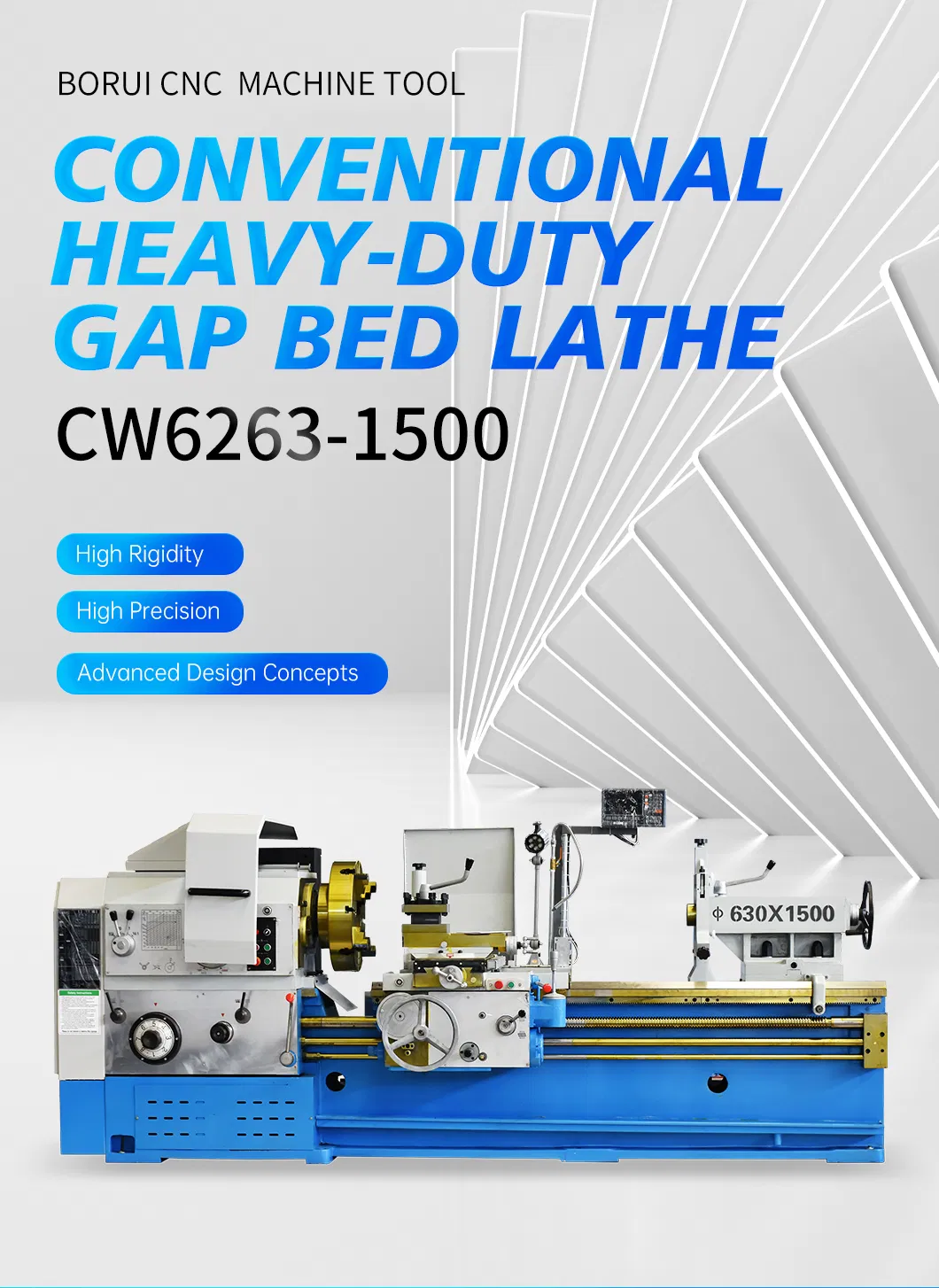

CW6263 Heavy-duty Manual Level Large Lathe
Heavy Duty Manual Lathe Machine
Gap Bed for Metal Turning
⭐ Key Product Advantages
✓
Robust Construction: 550 mm bed width and 3 ton load capacity ensure exceptional rigidity for heavy duty cutting.
✓
Large Spindle Bore: 104 mm bore allows through feeding of long bars and large diameter workpieces.
✓
Gap Bed Design: 800 mm swing over gap accommodates oversized components beyond the standard 630 mm swing.
✓
Versatile Threading: Cut metric, inch, module, and DP threads without additional attachments.
✓
Powerful Performance: 11 kW spindle motor delivers high torque for roughing and finishing operations.
✓
Efficiency: X axis rapid traverse 2300 mm/min, Z axis 4000 mm/min reduce non-cutting time.
📋 Product Parameters
ITEMS UNIT CW6163B / CW6263B CW6180B / CW6280B
Swing over bedmmΦ630Φ800
Swing over gapmmΦ800 (CW6263)Φ1000 (CW6280)
Swing over cross slidemmΦ350Φ550
Distance between centersmm1000/1500/2000/3000/4000
Width of bed waymm550
Max. load capacityT3
Spindle boremmΦ104
Spindle speed rangerpm7.5-1000 (18 steps)
Chuck sizemmΦ315
Main spindle motorkW11
Tailstock quill diametermmΦ100
Net weightT3.4 - 4.73.6 - 4.9
📸 Detailed Display
Lathe Detail 1

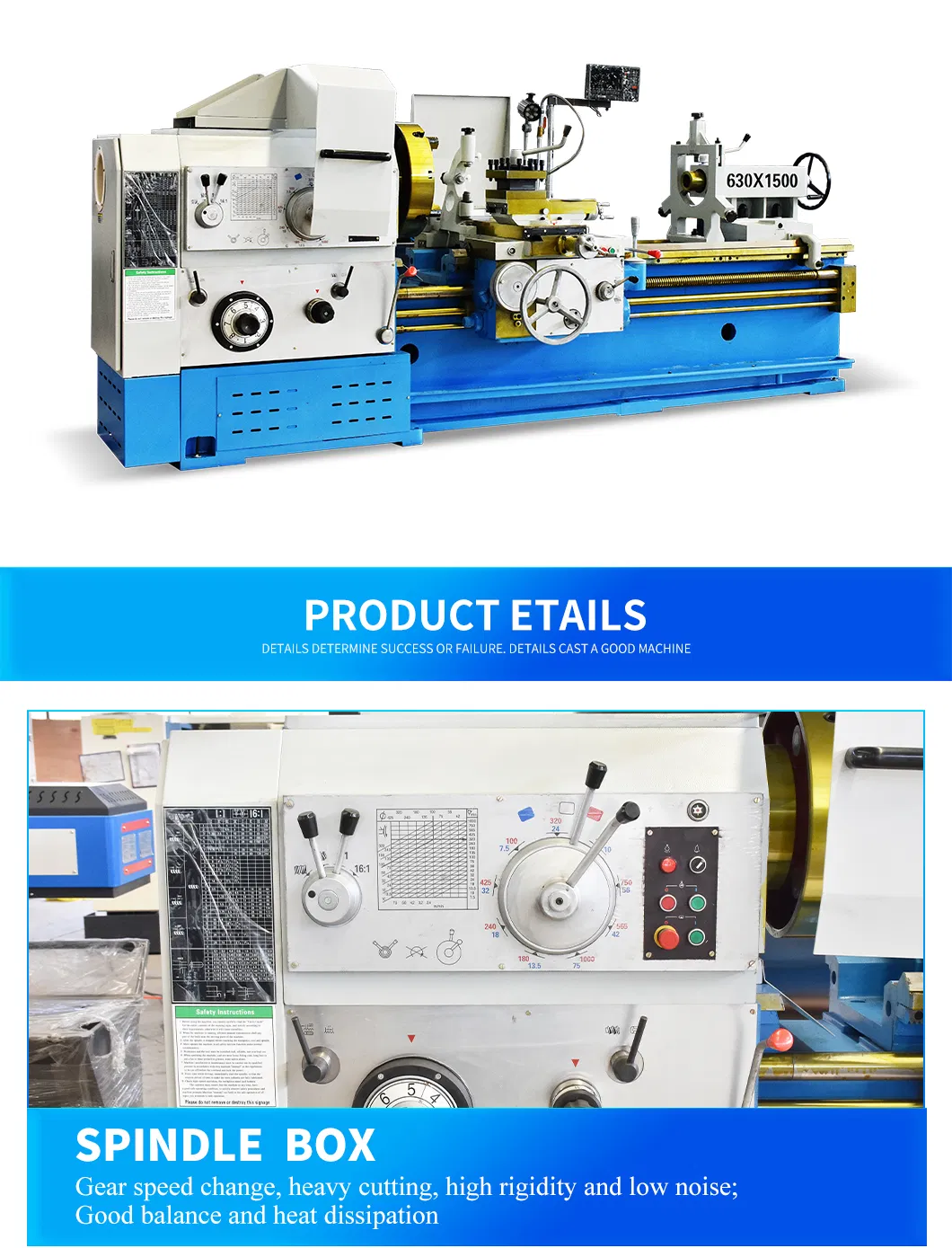

Lathe Detail 2

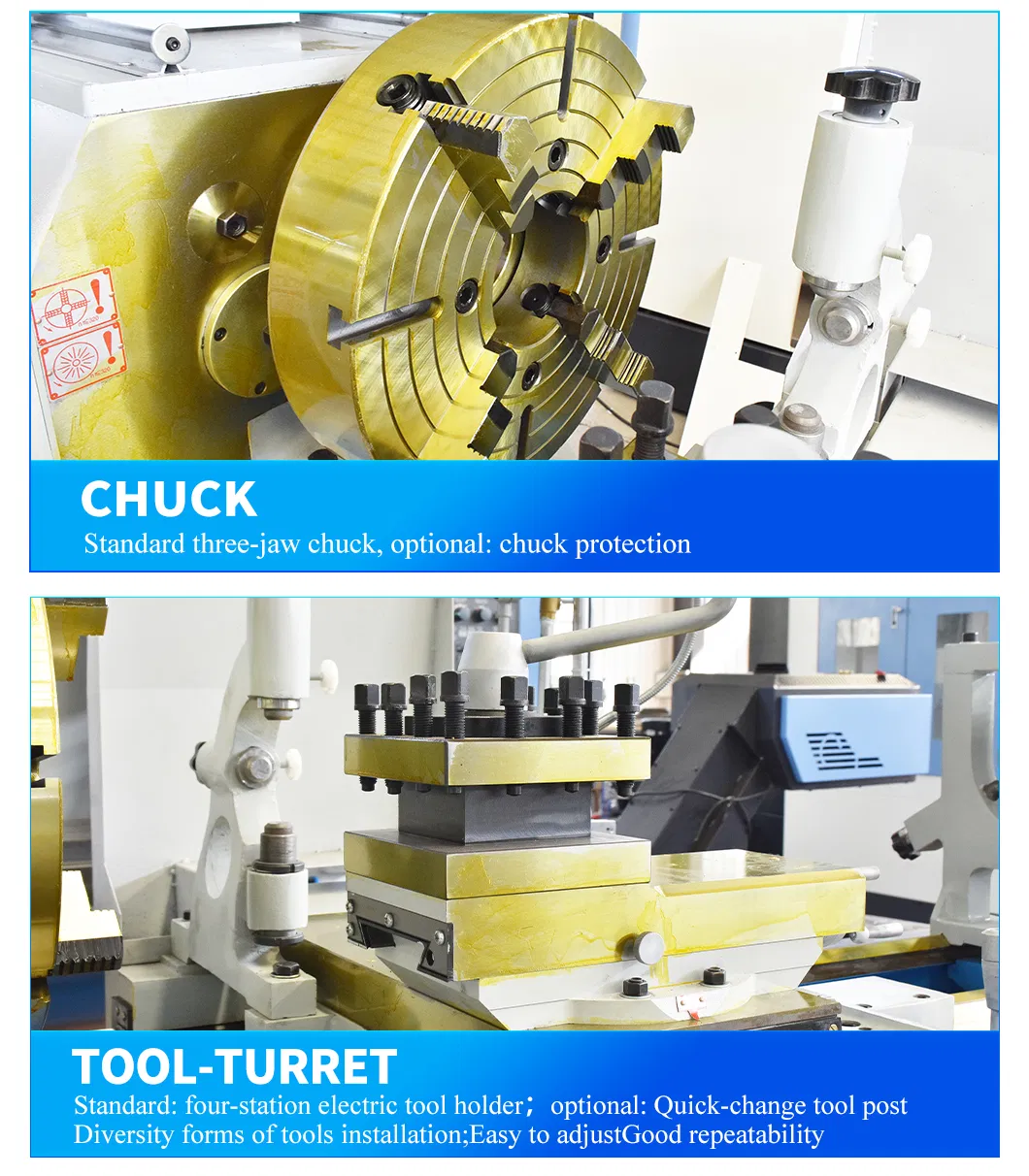

Lathe Detail 3

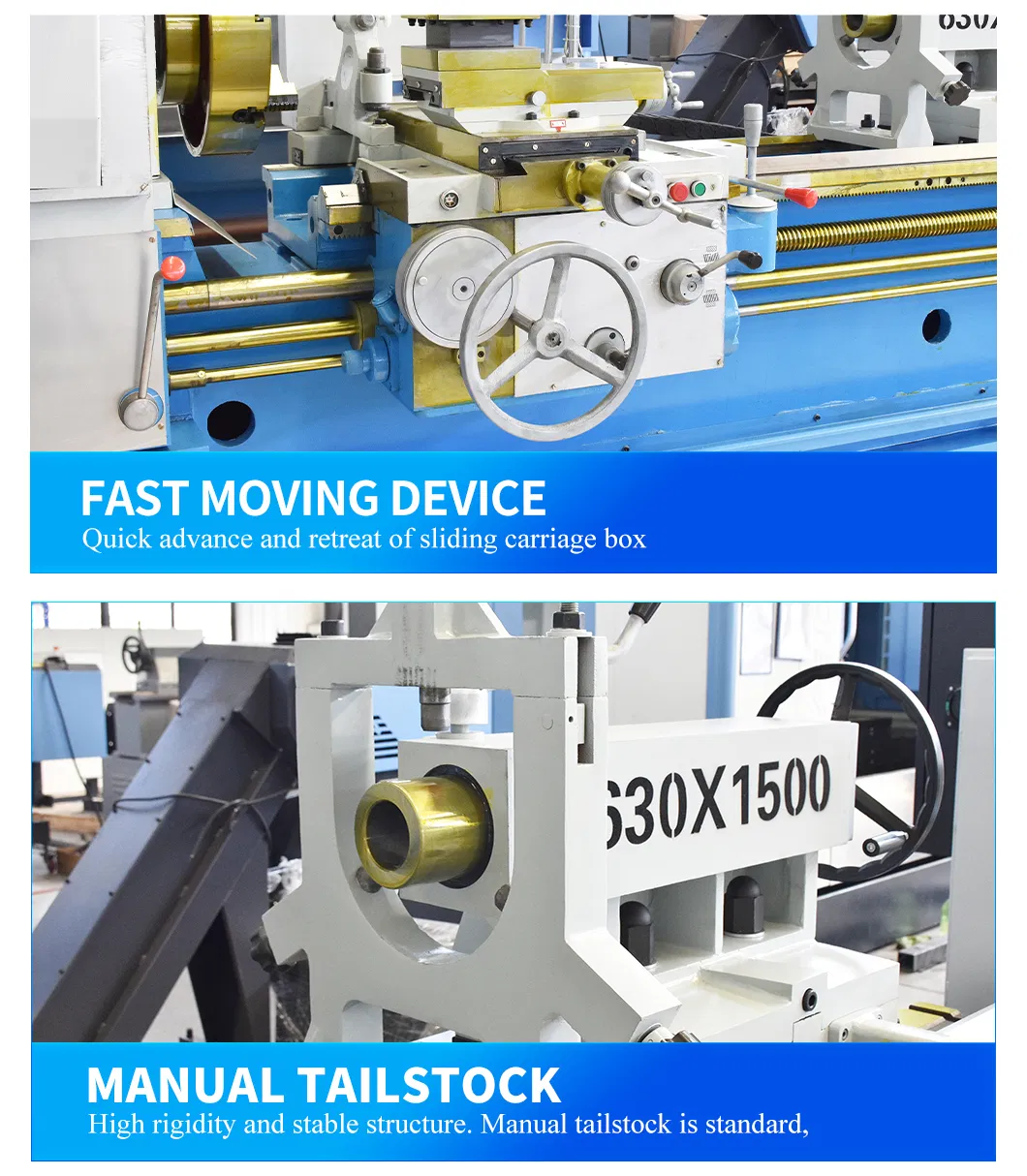

Lathe Detail 4

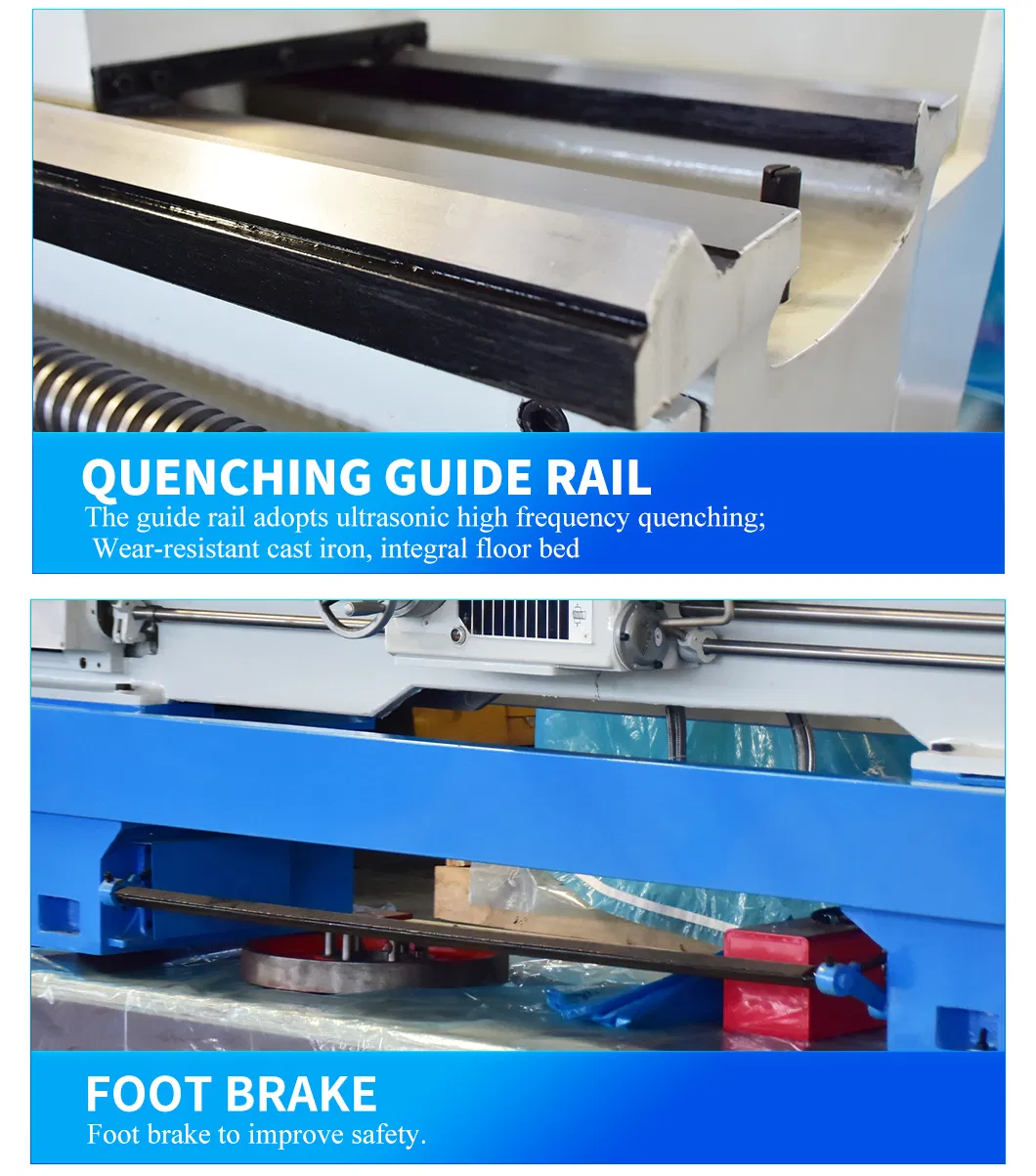

Lathe Detail 5

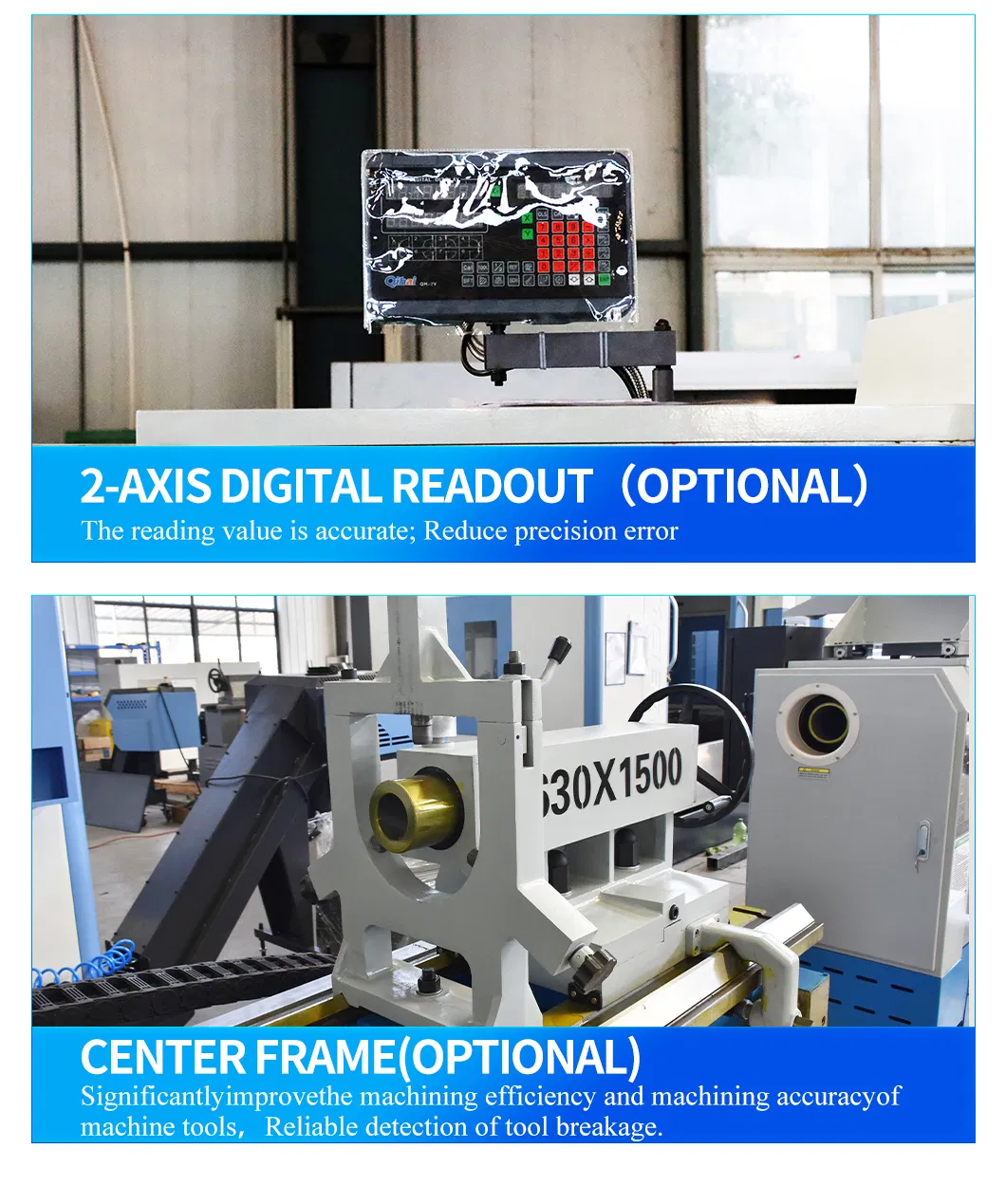

Lathe Detail 6
🏢 Capabilities & Quality
▶
Strict QC control with a testing process exceeding 24 steps.
▶
Over 10 years of experience in manufacturing precision machine tools.
▶
Global export reach including Europe, America, Asia, and Africa.
▶
Certified quality according to international standards such as CE, EAC, and ISO.
▶
Flexible customization to meet unique production requirements.
▶
12-month comprehensive warranty period for all machine tools.
Factory View 1

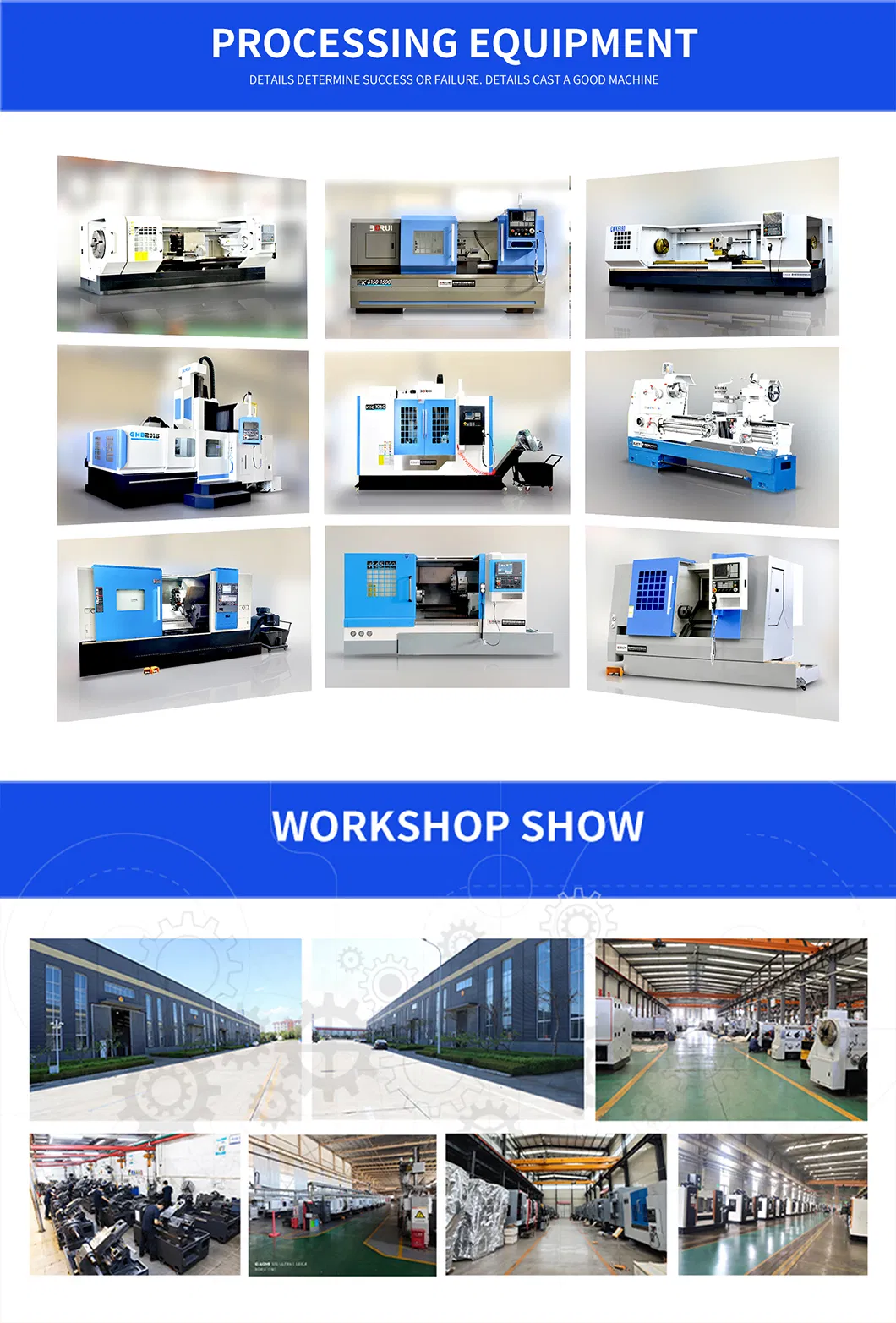

Factory View 2
❓ Frequently Asked Questions
1. How can I choose the most suitable machine for my needs?
Please provide your detailed specifications or product drawings. We can recommend the best model for you based on your specific machining requirements.
2. What are the main products available?
We specialize in a wide range of machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Radial Drilling Machines, and Sawing Machines.
3. What are the standard trade terms for orders?
We accept standard international trade terms including FOB, CFR, and CIF.
4. What are the accepted payment terms?
Typically, we require a 30% initial payment at the time of order, with the remaining 70% balance due before shipment via T/T or irrevocable LC at sight.
5. What is the Minimum Order Quantity (MOQ)?
The MOQ for most of our large industrial machines is 1 set.
6. Is technical support available for international customers?
Yes, we provide multilingual technical support and ensure a fast response for spare parts to maintain your production efficiency.
