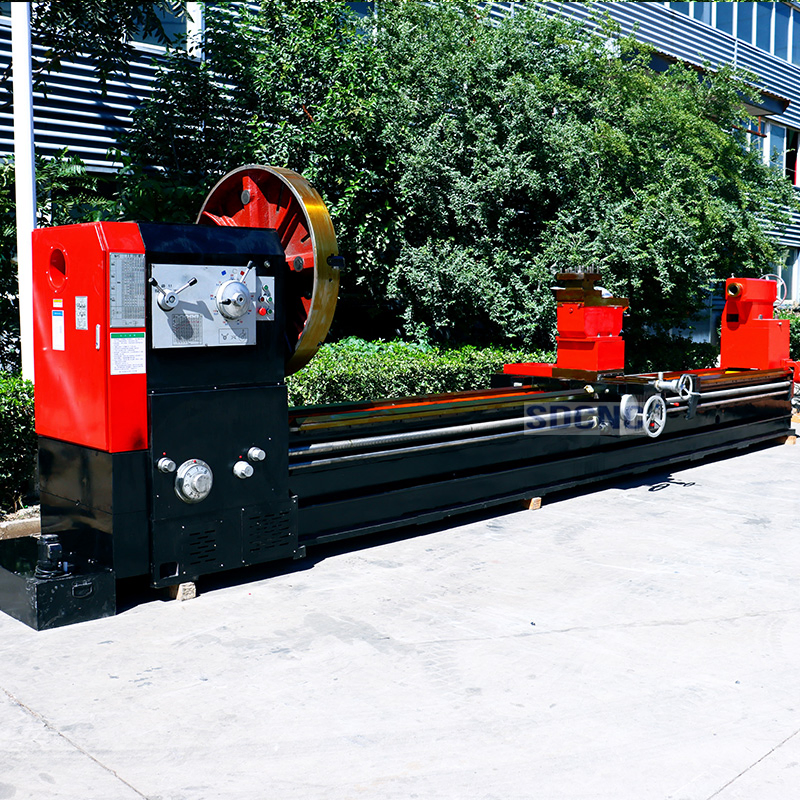

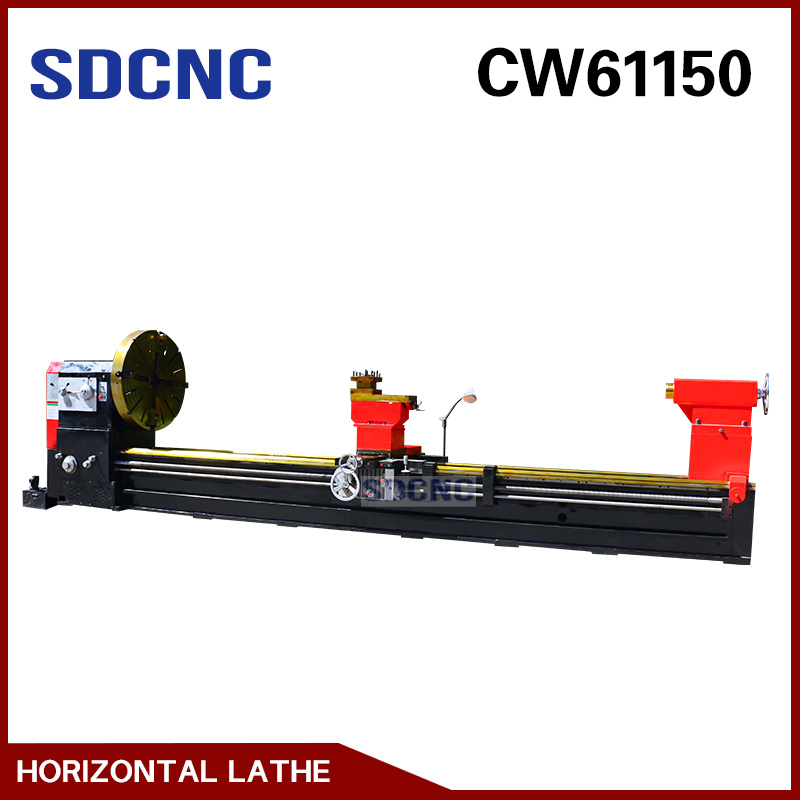

Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine
Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine
Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine
Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine
Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine
1 / 5
Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine
Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine
Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine
Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine
Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine

Cw61150 Horizontal Universal Turning Drilling Heavy Duty Lathe Machine

Customization: Available
After-sales Service: One Year Warranty
Warranty: 13 Months
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.:CW61150
Type:Horizontal Lathe
Guide Rail:Horizontal Guide Rail
Tool Holder:Single-tool Holder CNC Lathe
Power Source:Manual
Controlling Mode:Artificial
Automatic Grade:Manual
Setting Mode:Floor-type
Precision:High Precision
Certification:GS, CE, RoHS, ISO 9001
Condition:New
Function:Lathe Machine
📦

Packaging & Delivery

Package Size:810.00cm * 225.00cm * 205.00cm
Gross Weight:13300.000kg
Package Type:Wood Packing
🖼️

Product Gallery

CW61150 Heavy Duty Lathe 1

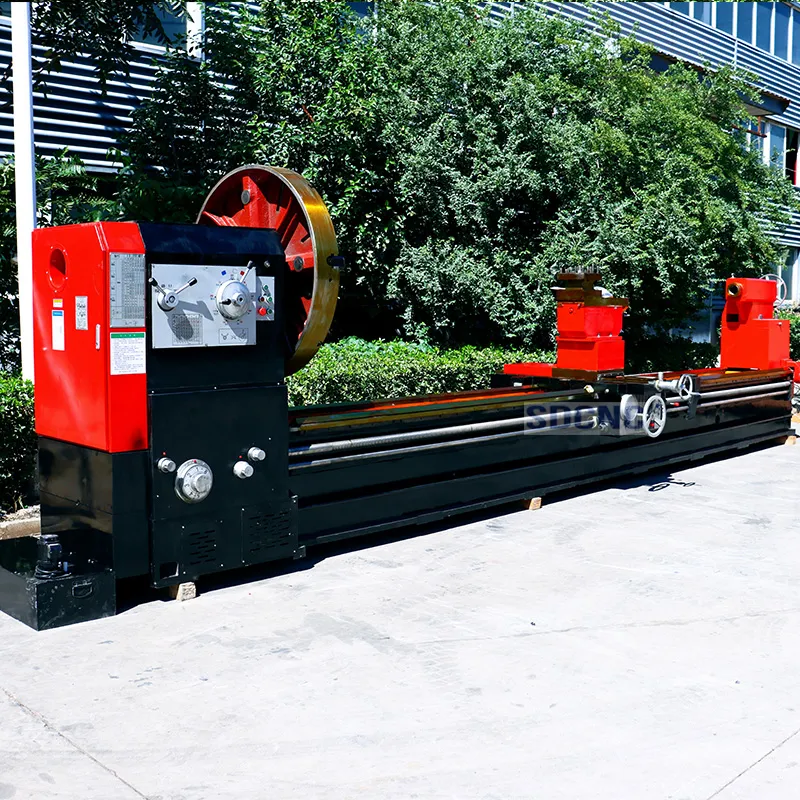

CW61150 Heavy Duty Lathe 2
CW61150 Heavy Duty Lathe 3
CW61150 Heavy Duty Lathe 4

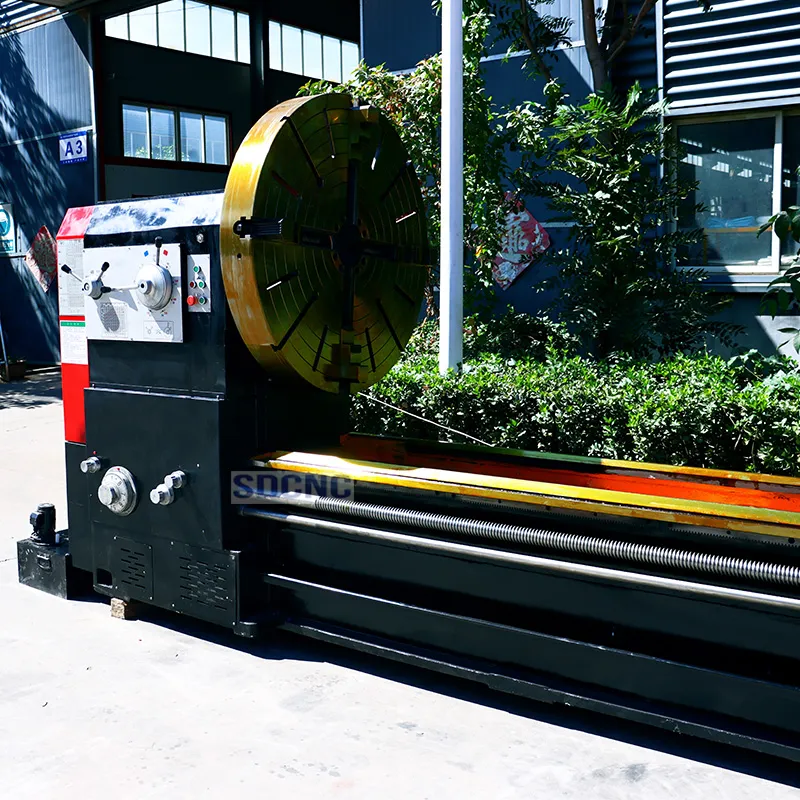

CW61150 Heavy Duty Lathe 5

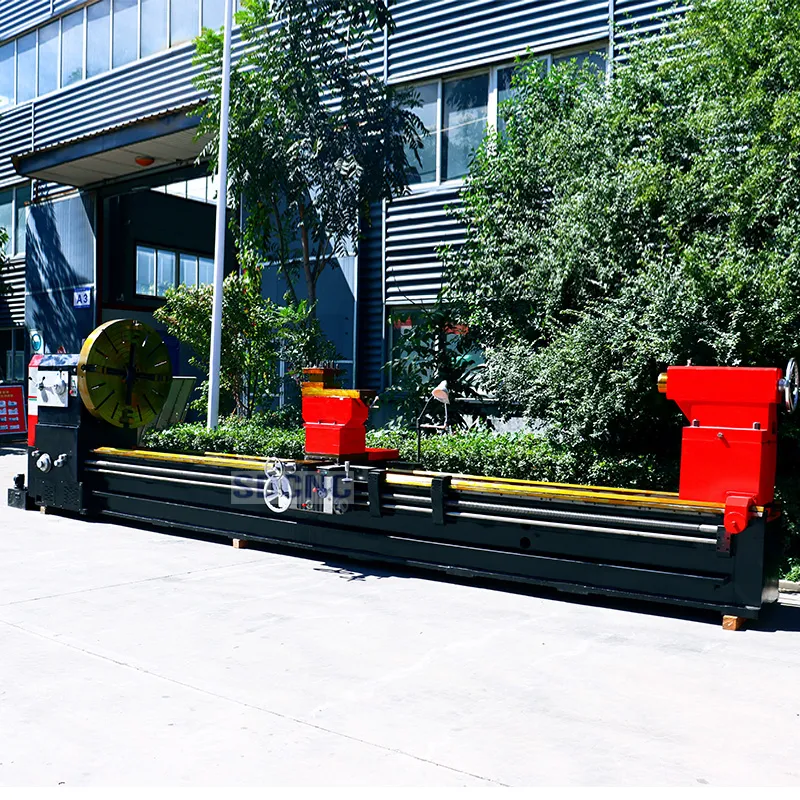

CW61150 Heavy Duty Lathe 6
📊

Technical Parameters

SPECIFICATIONS Units CW61150
Swing over bedmm1500
Swing over cross slidemm1000
Distance between centersmm1500/2000/3000/4000/5000/6000
Guideway widthmm755
Max. load capacityT6
Spindle boremm130
Spindle bore taper-Metric φ140/MT6
Spindle nose type-A2-15
Spindle speed steps-FWD. 21 steps
Spindle speed rangerpm3.15-315
Chuckmmφ1000 4-jaw manual
Turret/tool post-Manual turret 4 position
Tool shank sizemm45 x 45
X axis travelmm620
Z axis travelmm1350/1850/2850/3850/4850/5850
X axis rapid traversemm/min1870
Z axis rapid traversemm/min3740
Main spindle motorkW22
Detail 1
Detail 2

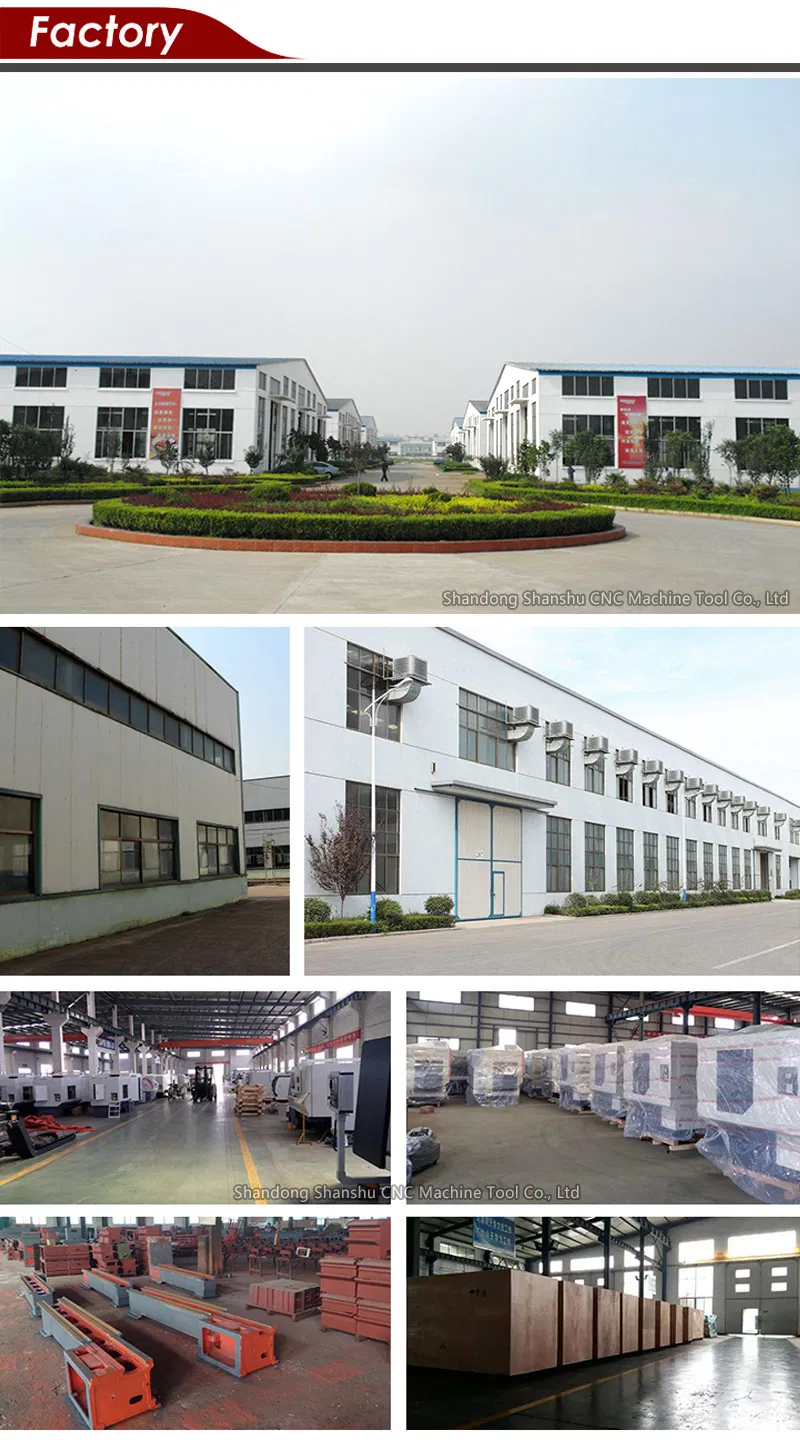

Detail 3
Detail 4
Detail 5
❓

Frequently Asked Questions

What is the maximum swing over bed for the CW61150 model?
The CW61150 horizontal lathe features a maximum swing over bed of 1500mm, making it suitable for heavy-duty turning operations.
What kind of materials can this lathe machine handle?
This heavy-duty lathe is designed for metal turning, drilling, and universal machining tasks with high precision.
Is the machine certified for international standards?
Yes, the equipment complies with GS, CE, RoHS, and ISO 9001 certifications, ensuring safety and quality standards.
What is the maximum load capacity of the lathe?
The CW61150 has a maximum load capacity of 6 tons, supported by a robust horizontal guide rail system.
What are the available distances between centers?
We offer multiple configurations for distance between centers, ranging from 1500mm up to 6000mm to accommodate different workpiece lengths.
How is the product packaged for transport?
The machine is securely packed in professional wood packing to prevent damage during long-distance shipping and delivery.
