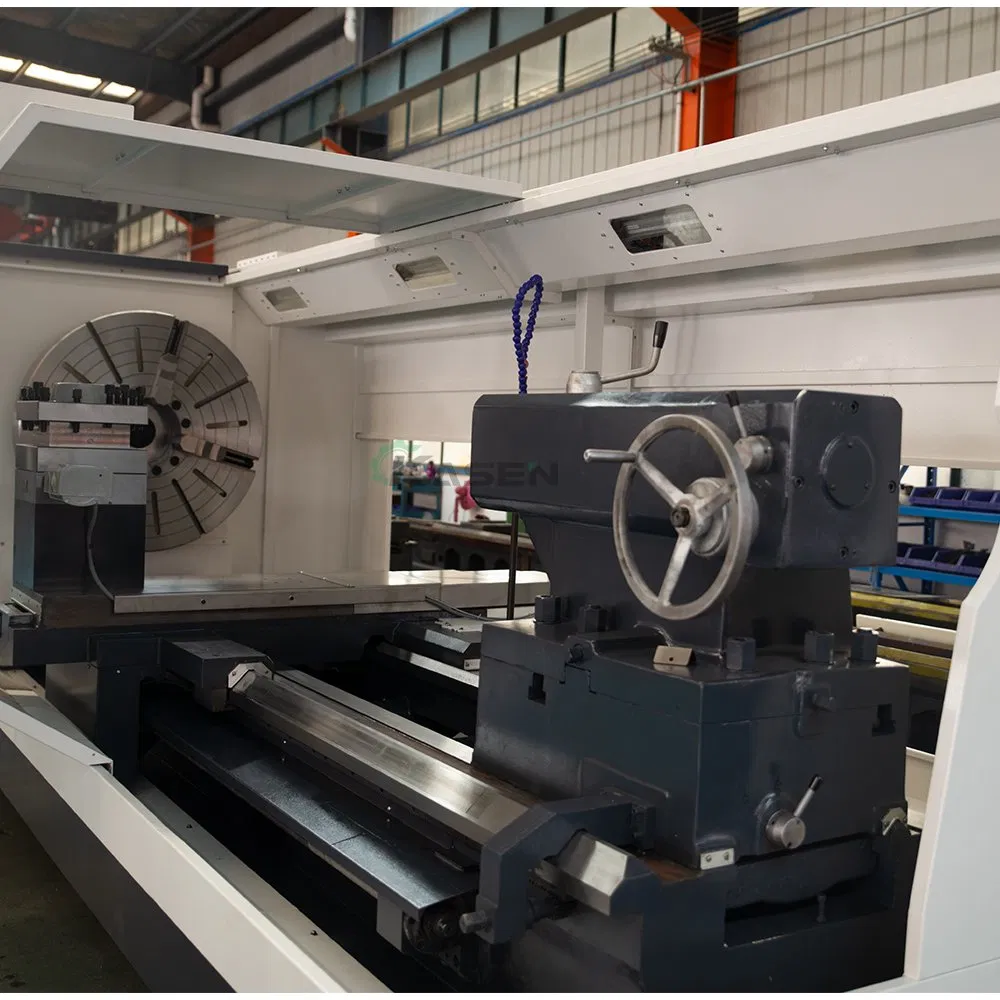

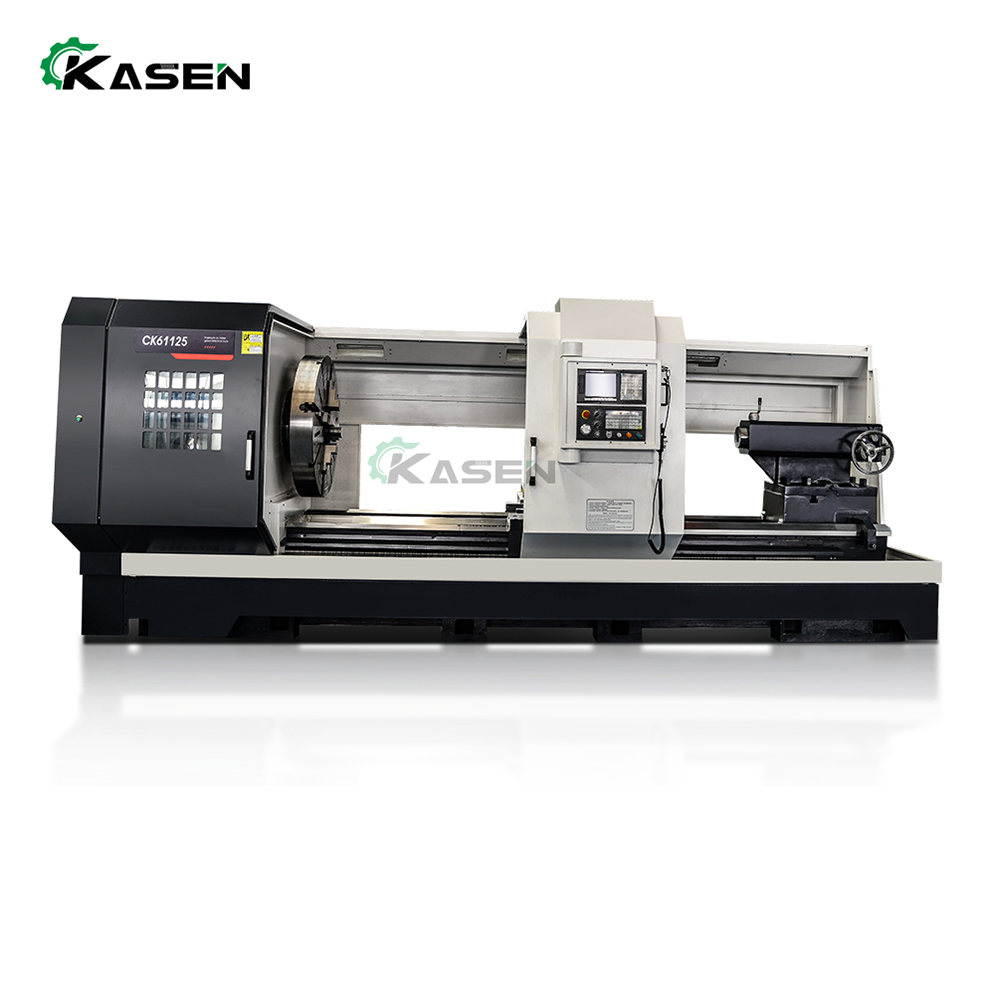

Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine
Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine
Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine
Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine
Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine
1 / 5
Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine
Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine
Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine
Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine
Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine

Heavy Duty Ck61125 CNC Turning Lathe Heavy Duty Center Lathe CNC Machine

Customization: Available
After-sales Service: 24 Hour Online Technical Support
Warranty: 2 Year
Send Inquiry

Product Description

i

Basic Information

Model NO.
CK61125
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Mechanical Drive
Controlling Mode
CNC
Precision
High Precision
Spindle Motor
22kw
Thru-Hole of Spindle
130mm
Max. Swing Over Bed
1250mm
Bed Width
755 mm
Production Capacity
100 Sets/Month
★

Product Description

Fully Automatic Siemens System CK61125 Heavy Duty CNC Lathe
Heavy Duty CNC Lathe
High-speed spindle equipped with Japan NSK bearings.
Superior rigidity and stability in the lathe body and guide rails.
Guide rails treated by super audio quenching for maximum hardness.
X and Z axis feed driven by precision ball screws with servo motors.
Electronic handwheel for easy and precise operation.
Flexible choice of CNC systems (GSK, Siemens, Fanuc).
Three-gear stepless speed change ensures lower noise and high machining accuracy.

Standard Configuration

  • 755mm bed width
  • 4-station electric tool post
  • Spindle hole 130mm
  • Manual chuck & manual tailstock
  • GSK control system

Optional Configuration

  • Hydraulic chuck & tailstock
  • 6/8 station electric turret
  • Siemens/Fanuc control system
  • Servo main motor
  • Auto chip conveyor
📋

Technical Parameters

SPECIFICATIONS Units CK61100 CK61125
Swing over bedmm10001250
Swing over cross slidemm610850
Distance between centersmm1500-60001500-6000
Guideway widthmm755755
Spindle boremm130130
Spindle speed rangerpm4-3004-300
X axis travelmm520620
Main spindle motorkw2222
Weight (for 1500mm length)kg1000011000
📷

Detailed Photos

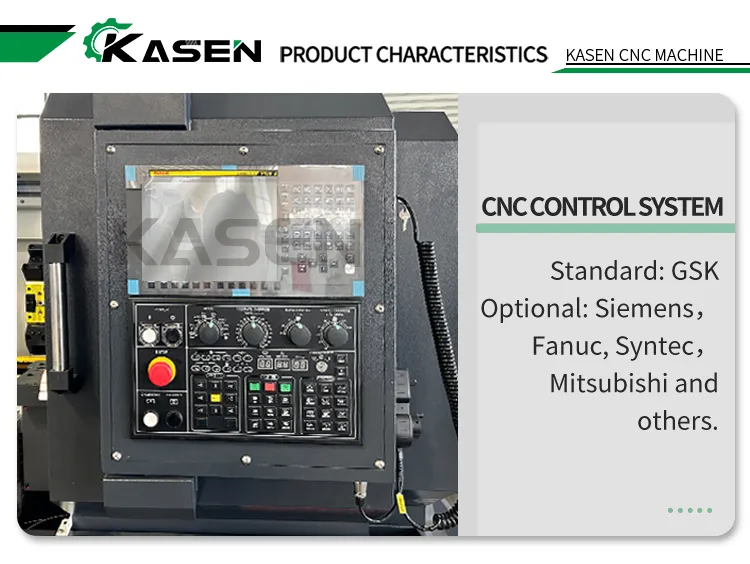

CNC Lathe Detail 1

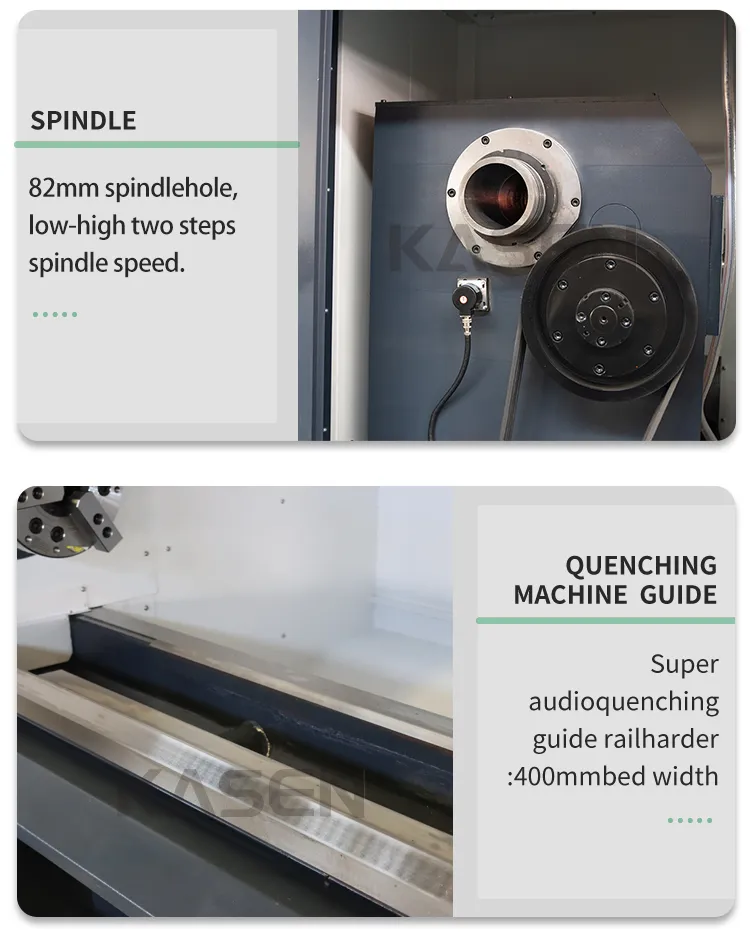

CNC Lathe Detail 2

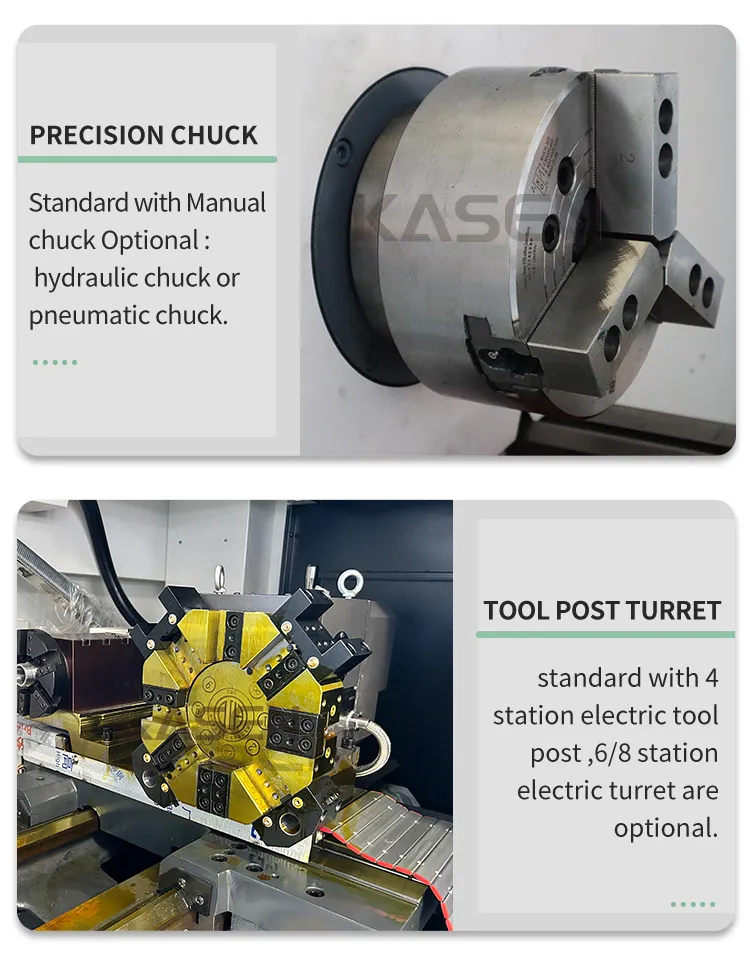

CNC Lathe Detail 3

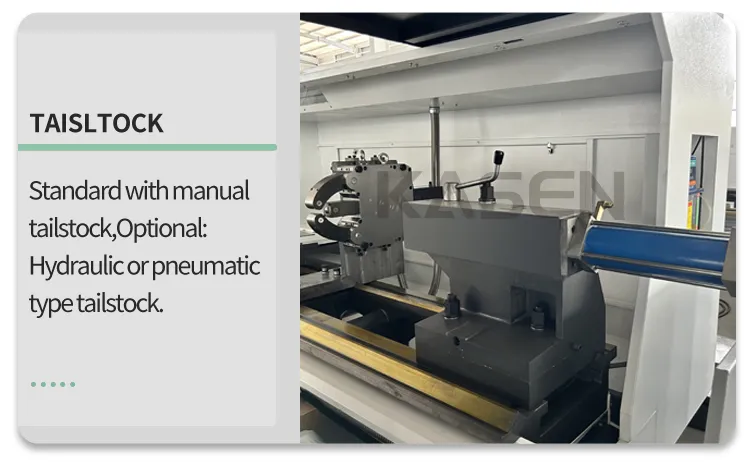

CNC Lathe Detail 4

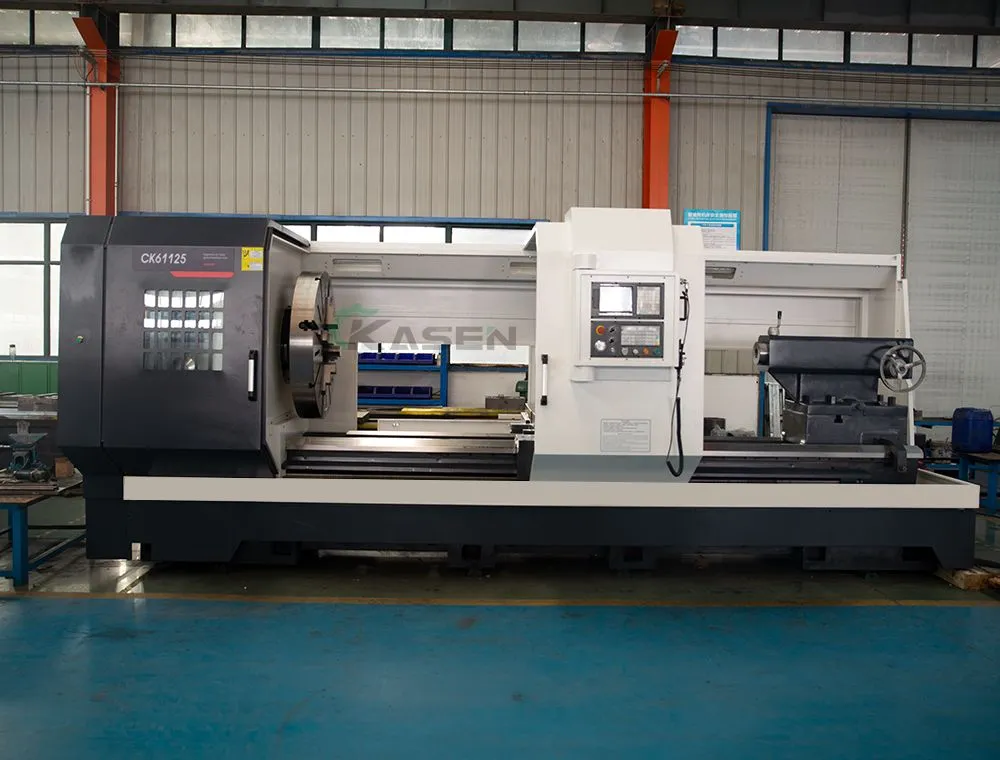

CNC Lathe Detail 5

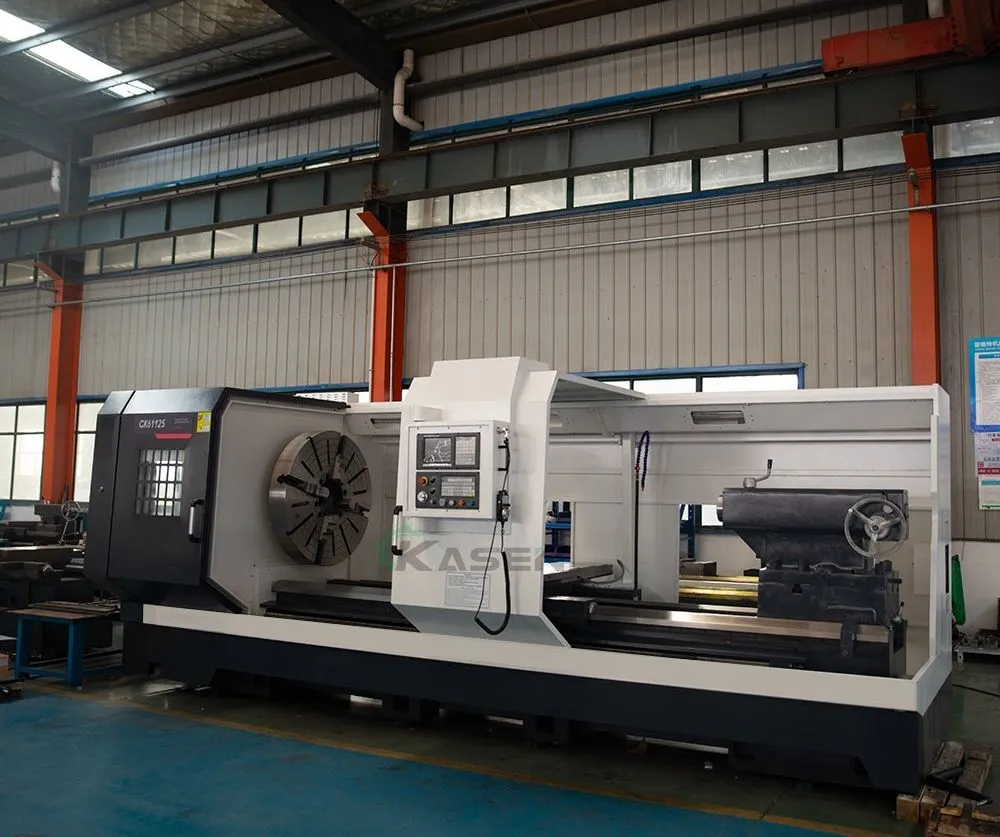

CNC Lathe Detail 6
🏭

Manufacturing Excellence

Factory View
Machining Process

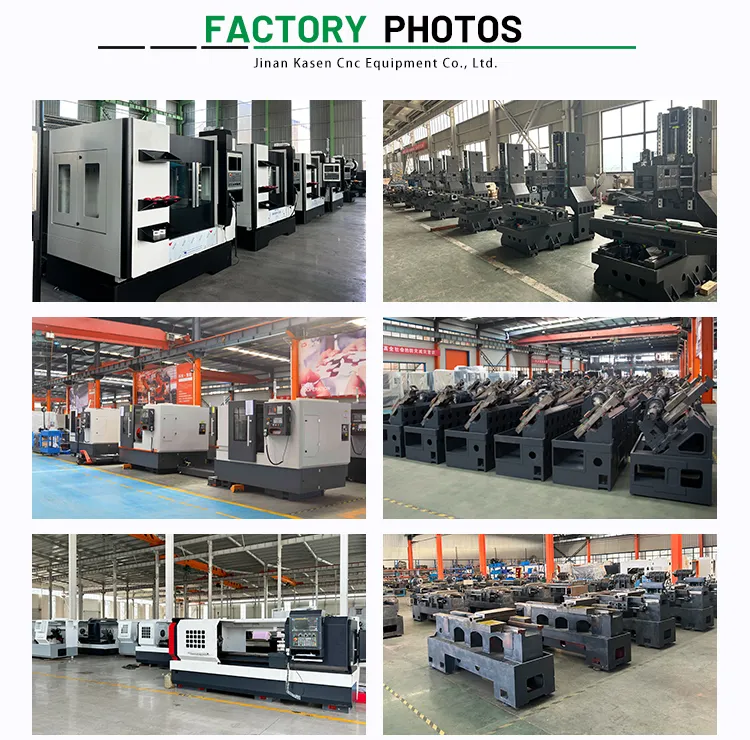

Quality Control
Assembly Line
Workshop
Technical Team
?

Frequently Asked Questions

1. How is the quality of the CNC lathe guaranteed?
We maintain strict quality control through three specialized factories. From casting and processing to final assembly, the entire production process is fully controlled. We always provide a pre-production sample and conduct a final inspection before shipment.
2. What control systems can I choose for the CK61125?
The standard configuration comes with the GSK system. However, you can optionally choose Siemens or Fanuc control systems based on your operational requirements and familiarity.
3. What are the key features of the spindle?
The spindle uses high-quality Japan NSK bearings, supporting high-speed operation with three gears and stepless speed changes. This configuration ensures low noise and high standard machining accuracy.
4. What is the maximum load capacity and workpiece length?
The CK61125 supports a maximum swing over bed of 1250mm and workpiece lengths ranging from 1500mm to 6000mm. The load capacity is rated at 6/10 tons depending on the specific setup.
5. What payment and delivery terms do you accept?
We accept delivery conditions including FOB and CIF. Payment can be made via telegraphic transfer (T/T), letter of credit (L/C), D/P, or D/A in US Dollars or CNY.
6. Can I customize the tool post and chuck?
Yes. While the manual chuck and 4-station electric tool post are standard, we offer optional hydraulic chucks, hydraulic tailstocks, and 6 or 8-station electric turrets to suit your automation needs.
