| Item | Standard |
|---|---|
| Rated Power | 220W |
| Controller Power Supply | 24V DC±10% |
| Ambient Temperature | -10°C~+60°C |
| Protection Level | Detection device IP67 |
| Detection Rod Length | 400mm |
| Detection Angle | 5°~150° |
| Detection times/life | 10 million times |
| Single Detection Time | 0.3-2 sec |
| Detection Accuracy | Adjustable up to 1mm |
| Net weight | 5.2kg |

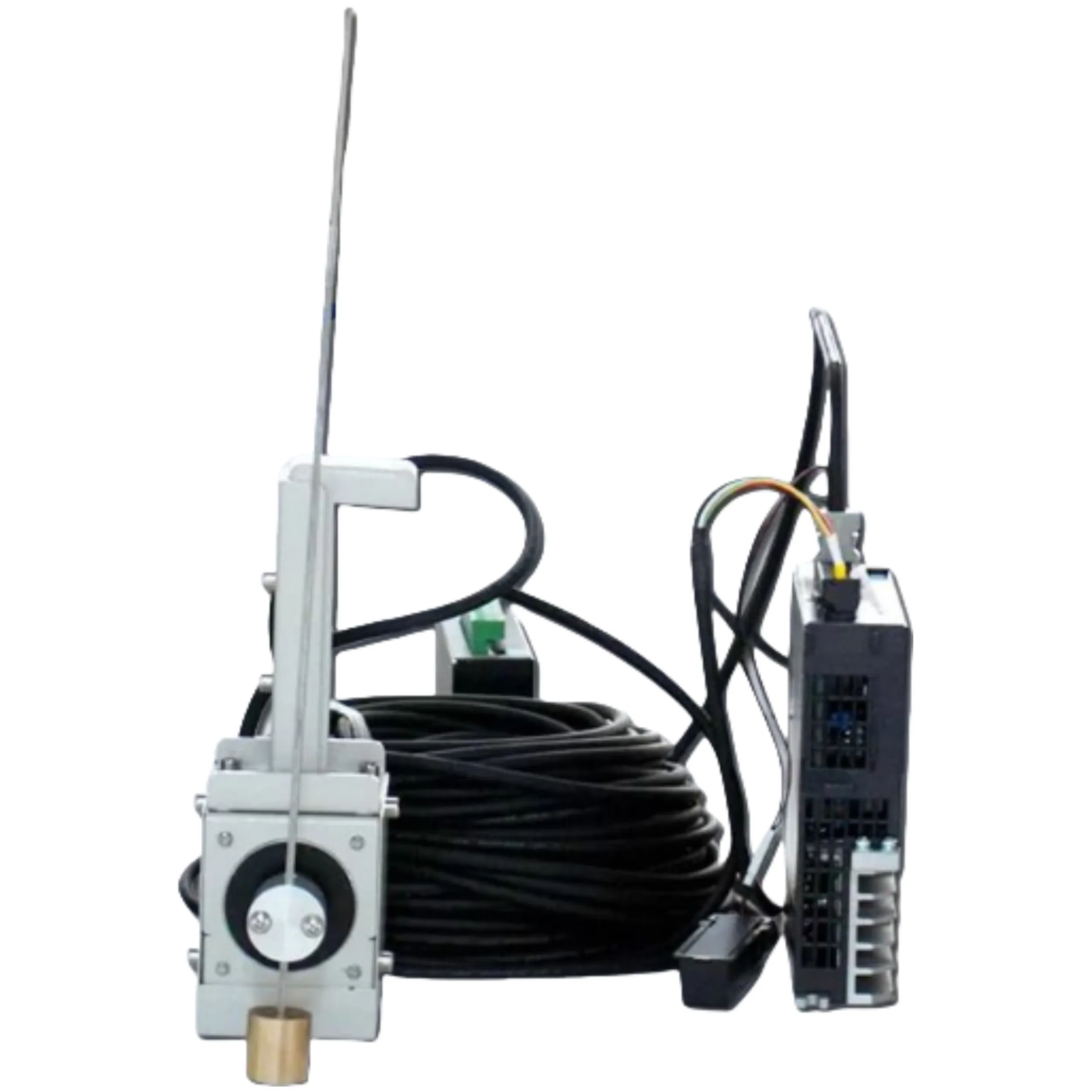

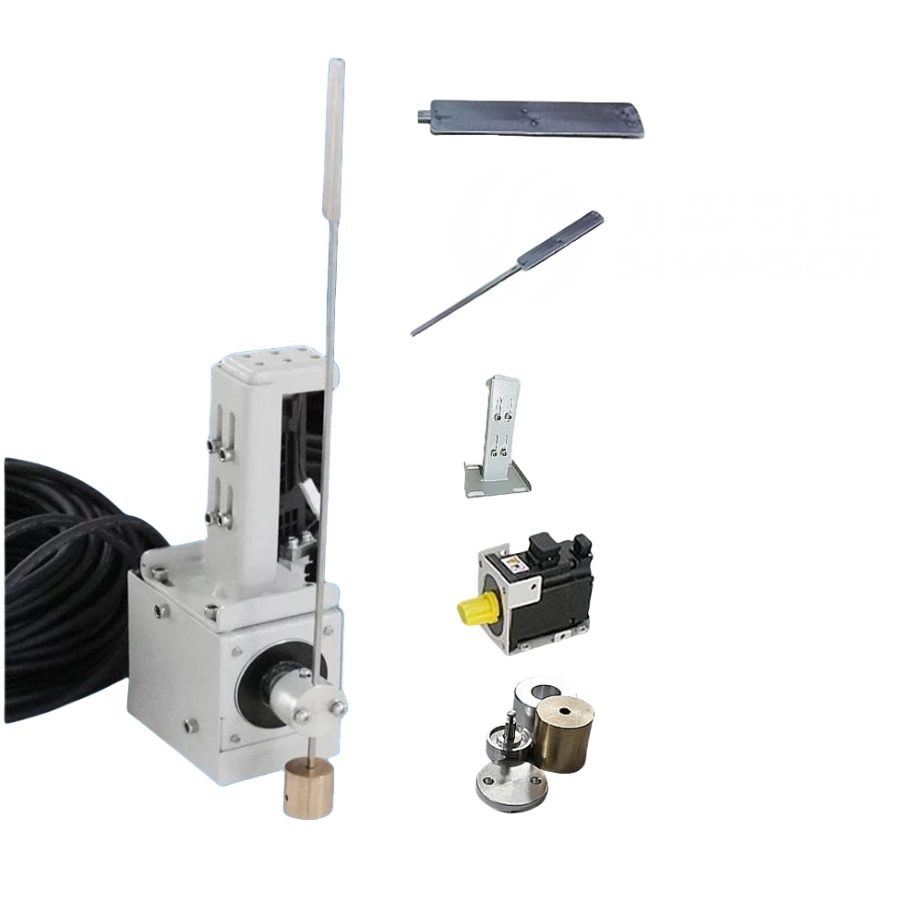

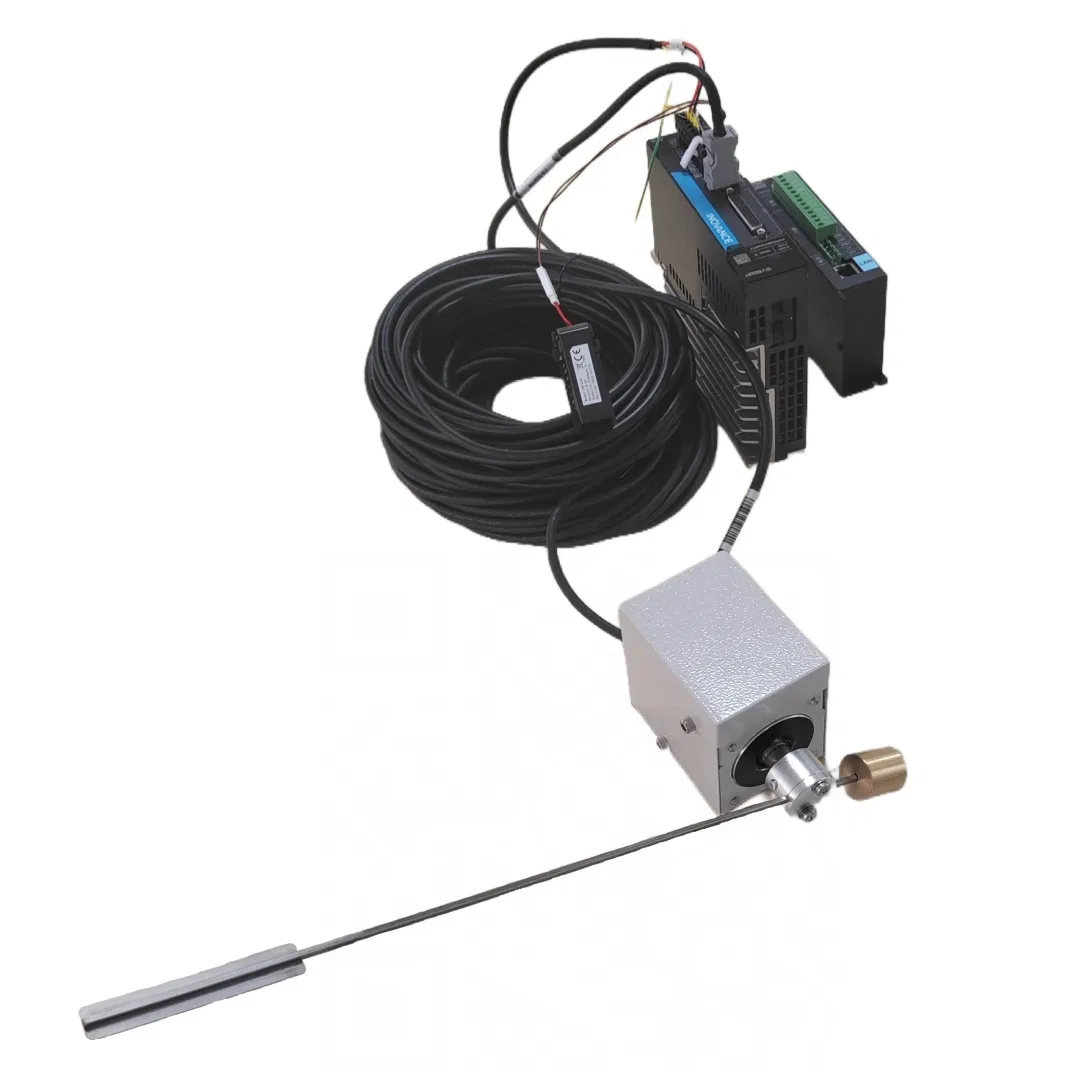

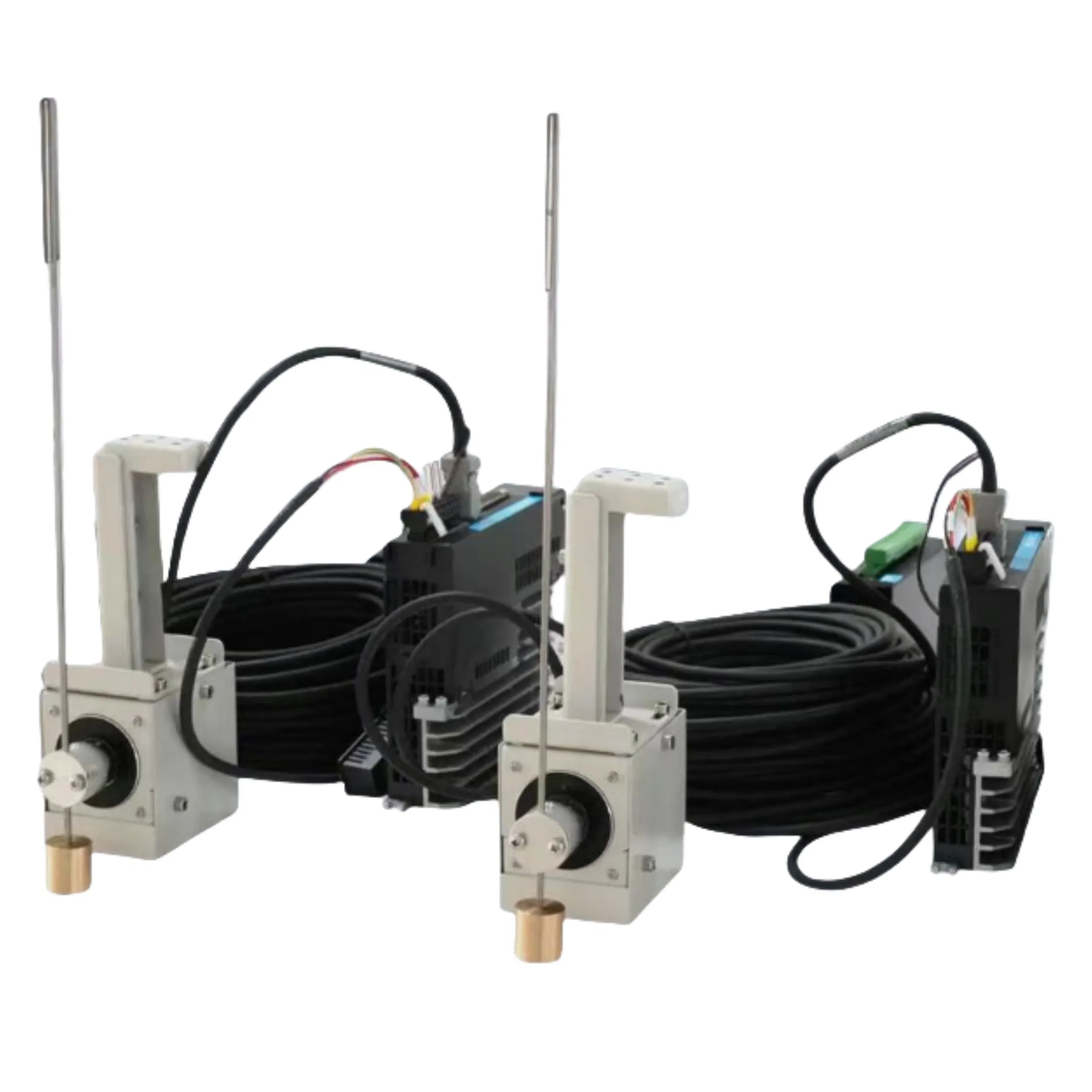

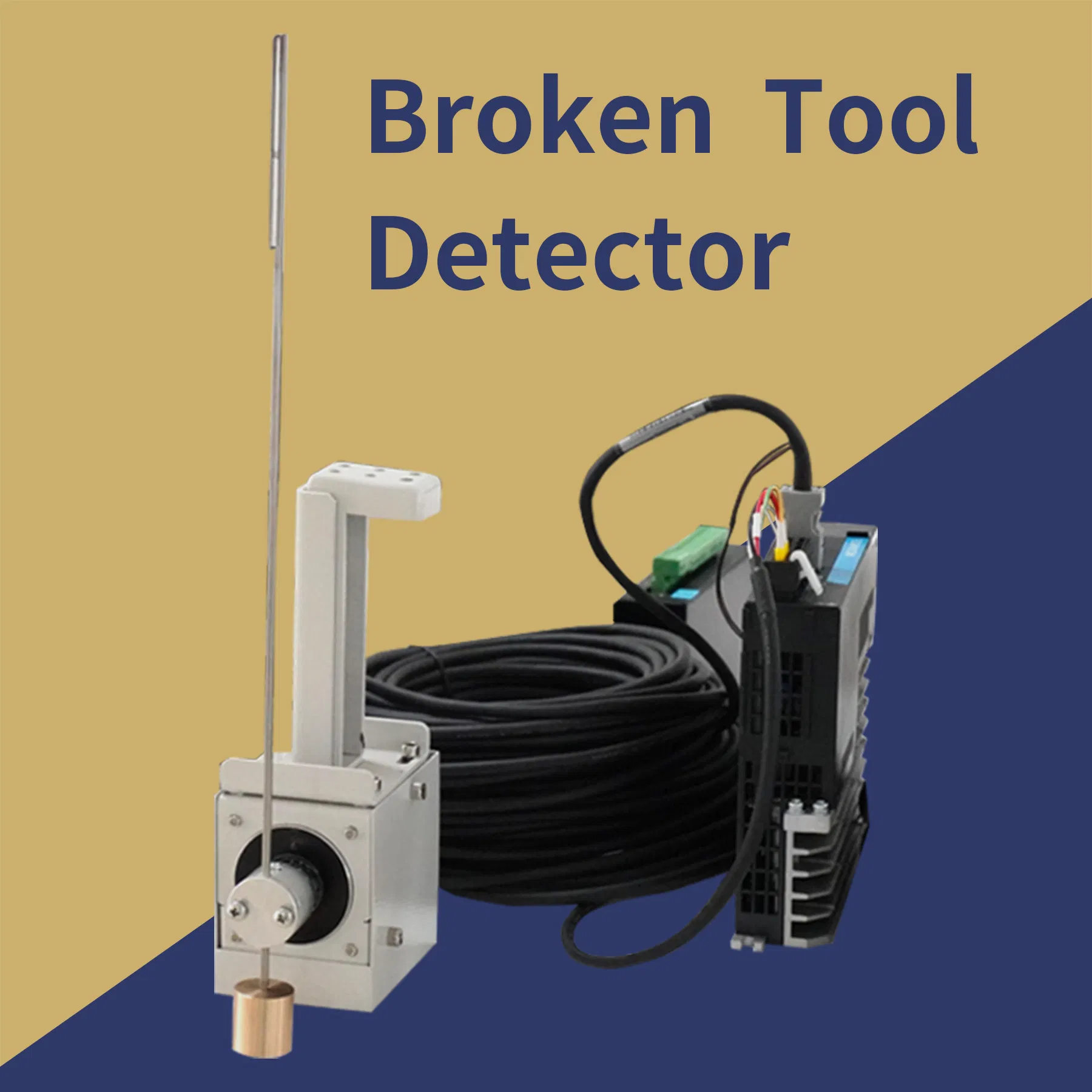

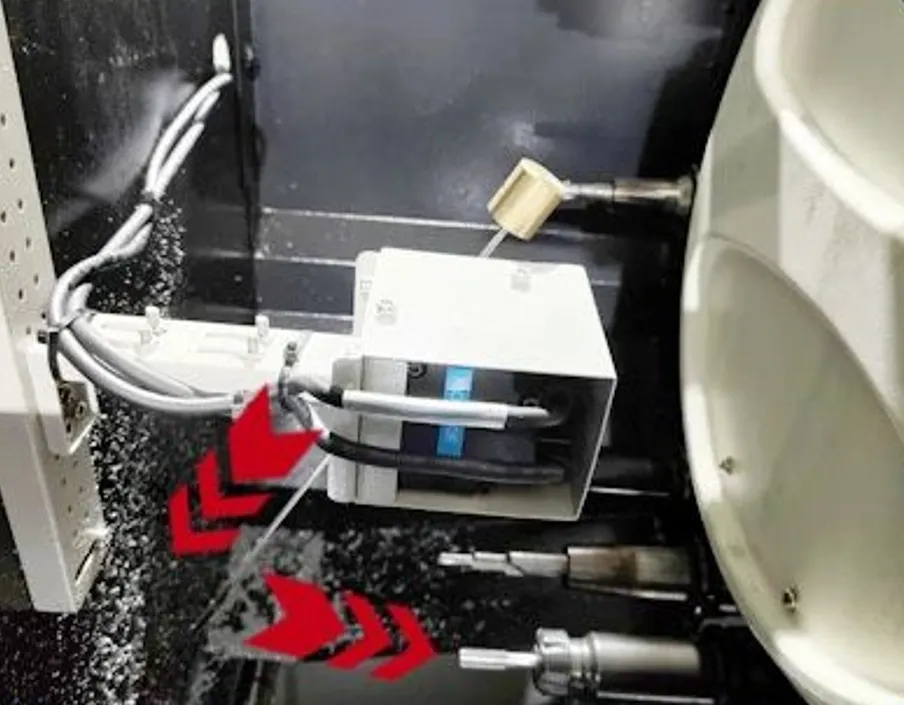

The Broken Tool Detector adopts a contact-based detection method within the tool magazine. When the detection rod touches the tool tip, it automatically returns to the origin. Through logical operations and detection algorithms, it calculates the wear or breakage of the tool tip and immediately notifies the system to prevent production accidents.

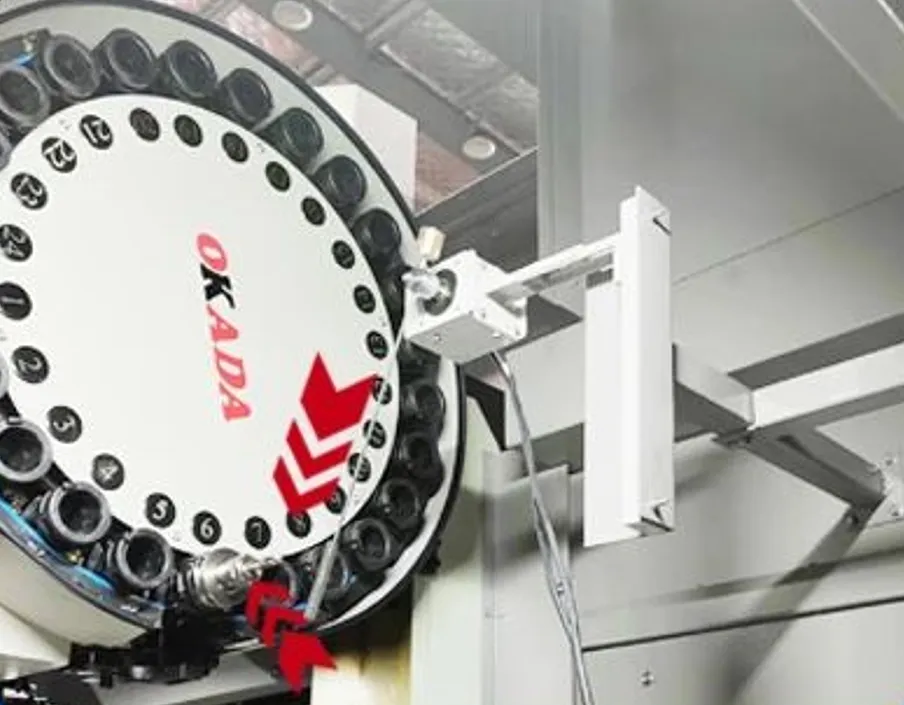

The system effectively detects tool wear or breakage without occupying processing time. It is compatible with disk-type and chain-type tool magazines.
